19 inch touchscreen metal
(high brightness)

Model: 19HB9M
21 units in stock
  1. High-brightness Full-HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, panel mount

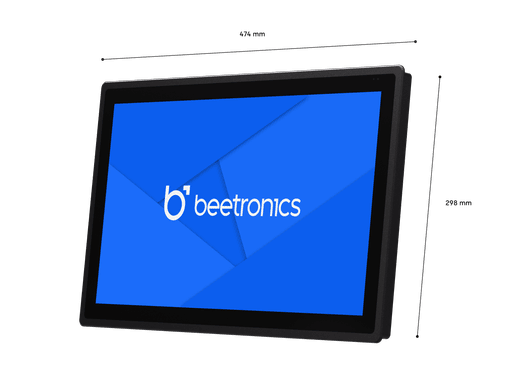

  4. External dimensions: 472 x 296 x 45 mm
  5. More specifications
£874.80 VAT incl.
Order by 6:00 pm for delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

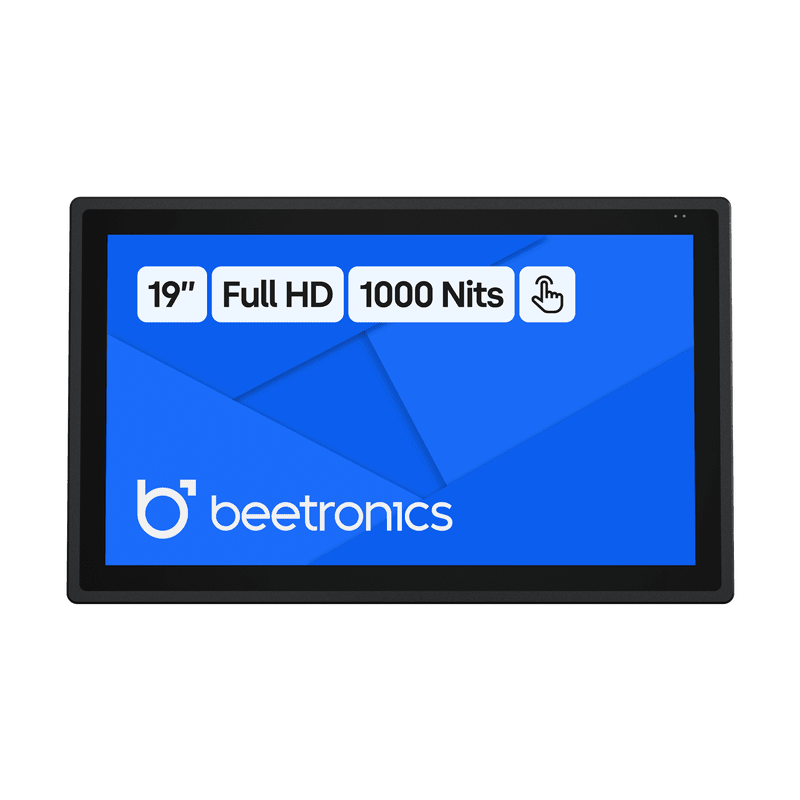

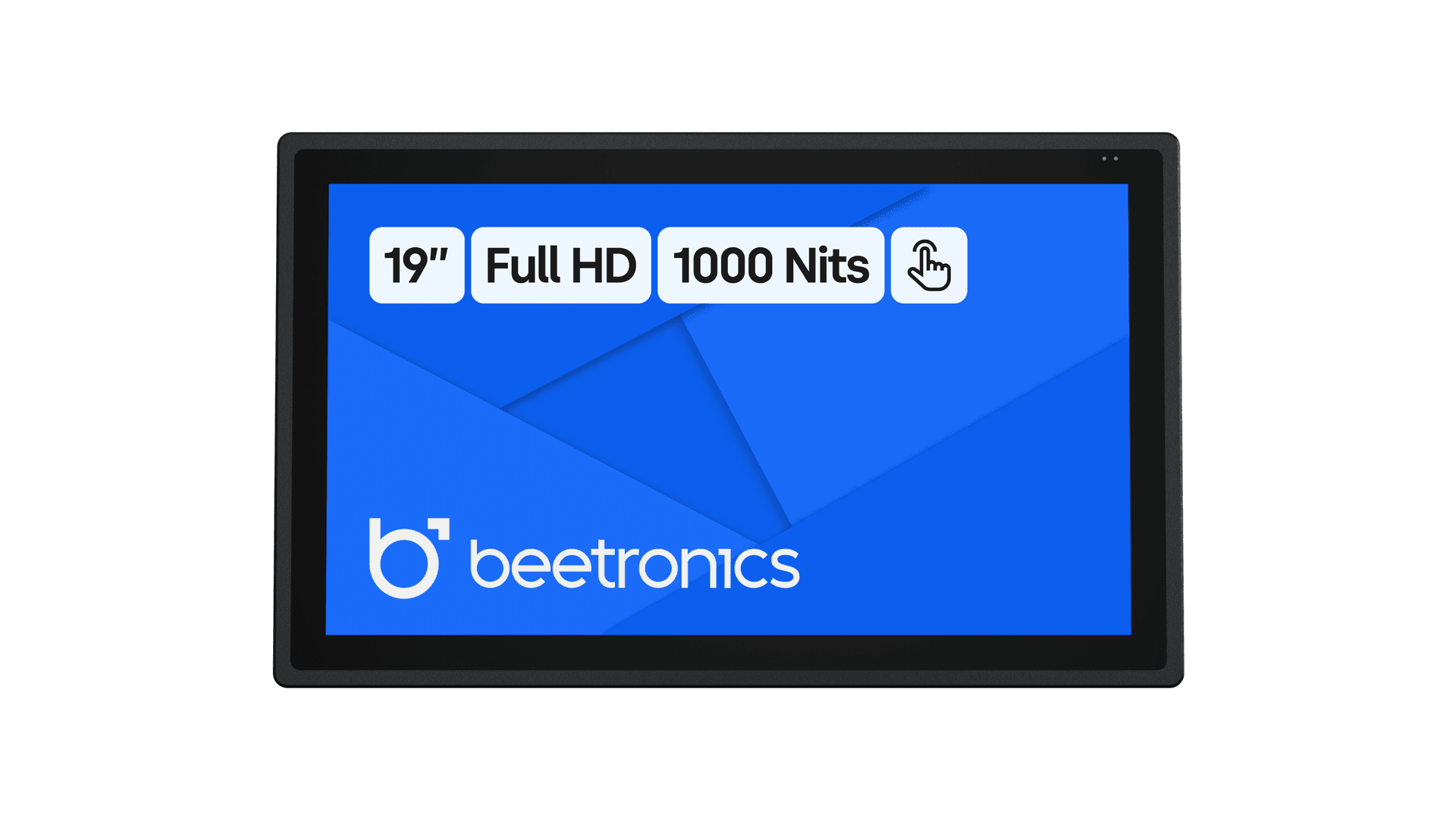

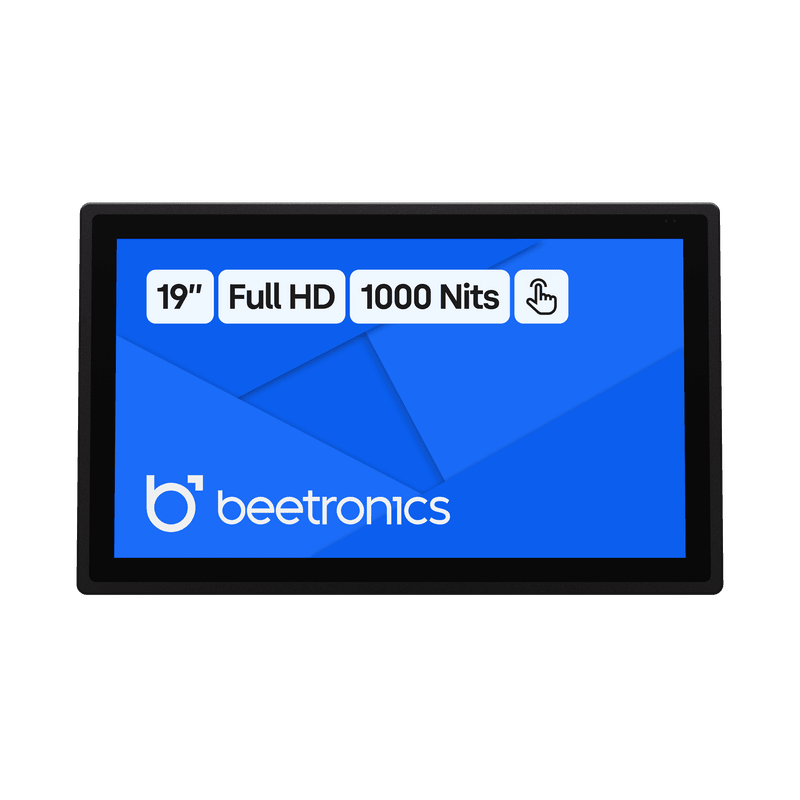

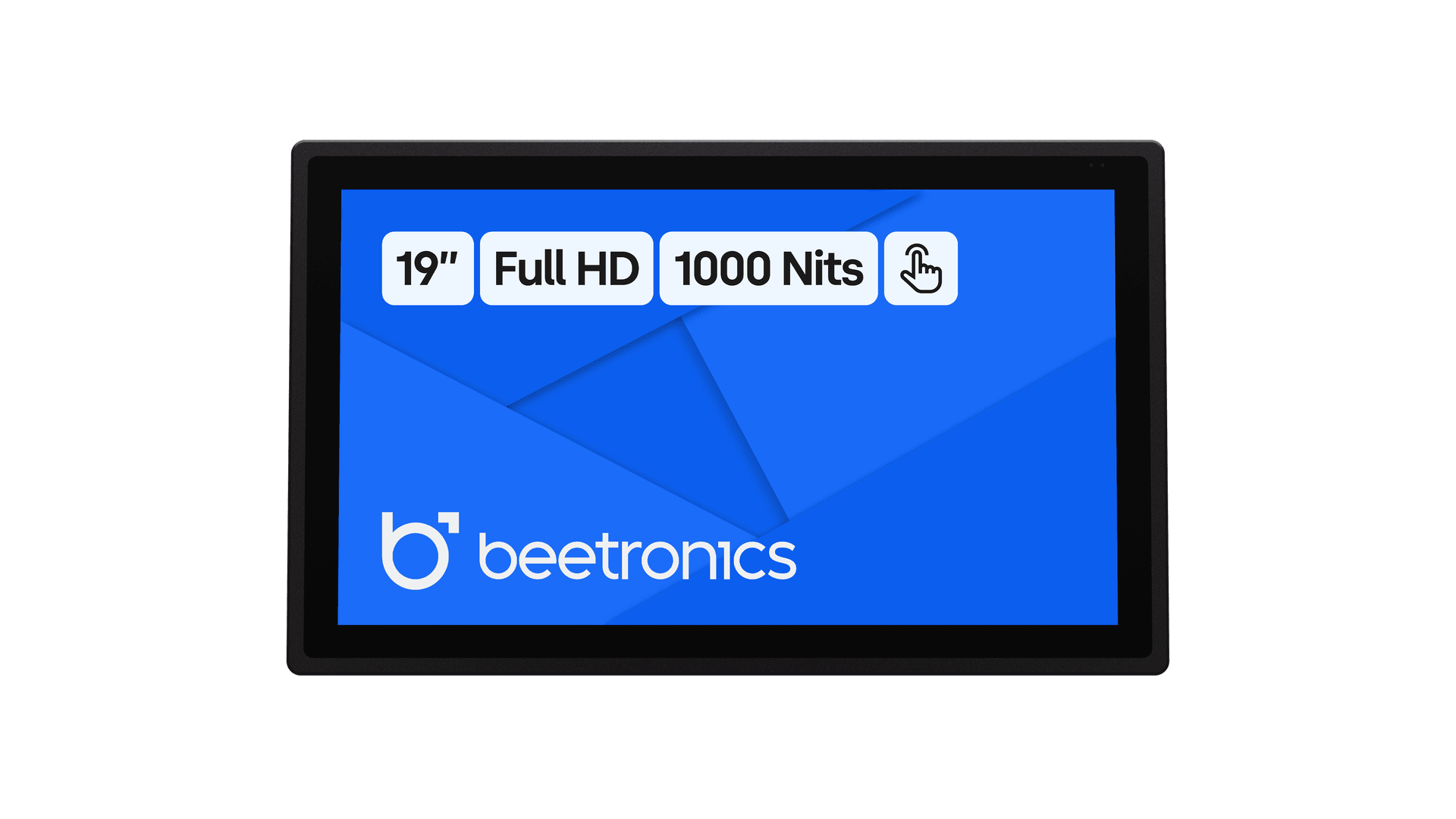

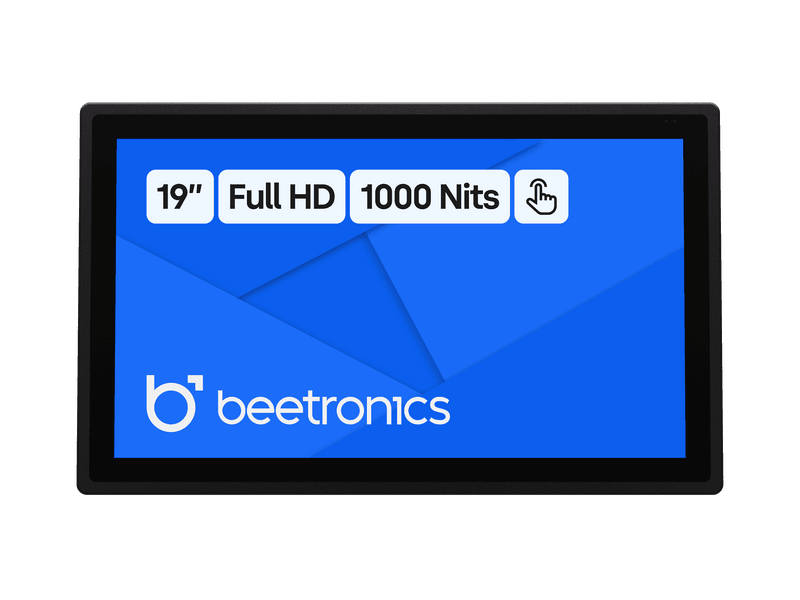

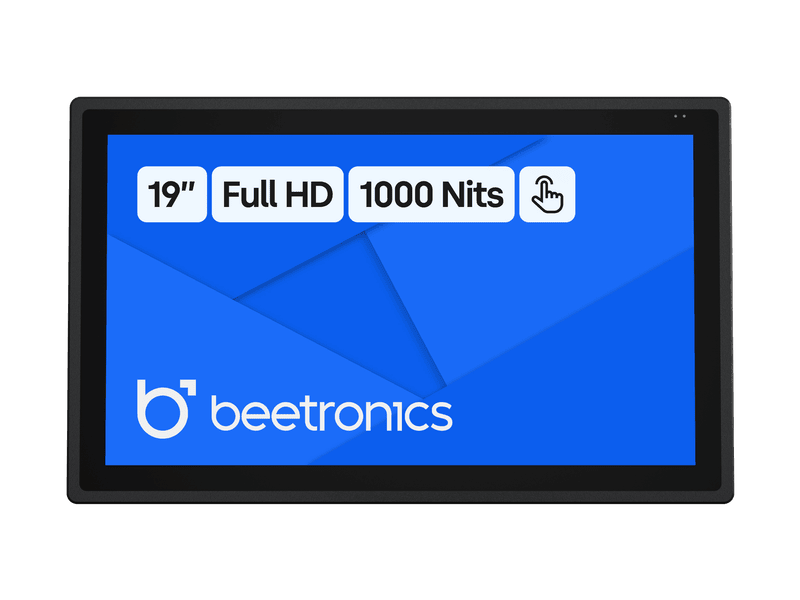

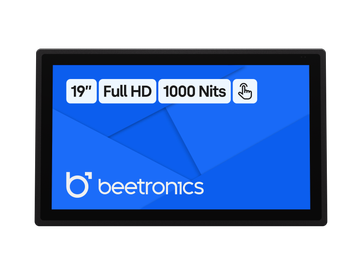

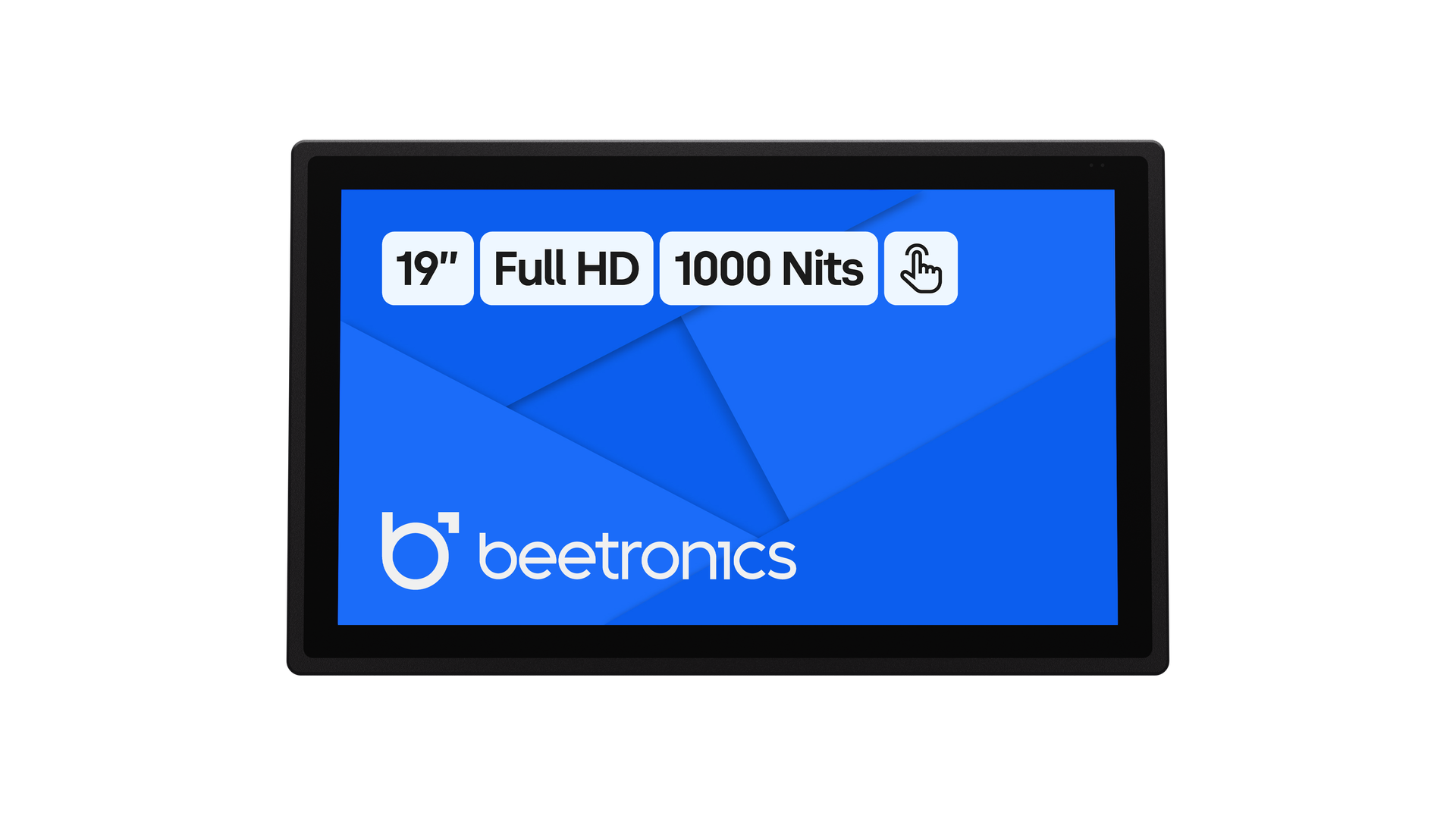

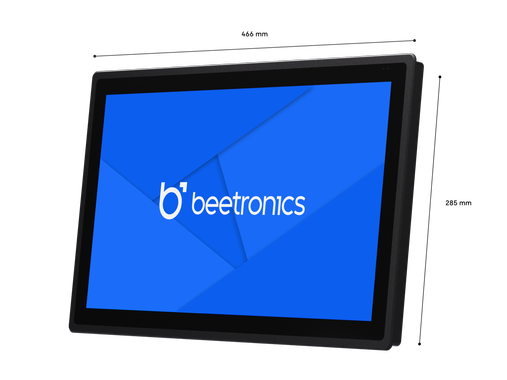

This 19-inch touchscreen monitor features a matte, Full HD panel with a high brightness of 1000 nits. The display is designed for both indoor and outdoor use and guarantees excellent visibility in any environment. Thanks to its sturdy and compact metal casing, the 19HB9M can be seamlessly integrated into any application. The touchscreen is suitable for professional, commercial, and industrial use.

Sunlight-readable
Full HD multi-touch panel

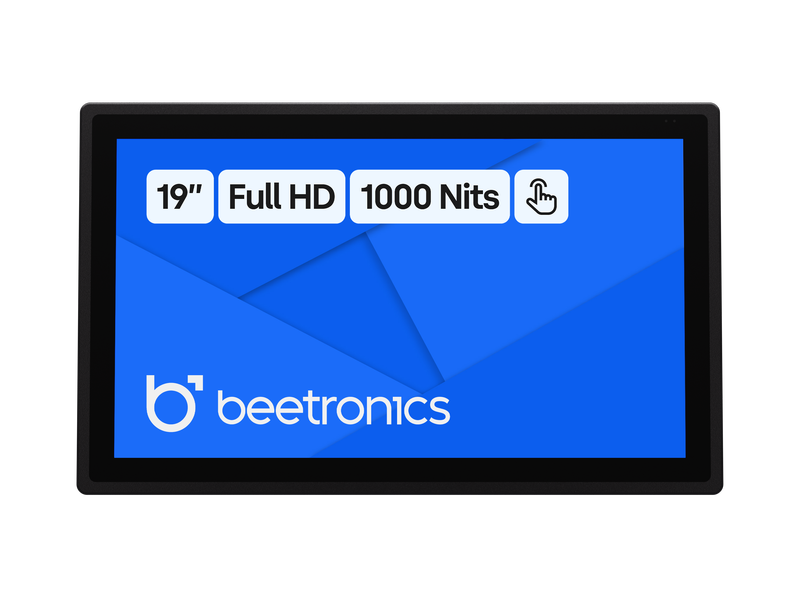

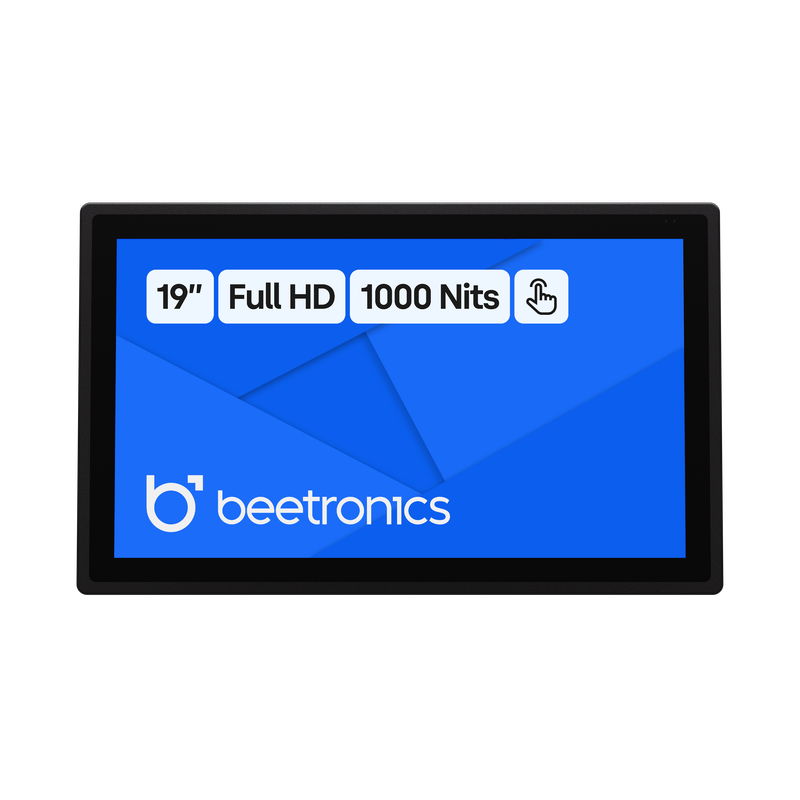

The 19-inch touchscreen monitor is equipped with a Full HD panel that provides a sharp image with true-to-life colors. The touchscreen has a matte front panel with a high brightness of 1000 nits and is optically bonded. This ensures an easily readable image without reflections even in the brightest environments.

The screen brightness can also be automatically dimmed based on ambient light via the integrated light sensor. The brightness can also be manually adjusted using the included remote control or an optional dimmer knob.

19 inch touchscreen metal (high brightness)

Compatible with Windows,
macOS, ChromeOS and Linux

The 19-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

19 inch touchscreen metal (high brightness)

Designed for
professional use

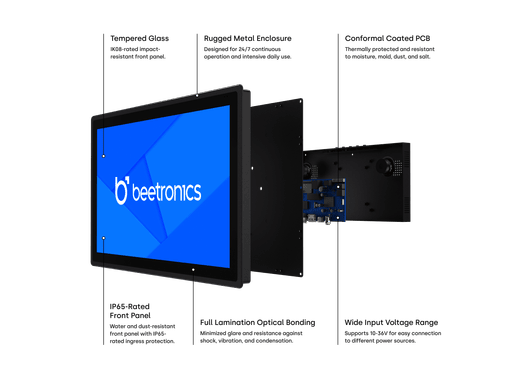

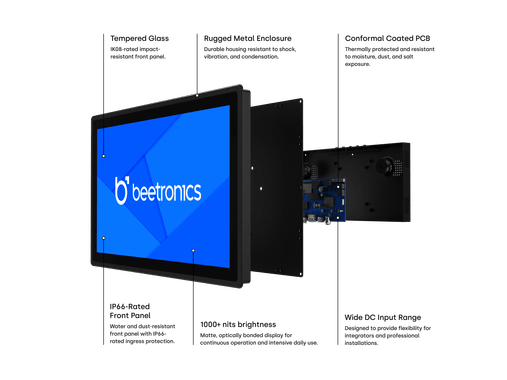

The 19HB9M is designed for professional applications and is suitable for continuous use. The display is produced using high-quality industrial components and features a robust metal casing with a sturdy front panel.

The display supports a wide input voltage of 10-36V DC, allowing it to be plugged direclly into an outlet or the popular 12V or 24V options.

19 inch touchscreen metal (high brightness)

Seamless integration
for any application

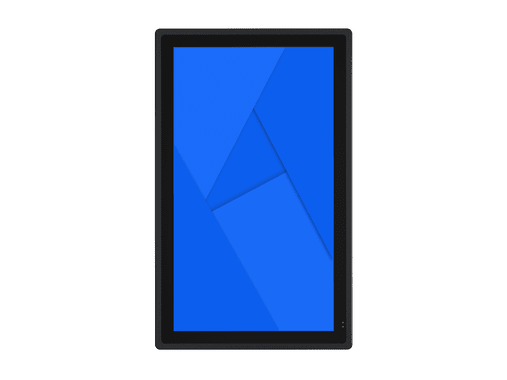

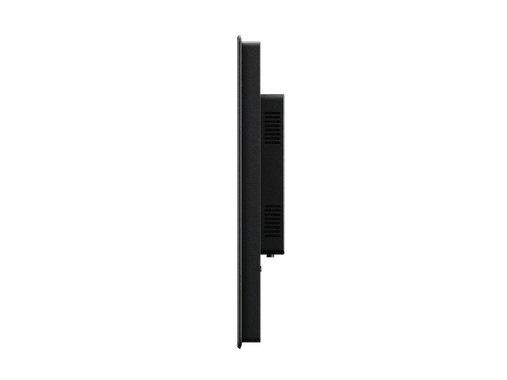

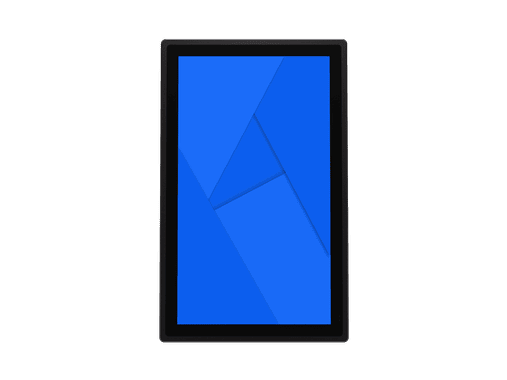

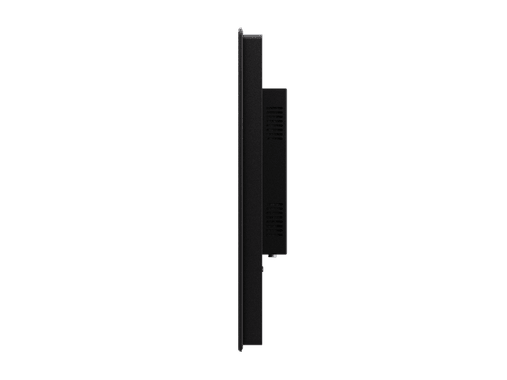

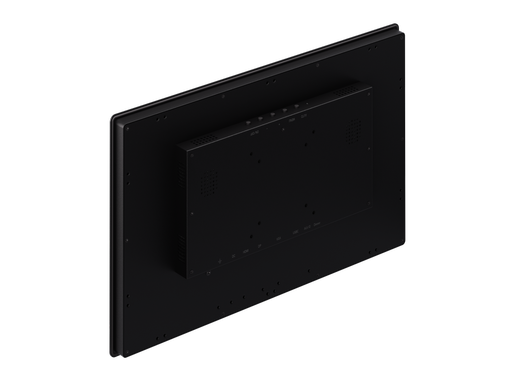

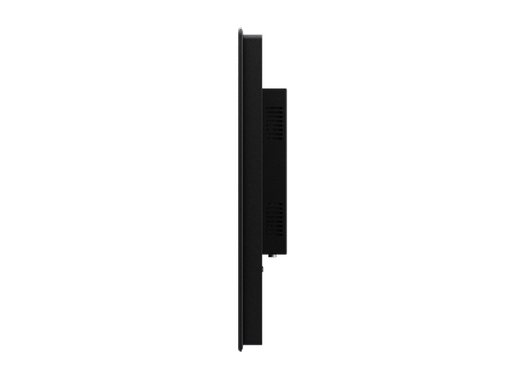

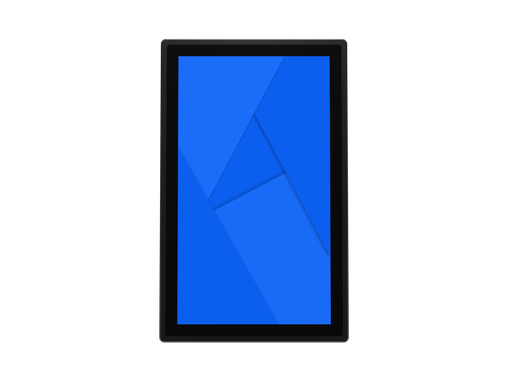

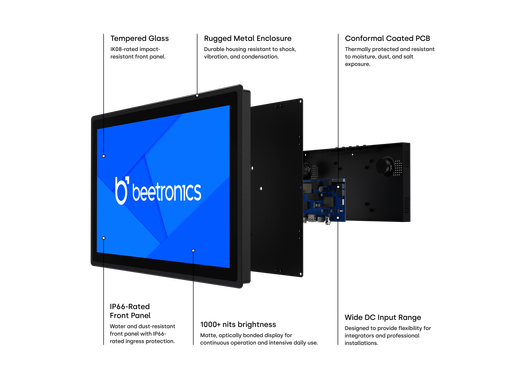

The touchscreen monitor is designed with a sturdy metal casing and a waterproof and dustproof front panel. The thin and symmetrical bezel provides a seamless flat finish and is suitable for both portrait and landscape mounting.

The touchscreen does not require ventilation and can be integrated into any application.

19 inch touchscreen metal (high brightness)
General
Manufacturer
Beetronics
Item number
19HB9M
Product name
19 inch touchscreen metal (high brightness)
Warranty
2 years
Datasheet
User manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
Diagonal size
18.5 inches (474 mm)
16:9 (4:3 adjustable)
1920 x 1080 (max), 640 x 480 (min)
Brightness
1000 nits
Contrast
1000:1
Color encoding system
PAL/NTSC/SECAM
170° horizontal, 170° vertical
Surface
Mat tempered glas
Capacitive, 10-point multi-touch (PCAP), optically bonded
Touch control
Stylus, hand, glove

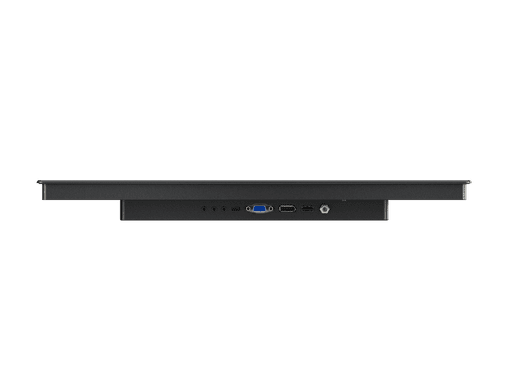

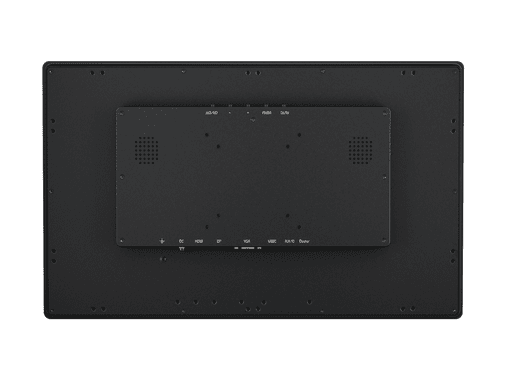

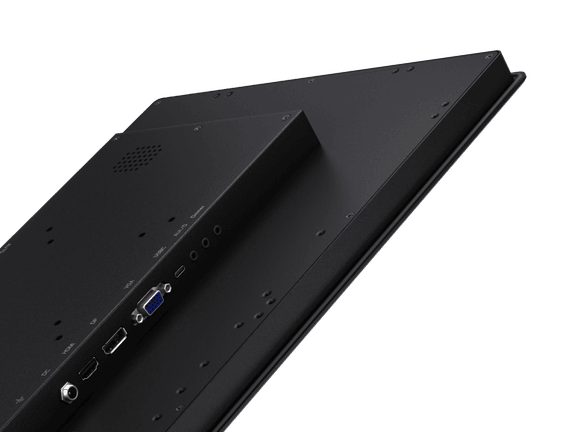

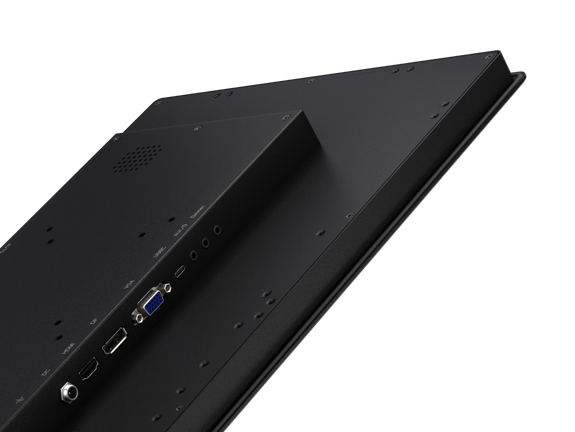

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, audio, touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x
Size & weight
Colour
Black

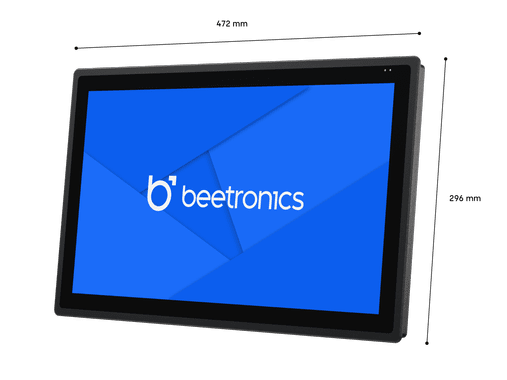

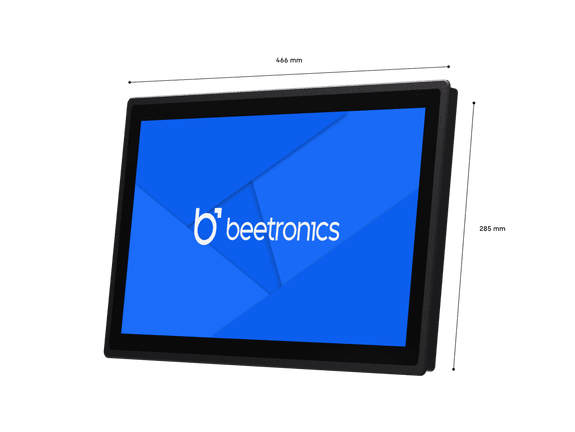

Dimensions (without stand)
472 x 296 x 45 mm
Active area
413 x 233 mm
Weight
6250 grams
Technical drawing
3D Drawing
Features and functions
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Automatic dimming based on ambient light via an integrated light sensor. Manual dimming via the remote control or an optional dimmer knob.
Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 10-36V
Consumption
typical: 34.0 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 19V-3A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Operating temperature
-20°C to +70°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing

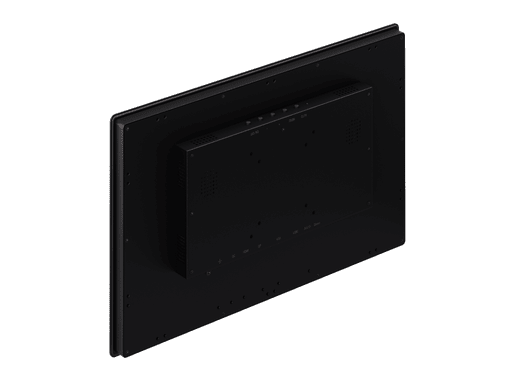

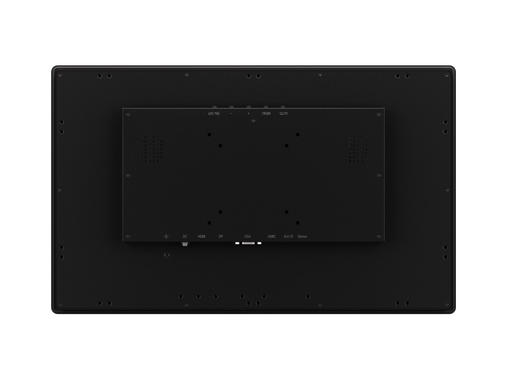

Mounting
VESA 100x100mm
Flush mount
Panel mount accessories included
Certifications & Standards
IP65 front panel, IP65 when panel mounted
Impact protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1-1, EN60601-1-2, CCC

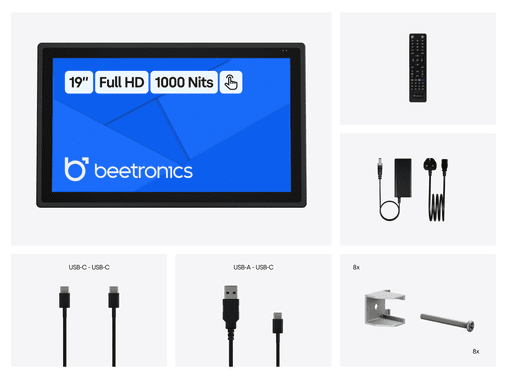

Package content
Includes

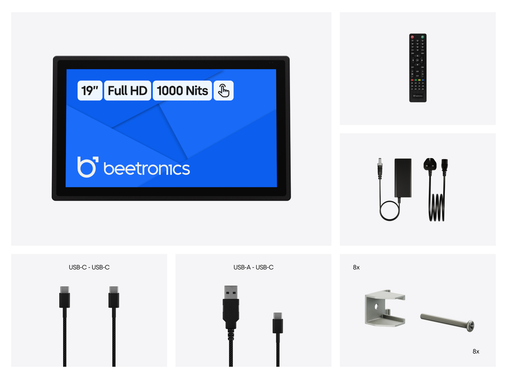

Touchscreen, USB-C to USB-C cable, USB-C to USB-A cable, remote control, mounting clamps (8x), mounting strips (8x), screws (8x), rubber seal, power adapter, manual
Compatible accessories
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Touch pen
Compatible with CTS7 capacitive touchscreen stylus
19 inch touchscreen metal (high brightness)
Downloads
User manual
Quickstart
Technical drawing
3D Drawing
Datasheet
