19 inch rack mount kit
Product information
- 19 inch rack mount designed for Beetronics displays
- Quick & Easy to Install
- Compatible with standard EIA 19 inch racks
- Compatible with VESA: 75x75, 100x100

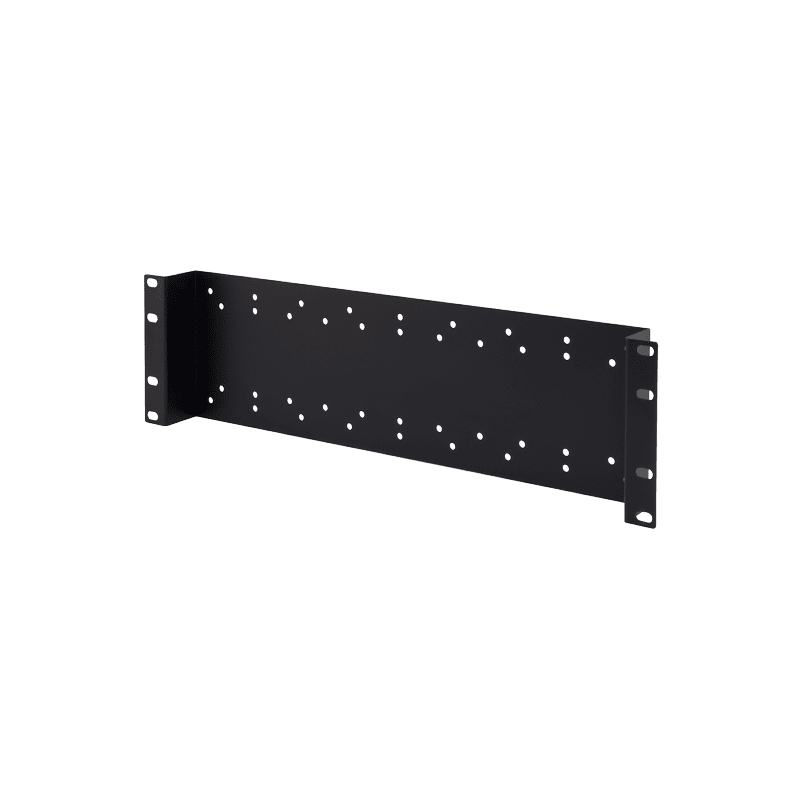

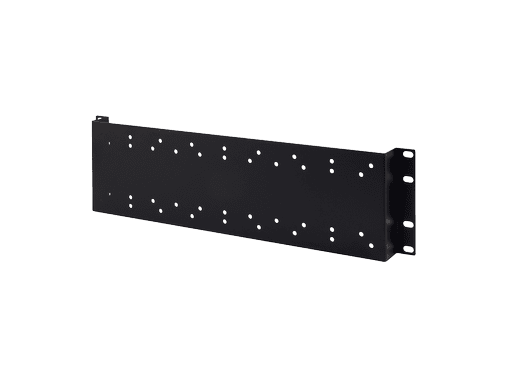

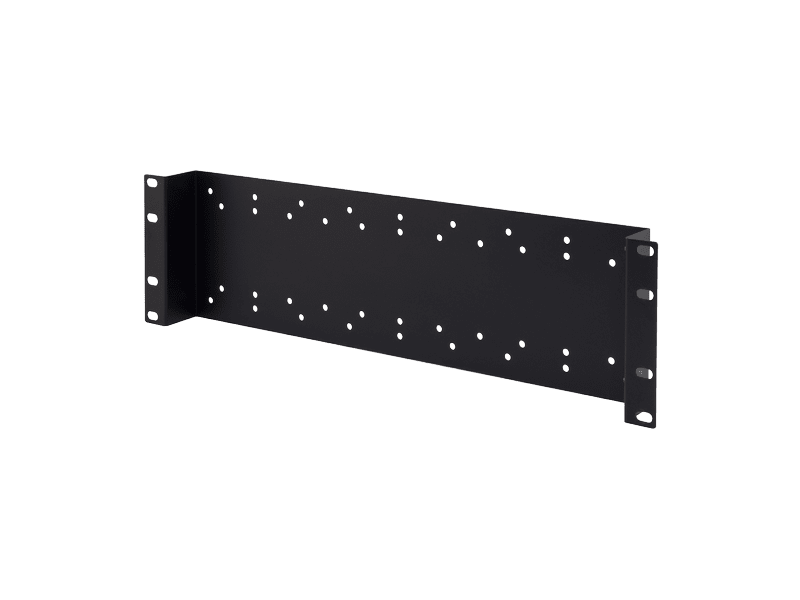

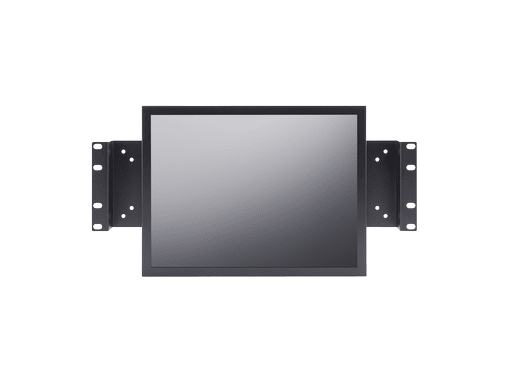

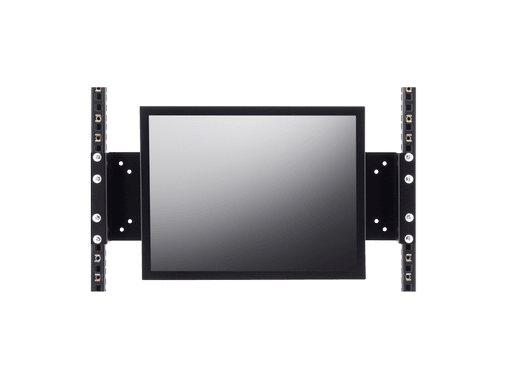

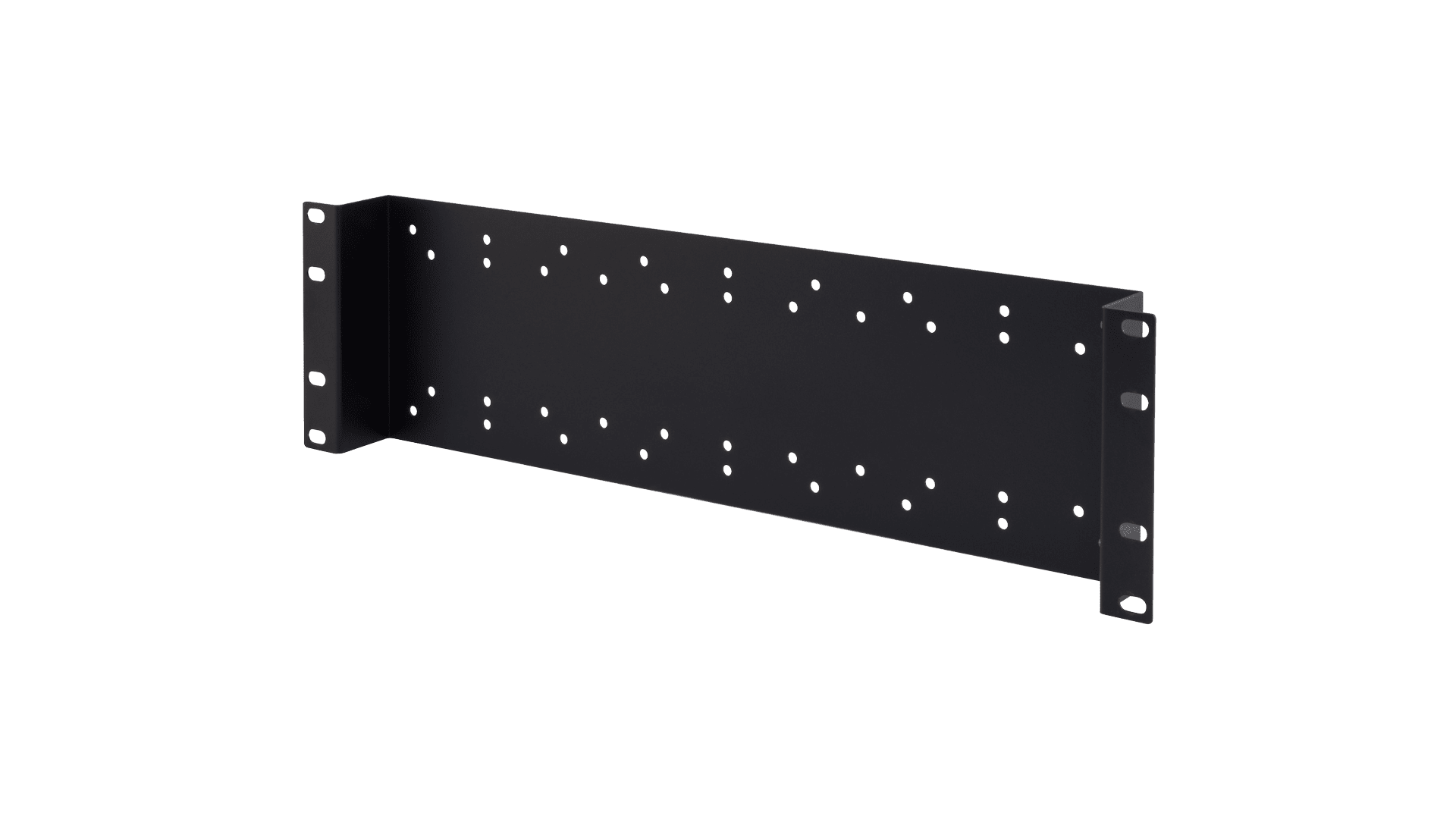

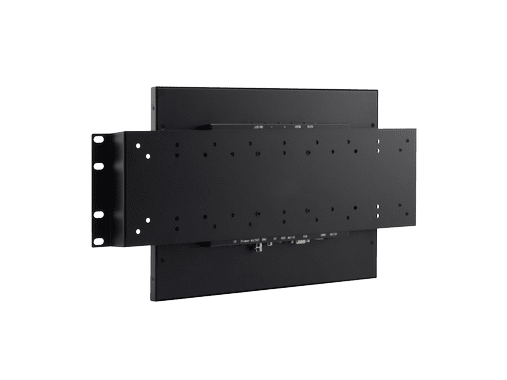

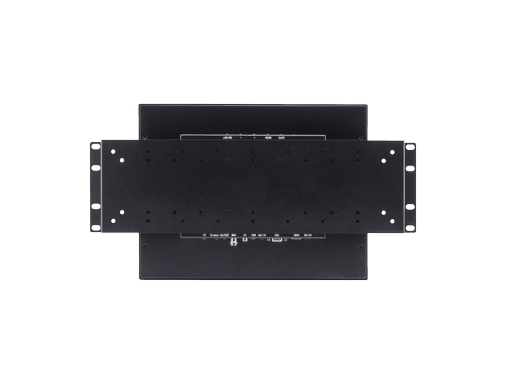

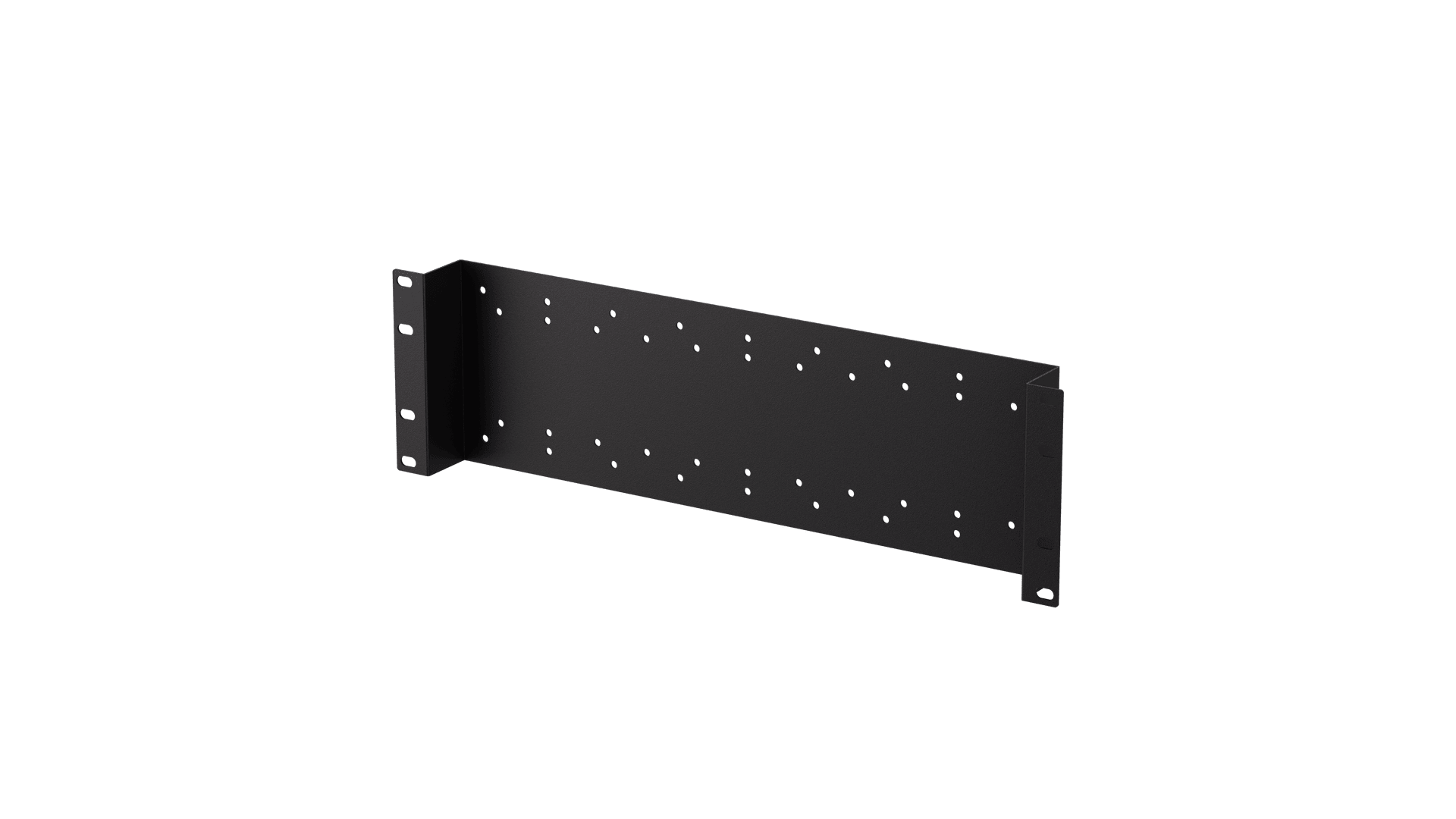

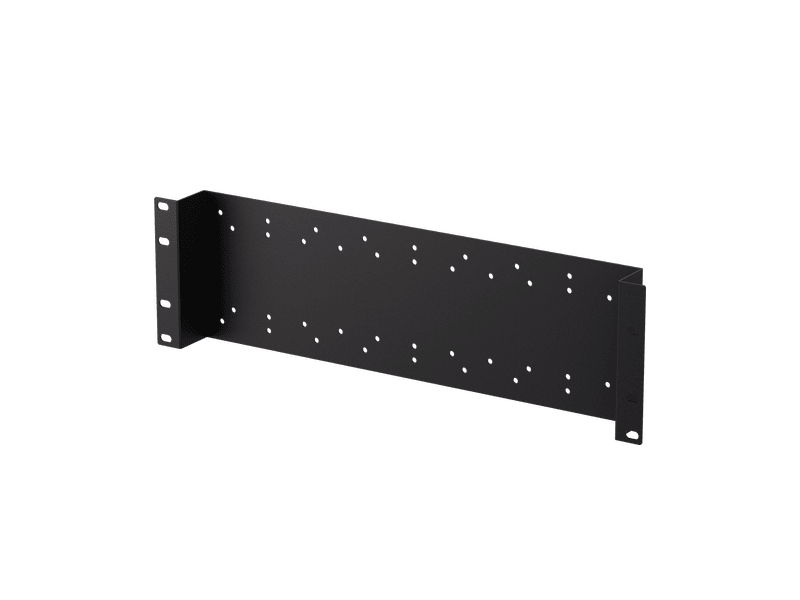

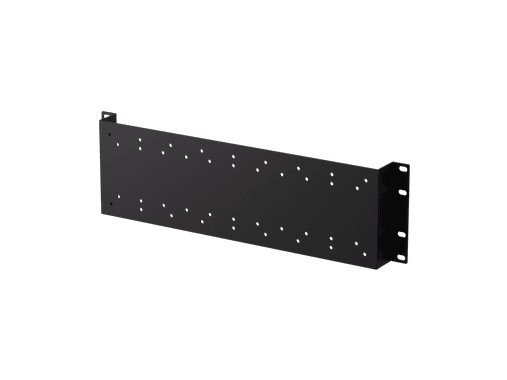

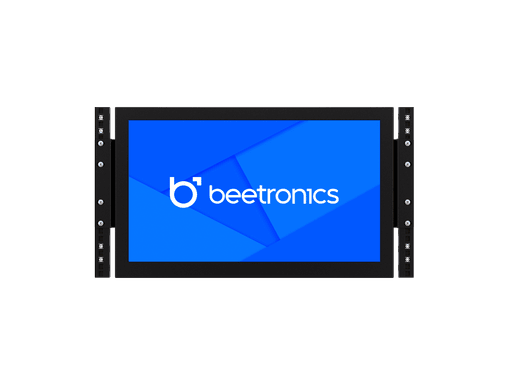

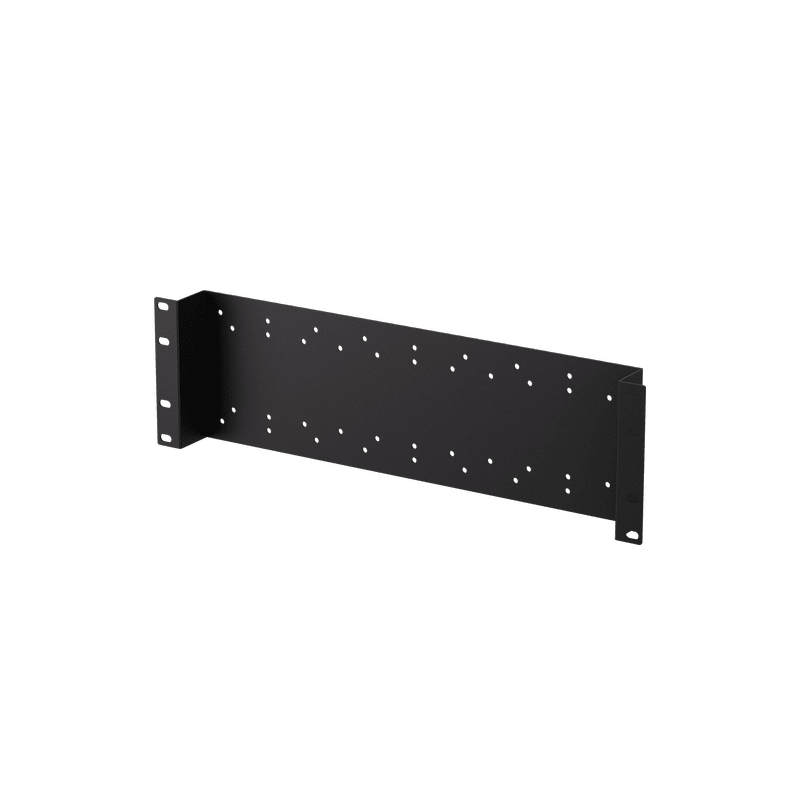

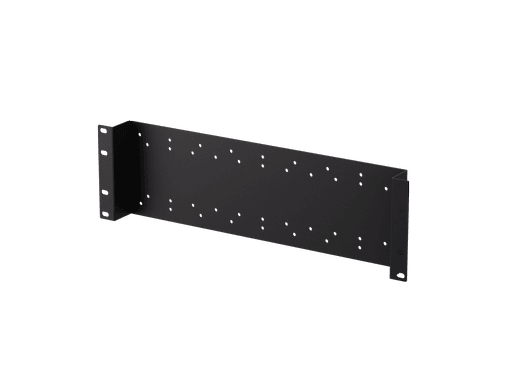

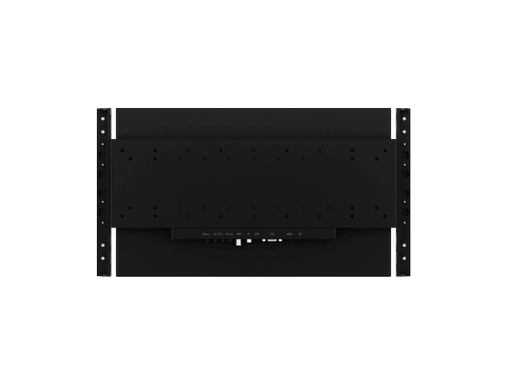

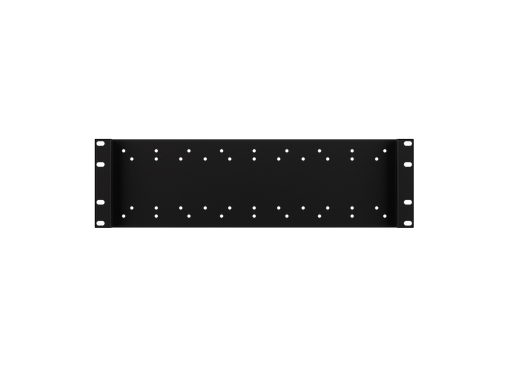

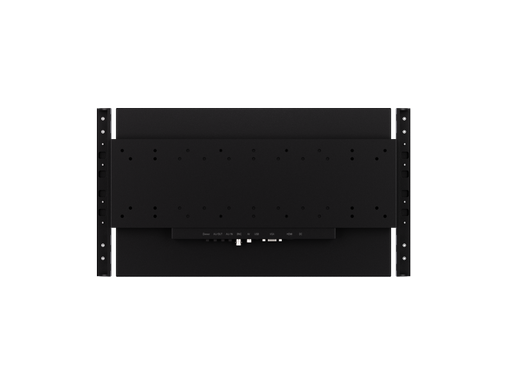

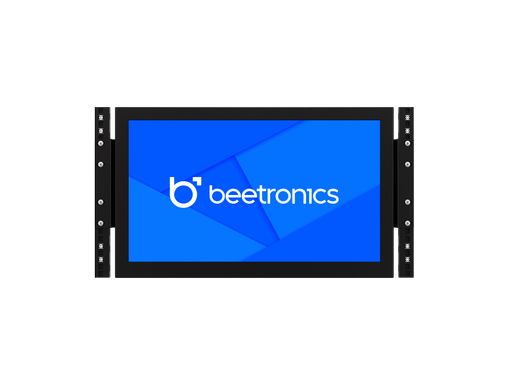

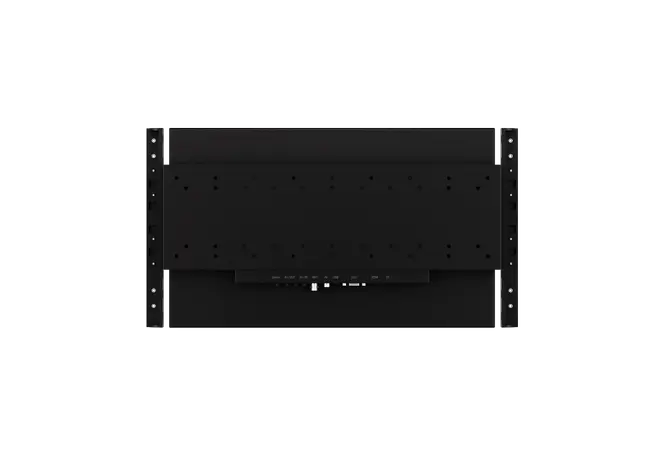

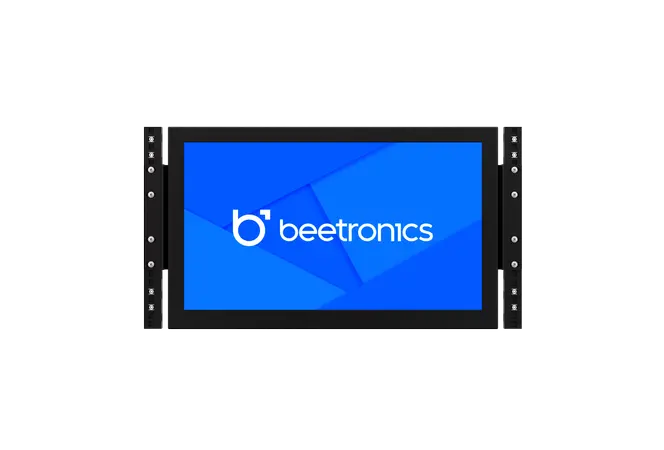

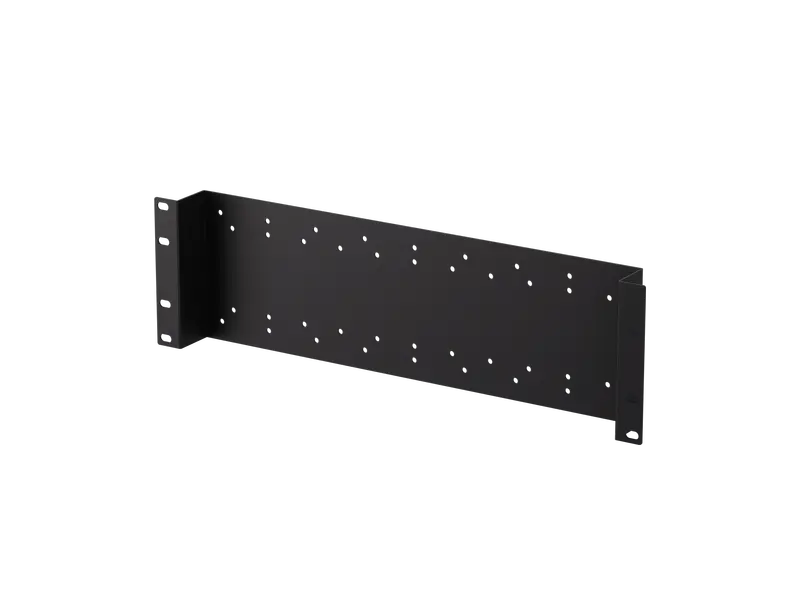

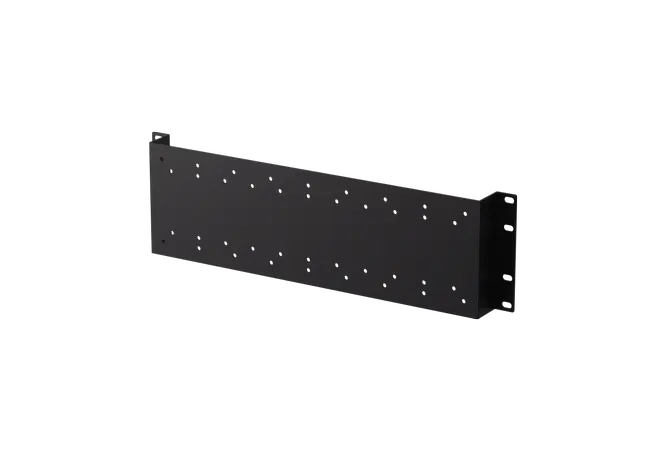

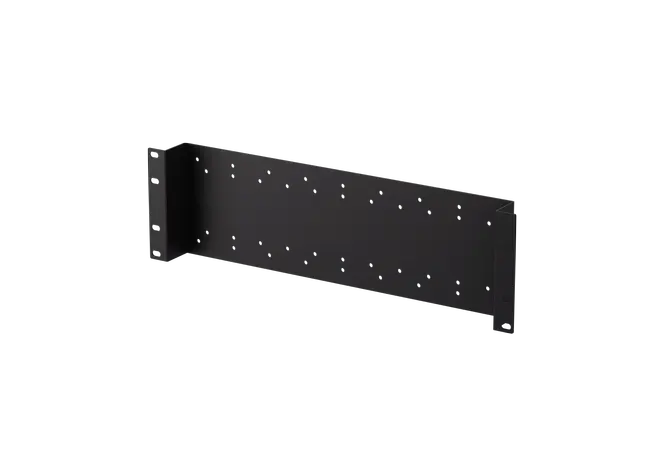

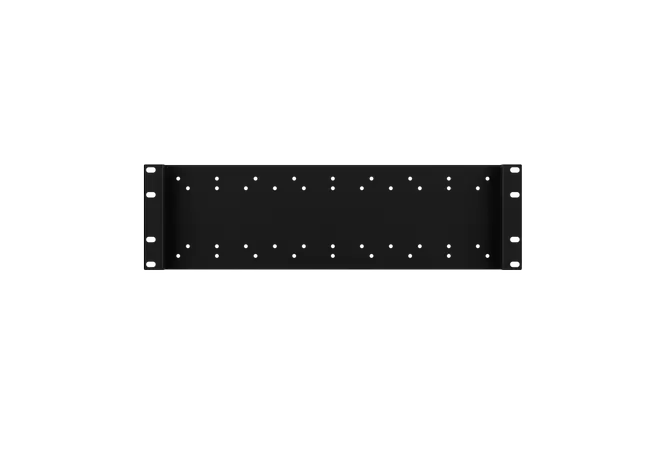

The RMK2 19 inch rack mount kit is compatible with all Beetronics monitors and touchscreens up to 17 inches. The monitors and touchscreens can be easily mounted to the RMK2 via the 75 or 100 mm VESA at the back. The recessed shape of the rack mount kit allows one or more monitors to be mounted at the same time while still being able to close the cabinet door. The sturdy kit weighs 1.1 KG and is made from powder coated steel.
£45.00
£54.00 VAT Incl.
Long-term availability Consistently available for years to come.
Free shipping & returns No shipping costs and free 30-day returns.
5,000+ reviews, rated 4.8/5 Trusted by industry leaders worldwide.
Specifications
General
- Manufacturer
- Beetronics
- Item number
- RMK2
- Product name
- 19 inch rack mount kit
- Warranty
- 2 years
- Datasheet
- Download PDF
Connectivity
- VESA
- 75x75, 100x100
Size & weight
- Colour
- Black
- Weight
- 900 grams
- Width
- 486 mm
- Height
- 135 mm
- Thickness
- 41 mm
- Technical drawing (2D)
- Download PDF
Compliance
- Standards & certifications
- CE, FCC, RoHS, REACH, WEEE, UKCA
Package content
- Includes
- Rack-mount-kit, screws
Compatibility
- Compatible with
- 7HD7M, 8VG7M, 8HD7M, 9HD7M, 10HD7, 10VG7M, 10HD7M, 12HD7, 12VG7M, 12HD7M, 12SDI7M, 13HD7, 13HD7M, 15HD7, 15VG7M, 15HD7M, 15SDI7M, 17VG7M, 17HD7M, 19VG7M, 7TS7M, 8TSV7M, 10TS7, 10TSV7M, 10TS7M, 10HB9M/U1, 12TS7, 12TSV7M, 12TS7M, 12HB9M/U1, 13TS7, 13TS7M, 15TS7, 15TSV7M, 15TS7M, 15HB9M/U1, 17TSV7M, 17TS7M, 17HB9M/U1, 19TSV7M
