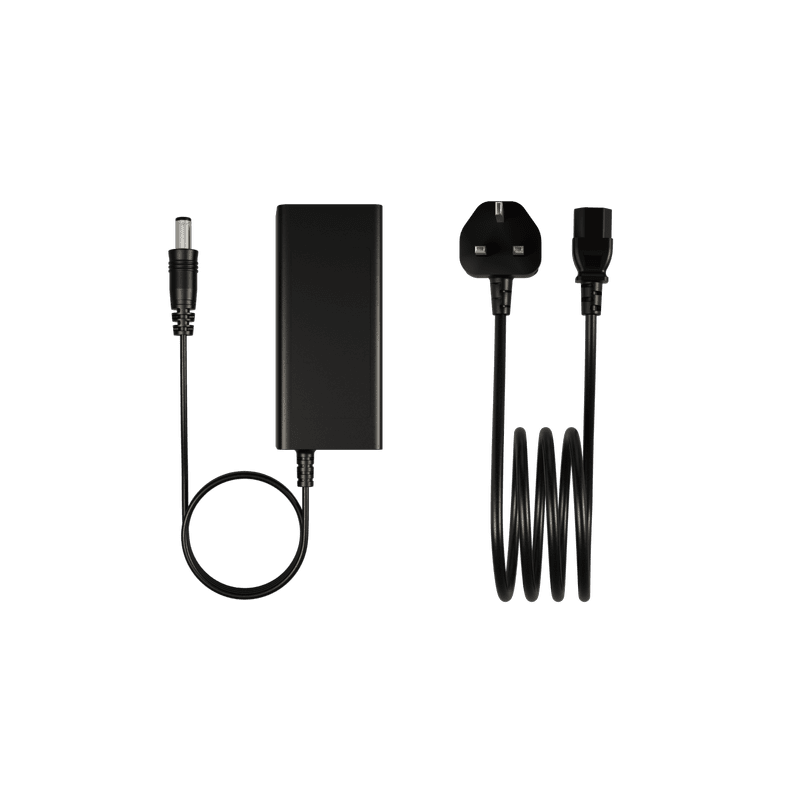

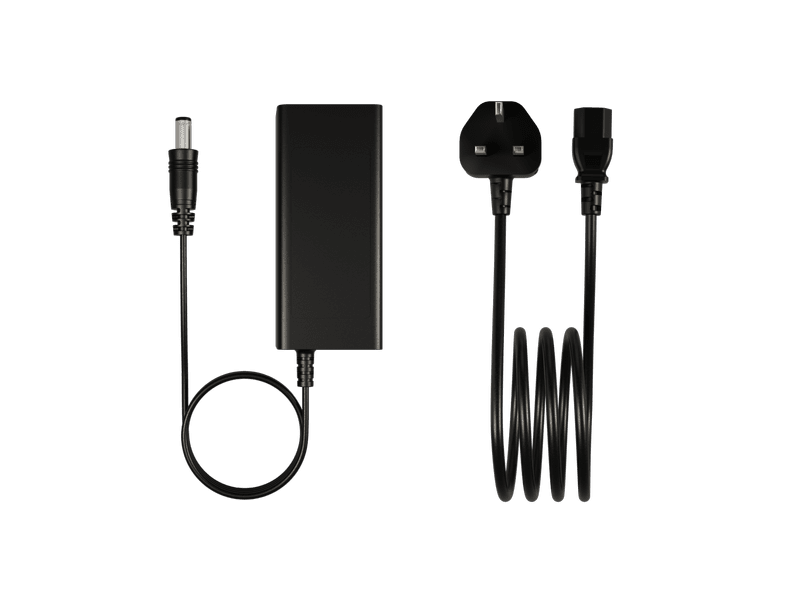

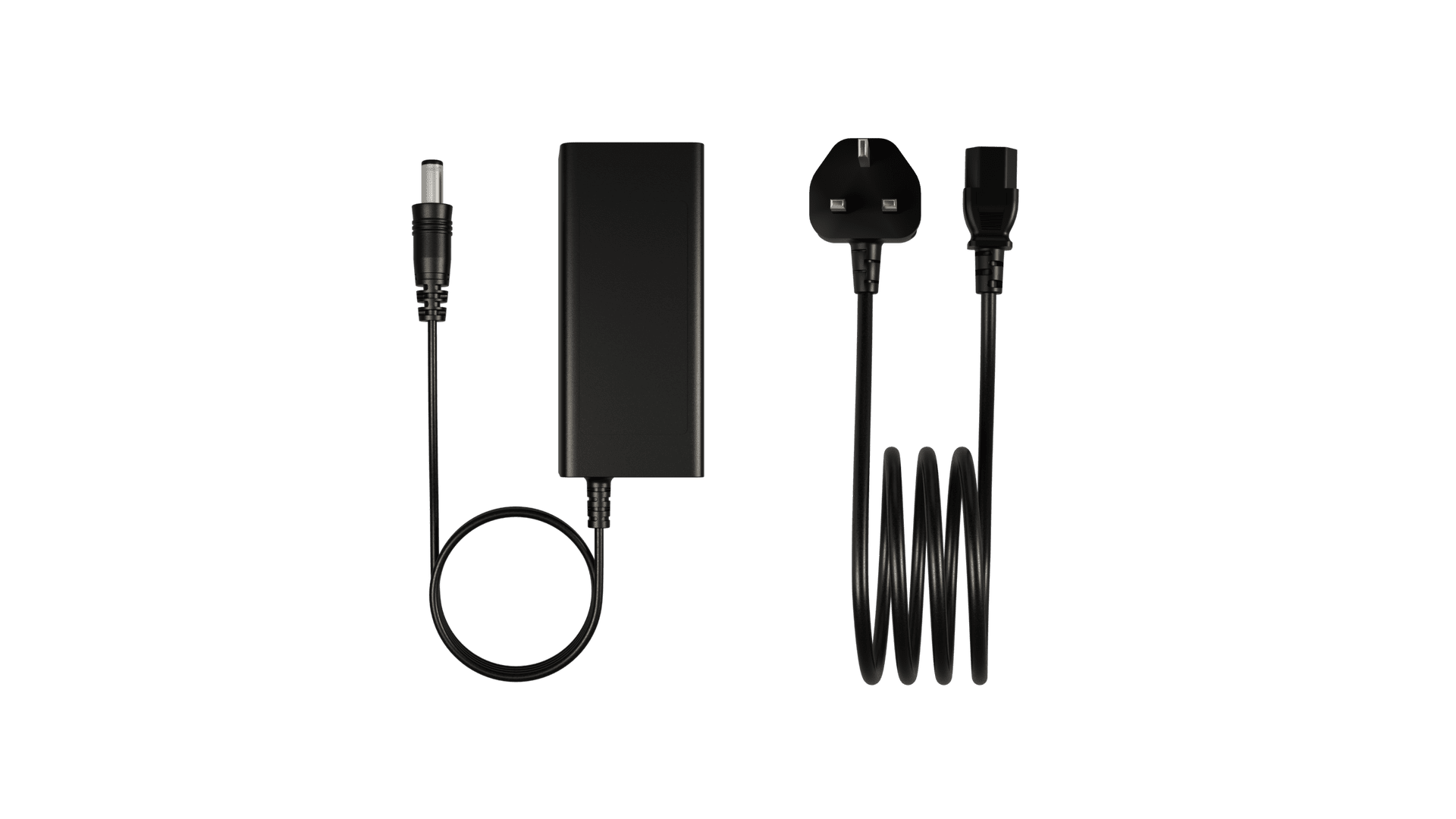

19V external power adapter
Product information
- Input: 100-240V AC ~ 50/60Hz, 1.5A Max
- Output: 19V ⎓ 2.5A, 47.5W
- DC Plug Size: 5.5 mm
- Cable Length: 2 m
£19.00
£22.80 VAT incl.
Order by 6:00 pm for delivery on Thursday.
The PSU1-UK is a reliable external power adapter designed for professional applications and continuous use. This adapter accepts a wide input range of 100-240V AC at 50/60Hz and is equipped with a 2-pin UKplug, making it suitable for any standard UK wall socket.
With a cable length of 2 meters, the PSU1-UK delivers a stable output of 19V ⎓ 2.5A (47.5W) via a 5.5 mm DC plug. This power supply is compatible with all Beetronics monitors and touchscreens, with the exception of the high-brightness and all-in-one models.
Specifications
General
Manufacturer
Beetronics
Item number
PSU1-UK
Product name
19V external power adapter
Warranty
2 years
Datasheet
Power
Inner diameter
0.1 inches
Outer diameter
0.2 inches
Connector type
UK
Voltage
19 Volt
Amperage
2.5 Ampere
Polarity
- outside / + inside
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA
Package content
Includes
Power supply
Compatibility
Compatible with
7HD7M, 8VG7M, 8HD7M, 9HD7M, 10HD7, 10VG7M, 10HD7M, 12HD7, 12VG7M, 12HD7M, 12SDI7M, 13HD7, 13HD7M, 15HD7, 15VG7M, 15HD7M, 15SDI7M, 17HD7M, 17VG7M, 19VG7M, 19HD7M, 22HD7M, 22SDI7M, 24HD7M, 27HD7M, 32HD7M, 7TS7M, 8TSV7M, 10TS7, 10TSV7M, 10TS7M, 10HB9M, 12TS7, 12TSV7M, 12TS7M, 12HB9M, 13TS7, 13TS7M, 15TS7, 15TSV7M, 15TS7M, 15HB9M, 17TSV7M, 17TS7M, 17HB9M. 19TSV7M, 19TS7M, 19HB9M, 22TS7M, 22HB9M. 24TS7M, 24HB9M, 27TS7M, 32TS7M
Downloads
Click to download product documentation.
