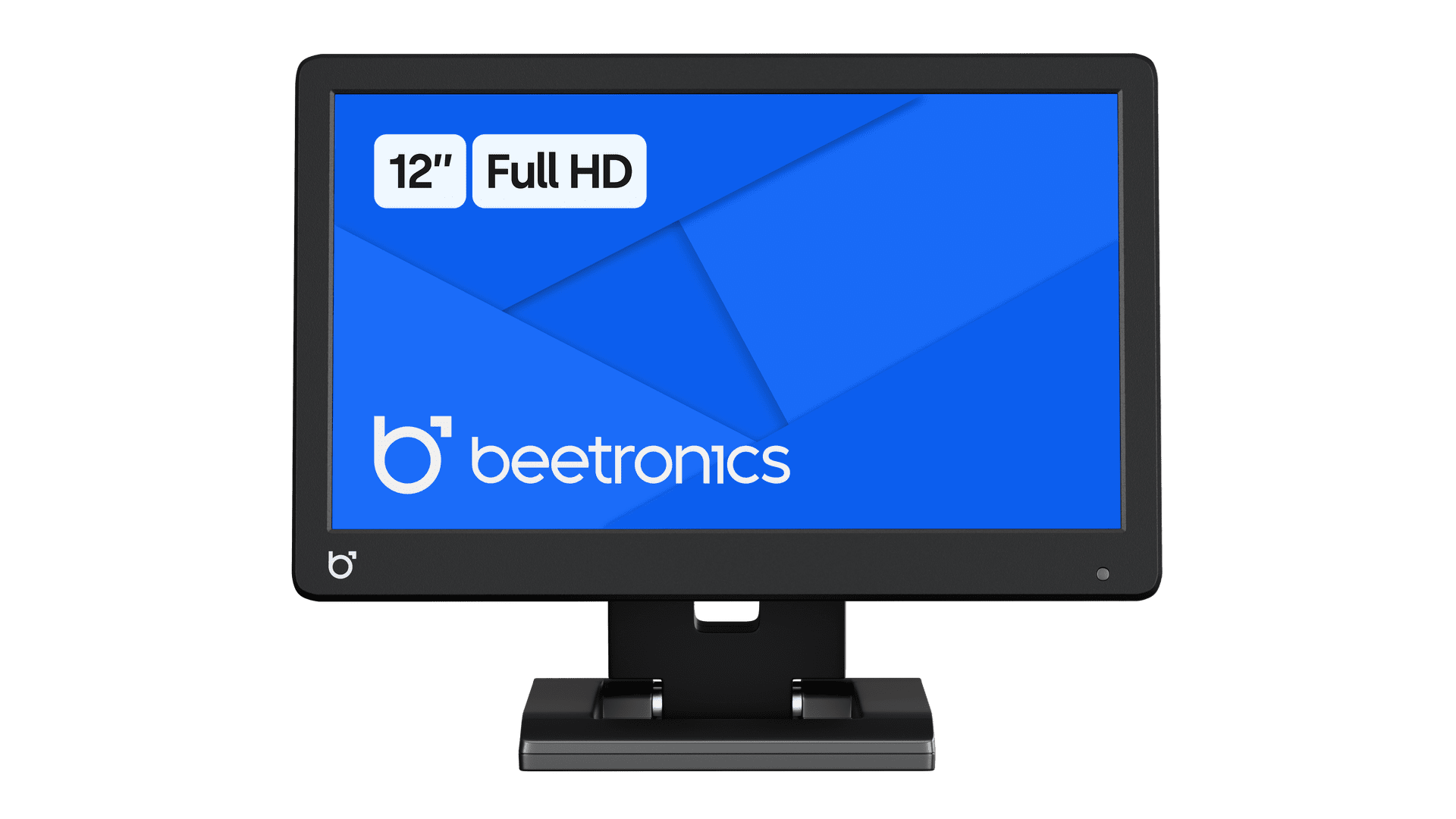

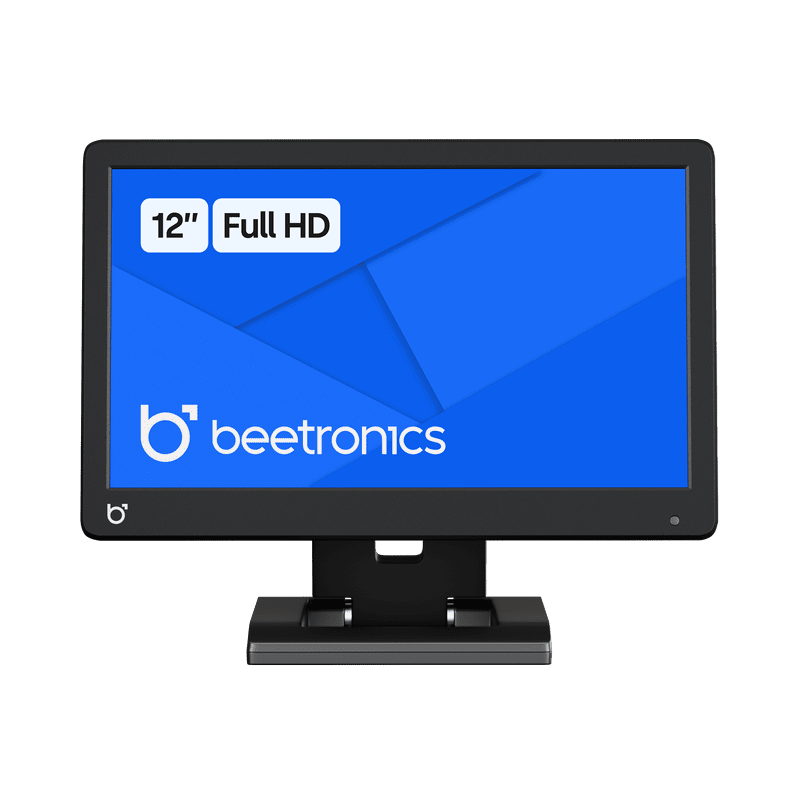

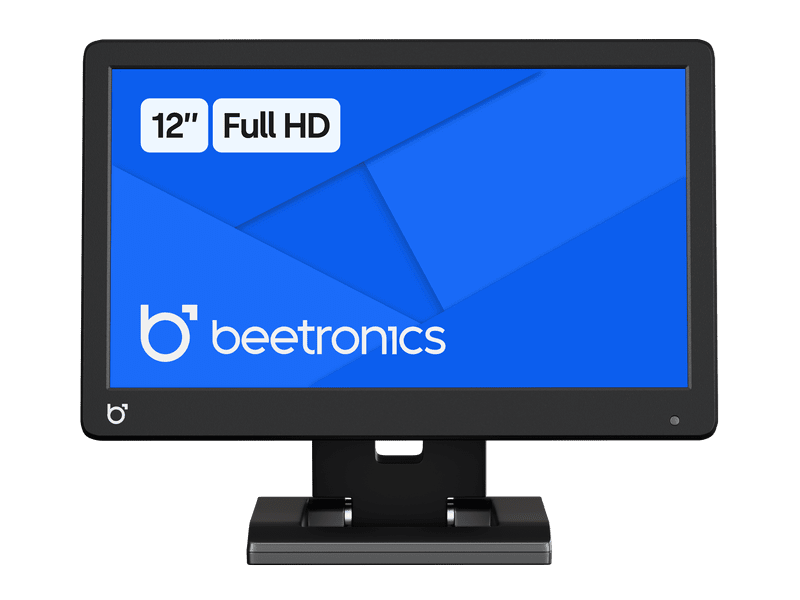

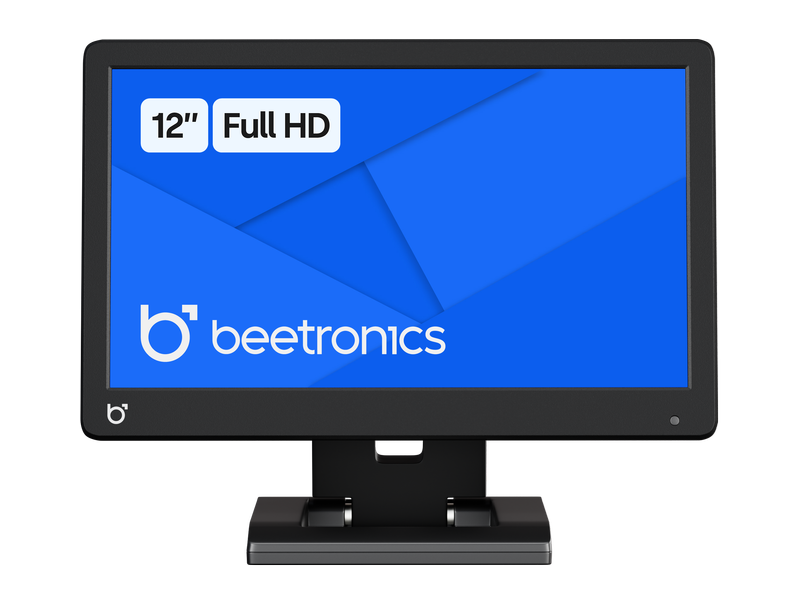

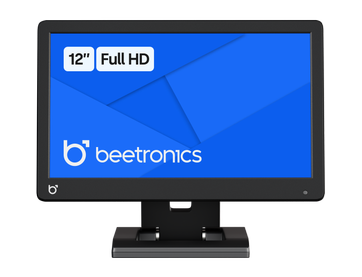

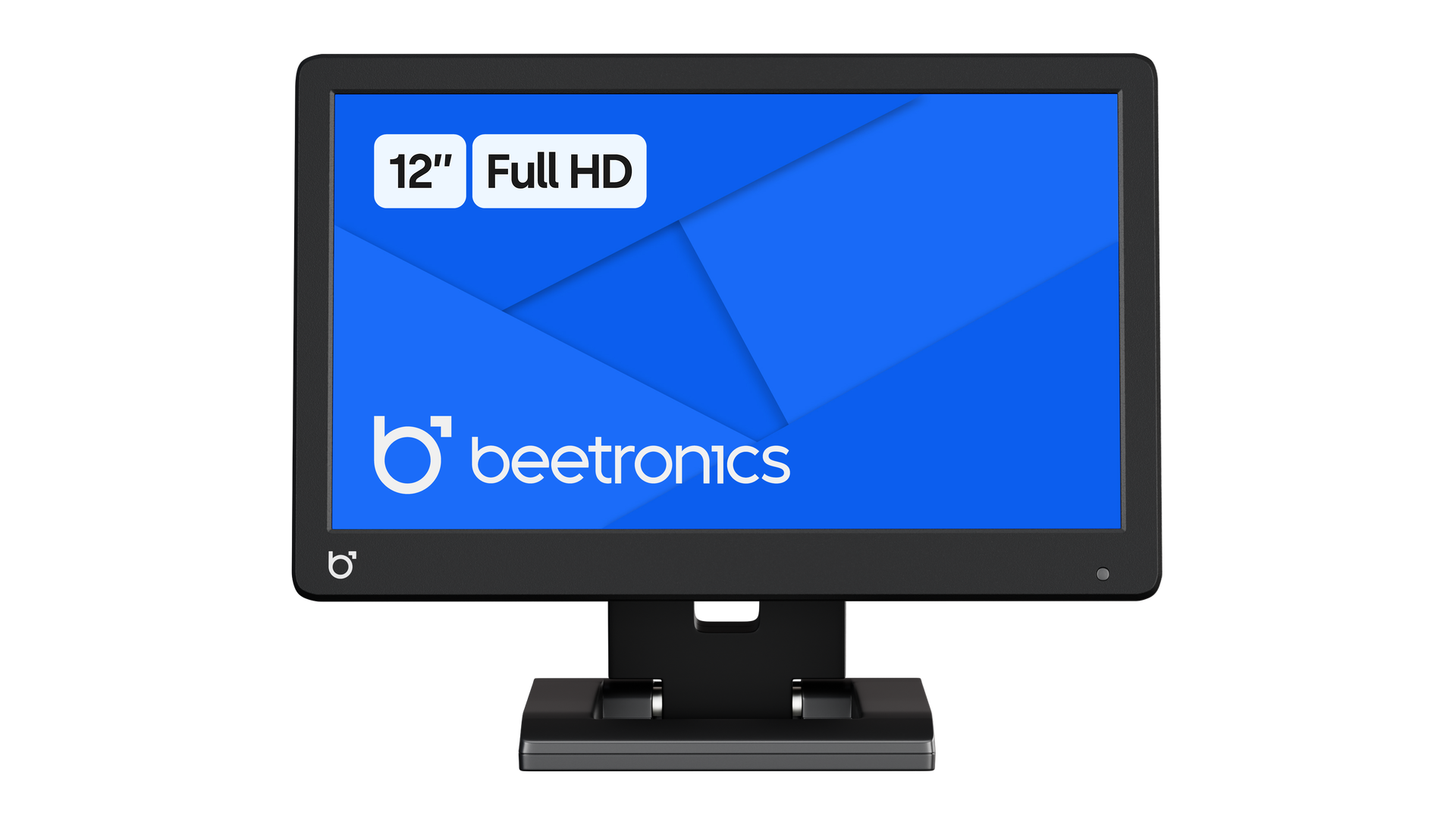

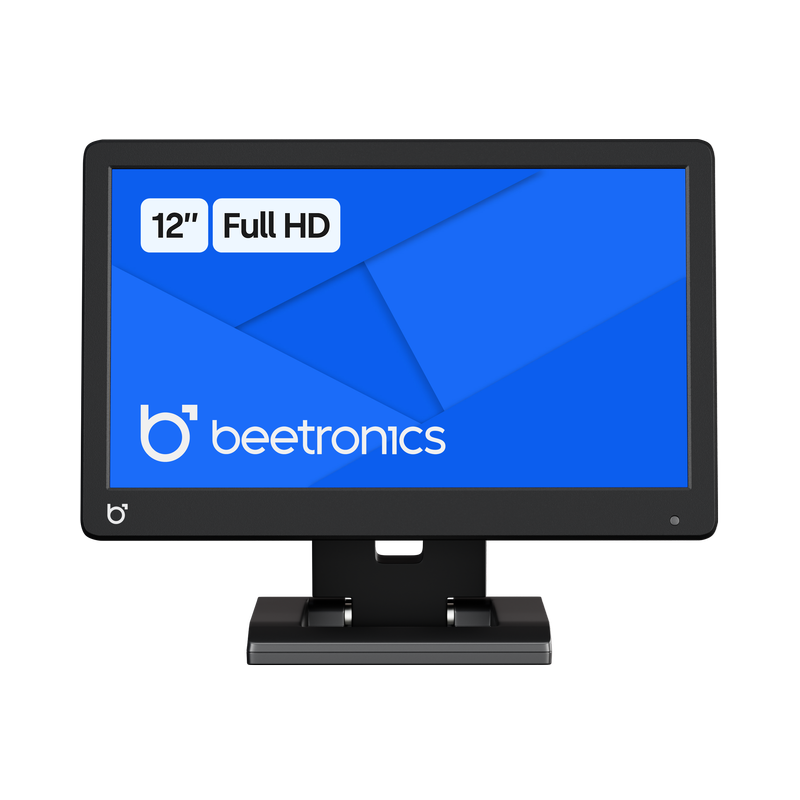

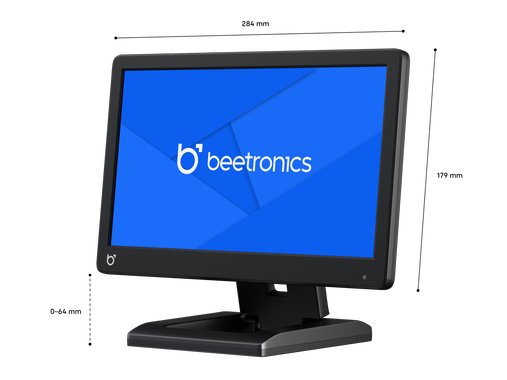

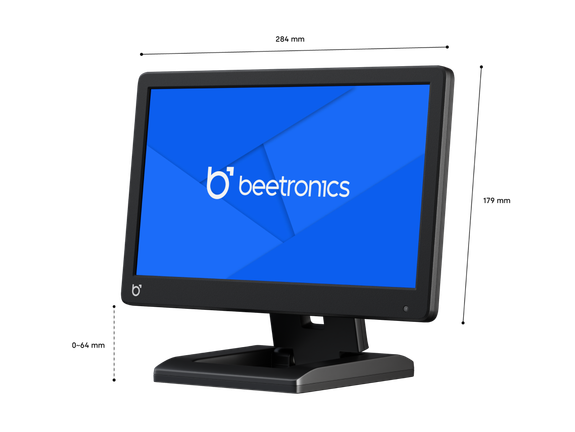

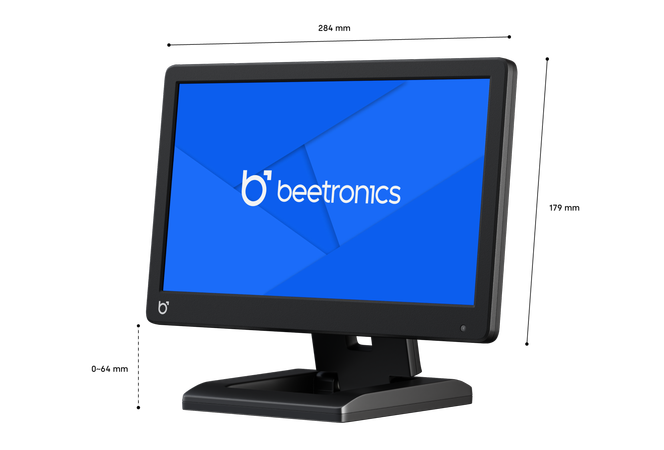

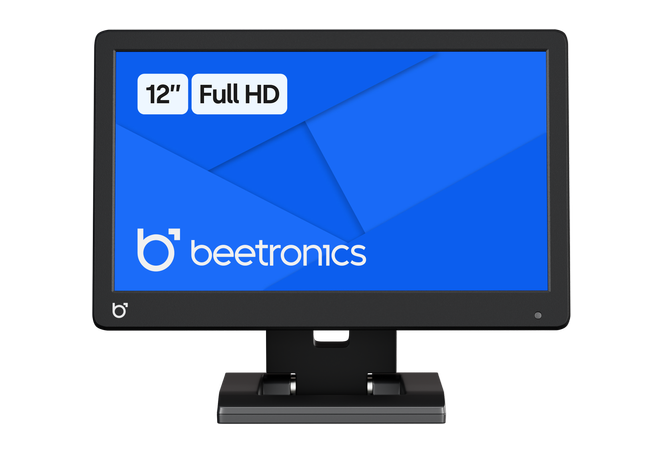

This Full HD 12 inch monitor delivers best-in-class picture quality. The monitor has a LED-IPS panel which provides crystal-clear image quality with excellent 178° viewing angles. The 12HD5 can be connected through a HDMI, VGA, BNC or RCA connection, and is suitable for desktop and wall mounting.
Fitted with a native Full HD IPS panel, the monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

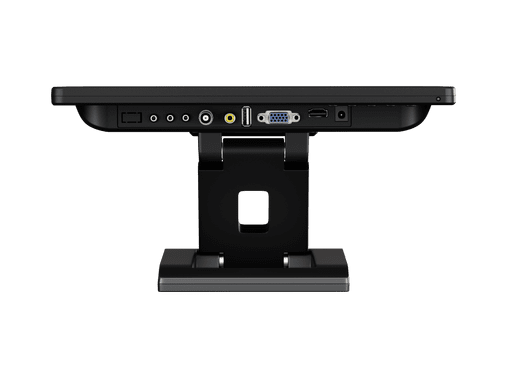

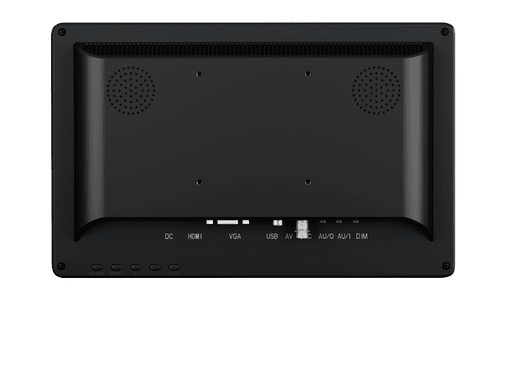

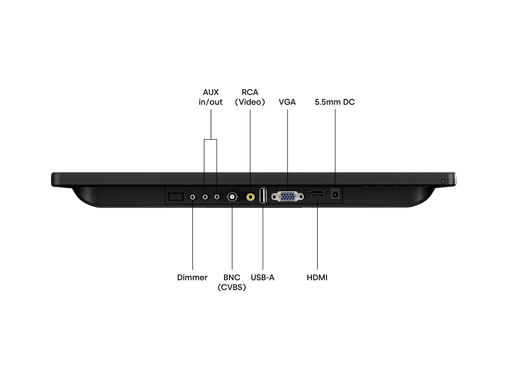

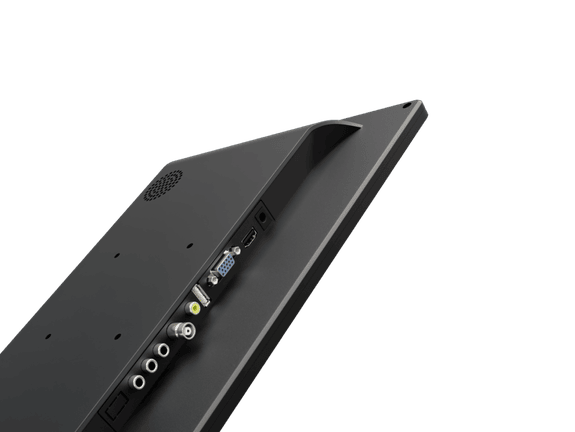

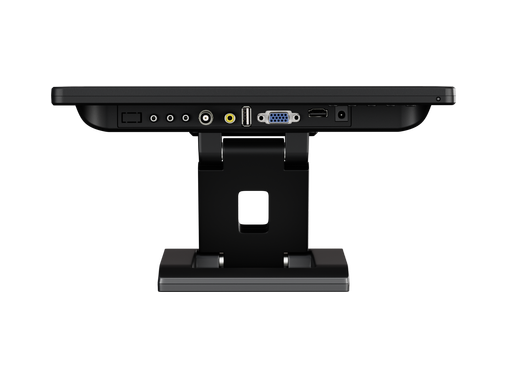

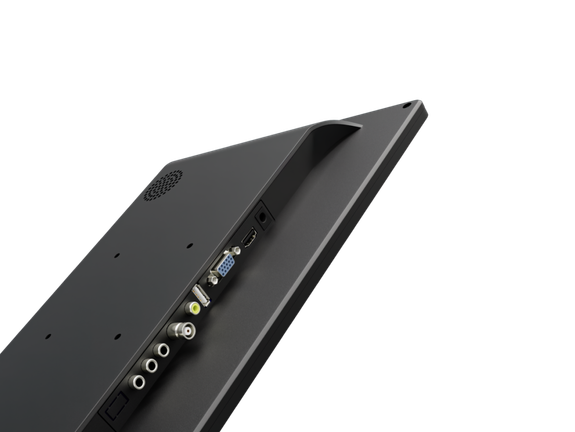

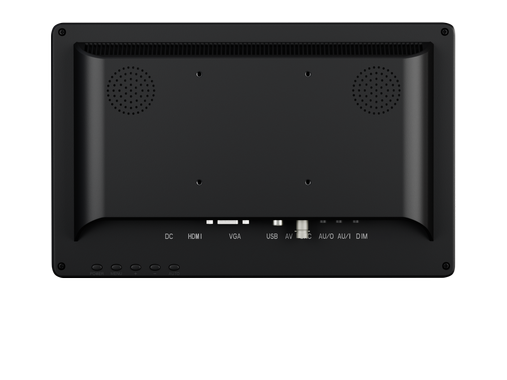

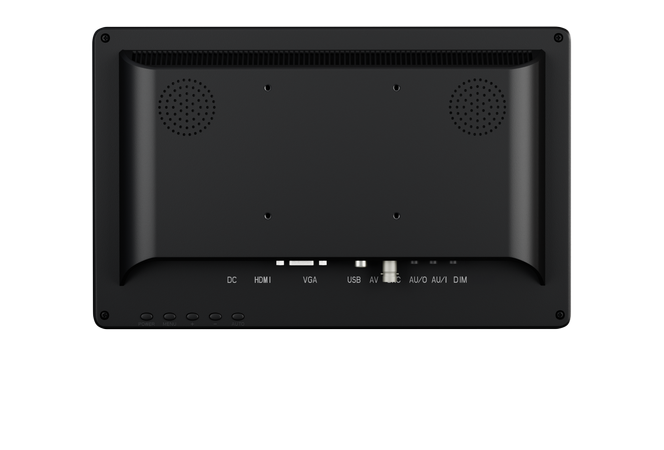

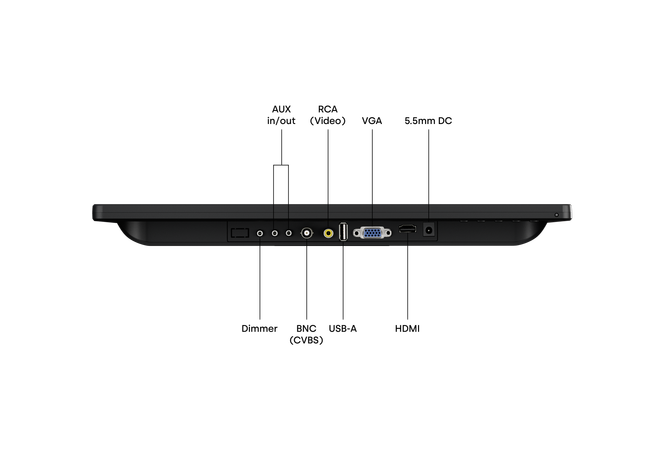

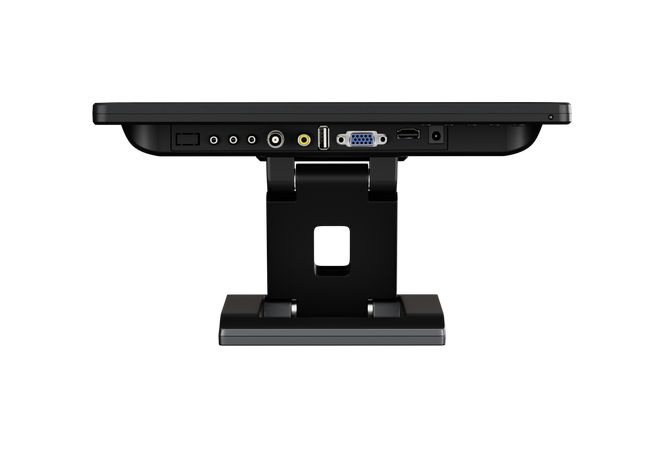

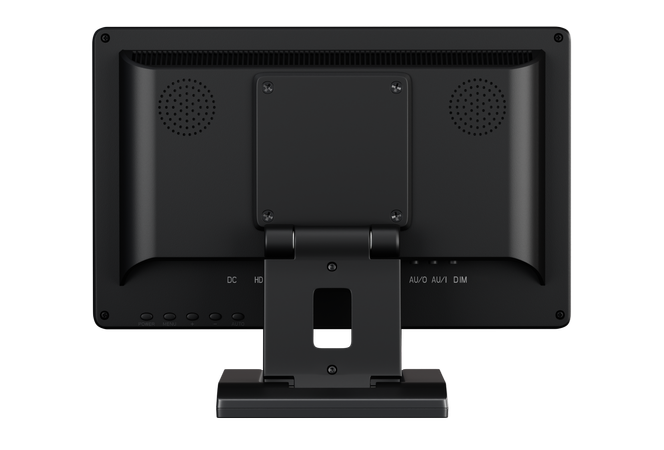

The 12HD5 has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.
The 12HD5 12 inch monitor has a sturdy housing and dimmable panel. The monitor is manufactured with high quality components that guarantee reliable operation. The 12HD5 is suitable for continuous operation and ideal for professional use.

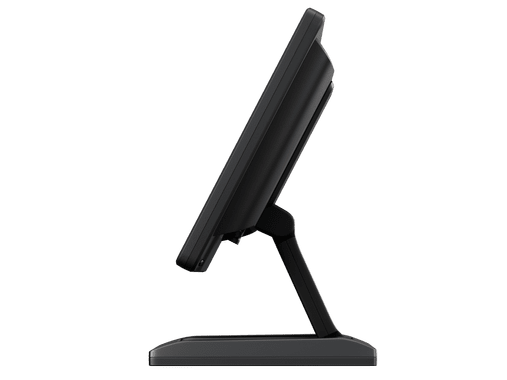

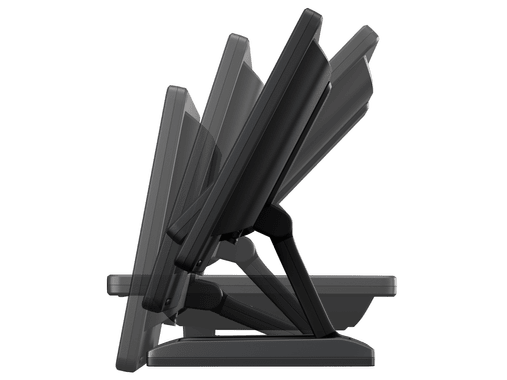

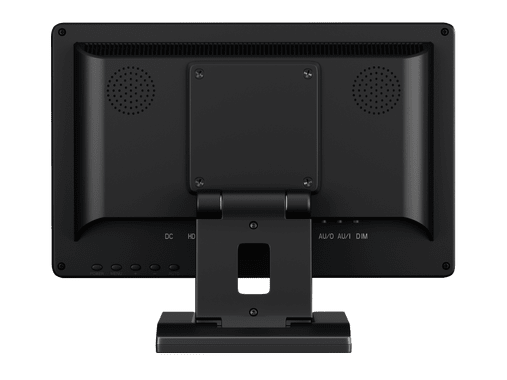

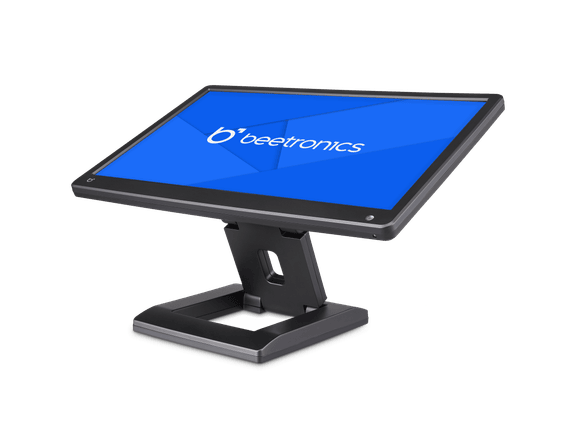

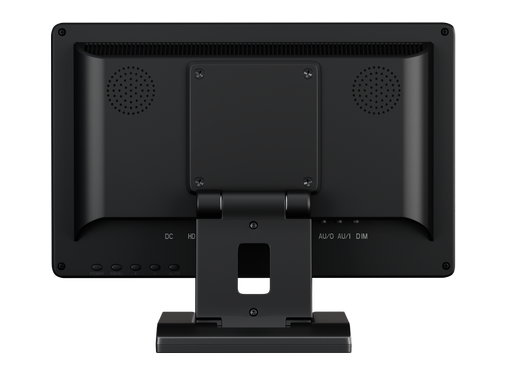

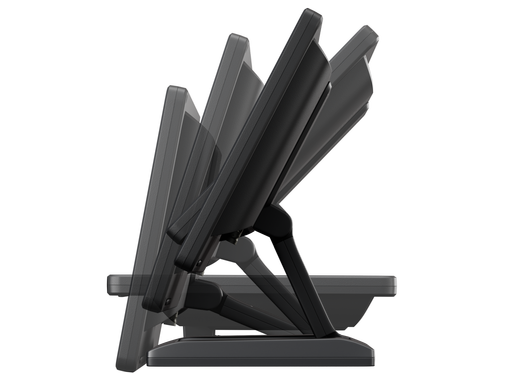

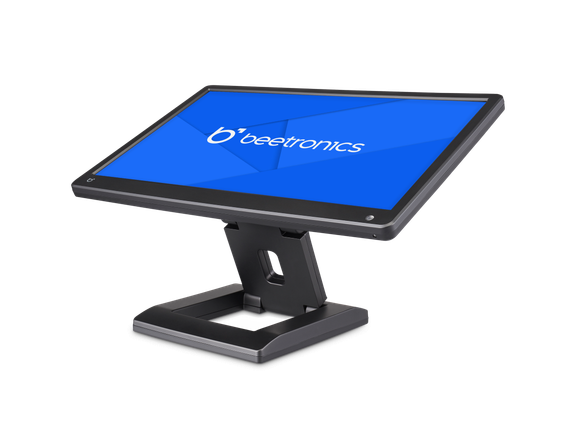

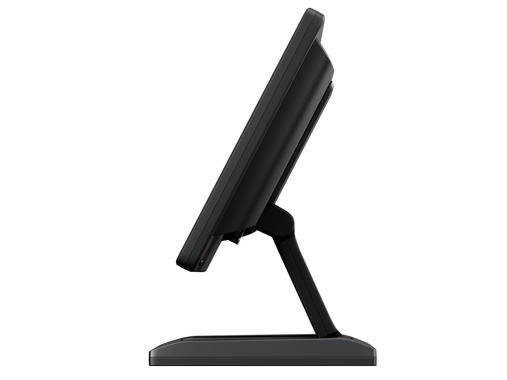

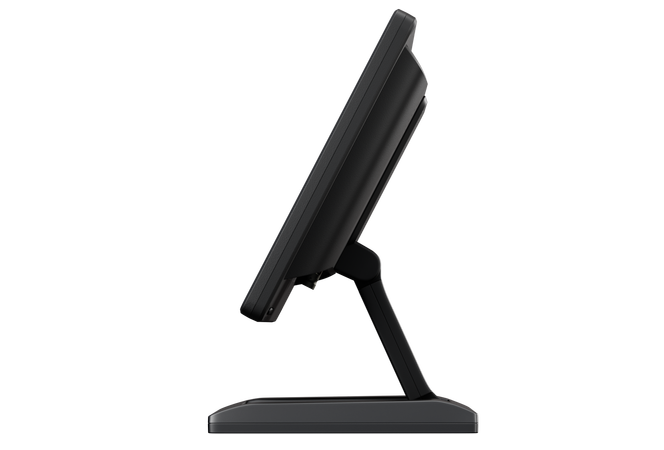

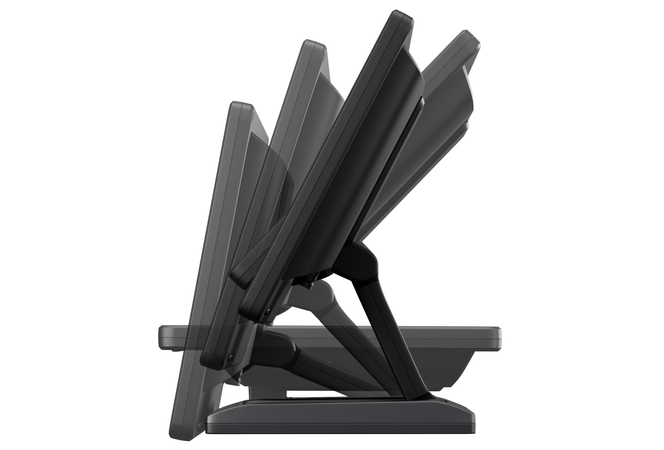

The Beetronics 12HD5 has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket.
|Product name||12 inch monitor|
|Screen diagonal||11.6 inch (29,5 cm)|
|Aspect ratio||16:9 (4:3 adjustable)|
|Native resolution||1920 x 1080|
|Supported resolutions||1920 x 1080 (max), 640 x 480 (min)|
|Pixels per inch||184 PPI|
|Viewing angle||178° horizontal, 178° vertical|
|Colour encoding system||PAL/NTSC/SECAM|
|USB||1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)|
|Size & weight|
|Weight||780 gram (1200 gram with stand)|

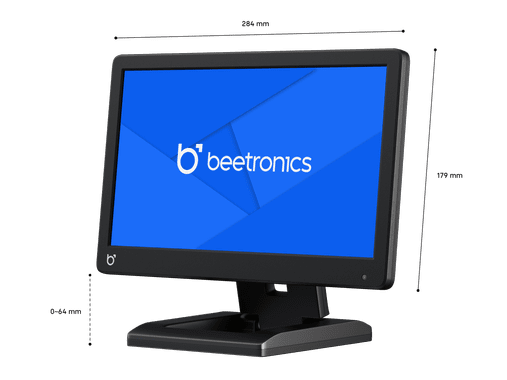

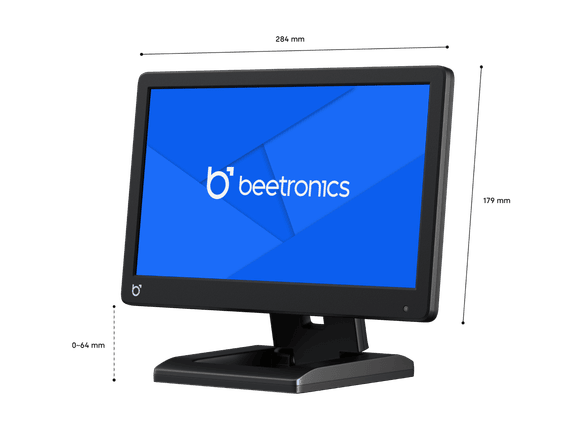

|Height||179 mm (+0 to 39 mm with stand)|
|Display dimensions||257 x 145 mm|
|Technical drawing||Download PDF|
|Features and functions|
|Key-lock||The control buttons can be blocked|
|Auto-on||Automatically powers on when it receives current or a signal|
|Dimmable||Adjustable backlight brightness|
|Mirroring||Image can be mirrored, horizontally and vertically|
|Input voltage||DC 12V|
|Power supply||Input: 110-240V ~ 50/60Hz - Output: 12V-2A|
|Consumption||<15 Watt (0.5 Watt standby)|
|Operating temperature||-20c° to +60c°|
|Storage temperature||-20c° to +70c°|
|Operating humidity||20% - 90% non-condensing|
|Wall mount||VESA (75 mm)|
|Flush mount||Possible, no accessories available|
|Stand||Adjustable and detachable|
|Certifications & Standards|
|Certifications||CE, FCC, RoHS, REACH|

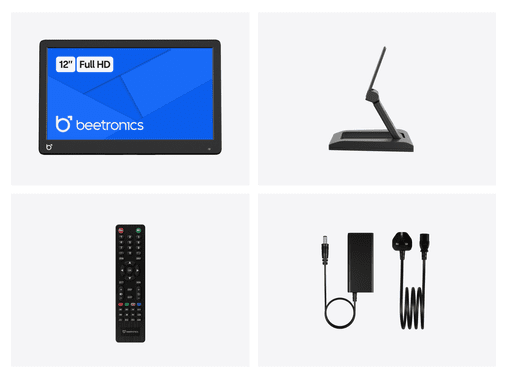

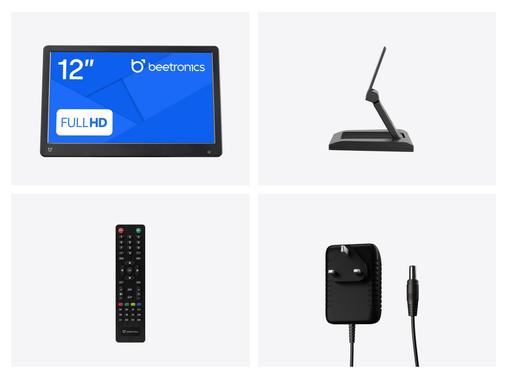

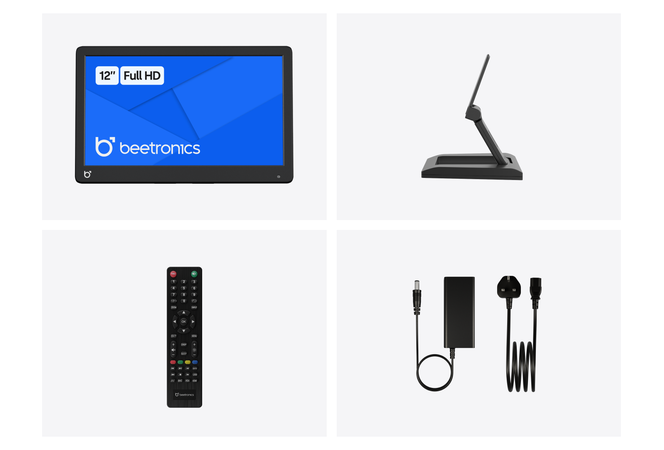

|Includes||Monitor, Manual, Remote control, Mains adaptor, Stand|
Our monitors and touchscreens are designed for professional use and continuous operation.
We ensure our monitors are available for immediate shipment and we guarantee sustained availability.
