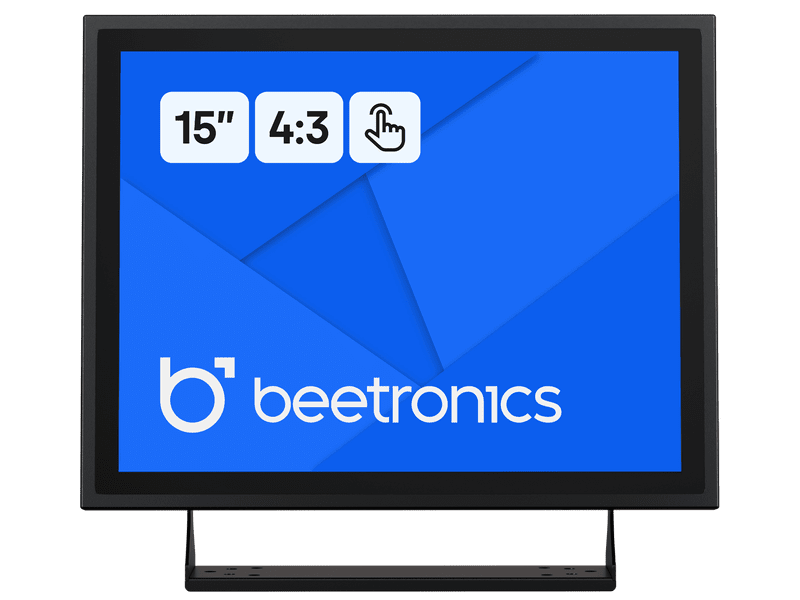

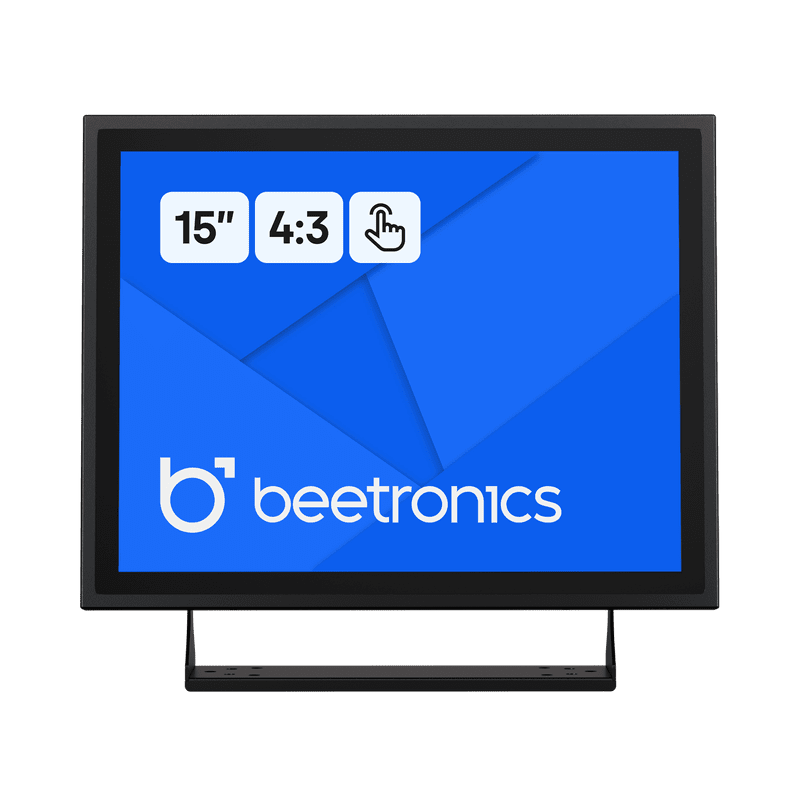

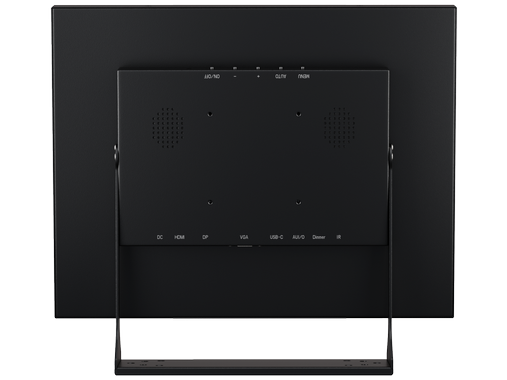

15 inch touchscreen metal (4:3)

  1. 4:3 multi-touch panel
  2. Windows, Mac, Linux & Android compatible
  3. Desktop, flush and wall mountable
  4. 345 x 269 x 43 mm
Item number: 15TSV7M
73 units in stock

Order before 10:00 pm for free delivery on monday

£399.00 £332.50 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

This 15 inch touchscreen has a reliable multi-touch panel with a 4:3 aspect ratio. The monitor delivers excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.


4:3 multi-touch panel

This 15 inch touchscreen is equipped with a 4:3 aspect ratio IPS panel. The touchscreen delivers excellent 178° viewing angles and is able to scale any resolution up to 1080p. The 15TSV7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

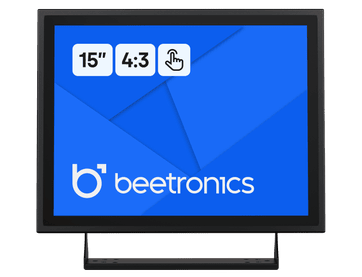

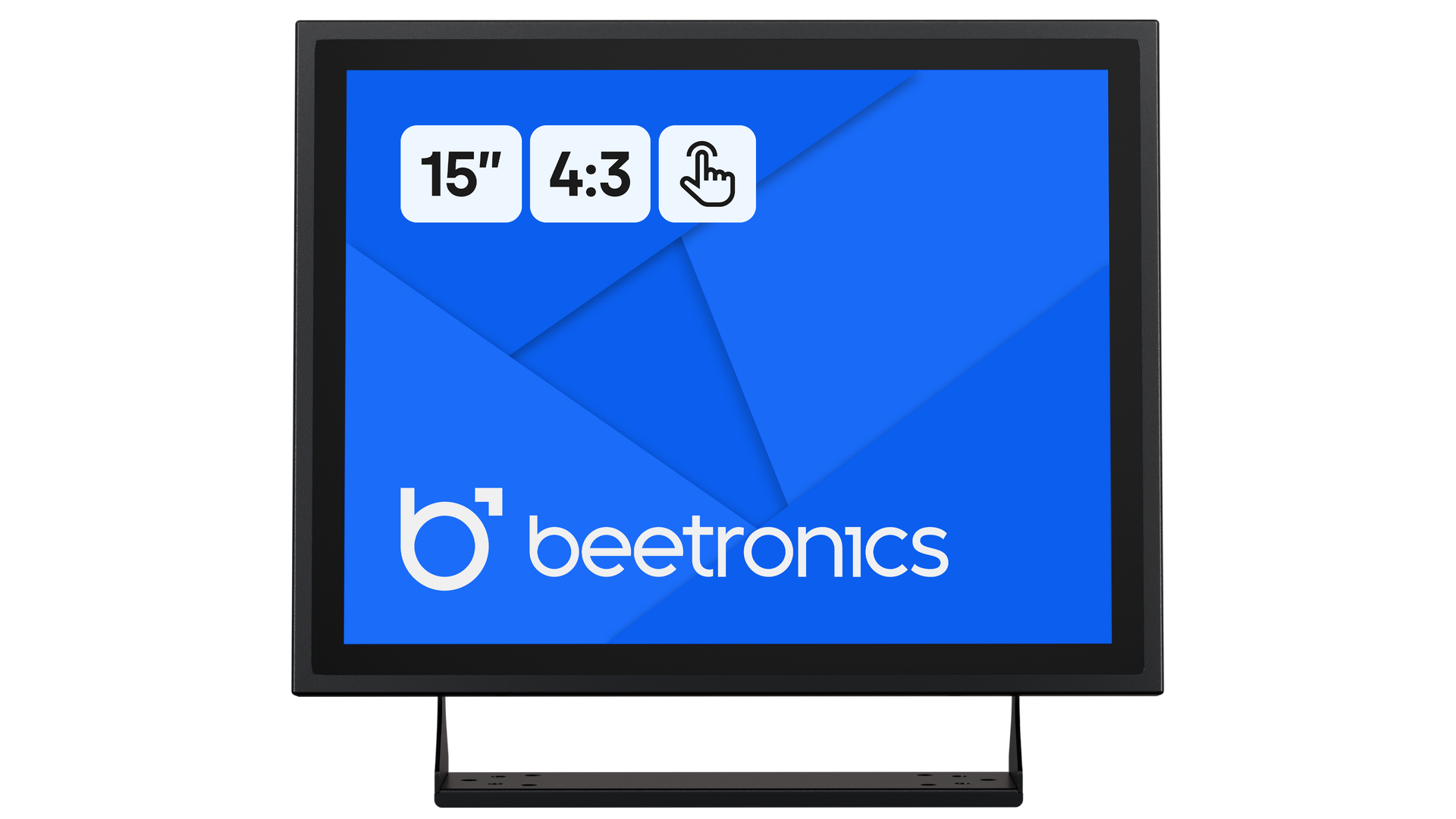

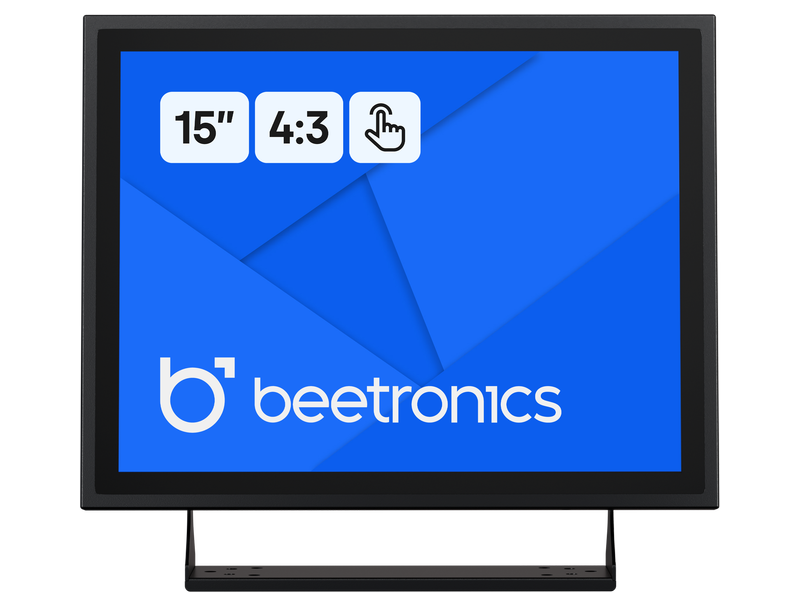

15 inch 4:3 ratio touchscreen monitor with stand

Windows, Mac, Linux & Android compatible

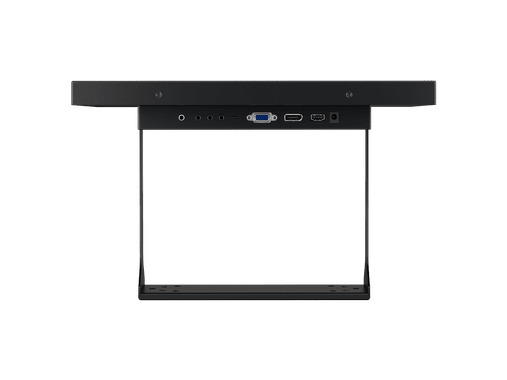

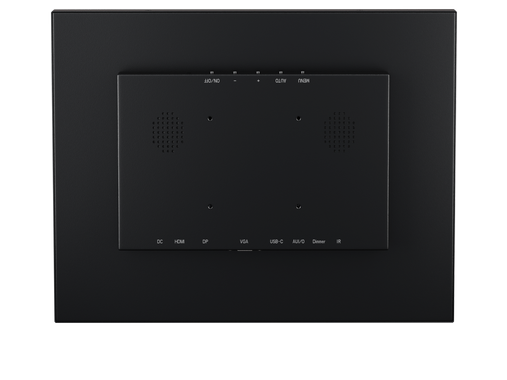

The 15TSV7M is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen has a wide range of video inputs including HDMI, VGA, BNC and RCA. Connecting the included USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

15 inch 4:3 ratio touchscreen monitor compatible with windows, mac os, linux, android

Designed for professional use

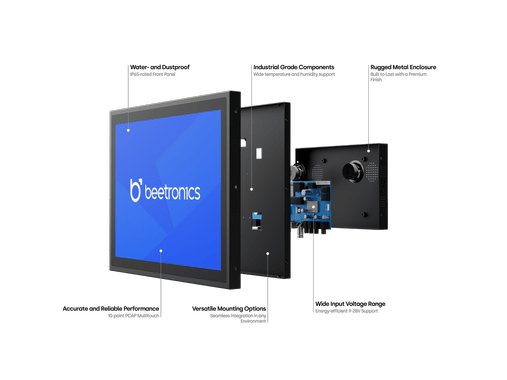

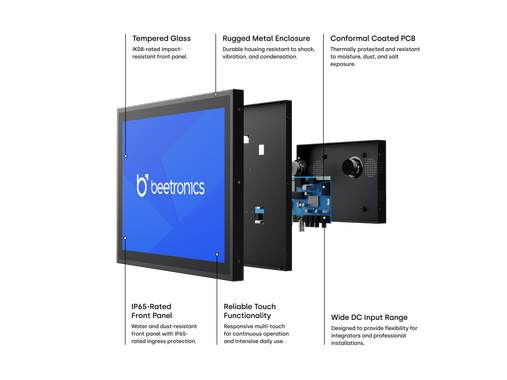

The 15TSV7M is designed for continuous operation and professional use. The touchscreen is manufactured with high quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

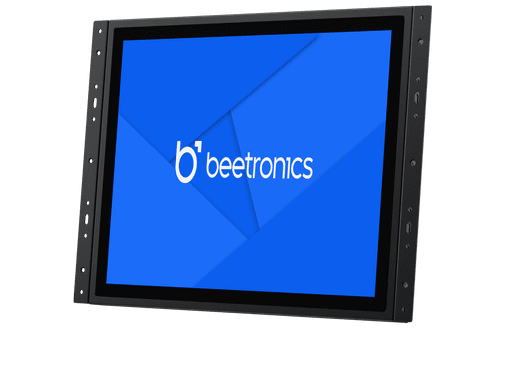

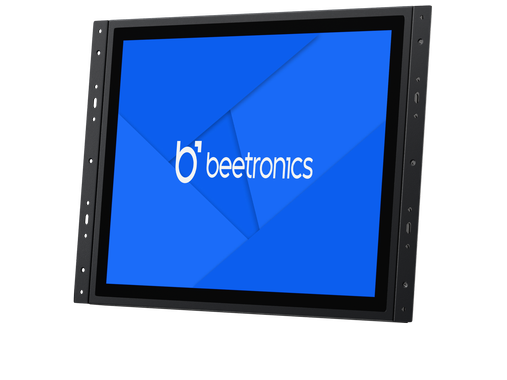

15 inch 4:3 ratio touchscreen monitor, open frame, flush mount

Easily integrated

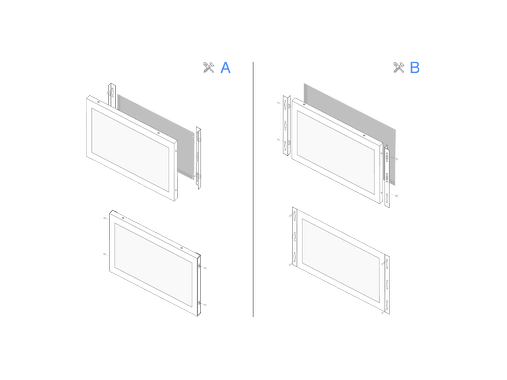

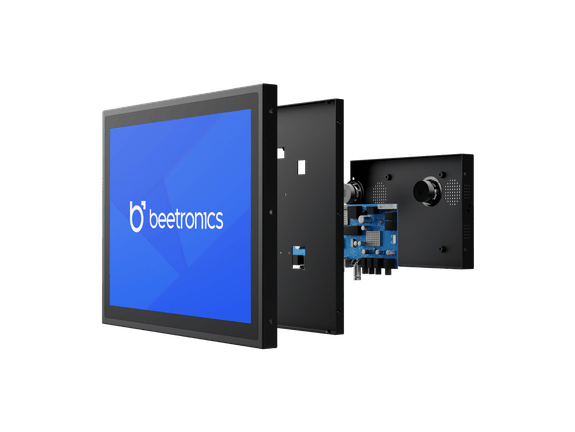

Thanks to numerous mounting options, the 15 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

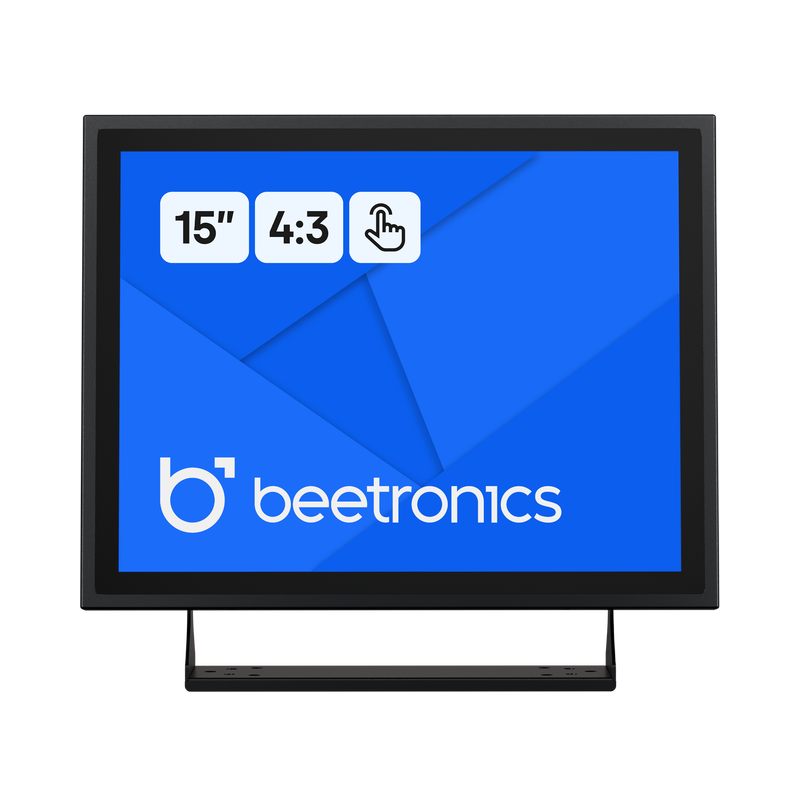

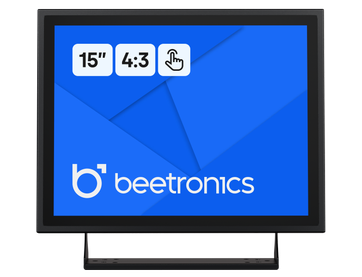

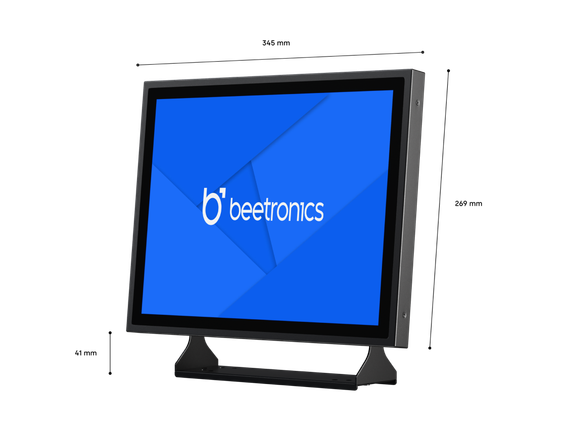

15 inch 4:3 ratio touchscreen monitor with stand

Desktop or wall mounting

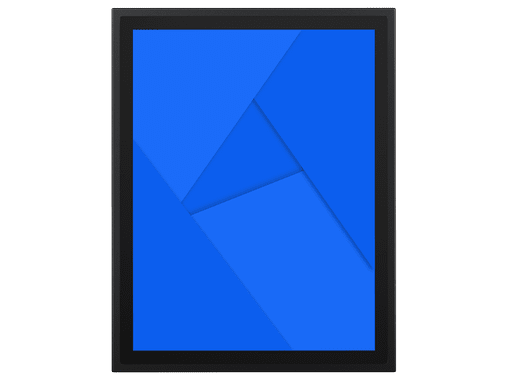

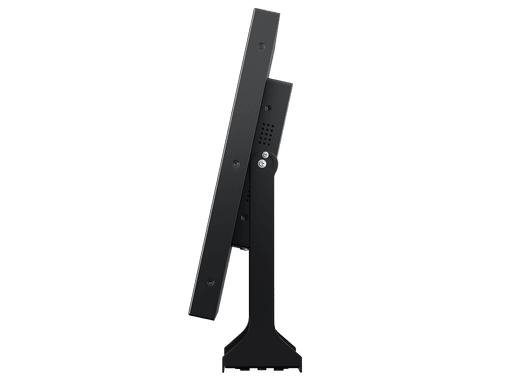

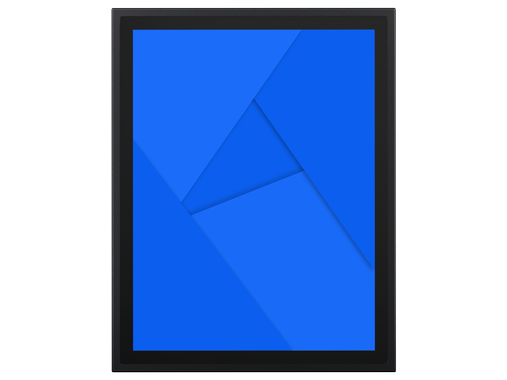

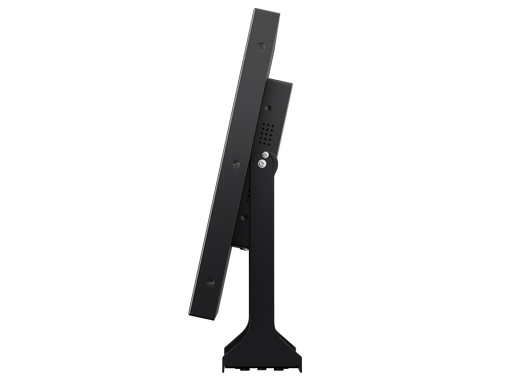

The Beetronics 15TSV7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

15 inch 4:3 ratio touchscreen monitor, open frame, flush mount
General
Manufacturer
Beetronics
Item number
15TSV7M
Previous model
15TSM
Product name
15 inch touchscreen metal (4:3)
Warranty
2 years
Datasheet
Manual
Supported operating systems
Windows
(Windows 7, 8, 10)
Windows Embedded
(Windows embedded 7, 8, 10)
Mac
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
Linux
Android
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
Drivers
No drivers needed. Plug & Play
Panel
Type
LED-IPS
Screen diagonal
15.0 inches (381 mm)
Aspect ratio
4:3
Native resolution
1024 x 768
Supported resolutions
1920 x 1080 (max), 640 x 480 (min)
Pixels per inch
85 PPI
Viewing angle
178° horizontal, 178° vertical
Colour encoding system
PAL/NTSC/SECAM
Brightness
300 cd/m2
Contrast
1500:1
Touch technology
Capacitive, 10-point multitouch (PCAP)
Touch control
Stylus, hand, glove
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX input
1x
AUX output
1x
USB
Only for touchscreen functionality

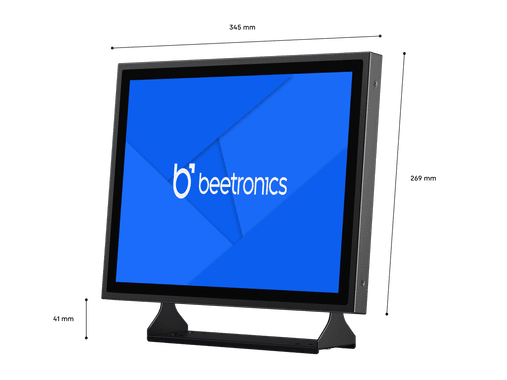

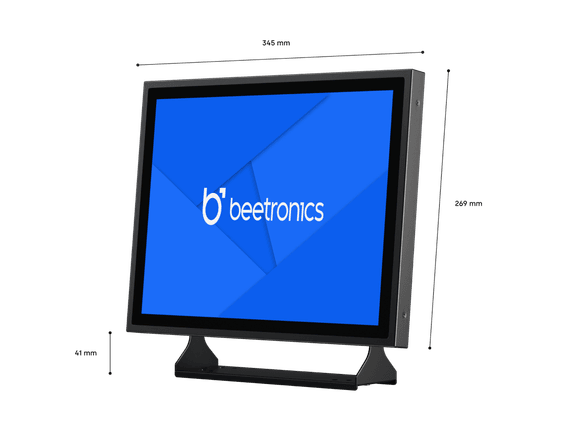

Size & weight
Colour
Black
Weight
2610 gram (3382 gram with stand)
Width
345 mm
Height
269 mm (+0 to 37 mm with stand)
Thickness
43 mm
Display dimensions
305 x 229 mm
Technical drawing
3D drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<15 Watt (0.5 Watt standby)
Environmental
Operating temperature
-20c° to +60c°
Storage temperature
-20c° to +70c°
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP rating
IP65 front panel
Certifications
CE, FCC, RoHS, REACH

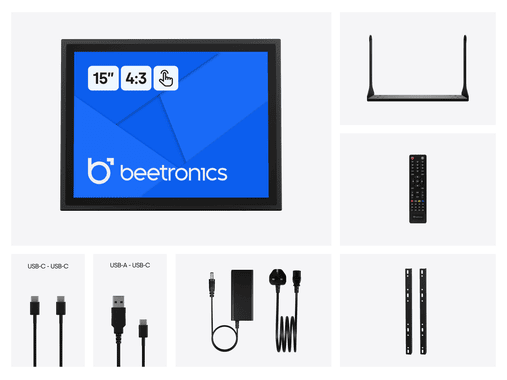

Package content
Includes
Touchscreen, USB cable, Remote control, Mains adaptor, Stand, Installation strips, Manual

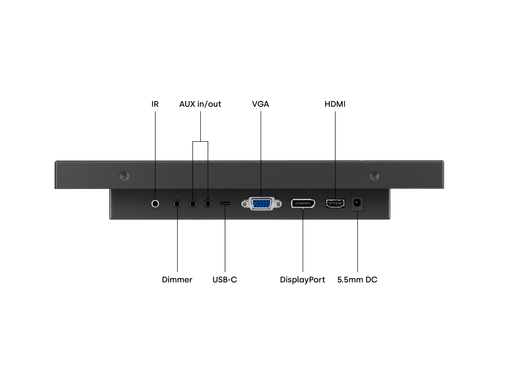

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
3.5mm (input)
AUX_audio_35mm
3.5mm (output)
AUX_audio_35mm
USB(touch)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
3D drawing   Download CAD/STP
Datasheet   Download PDF
