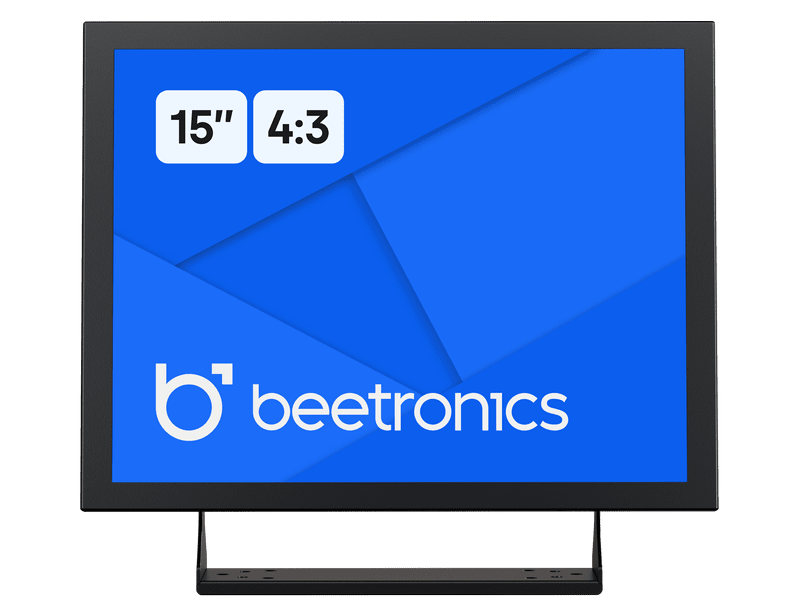

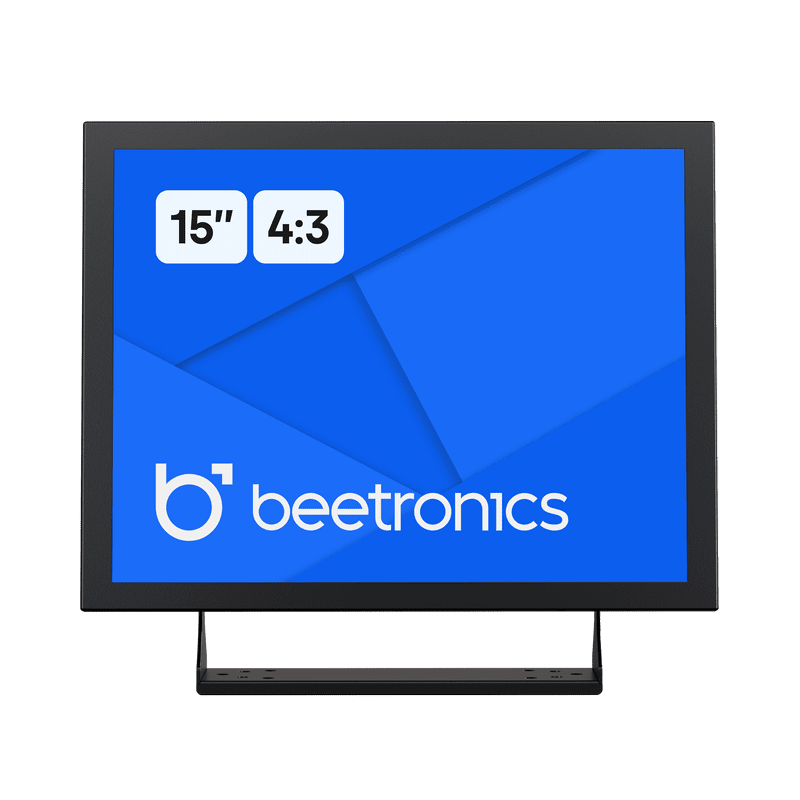

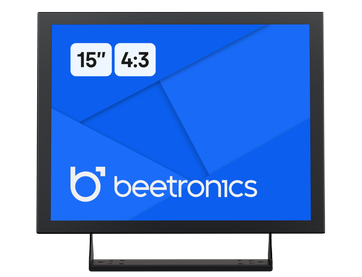

15 inch monitor metal (4:3)

  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable

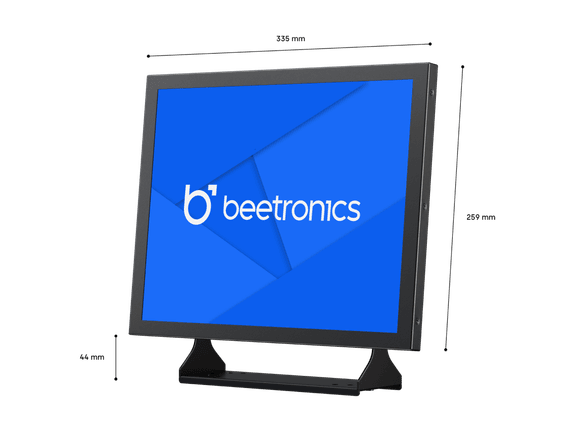

  4. 335 x 259 x 36 mm
Item number: 15VGM
100+ units in stock

Order before 10:00 pm for free delivery on friday

£255.00 £212.50 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

This 15 inch monitor has a sturdy metal housing and is suitable for desktop, flush and wall mounting. The monitor is equipped with an IPS panel with a 4:3 aspect ratio which provides crystal-clear image quality with excellent 178° viewing angles. The 8VG3 can be connected through a HDMI, VGA, BNC or RCA connection.

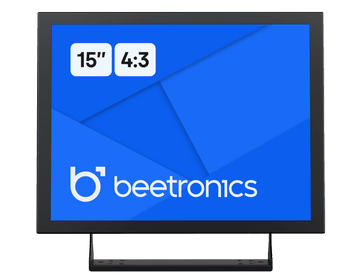

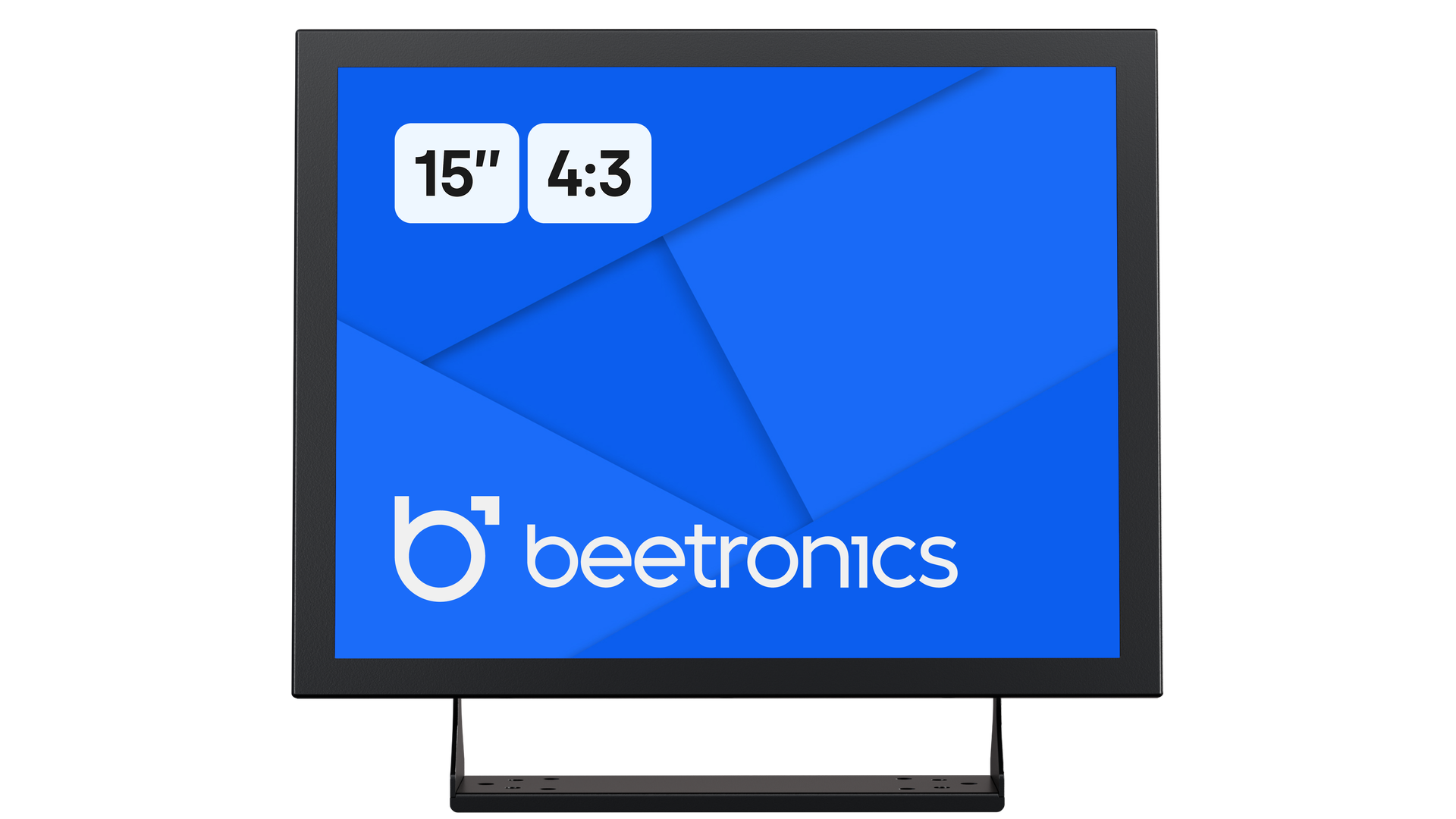

4:3 aspect ratio

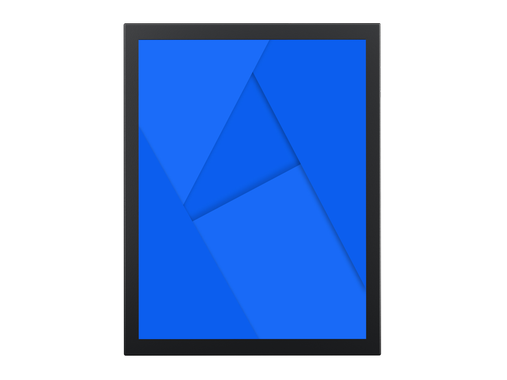

The monitor is equipped with an IPS panel with a 4:3 aspect ratio. The monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust.

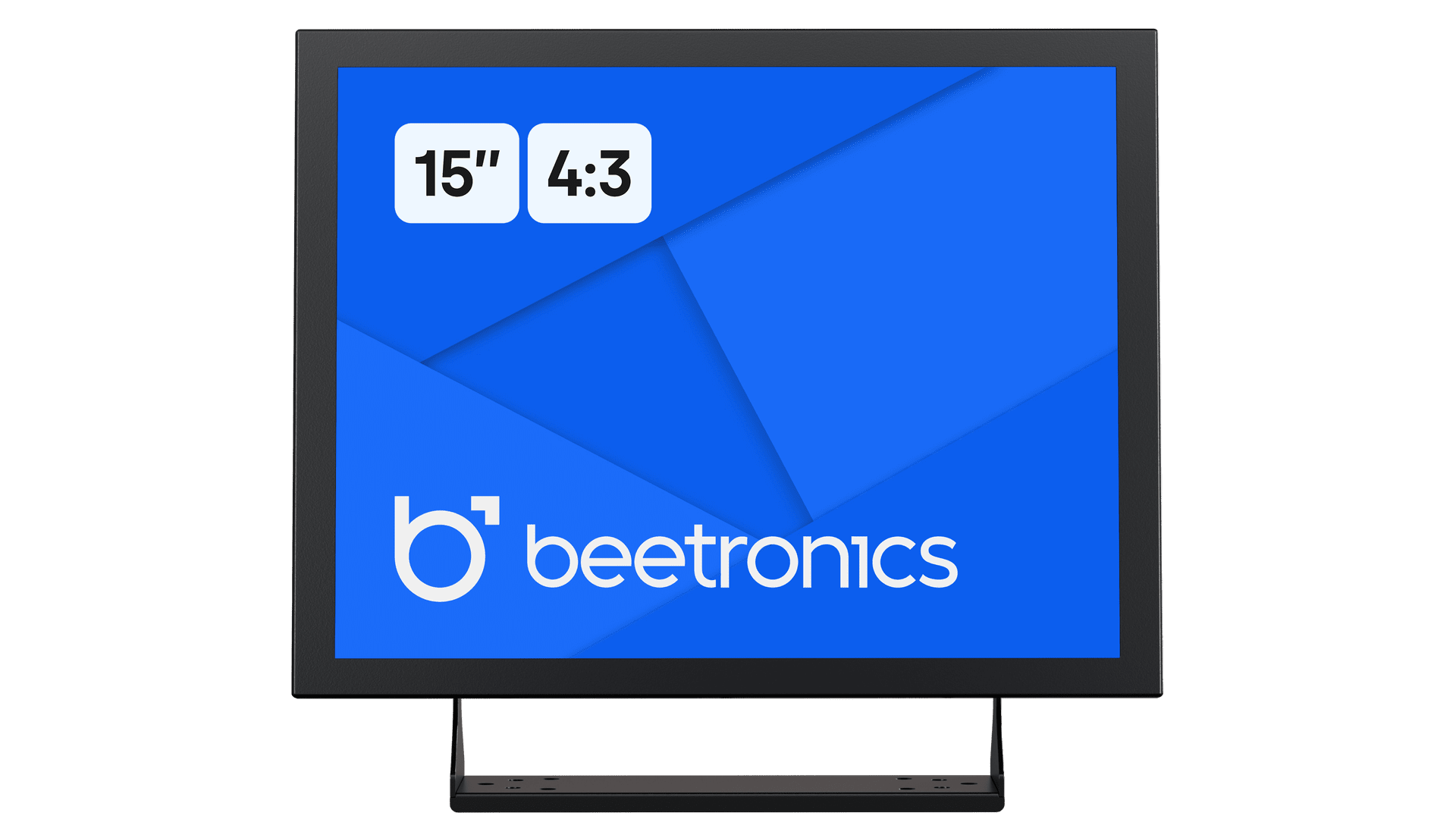

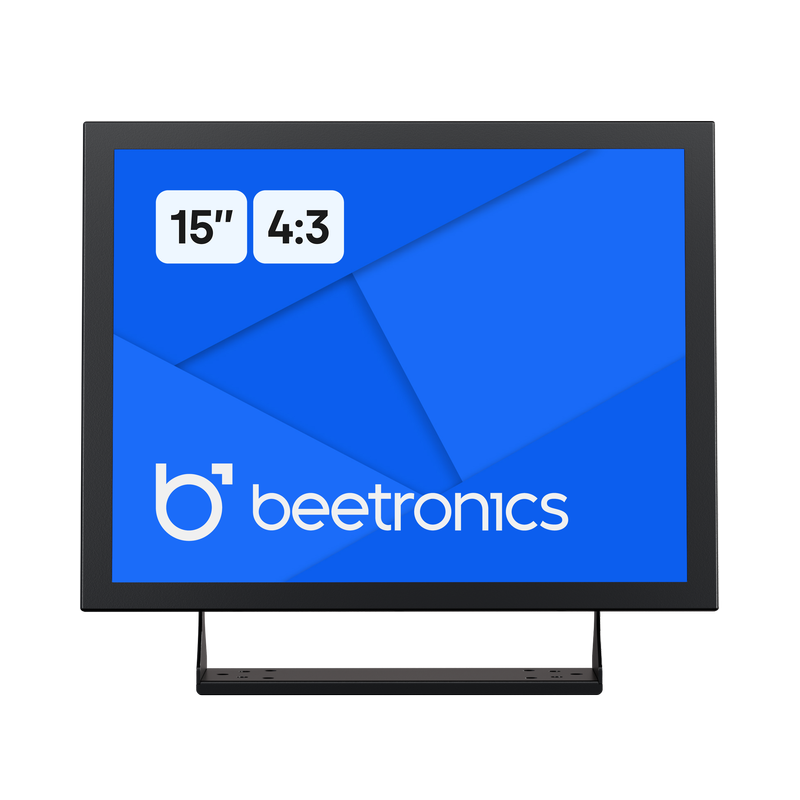

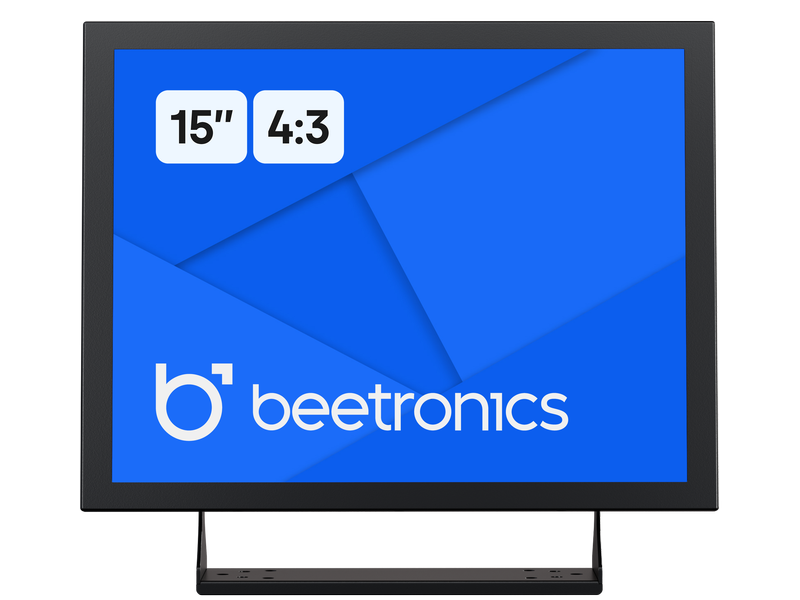

15 inch monitor metal 4/3 with stand.

Input: HDMI, VGA, BNC and RCA

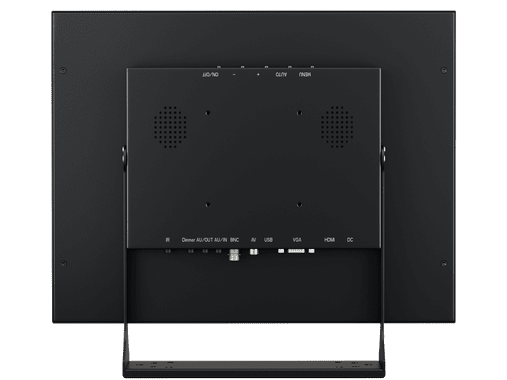

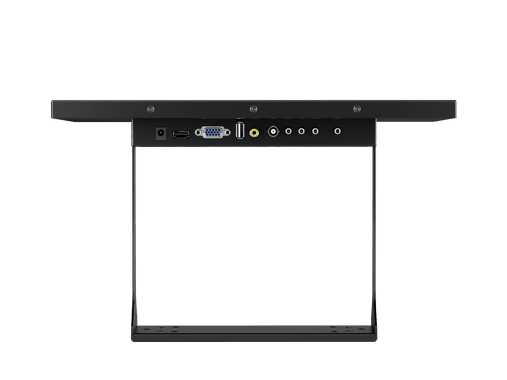

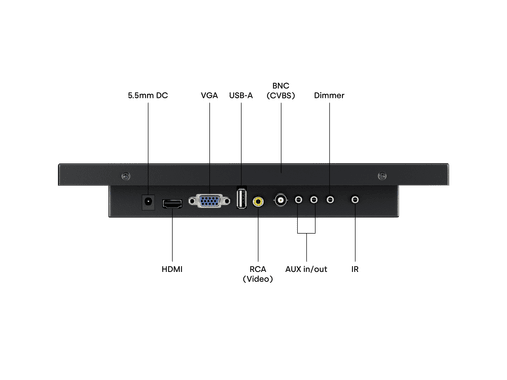

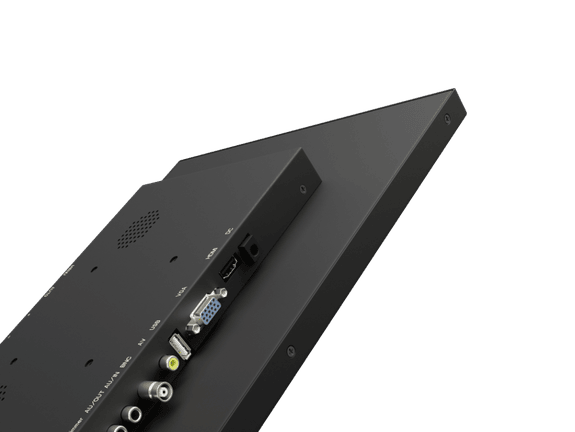

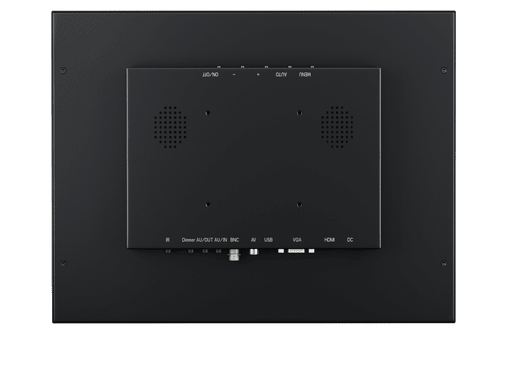

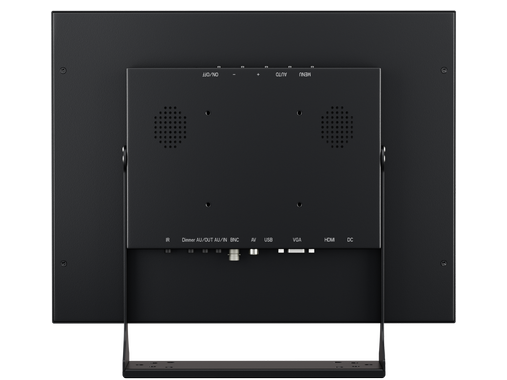

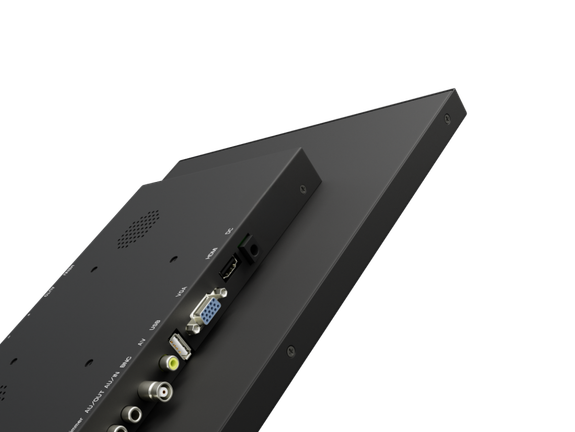

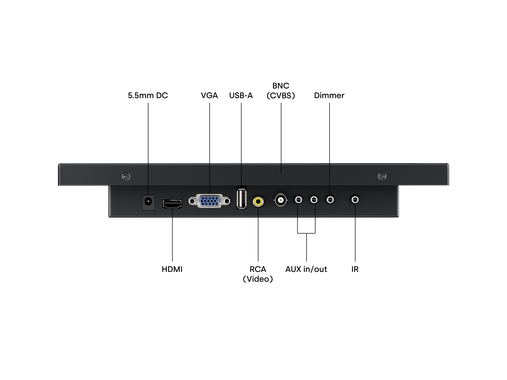

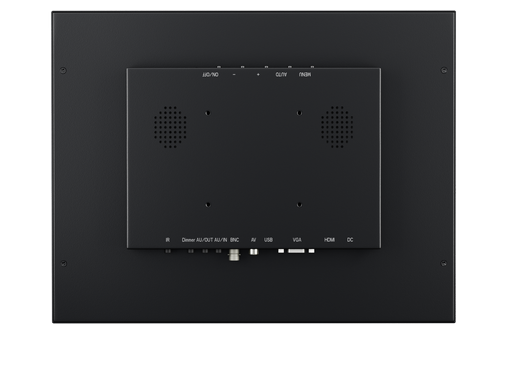

The 15VGM monitor has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.

metal 15 inch monitor 4/3 hdmi vga bnc rca

Designed for professional use

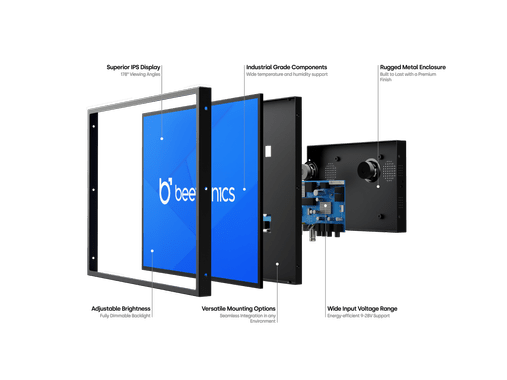

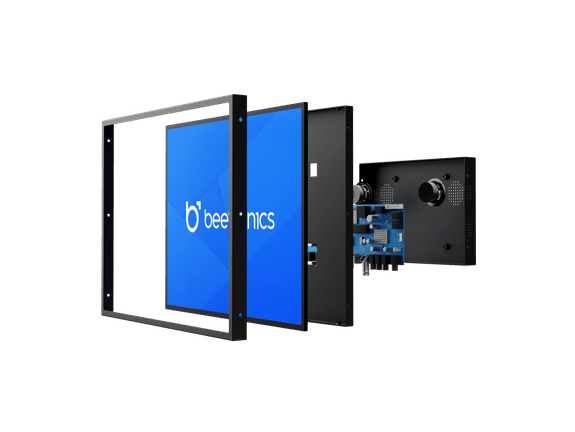

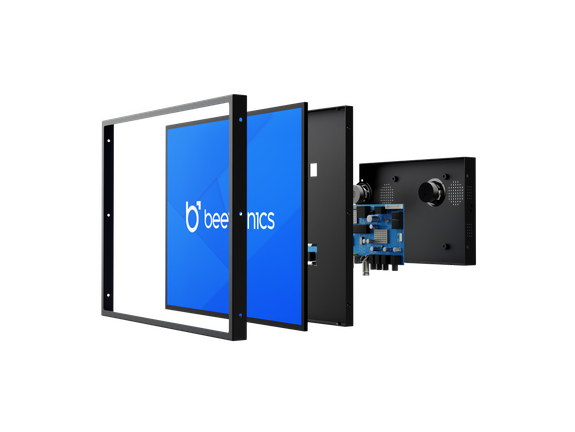

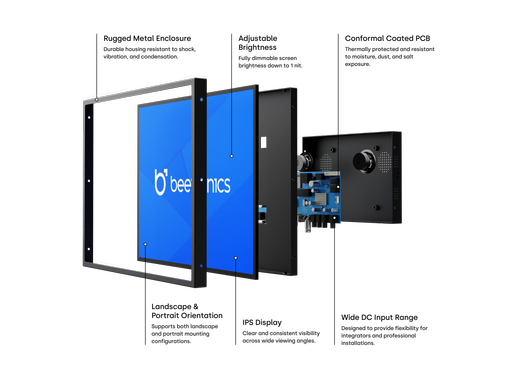

The 15VGM has a sturdy metal housing and dimmable panel. The monitor is manufactured with high quality components that guarantee reliable operation. The 15VGM is suitable for continuous operation and ideal for professional use.

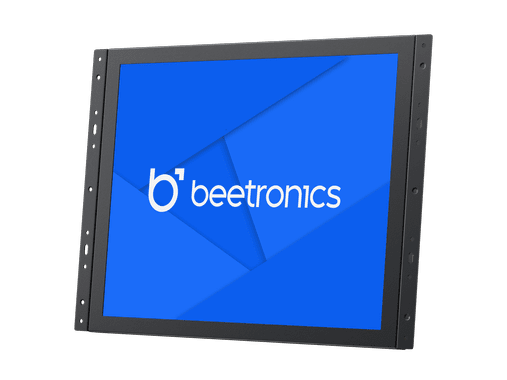

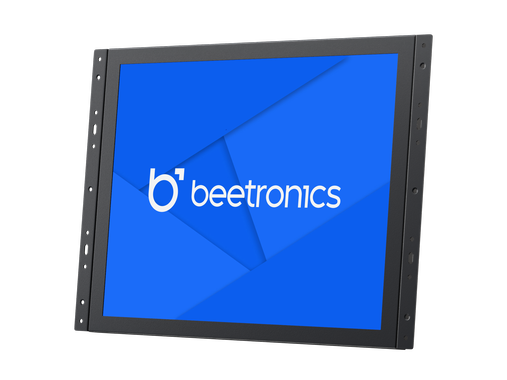

15 inch 4:3 ratio open frame flush mountable monitor

Desktop, flush and wall mountable

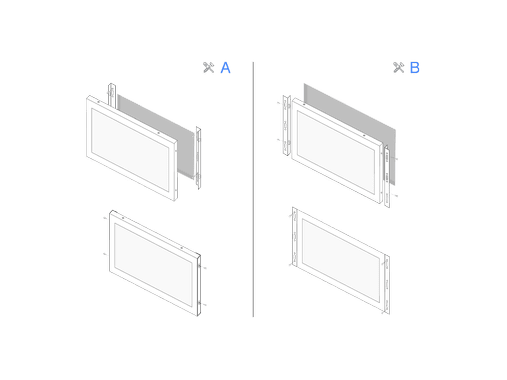

The Beetronics 15VGM has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

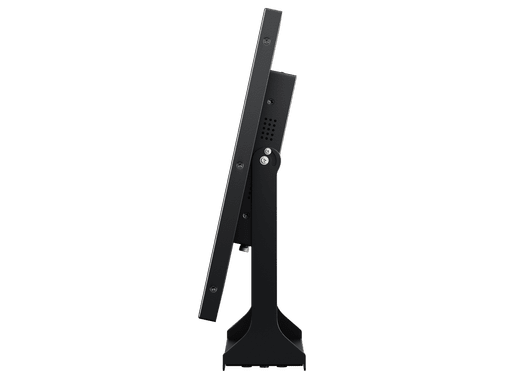

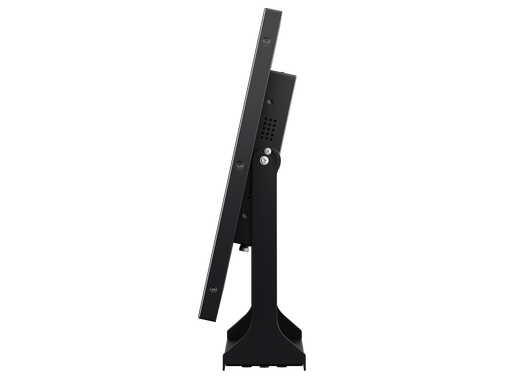

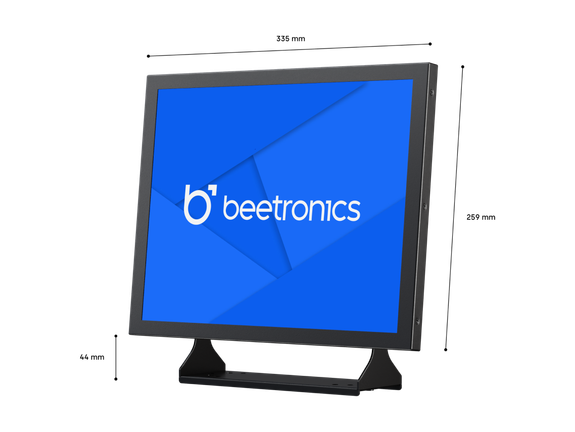

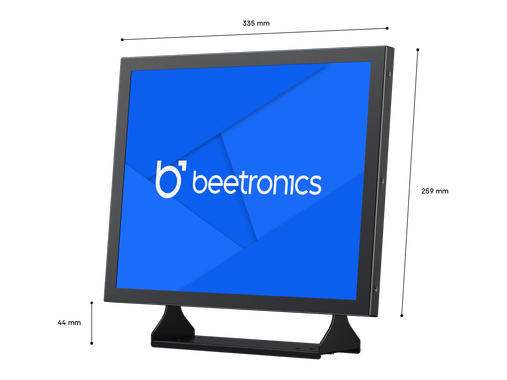

15 inch metal monitor with adjustable stand
General
Manufacturer Beetronics
Item number 15VGM
Product name 15 inch monitor metal (4:3)
Warranty 2 years
Datasheet   Download PDF
Manual   Download PDF
Panel
Type Matte, LED-IPS
Screen diagonal 15 inch (38,1 cm)
Aspect ratio 4:3
Native resolution 1024 x 768
Supported resolutions 1920 x 1080 (max), 640 x 480 (min)
Pixels per inch 85 PPI
Viewing angle 178° horizontal, 178° vertical
Colour encoding system PAL/NTSC/SECAM
Brightness 300 cd/m2
Contrast 1500:1
Connectivity
HDMI 1x
VGA 1x
BNC (CVBS) 1x
RCA video 1x
AUX output 1x
USB 1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
Size & weight
Colour Black
Weight 2500 gram (3272 gram with stand)

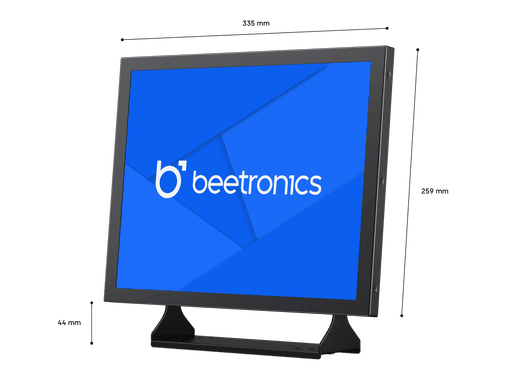

Width 335 mm
Height 259 mm (+0 to 37 mm with stand)
Thickness 36 mm
Display dimensions 306 x 230 mm
Technical drawing   Download PDF
Features and functions
Audio Integrated speakers
Key-lock The control buttons can be blocked
Auto-on Automatically powers on when it receives current or a signal
Dimmable Adjustable backlight brightness
Mirroring Image can be mirrored, horizontally and vertically
Power
Input voltage DC 12V
Power supply Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption <15 Watt (0.5 Watt standby)
Environmental
Operating temperature -20c° to +60c°
Storage temperature -20c° to +70c°
Operating humidity 20% - 90% non-condensing
Mounting
Wall mount VESA (75 mm)
Flush mount Mounting strips included
Stand Adjustable and detachable
Certifications & Standards
Certifications CE, FCC, RoHS, REACH

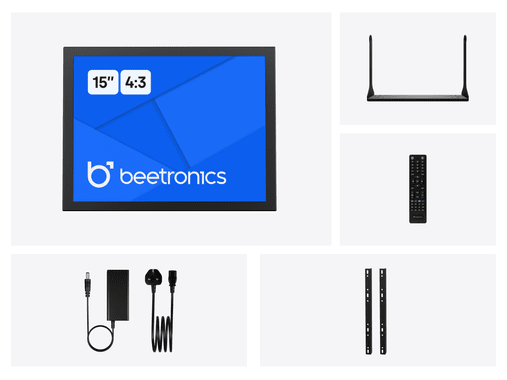

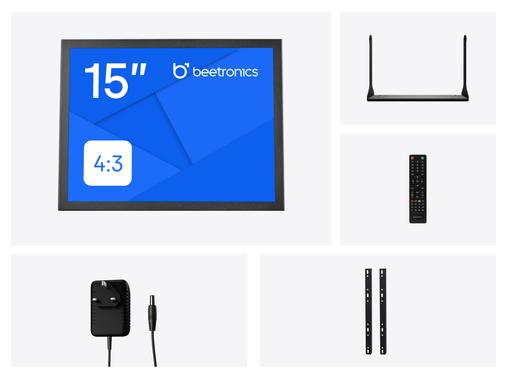

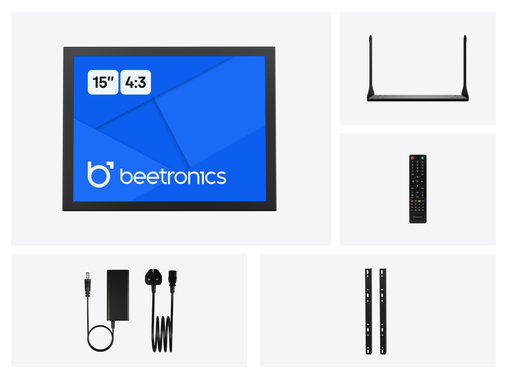

Package content
  1. 15 inch monitor metal (4:3)
  2. Mounting strips
  3. Remote control
  4. Mains adaptor
  5. Stand
  6. Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
AUX(output)
AUX_audio_35mm
USB(media)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
