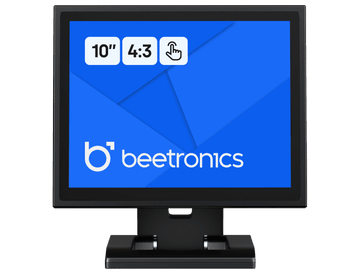

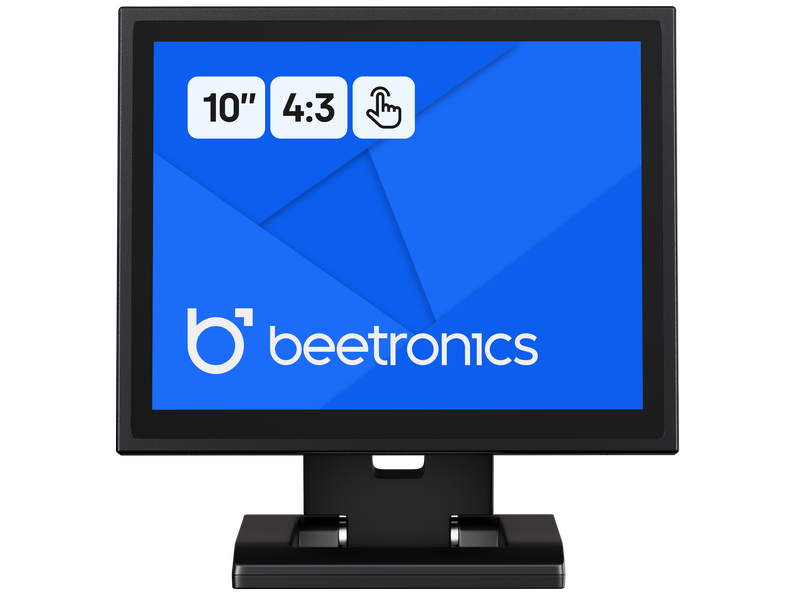

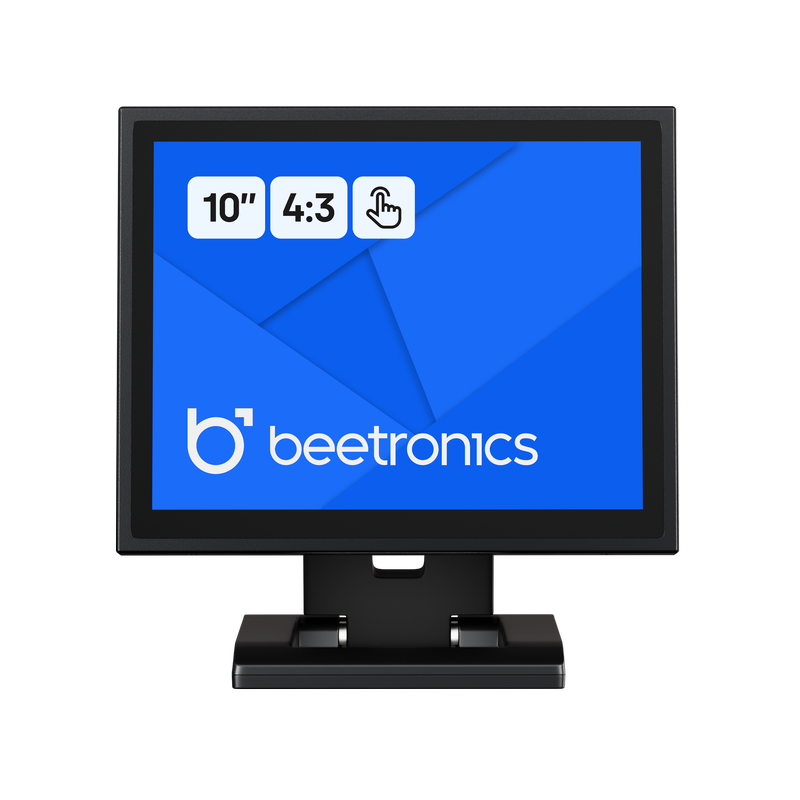

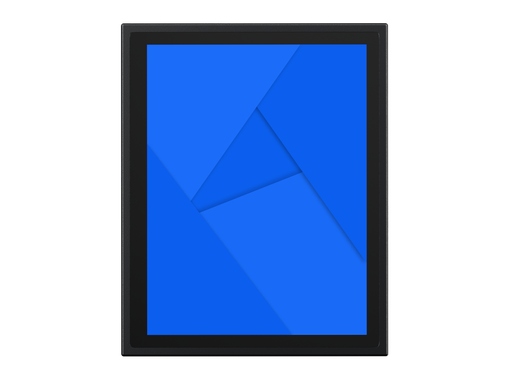

10 inch touchscreen metal (4:3)

  1. 4:3 multi-touch panel
  2. Windows, Mac, Linux & Android compatible
  3. Desktop, flush and wall mountable
  4. 228 x 182 x 38 mm
Item number: 10TS4M
100+ units in stock

Order before 10:00 pm for free delivery on monday

£329.00 £274.17 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

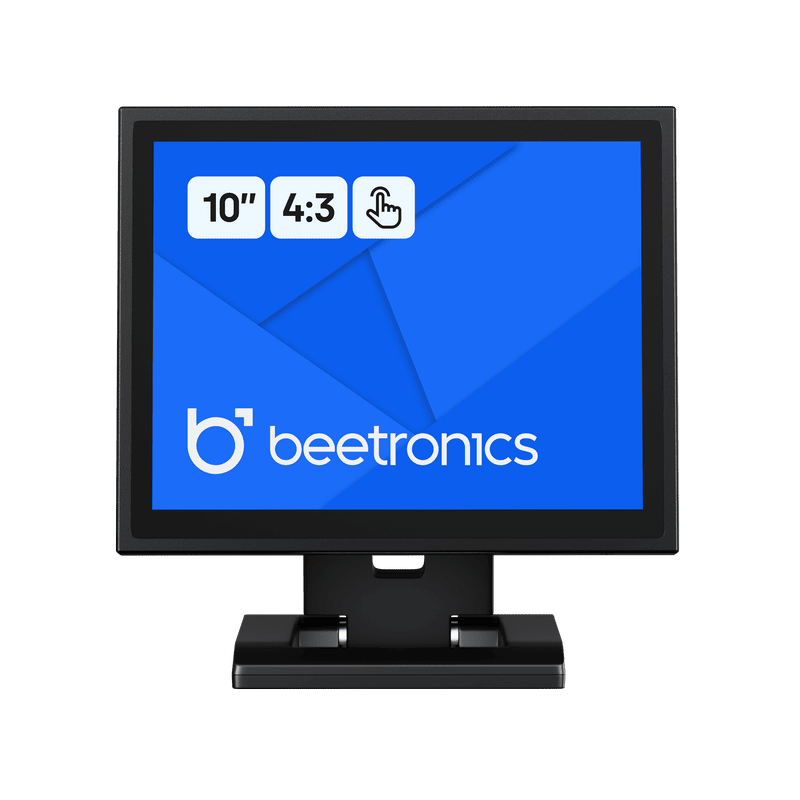

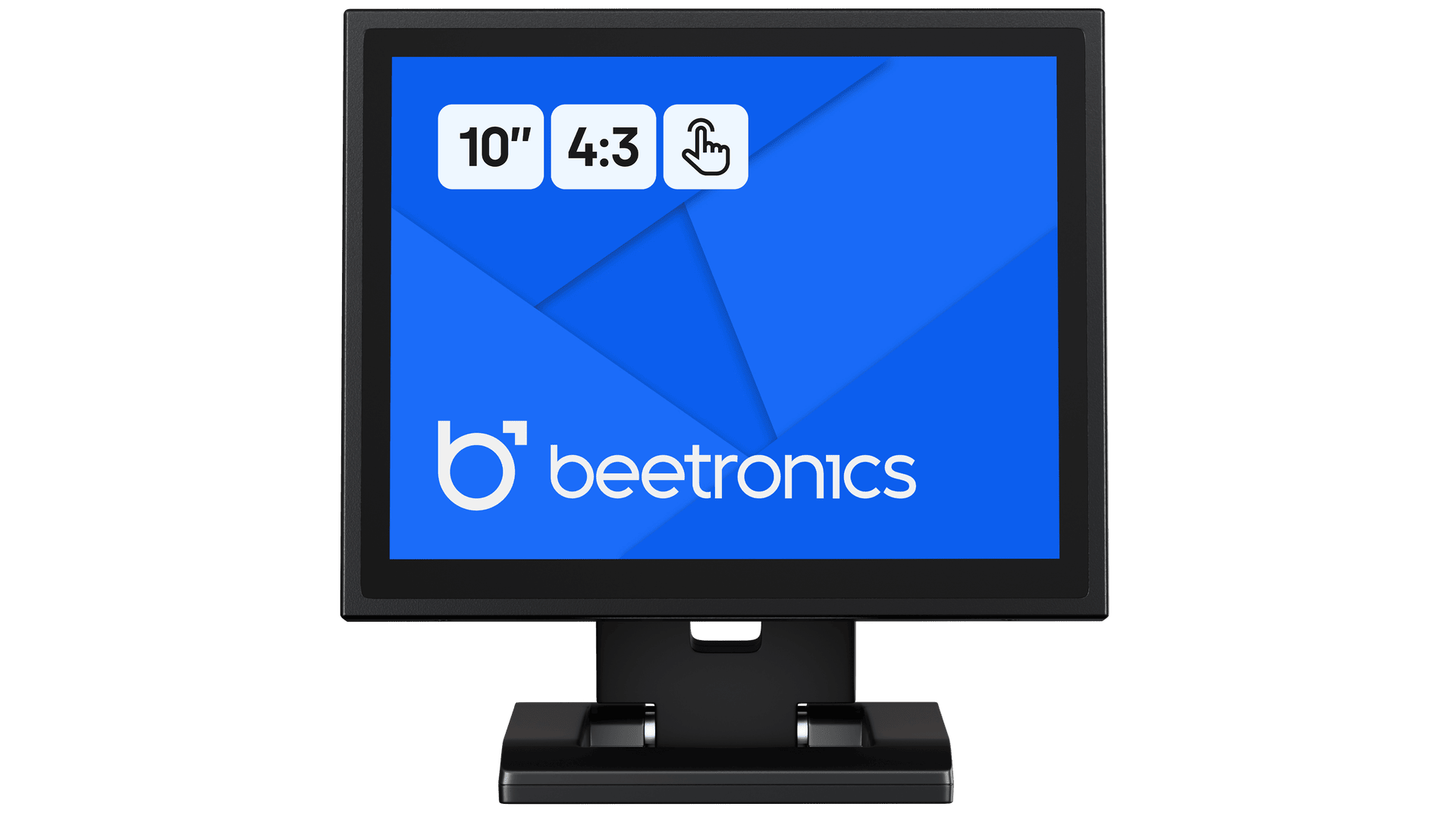

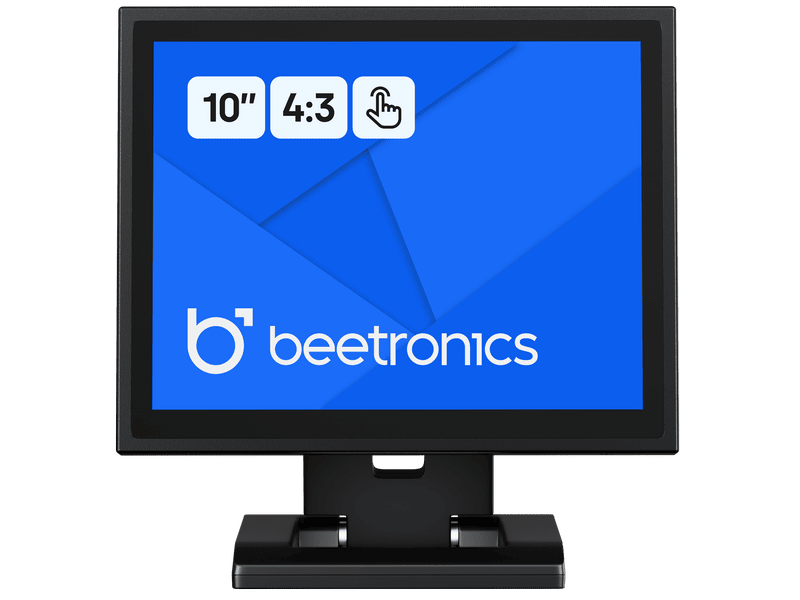

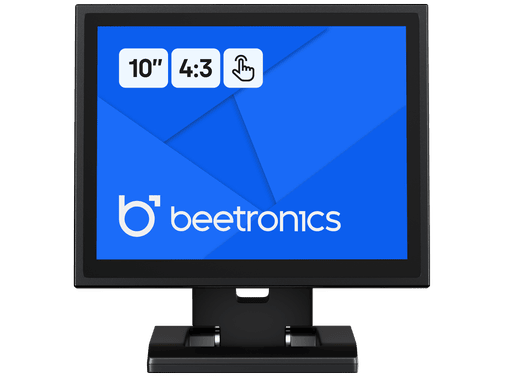

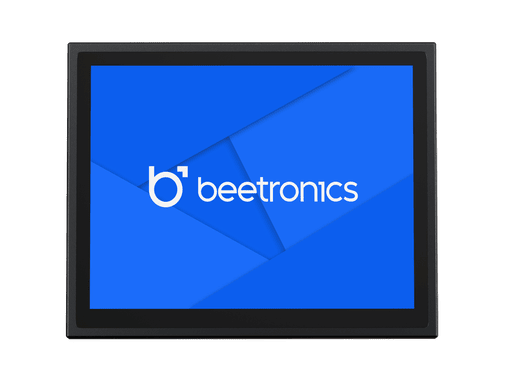

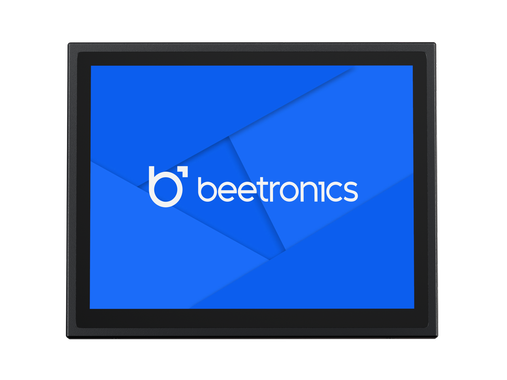

This 10 inch touchscreen monitor has a sturdy metal housing and is suitable for desktop, flush and wall mounting. The touchscreen is equipped with an IPS panel with a 4:3 aspect ratio which provides crystal-clear image quality with excellent 178° viewing angles. The 10TS4M can be connected through a HDMI, VGA, BNC or RCA connection.

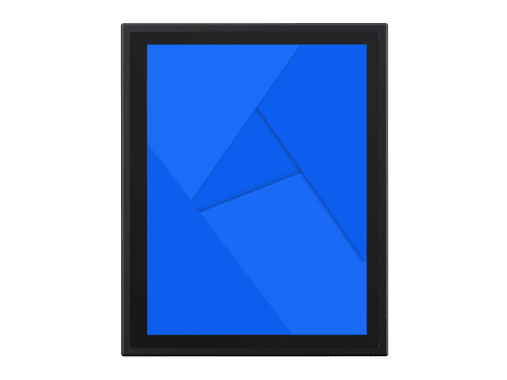

4:3 multi-touch panel

Fitted with a 4:3 IPS panel, the monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

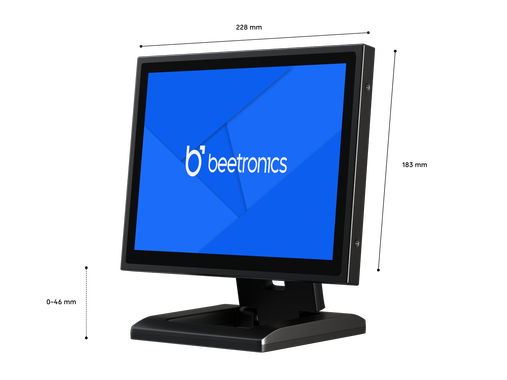

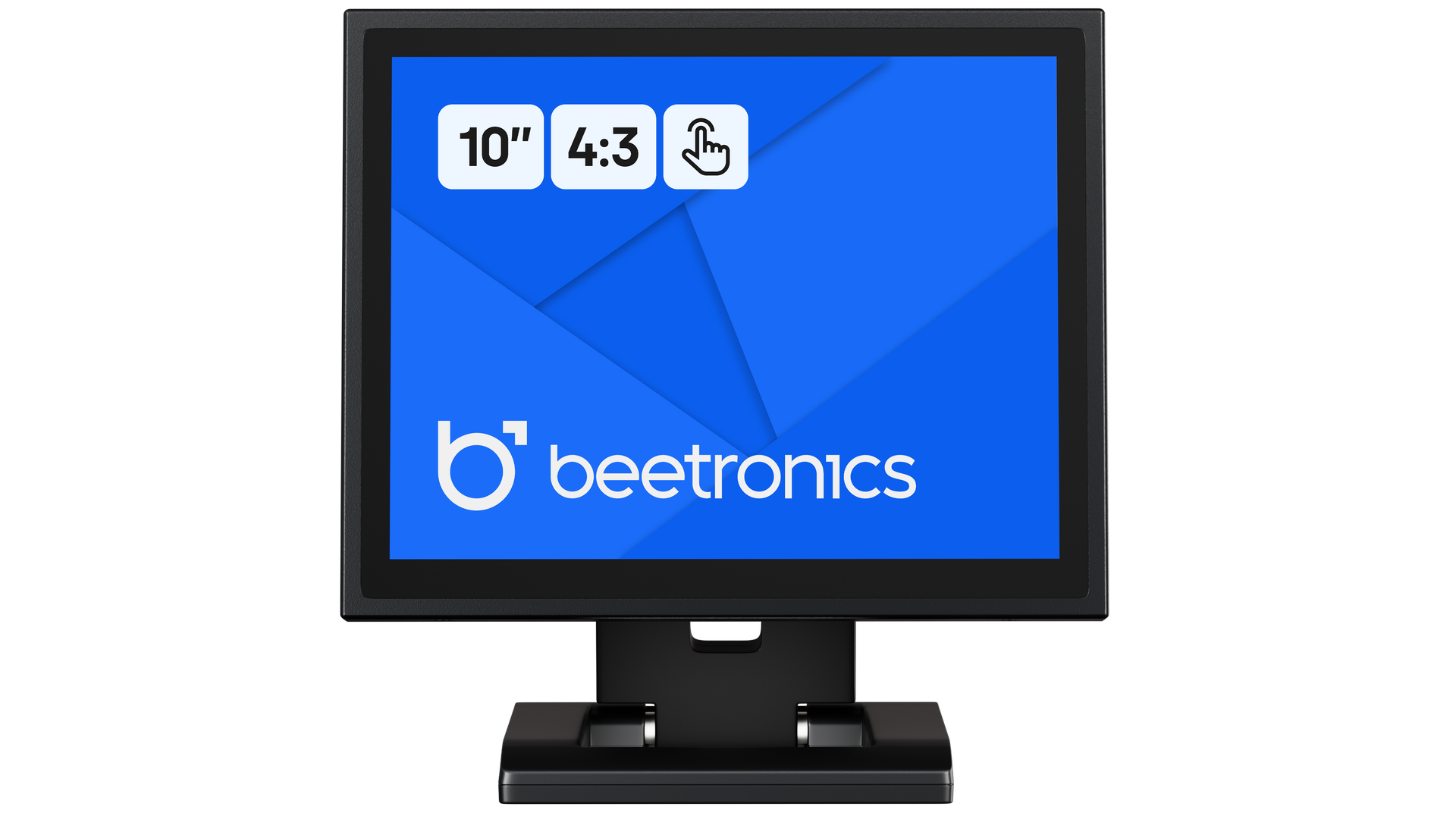

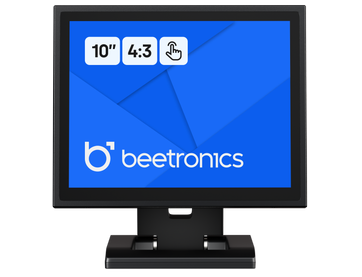

10 inch touschscreen with stand

Windows, Mac, Linux & Android compatible

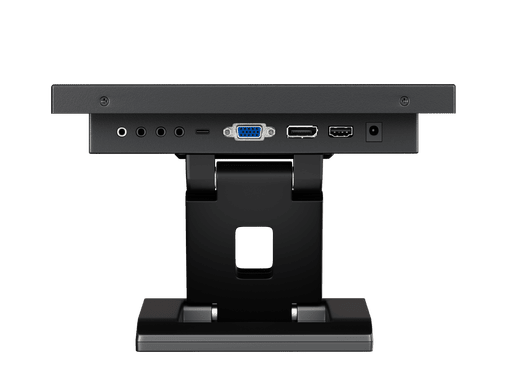

The 10TS4M touchscreen is compatible with Windows, Mac, Linux & Android operating systems. This touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

Touchscreen 10" with hdmi vga usb rca and bnc connections

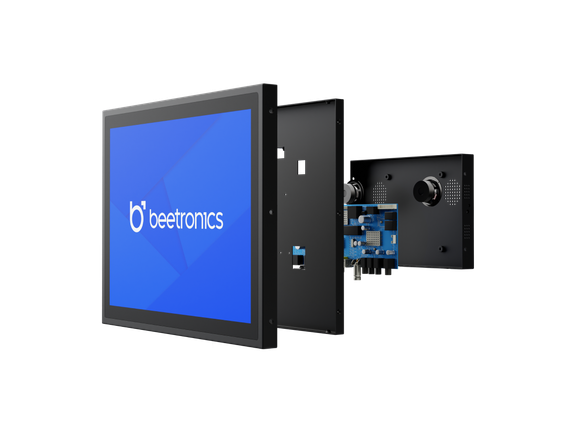

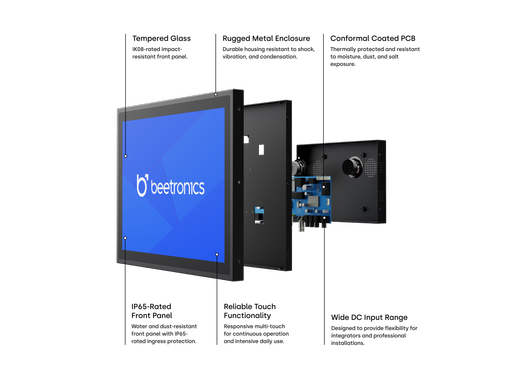

Designed for professional use

The 10TS4M touchscreen is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing and dimmable panel, the 10TS4M is ideal for professional use.

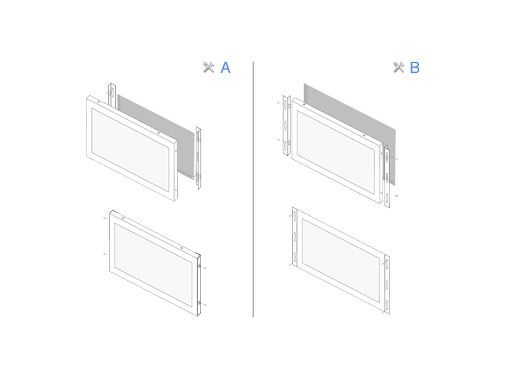

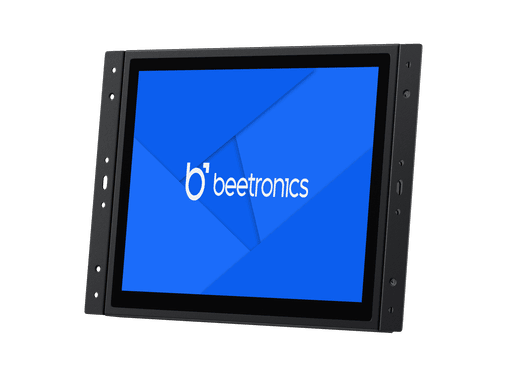

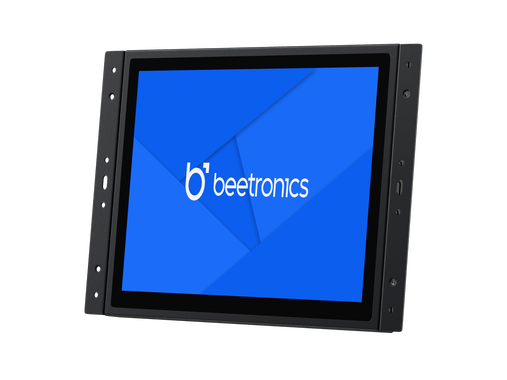

10 inch touschscreen open frame - flush mountable

Desktop, flush and wall mountable

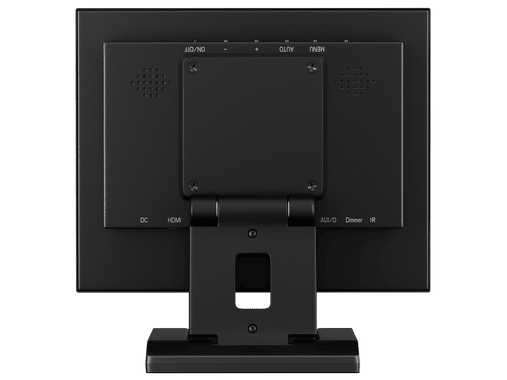

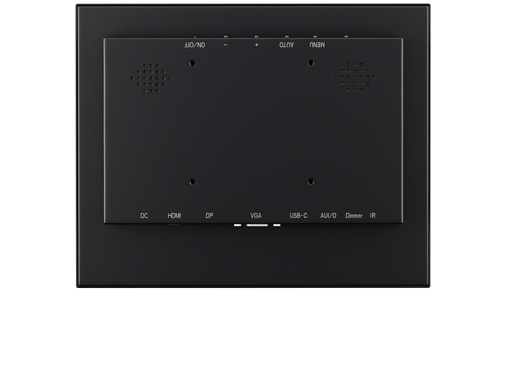

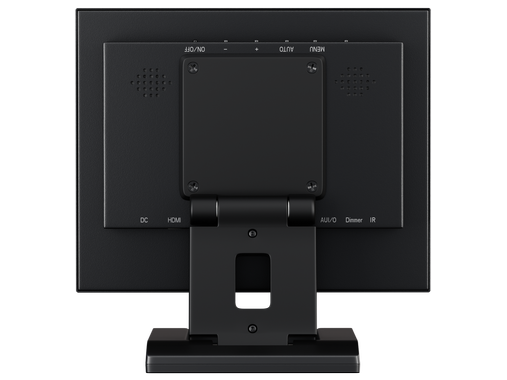

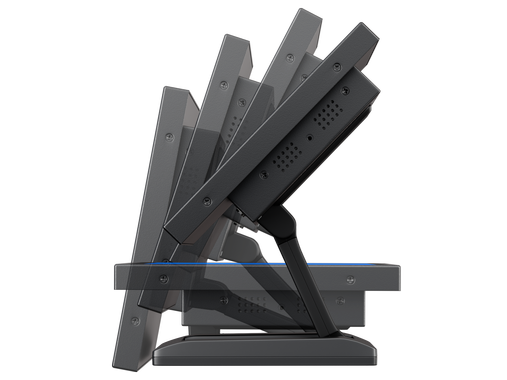

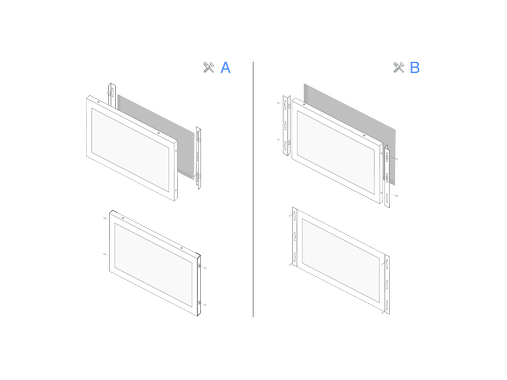

The Beetronics 10TS4M has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

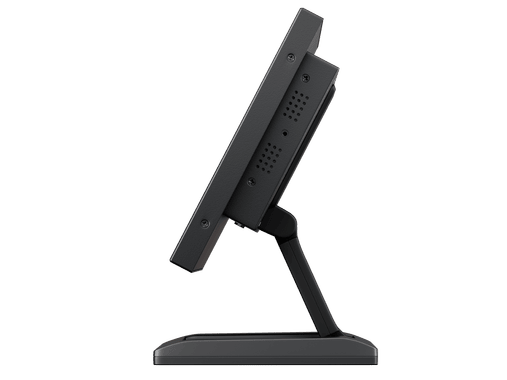

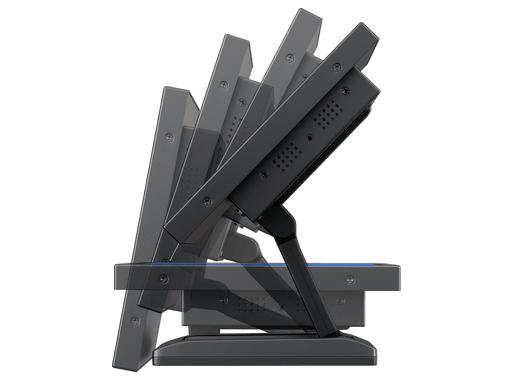

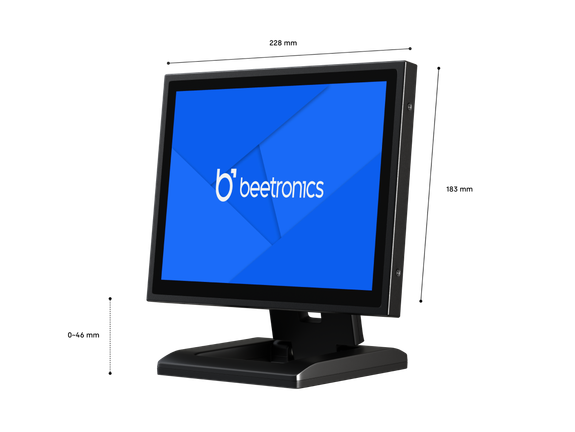

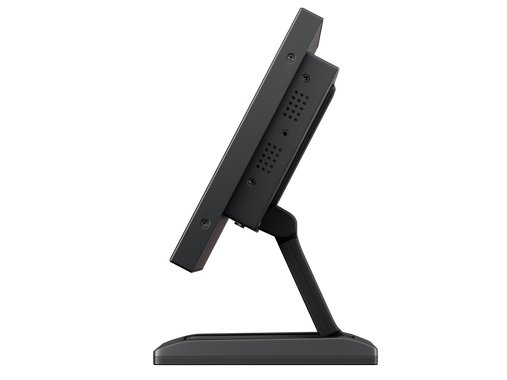

10 inch touschscreen with adjustable stand
General
Manufacturer
Beetronics
Item number
10TS4M
Product name
10 inch touchscreen metal (4:3)
Warranty
2 years
Datasheet
Manual
Supported operating systems
Windows
(Windows 7, 8, 10)
Windows Embedded
(Windows embedded 7, 8, 10)
Mac
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
Linux
Android
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
Drivers
No drivers needed. Plug & Play
Panel
Type
LED-IPS
Screen diagonal
9 inch (22,8 cm)
Aspect ratio
4:3
Native resolution
1024 x 768
Supported resolutions
1920 x 1200 (max), 640 x 480 (min)
Pixels per inch
132 PPI
Viewing angle
178° horizontal, 178° vertical
Colour encoding system
PAL/NTSC/SECAM
Brightness
350 cd/m2
Contrast
800:1
Touch technology
Capacitive, 10-point multitouch (PCAP)
Touch control
Stylus, hand, glove
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX output
1x
USB
Only for touchscreen functionality
Size & weight
Colour
Black
Weight
1410 gram (1830 gram with stand)
Width
228 mm
Height
182 mm (+0 to 39 mm with stand)
Thickness
38 mm
Display dimensions
212 x 166 mm
Technical drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 12V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<15 Watt (0.5 Watt standby)
Environmental
Operating temperature
-20c° to +60c°
Storage temperature
-20c° to +70c°
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP rating
IP65 front panel
Certifications
CE, FCC, RoHS, REACH

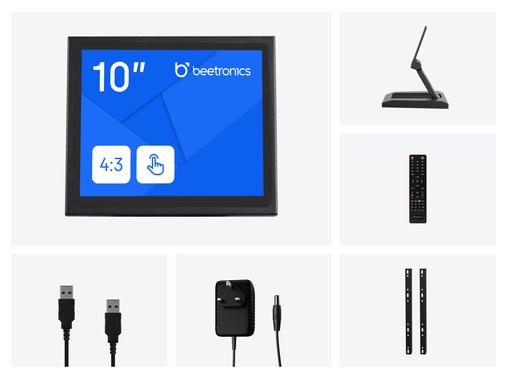

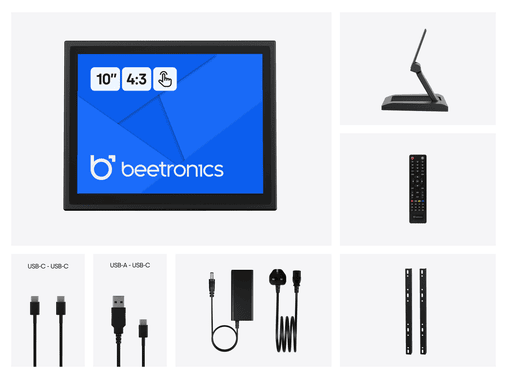

Package content
Includes
Touchscreen, USB cable, Remote control, Mains adaptor, Stand, Installation strips, Manual

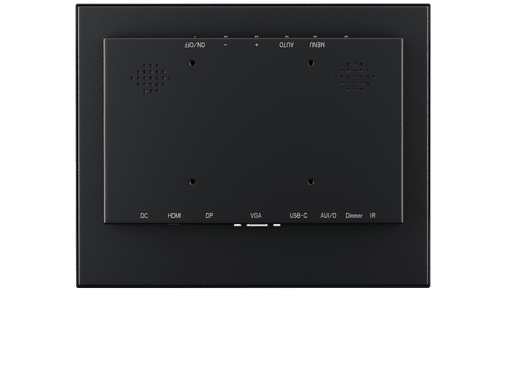

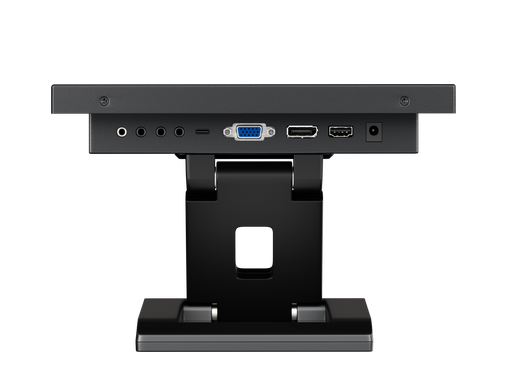

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA(video)
RCA
AUX(output)
AUX_audio_35mm
USB(touch)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
