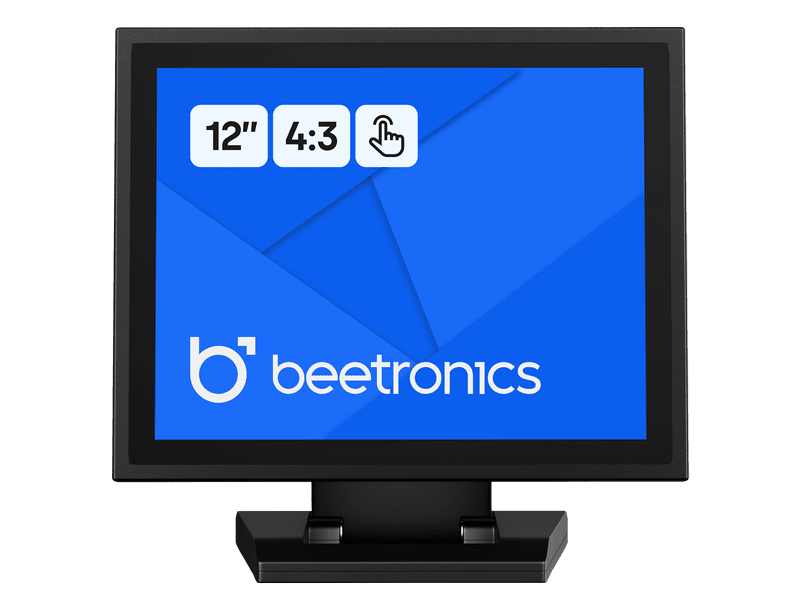

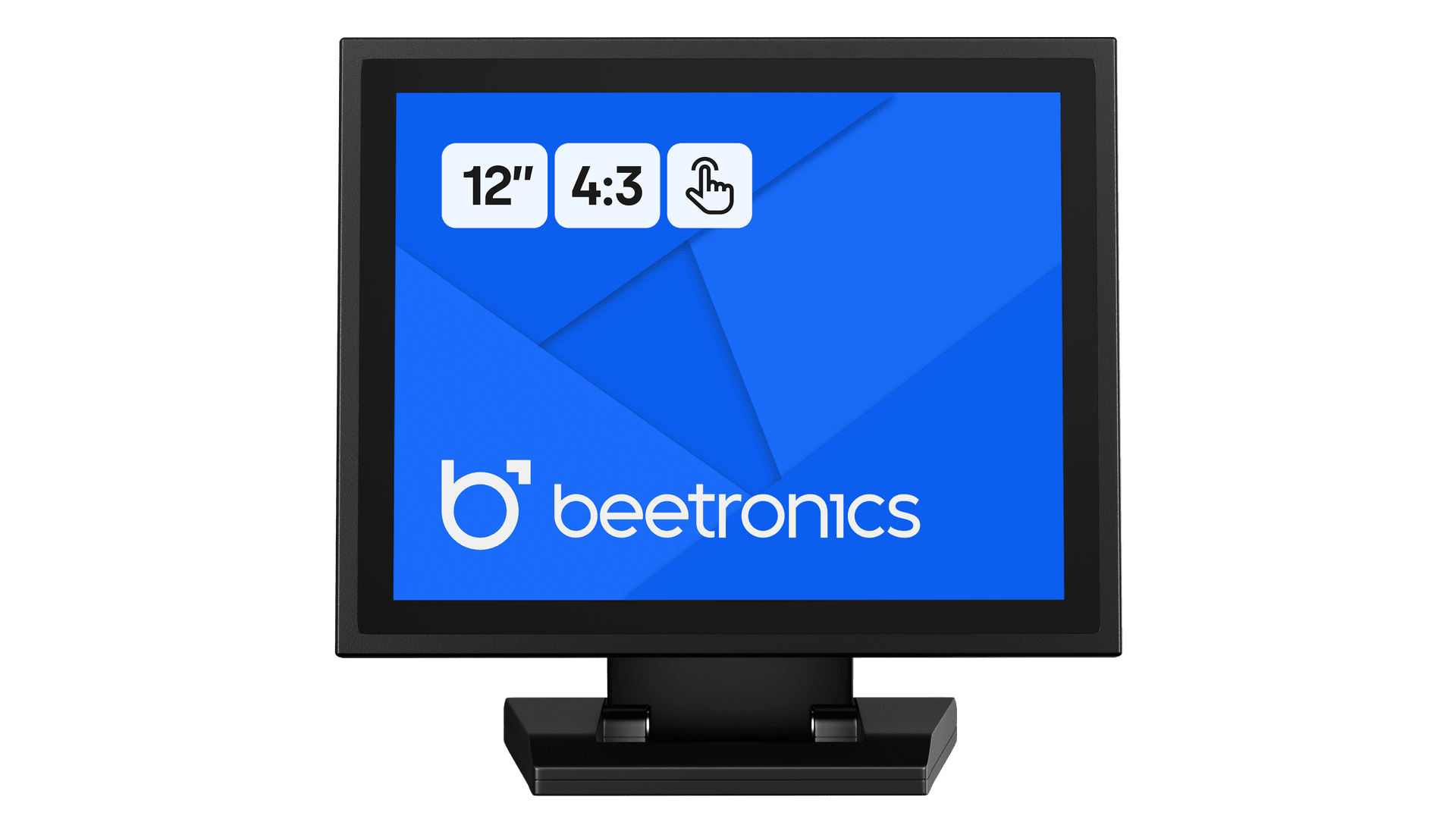

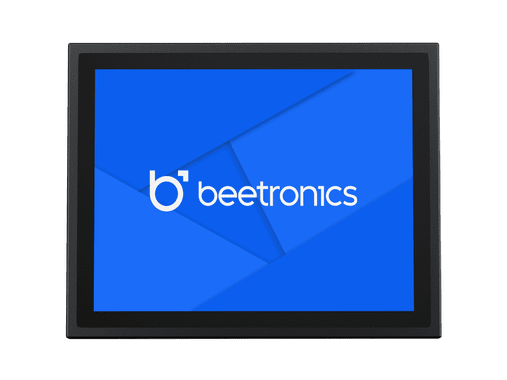

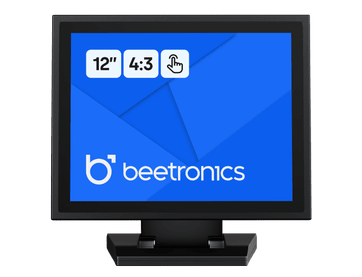

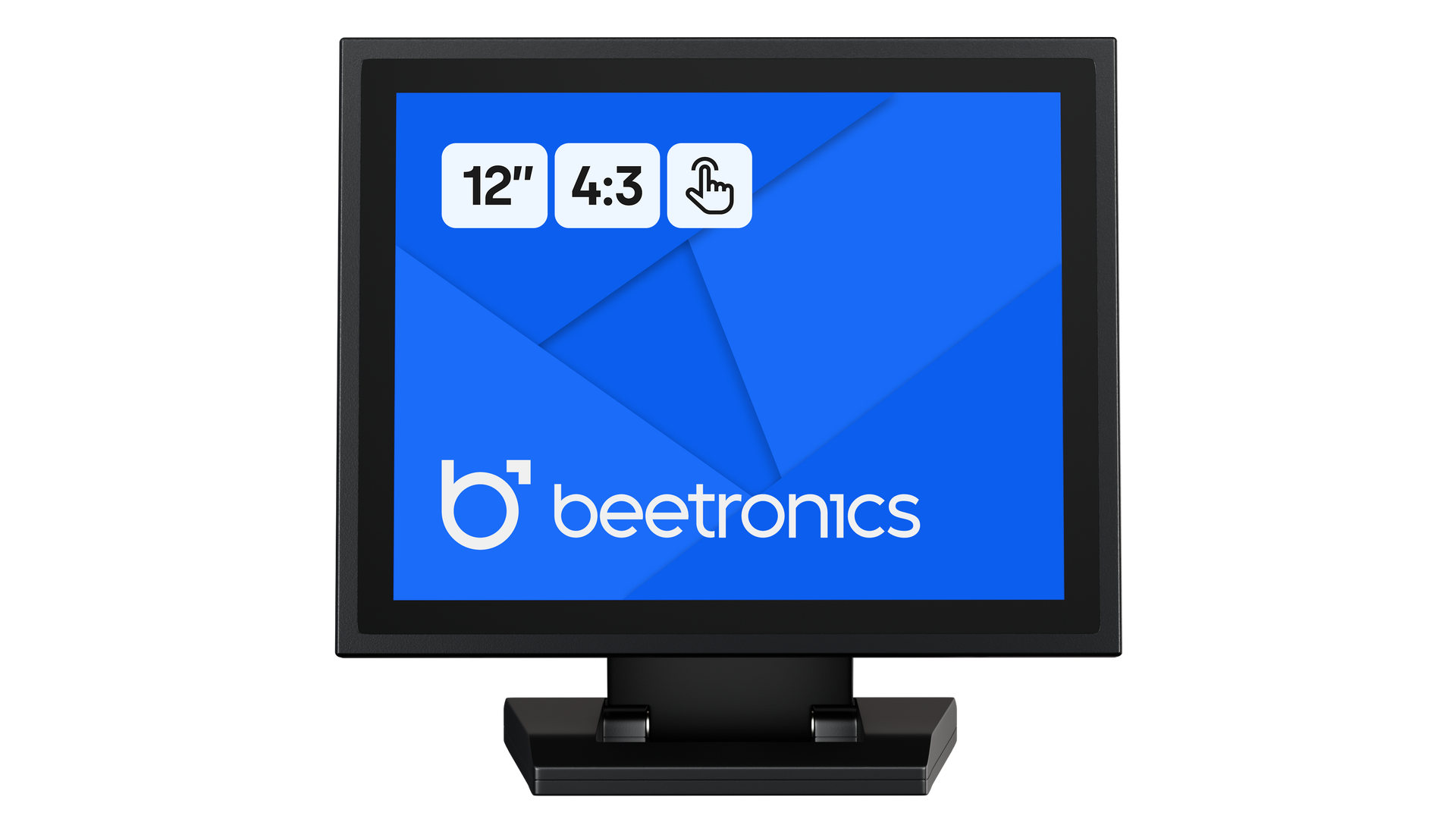

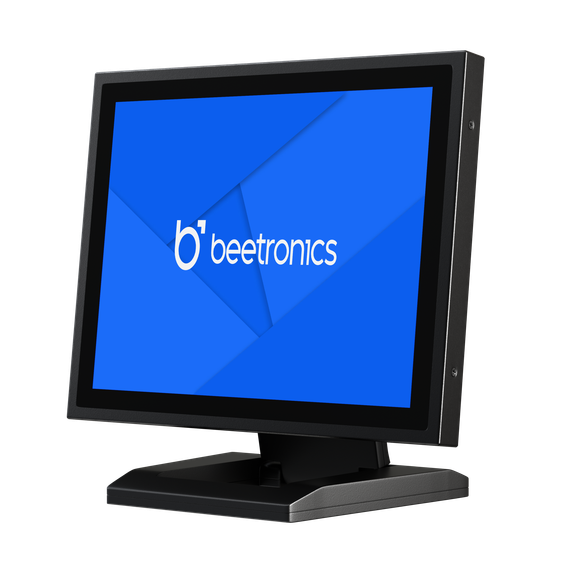

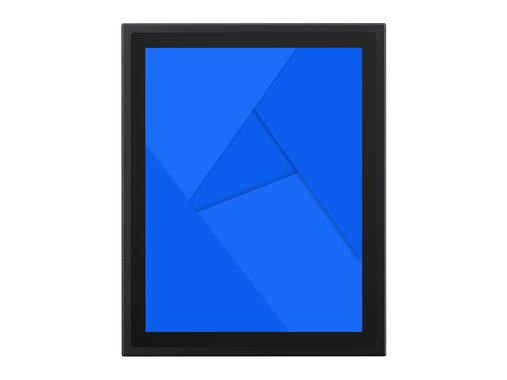

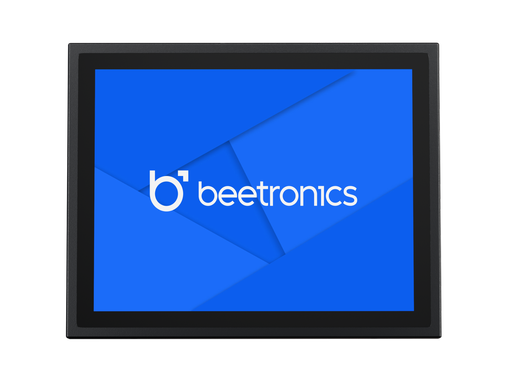

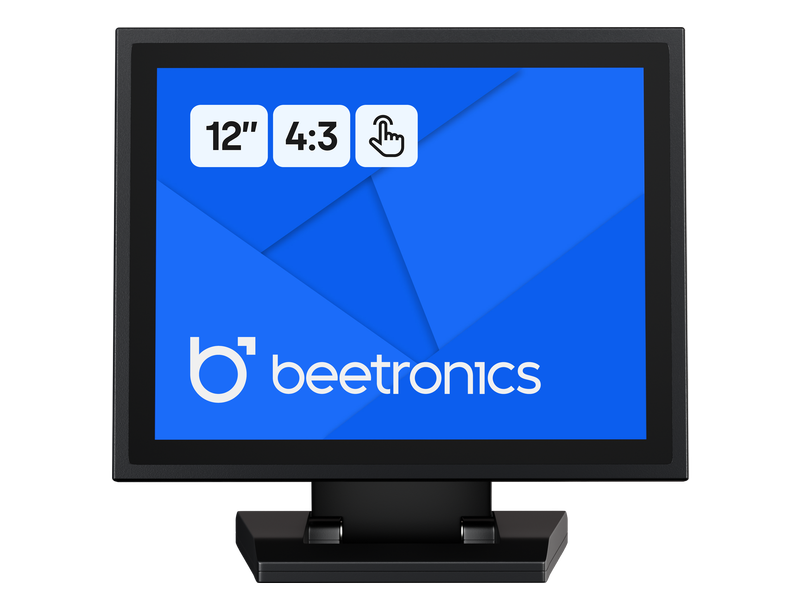

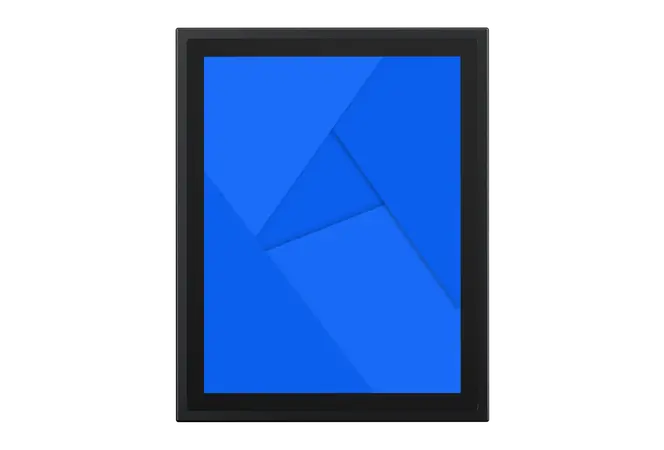

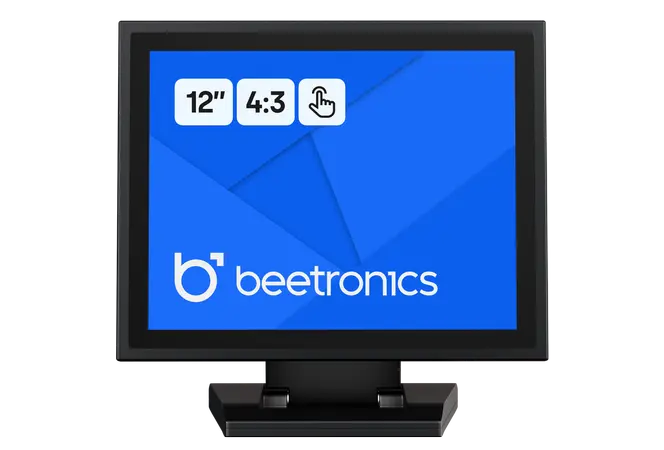

This 12 inch touchscreen has a reliable multi-touch panel with a 4:3 aspect ratio. The monitor delivers excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

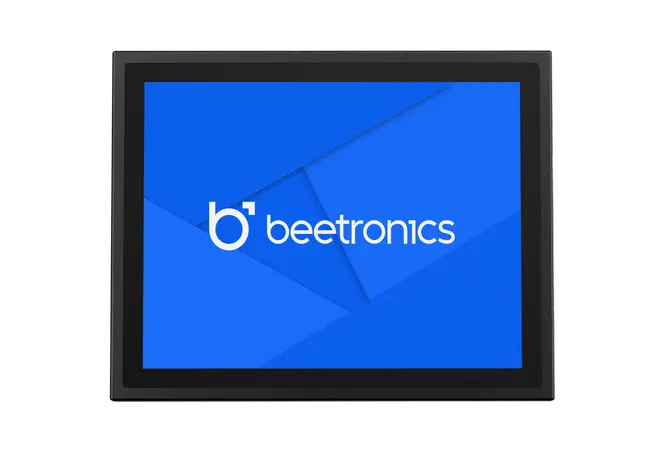

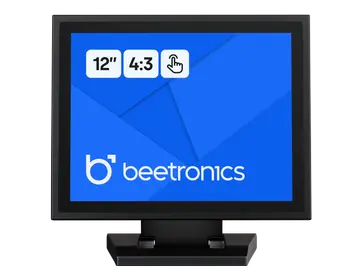

This 12 inch touchscreen is equipped with a 4:3 aspect ratio IPS panel. The touchscreen delivers excellent 178° viewing angles and is able to scale any resolution up to 1080p. The 12TSV7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

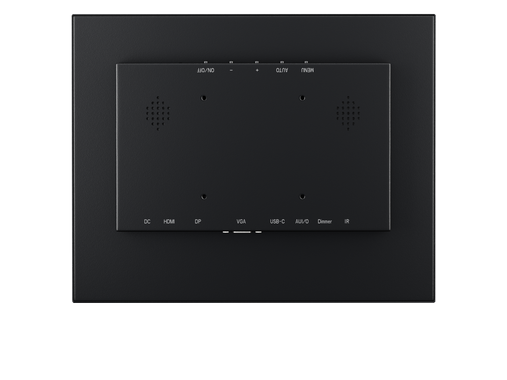

The 12TSV7M is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen has a wide range of video inputs including HDMI, VGA, BNC and RCA. Connecting the included USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

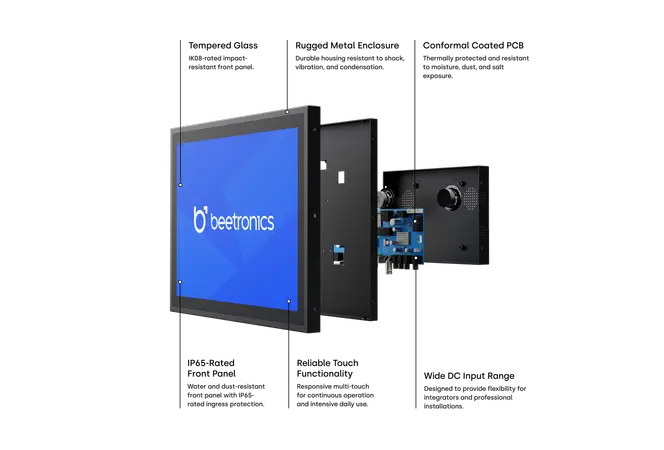

The 12TSV7M is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing and dimmable panel, the 12TSV7M is ideal for professional use.

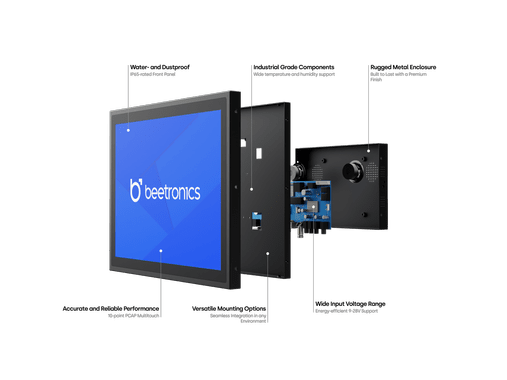

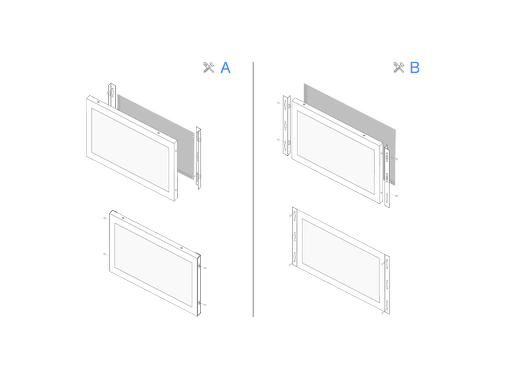

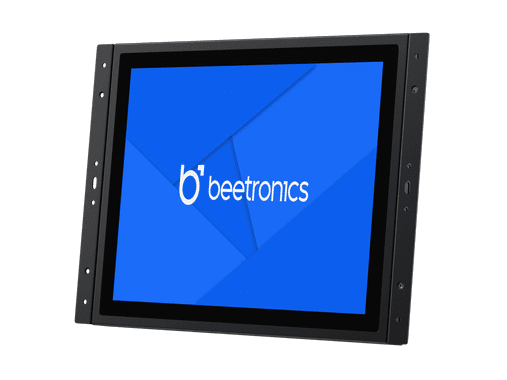

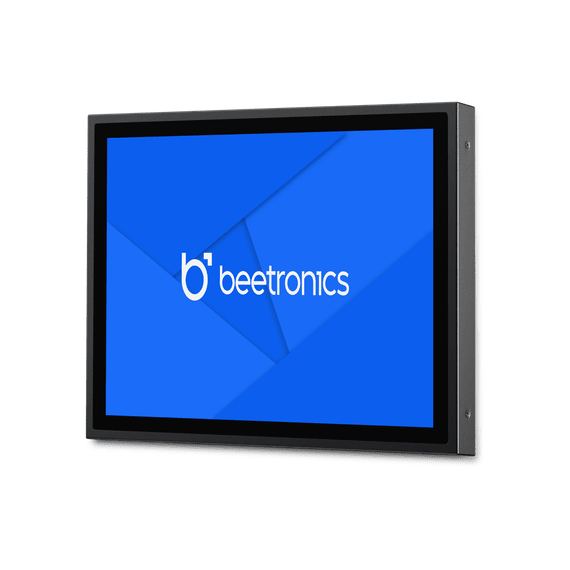

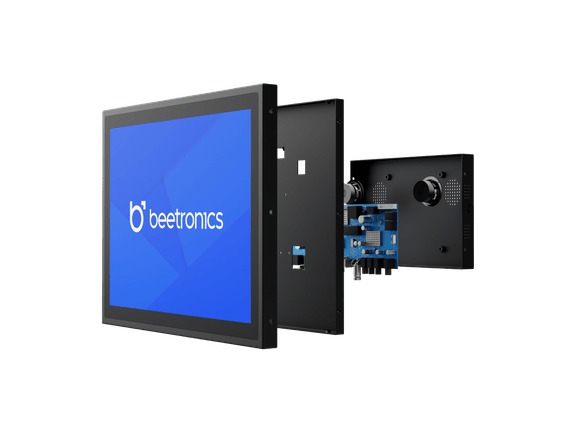

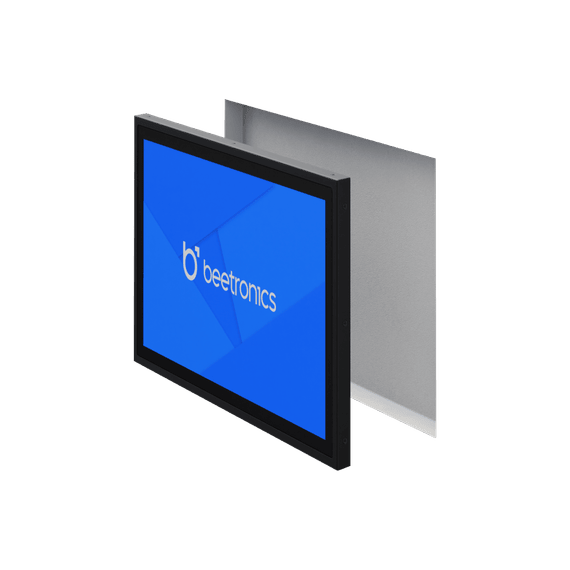

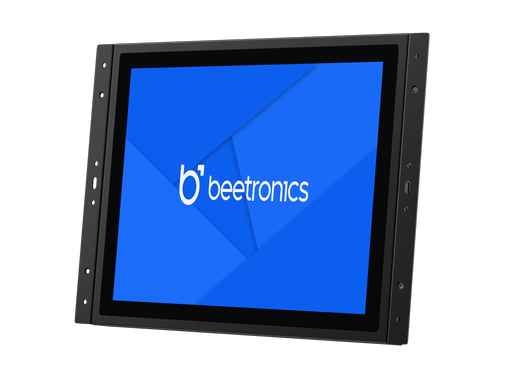

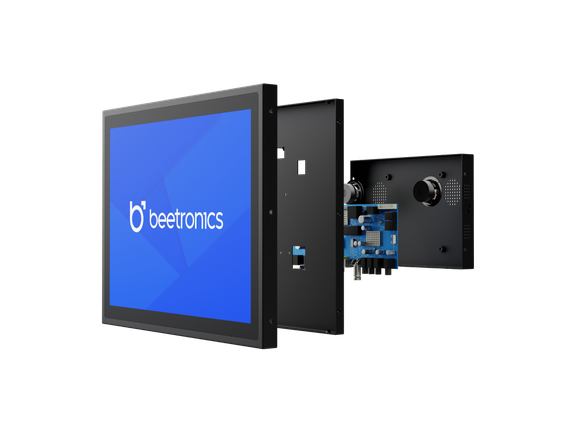

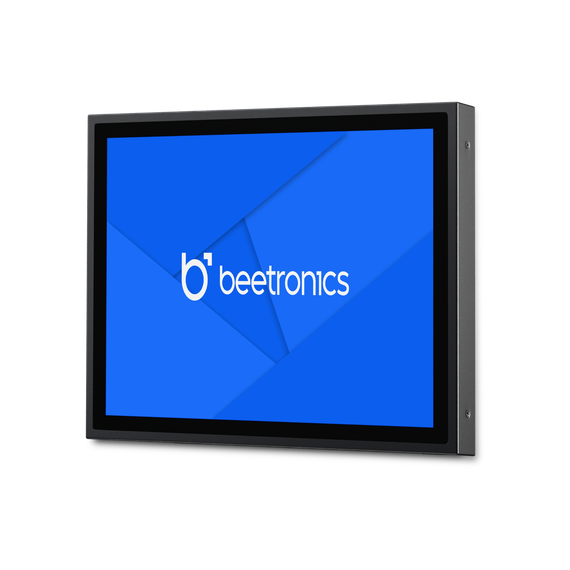

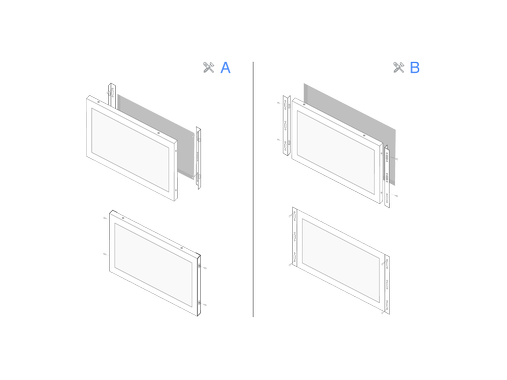

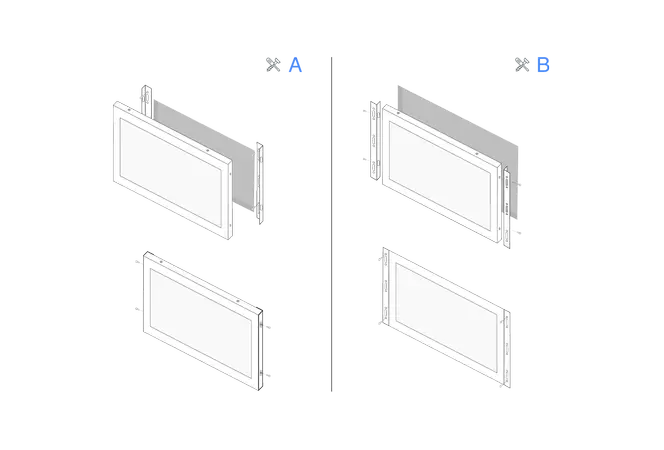

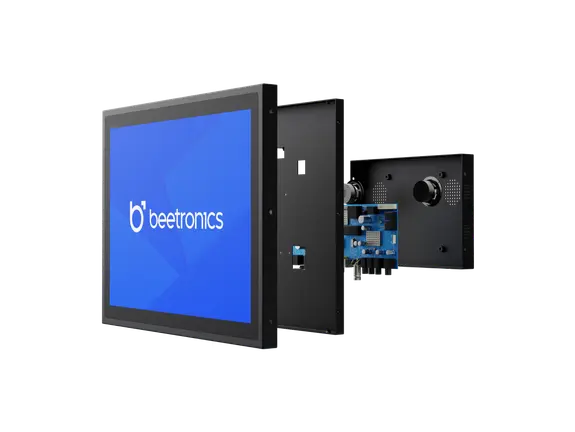

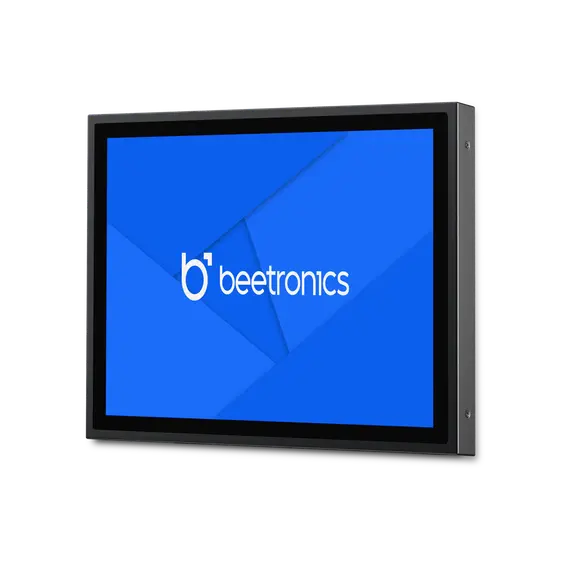

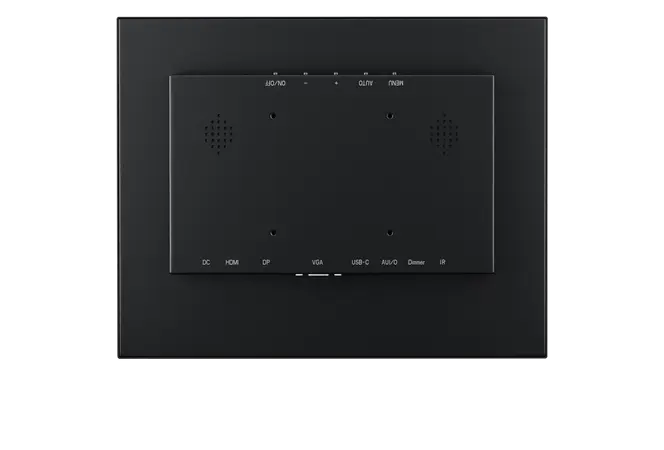

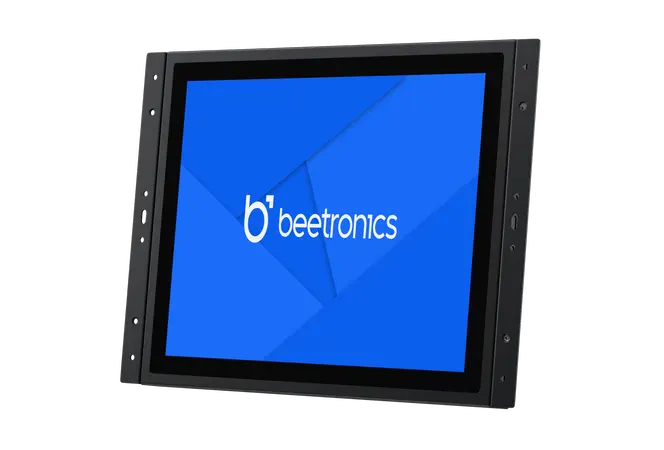

Thanks to numerous mounting options, the 12 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

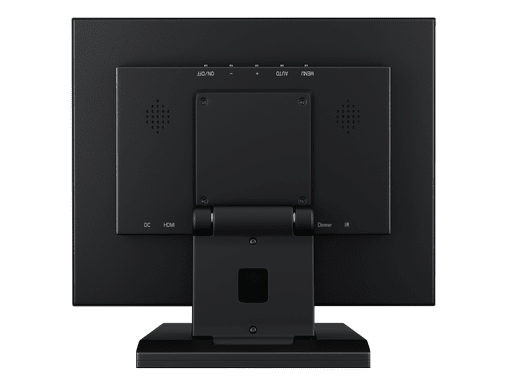

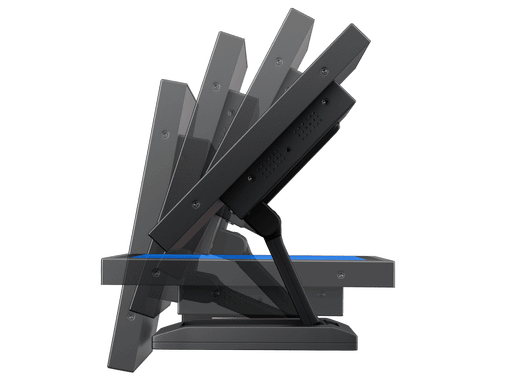

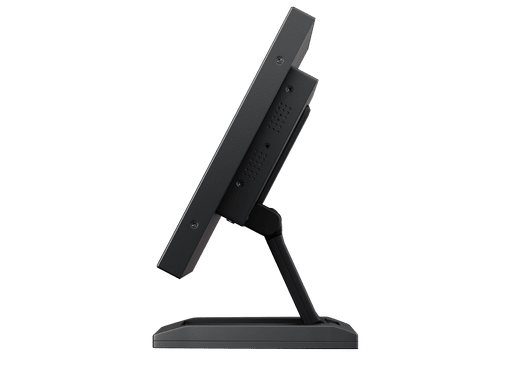

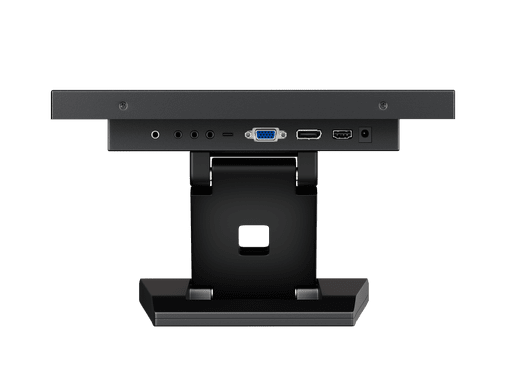

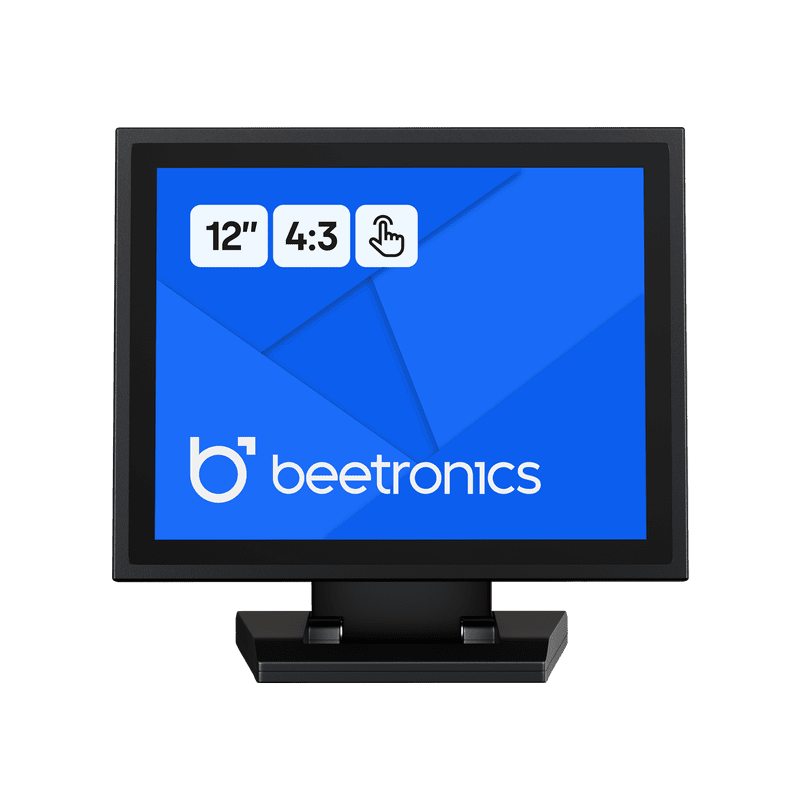

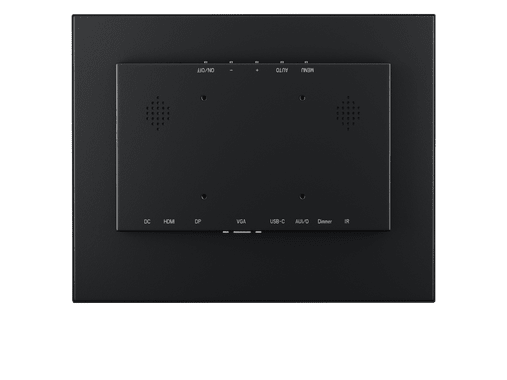

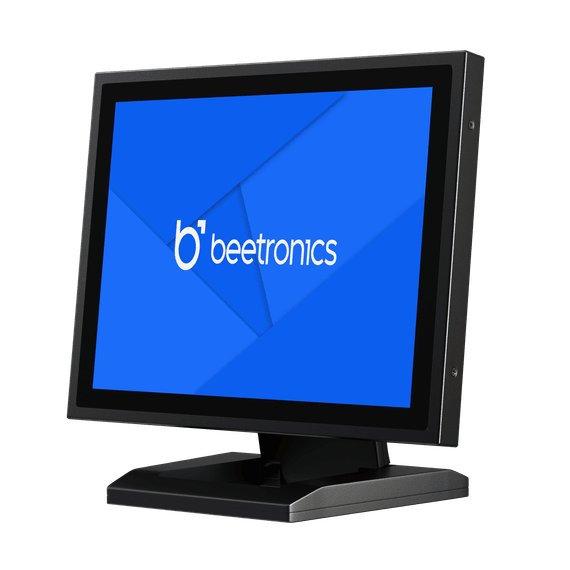

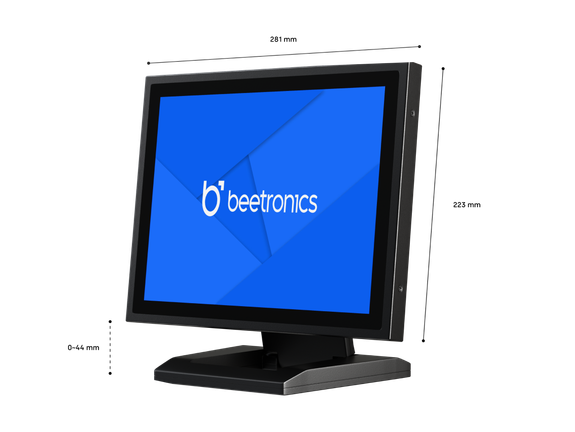

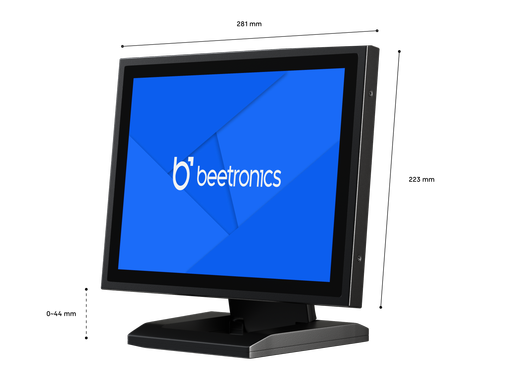

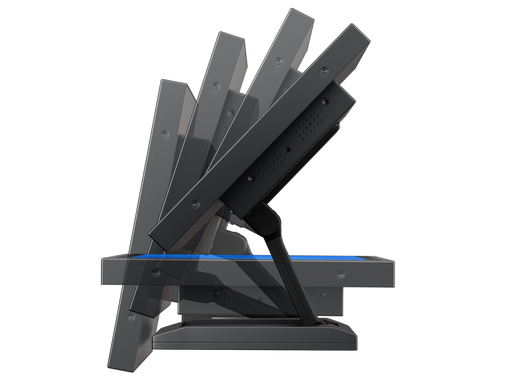

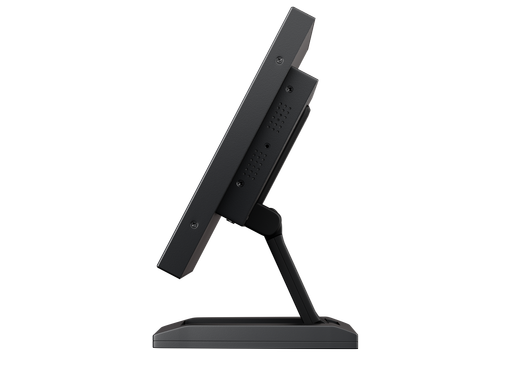

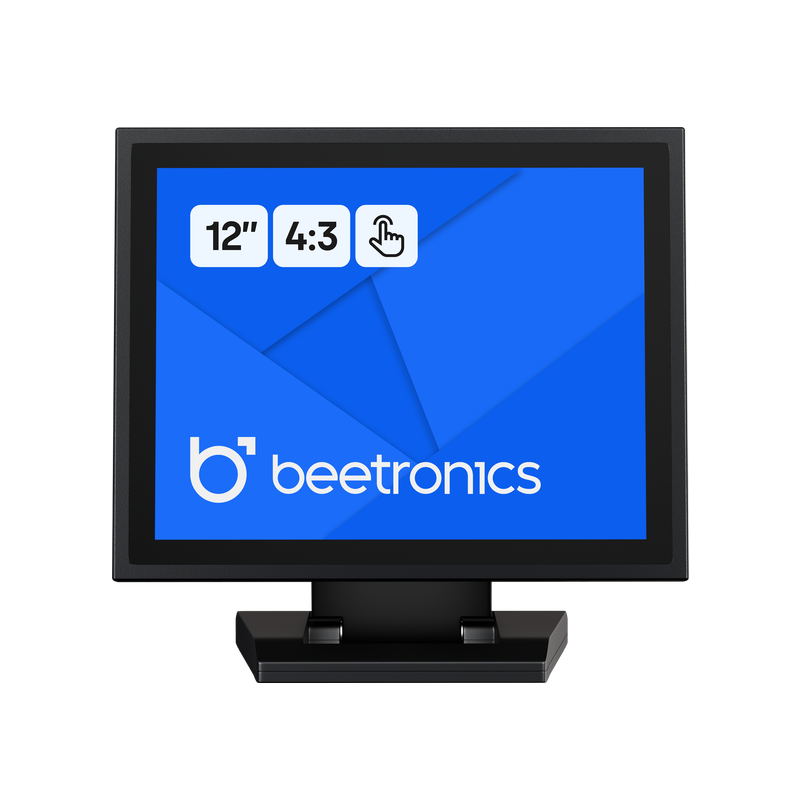

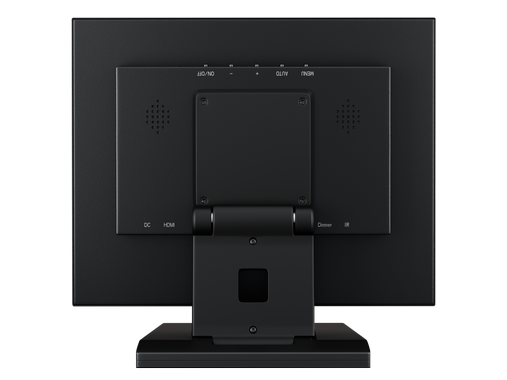

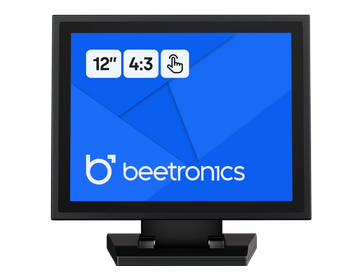

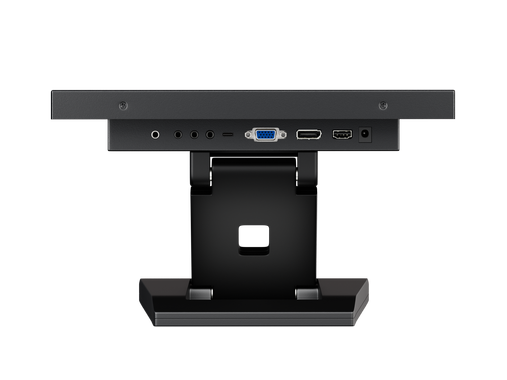

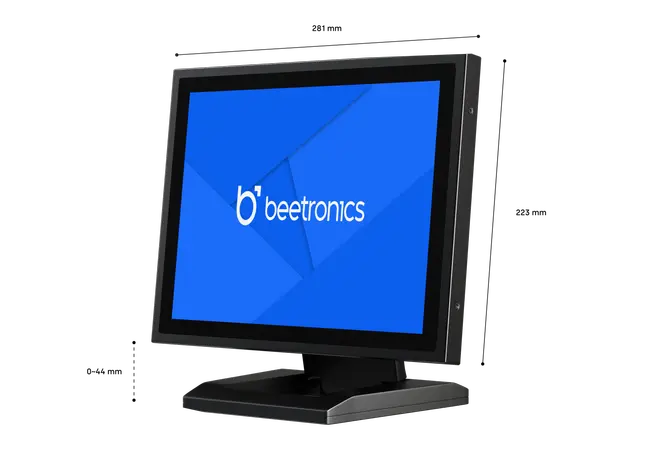

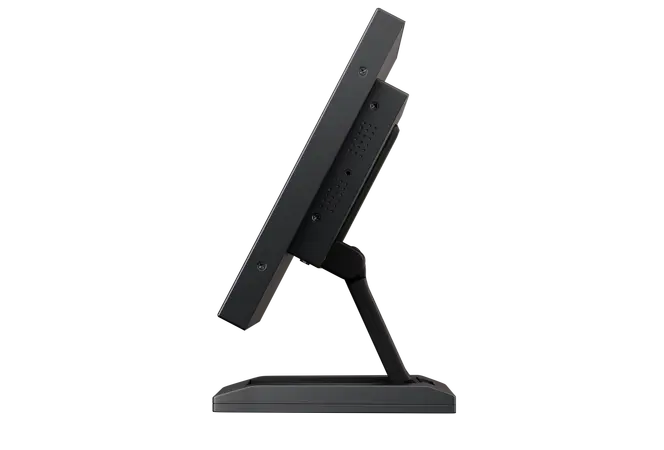

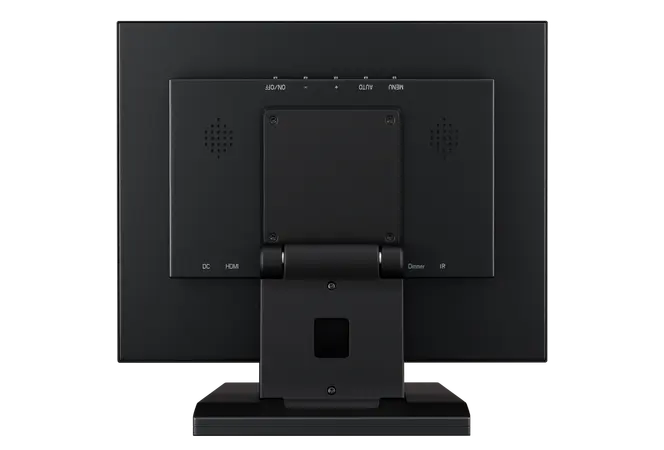

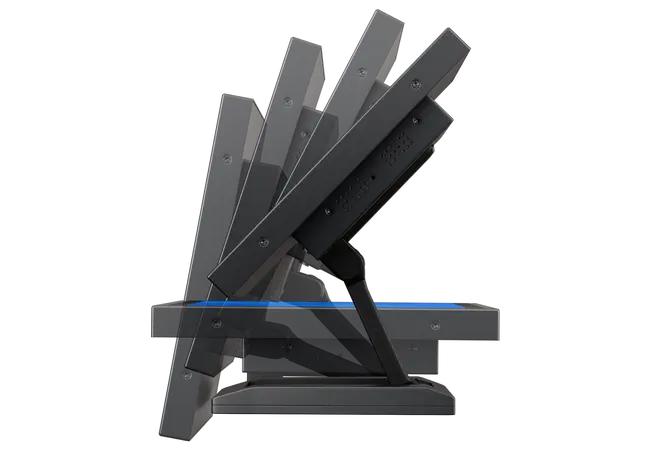

The Beetronics 12TSV7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
12TSV7M
|
Product name |
12 inch touchscreen metal (4:3)
|
Warranty |
2 years
|
Datasheet | |
Manual |
Supported operating systems | |
---|---|
Windows |
(Windows 7, 8, 10)
|
Windows Embedded |
(Windows embedded 7, 8, 10)
|
Mac |
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
|
Linux |
|
Android |
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
|
Drivers |
No drivers needed. Plug & Play
|
Panel | |
---|---|
Type |
LED-IPS
|
Screen diagonal |
12.1 inches (308 mm)
|
Aspect ratio |
4:3
|
Native resolution |
1024 x 768
|
Supported resolutions |
1920 x 1200 (max), 640 x 480 (min)
|
Pixels per inch |
106 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Colour encoding system |
PAL/NTSC/SECAM
|
Brightness |
450 cd/m2
|
Contrast |
500:1
|
Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
Touch control |
Stylus, hand, glove
|

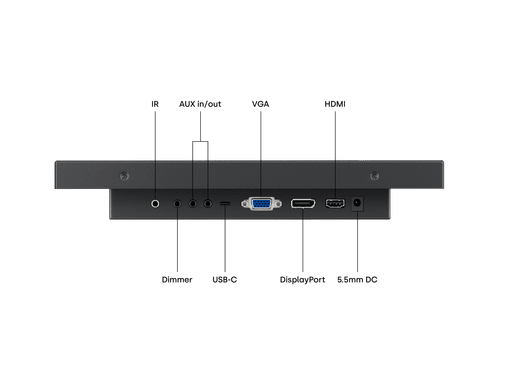

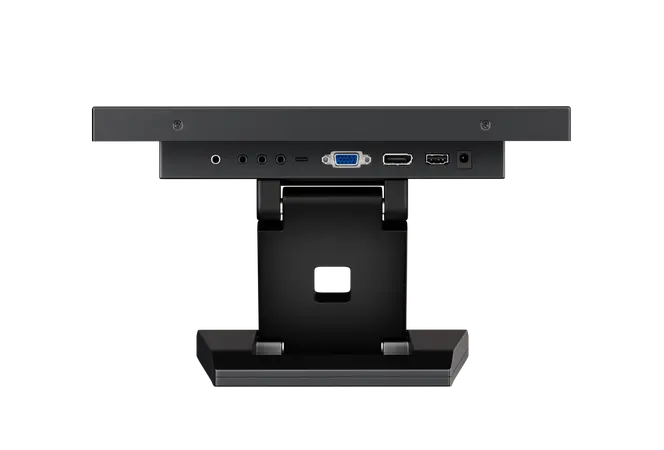

Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX output |
1x
|
USB |
Only for touchscreen functionality
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
2130 gram (2550 gram with stand)
|

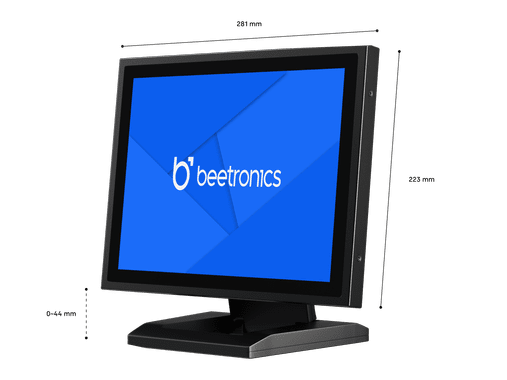

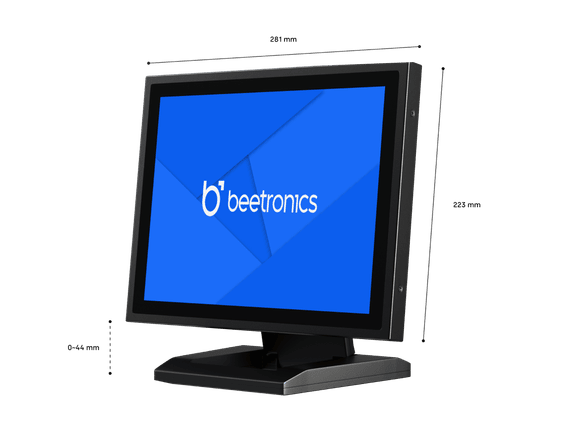

Width |
280 mm
|
Height |
223 mm (+0 to 39 mm with stand)
|
Thickness |
42 mm
|
Display dimensions |
246 x 185 mm
|
Technical drawing | |
3D drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 10-33V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
<15 Watt (0.5 Watt standby)
|
Environmental | |
---|---|
Operating temperature |
-20c° to +60c°
|
Storage temperature |
-20c° to +70c°
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Mounting strips included
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
IP rating |
IP65 front panel
|
Certifications |
CE, FCC, RoHS, REACH
|

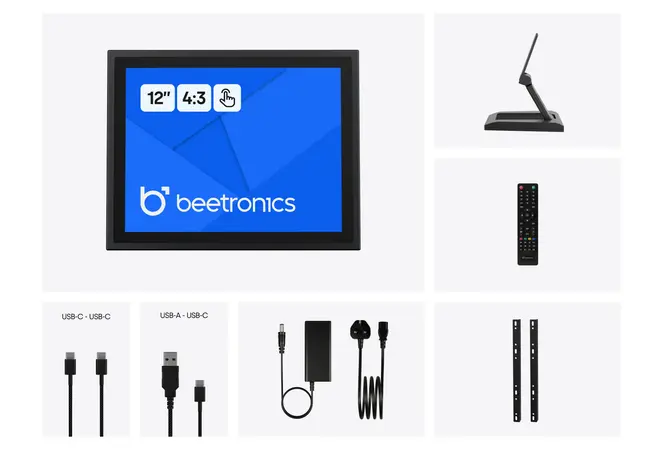

Package content | |
---|---|
Includes |

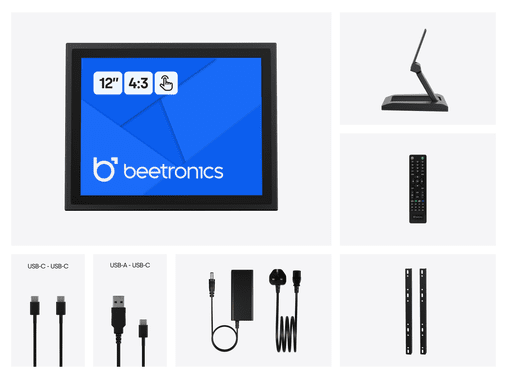

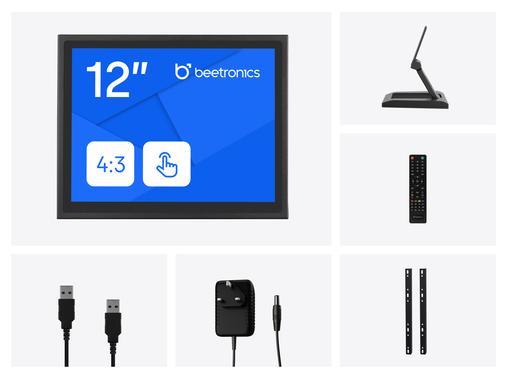

Touchscreen, USB cable, Remote control, Mains adaptor, Stand, Installation strips, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
3D drawing | Download CAD/STP |
Datasheet | Download PDF |
