19 inch monitor metal
Model: 19HD7M
Expected delivery in 12 business days
19 inch monitor metal
19 inch monitor metal
19 inch monitor metal
19 inch monitor metal
19 inch monitor metal
19 inch monitor metal
19 inch monitor metal
19 inch monitor metal
19 inch monitor metal
19 inch monitor metal

19 inch monitor metal

Model: 19HD7M
Expected delivery in 12 business days
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

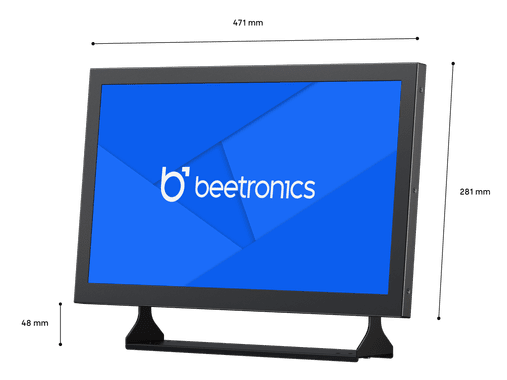

  4. External dimensions: 471 x 281 x 40 mm
  5. More specifications
Display type
£502.80 VAT incl.
Expected delivery in 12 business days
  • Description
  • Specifications
  • Connectivity
  • Downloads

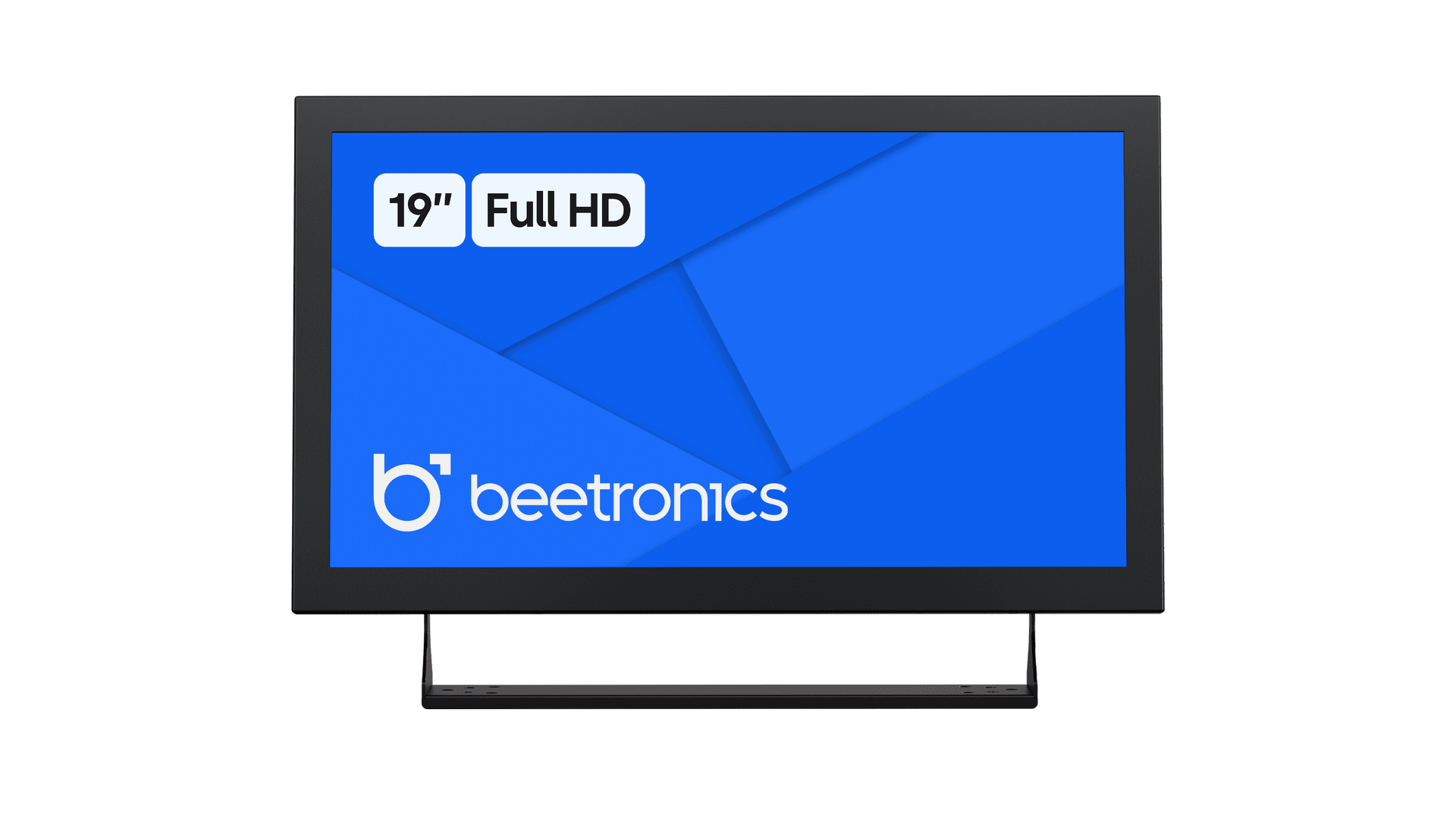

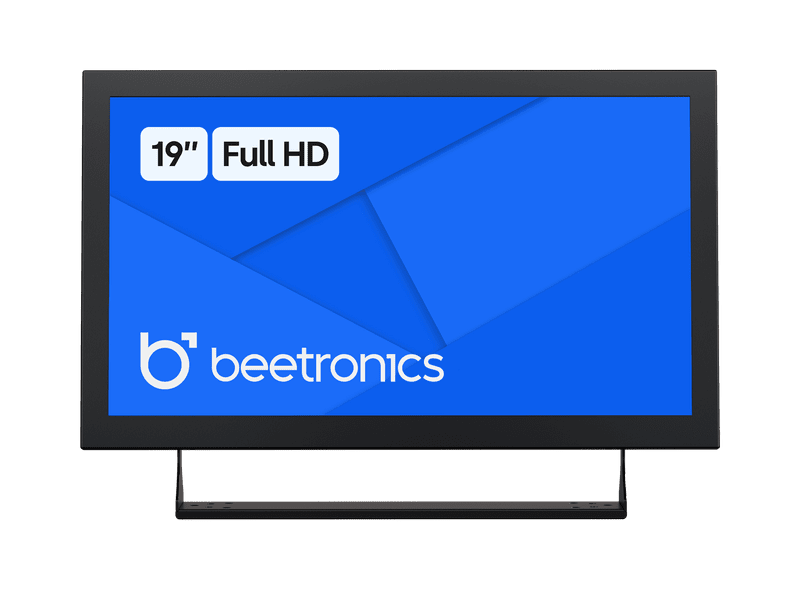

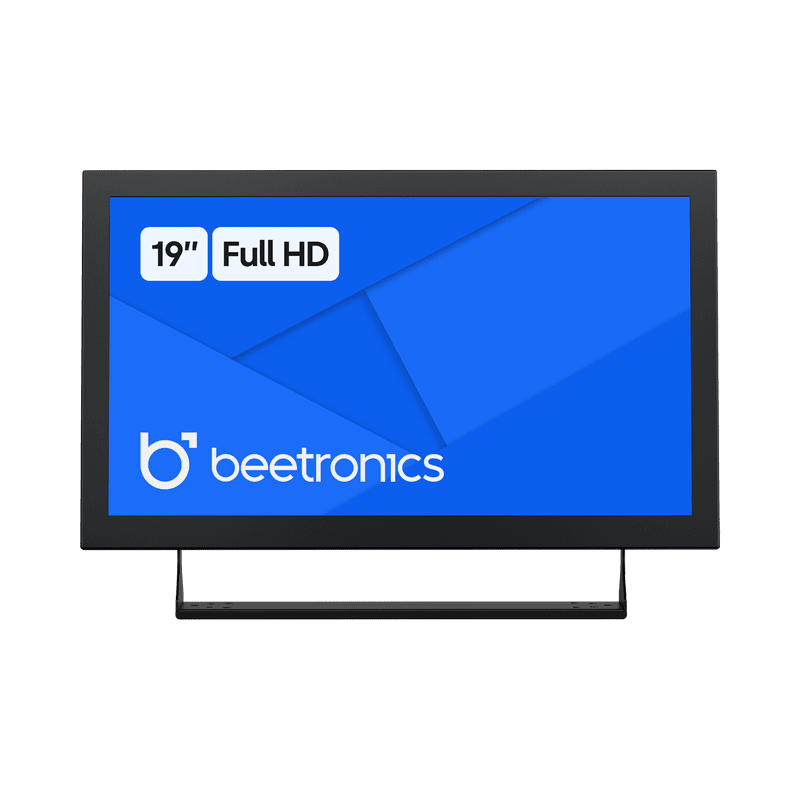

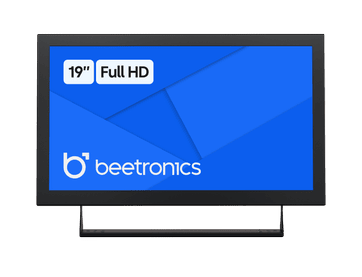

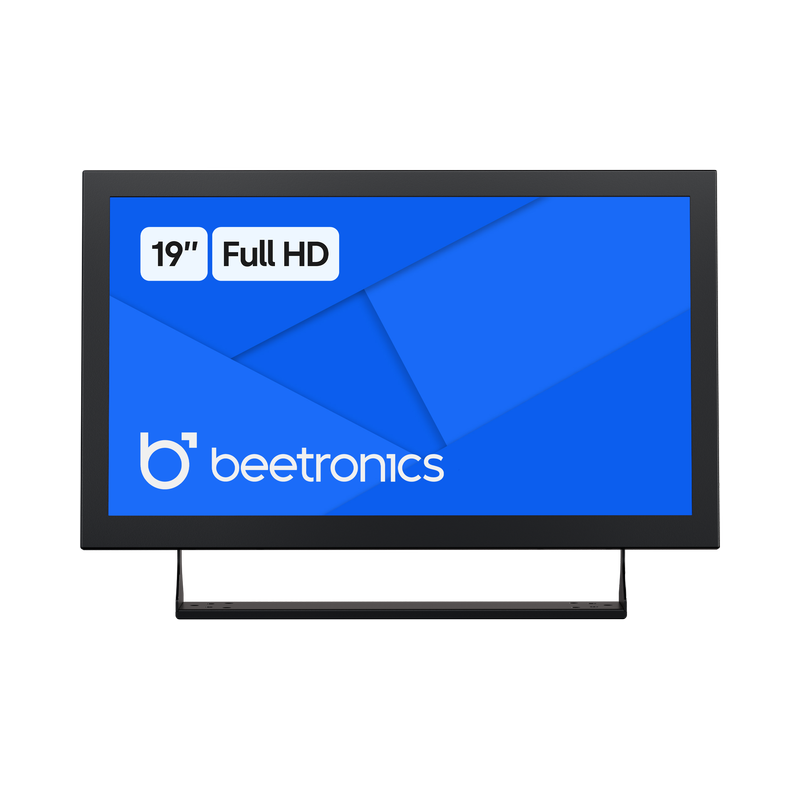

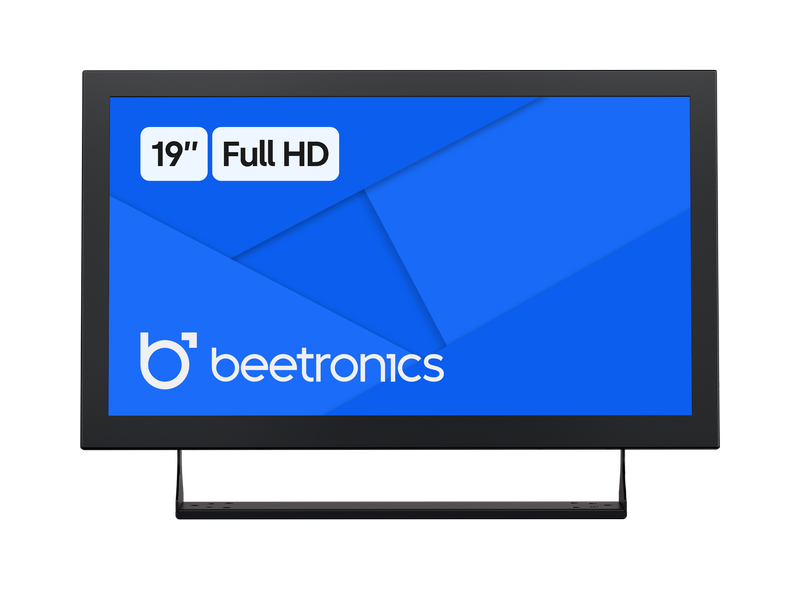

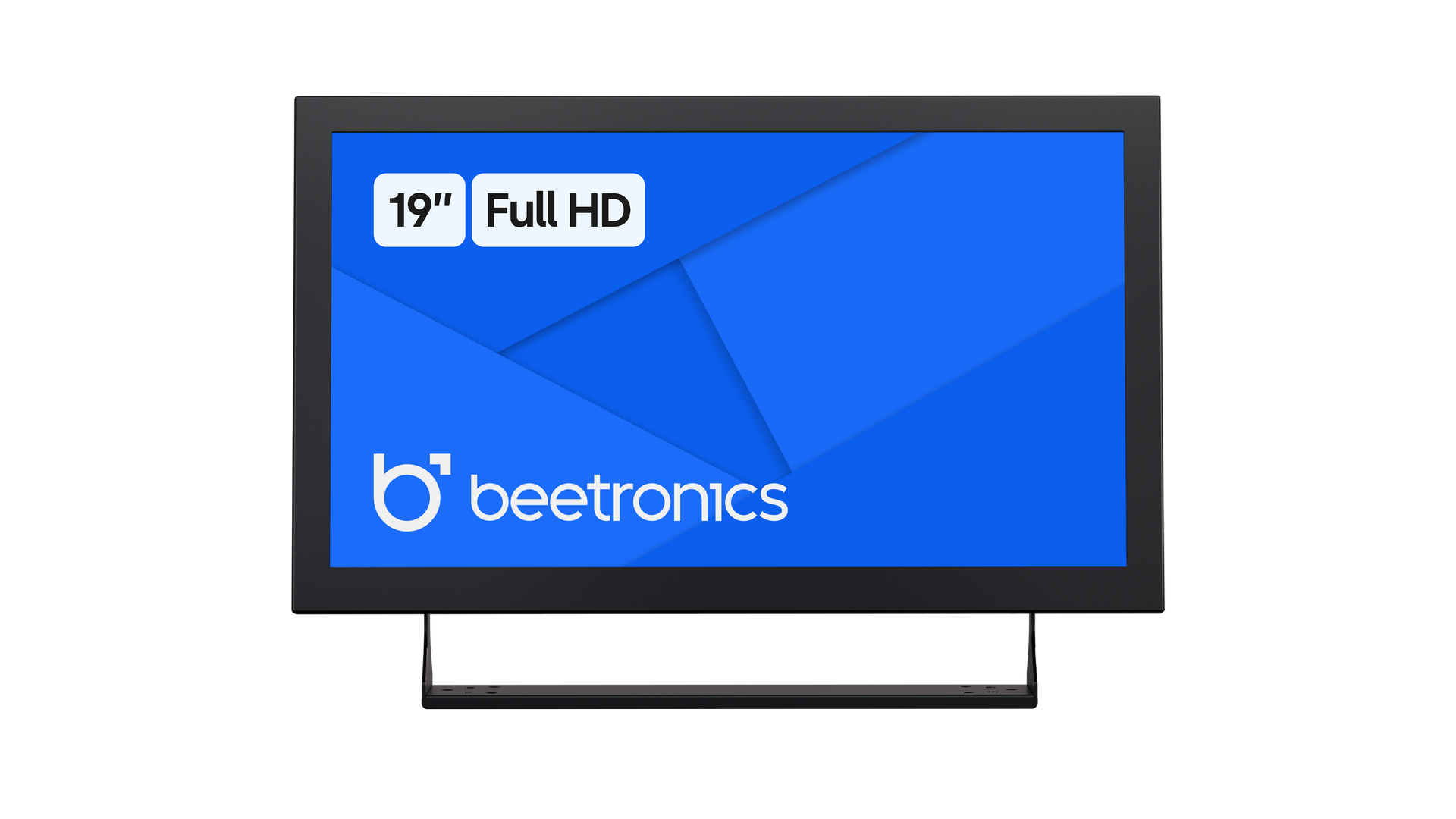

This 19 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. It has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 19HD7M can be connected via HDMI, VGA, BNC or RCA connections.

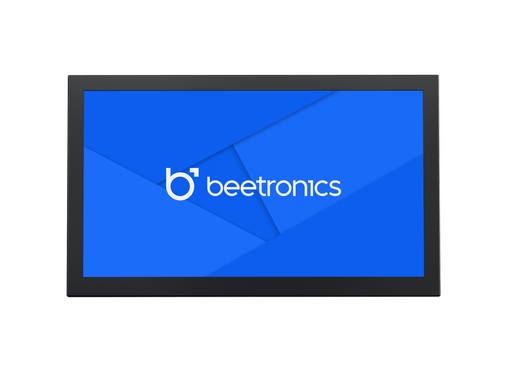

Outstanding Full HD image quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

19 inch monitor metal

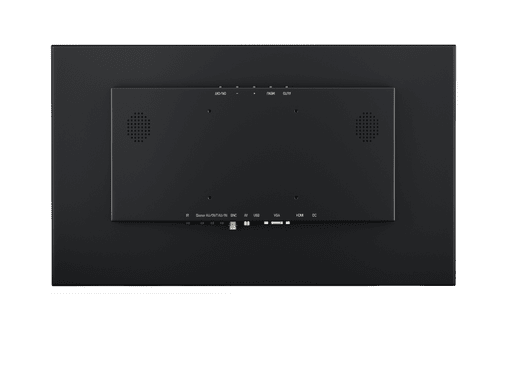

Versatile connectivity

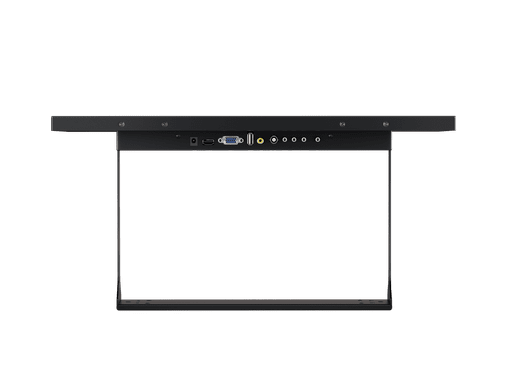

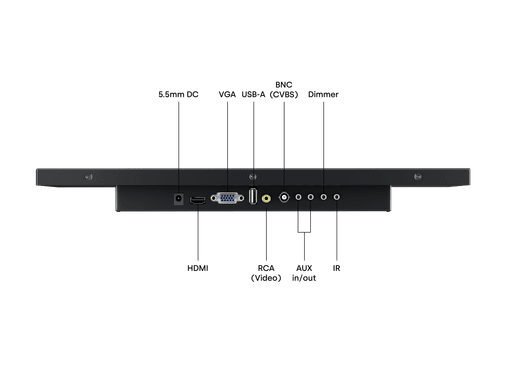

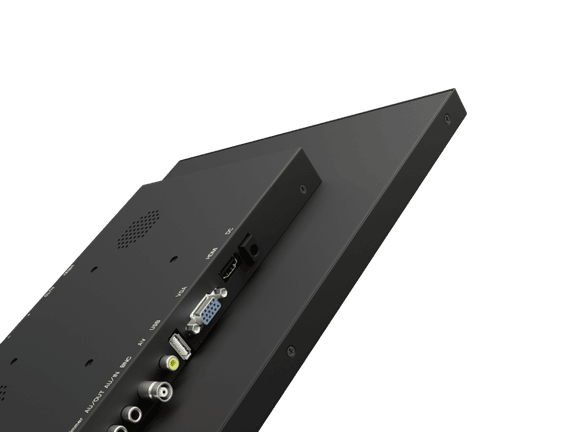

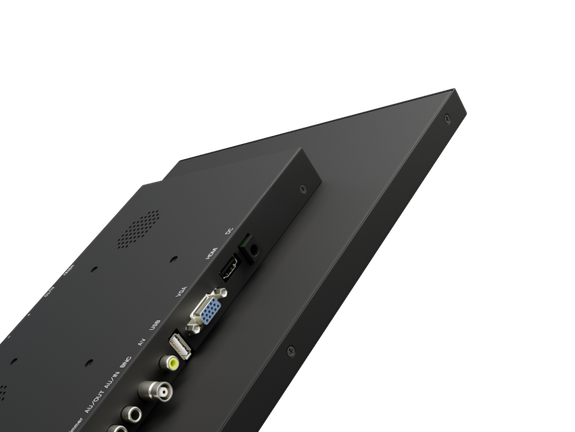

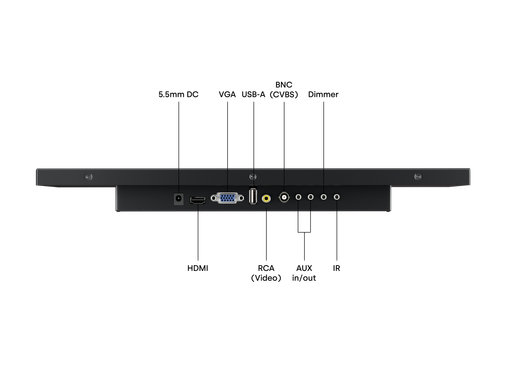

The 19HD7M has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

19 inch monitor metal

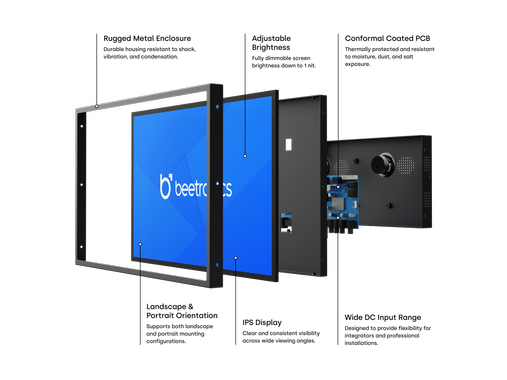

Designed for professional use

The 19HD7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

19 inch monitor metal

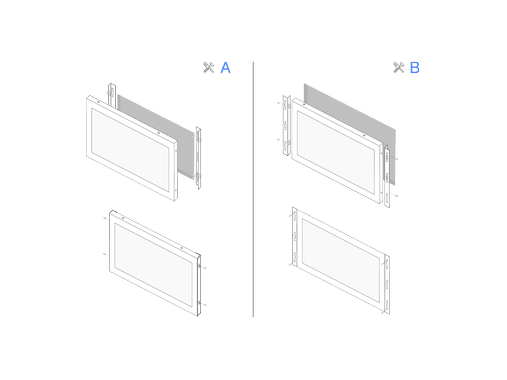

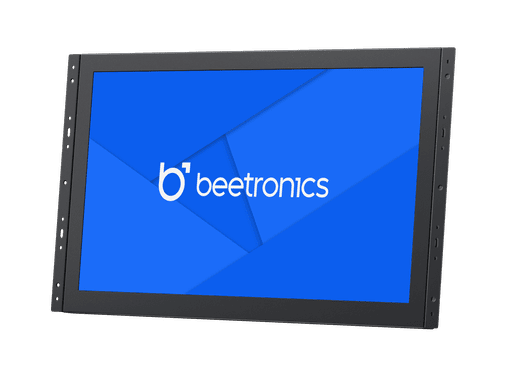

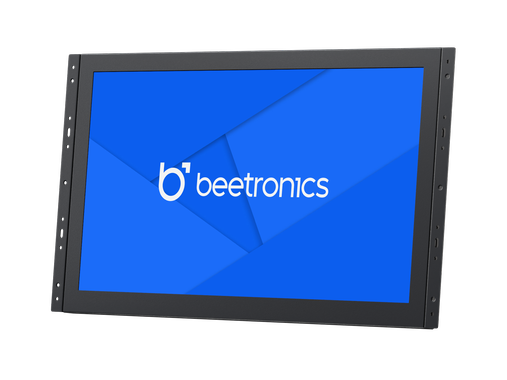

Easily integrated

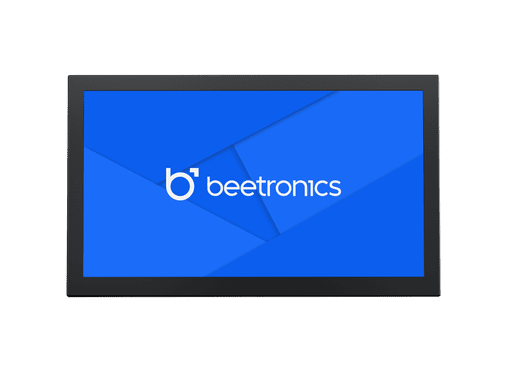

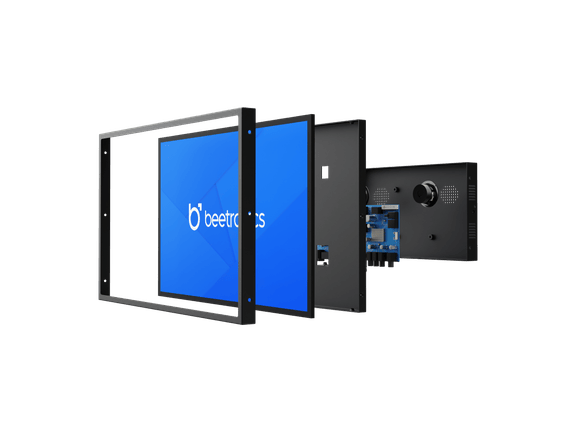

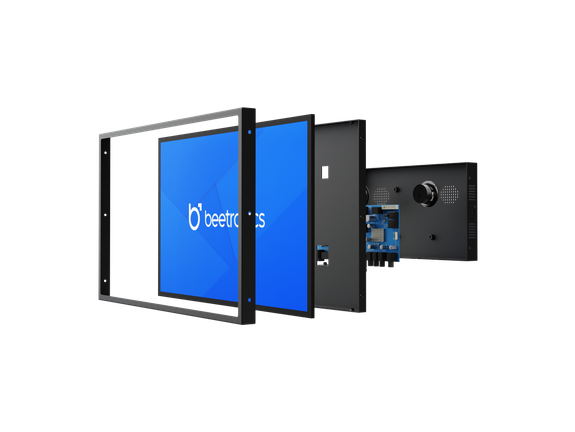

Thanks to numerous mounting options the 19 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

19 inch monitor metal

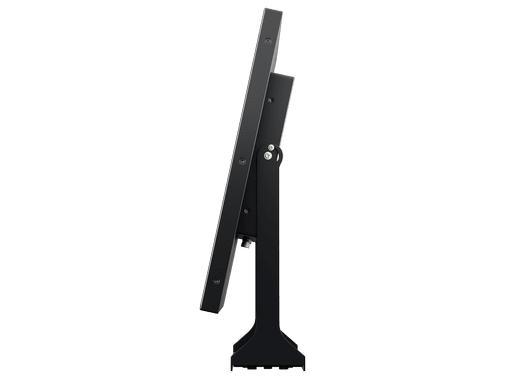

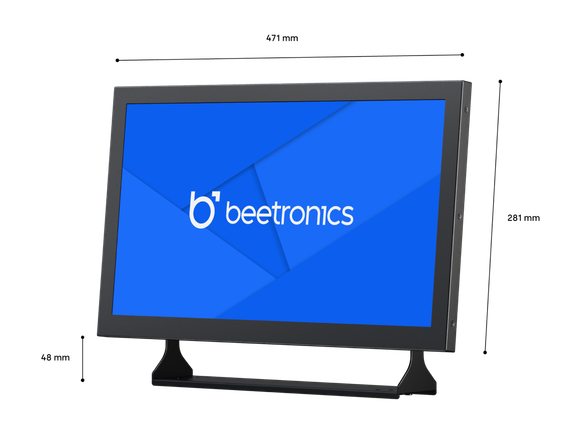

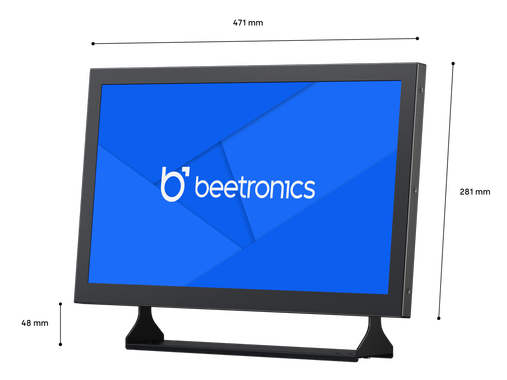

Desktop or wall mounting

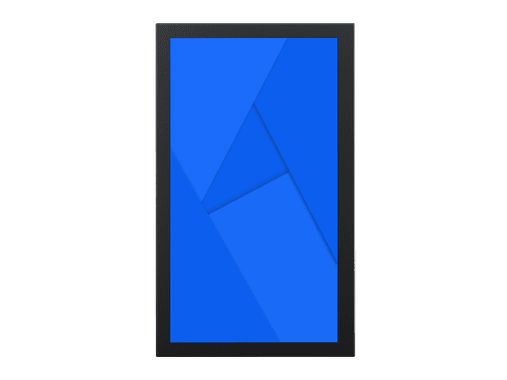

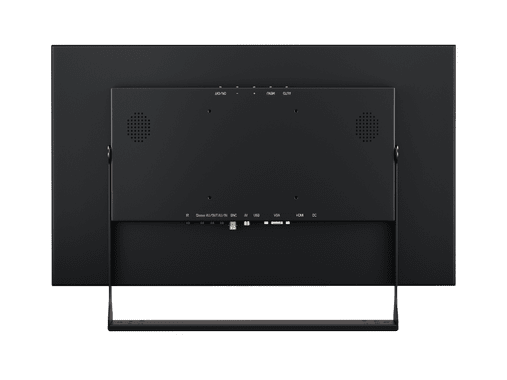

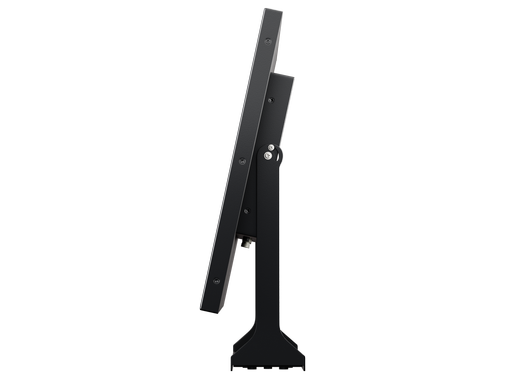

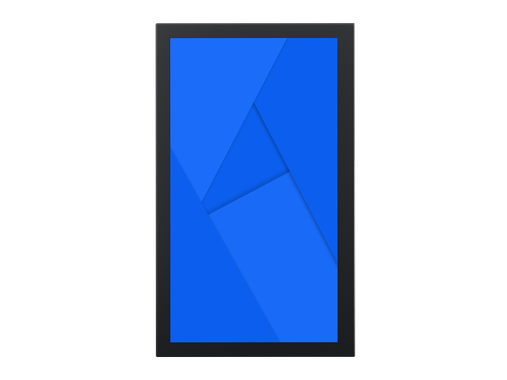

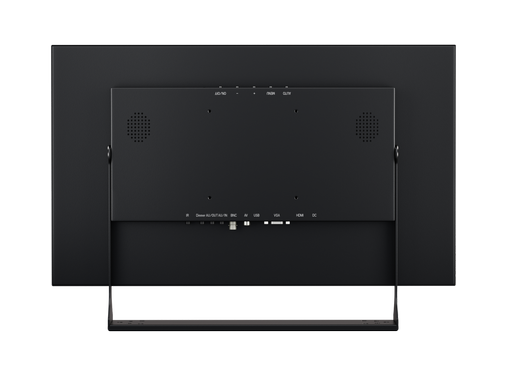

The Beetronics 19HD7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.

19 inch monitor metal
General
Manufacturer
Beetronics
Item number
19HD7M
Previous model
19HDM
Product name
19 inch monitor metal
Warranty
2 years
Datasheet
User manual
Quickstart
Panel
Diagonal size
19.5 inches (499 mm)
Panel type
IPS-LCD
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
300 cd/m2
Contrast
3000:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Connectivity
HDMI
1x
VGA
1x
RCA video
1x
1x integrated USB media player
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x
Size & weight
Colour
Black

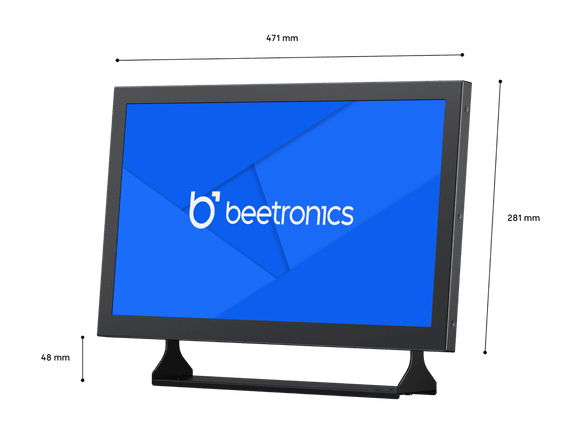

Dimensions (without stand)
471 x 281 x 40 mm
Image size
437 x 241 mm
Weight
3800 grams (4600 (grams with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Orientation
Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
Input voltage
DC 9-33V
Consumption
typical: 21.0 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-3A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
VESA 100x100mm
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

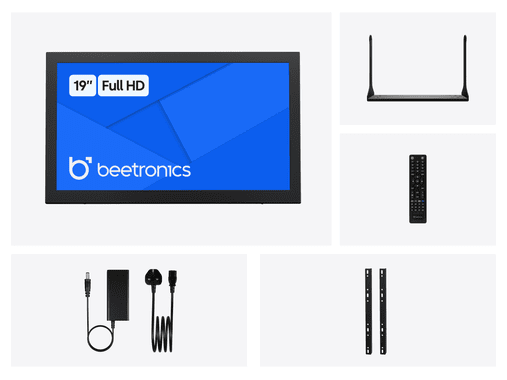

Package content
Includes

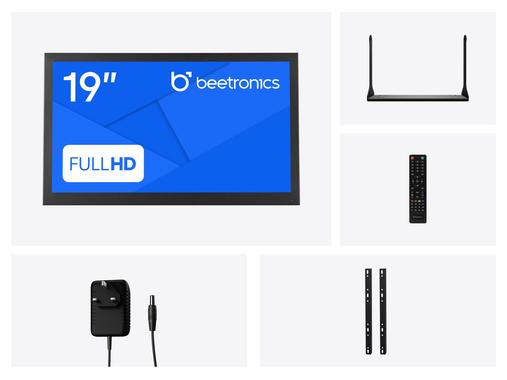

Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
Compatible accessories
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
Compatible with VDK7 metal stand
19 inch monitor metal
Downloads
User manual
Quickstart
Technical drawing
3D Drawing
Datasheet
