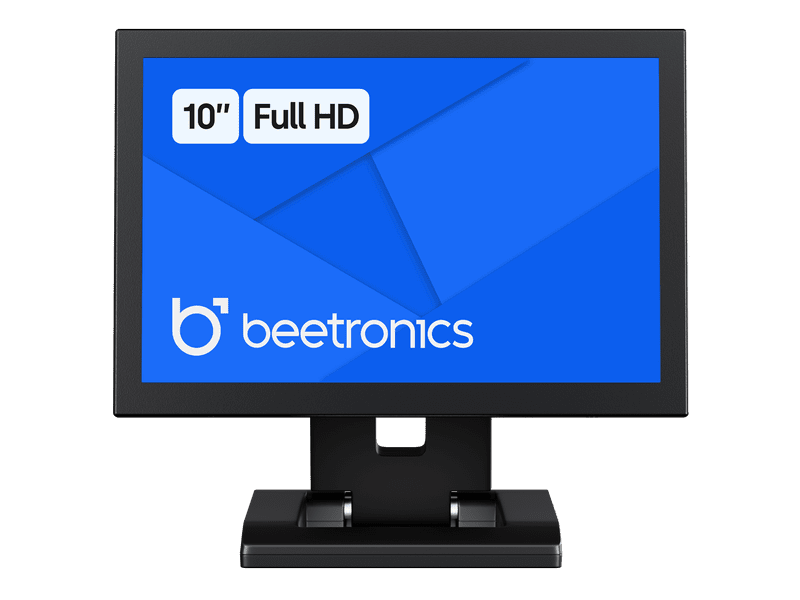

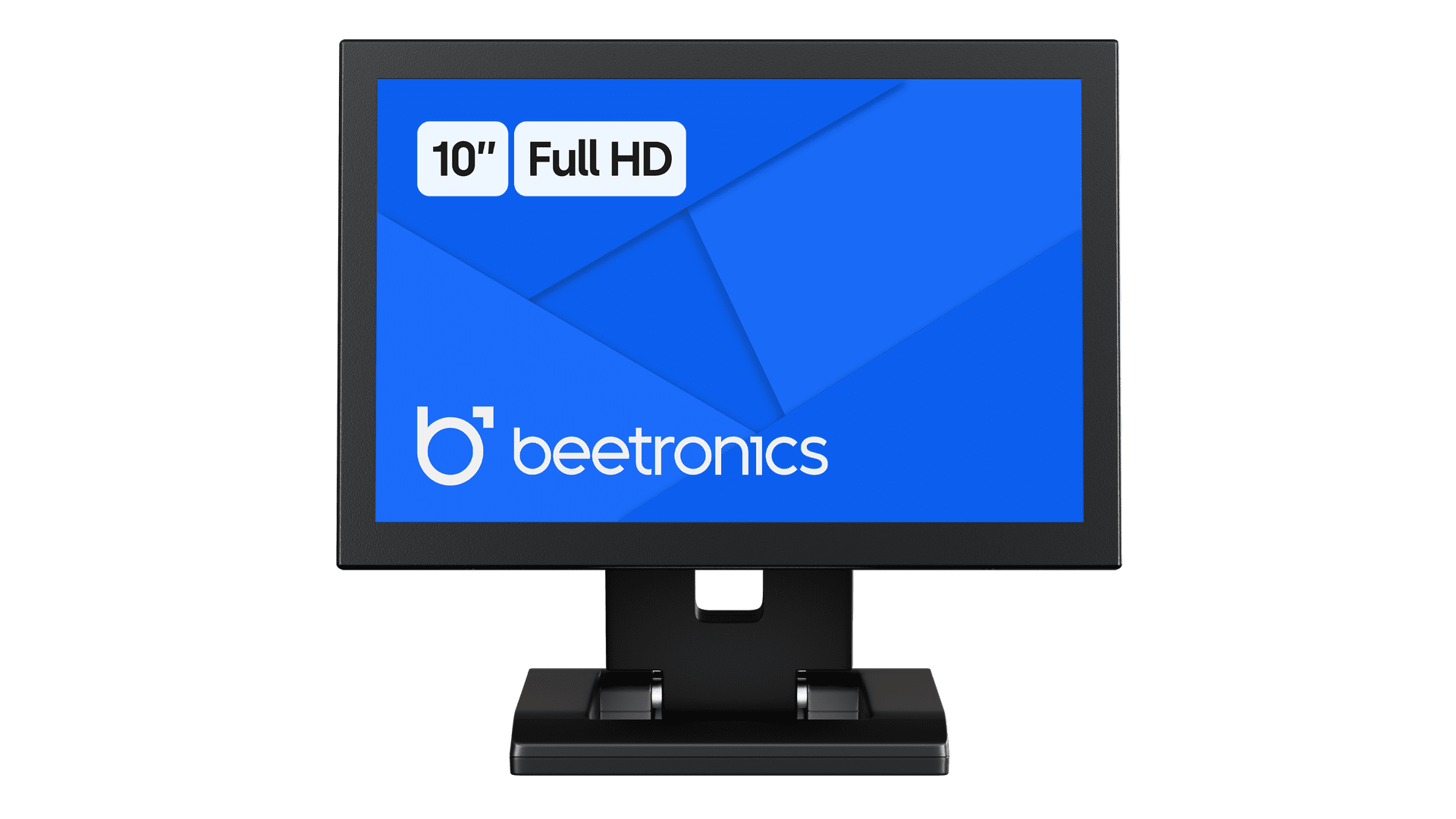

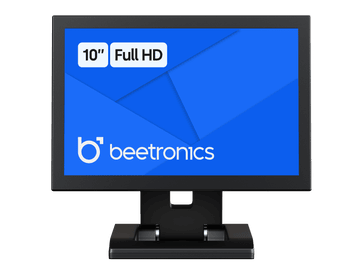

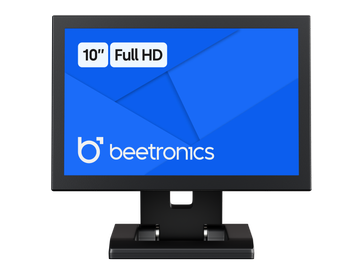

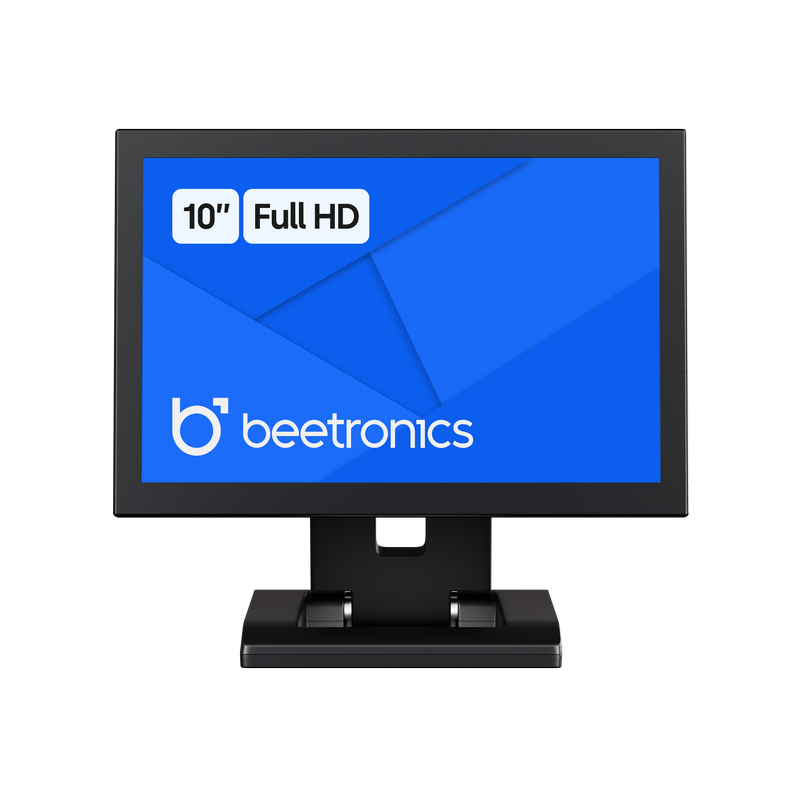

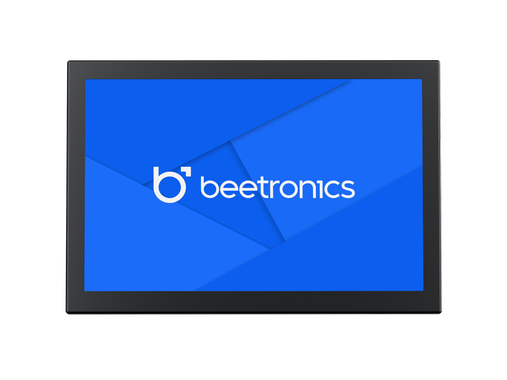

10 Inch Monitor Metal

Model: 10HD7M
100+ units in stock
Product information
  1. Excellent image quality (up to Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

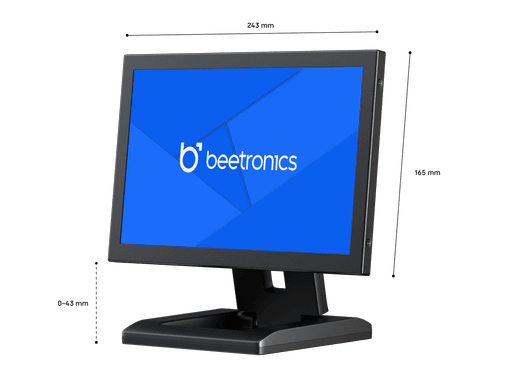

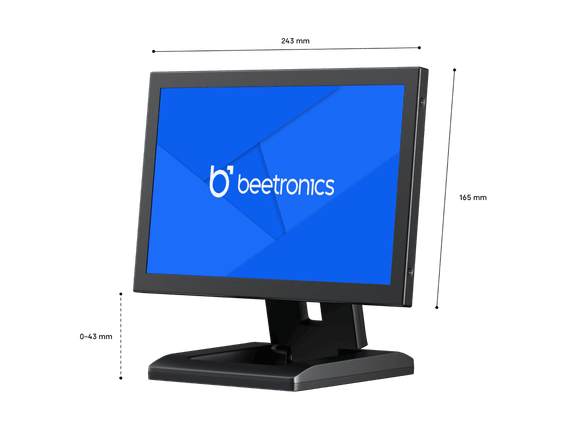

  4. External dimensions: 243 x 165 x 35 mm

This 10 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. It has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 10HD7M can be connected via HDMI, VGA, BNC or RCA connections.

Display type
£299.00
£358.80 VAT Incl.
Order by 11:59 PM for delivery on Wednesday.
Long-term availability Consistently available for years to come.
Free shipping & returns No shipping costs and free 30-day returns.
5,000+ reviews, rated 4.8/5 Trusted by industry leaders worldwide.
Product description

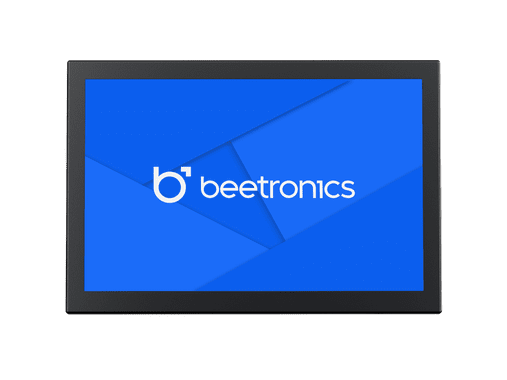

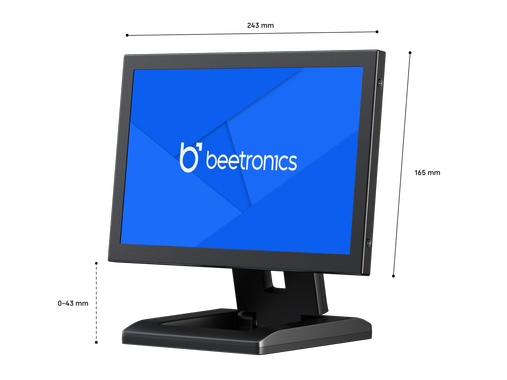

10 Inch Monitor Metal

Outstanding Full HD image quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1200p.

10 Inch Monitor Metal

Versatile connectivity

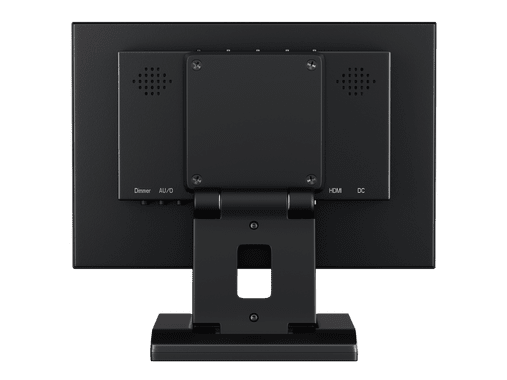

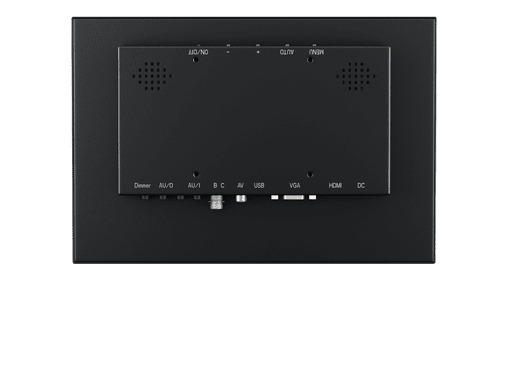

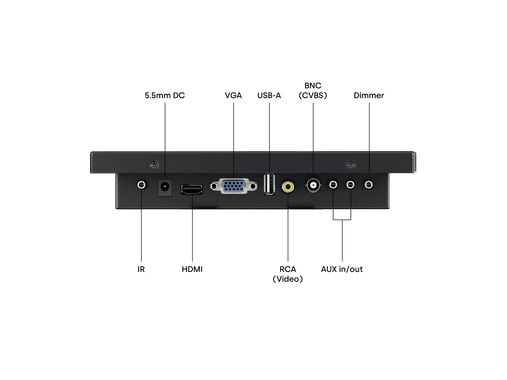

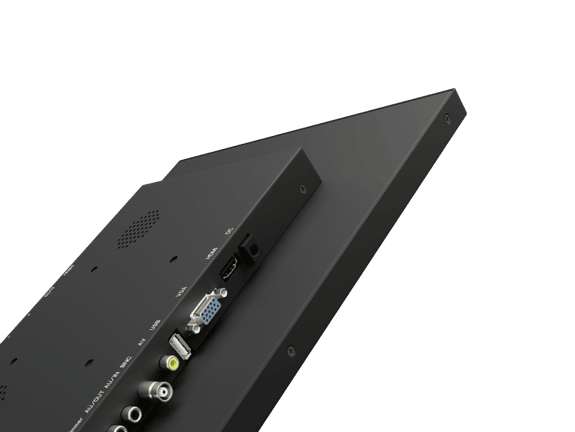

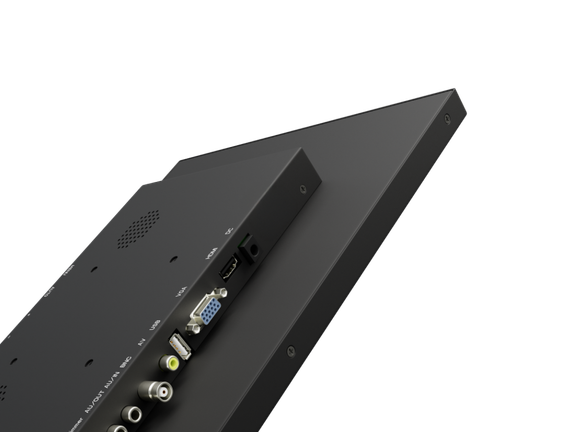

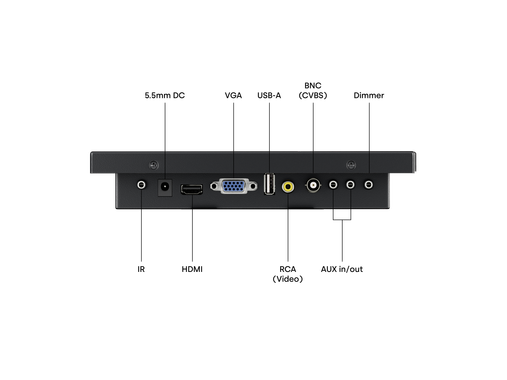

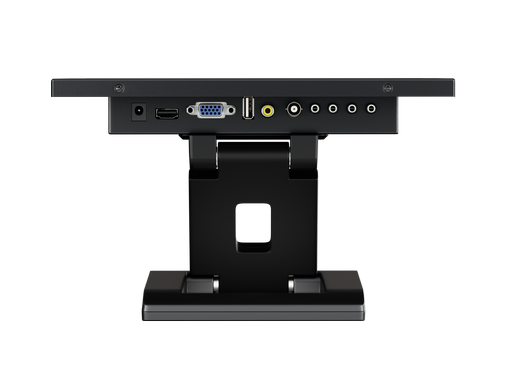

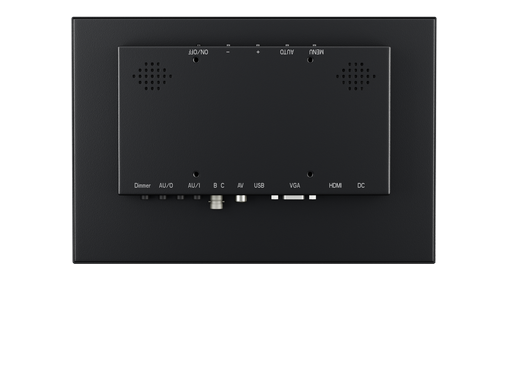

The 10HD7M has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

10 Inch Monitor Metal

Designed for professional use

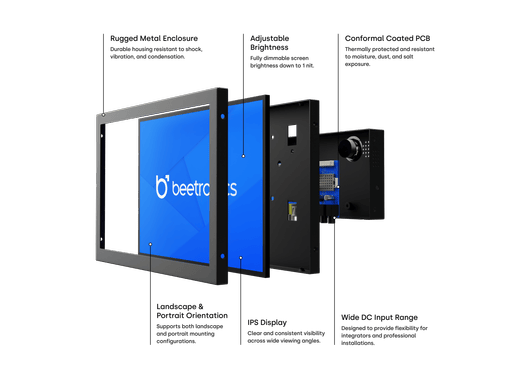

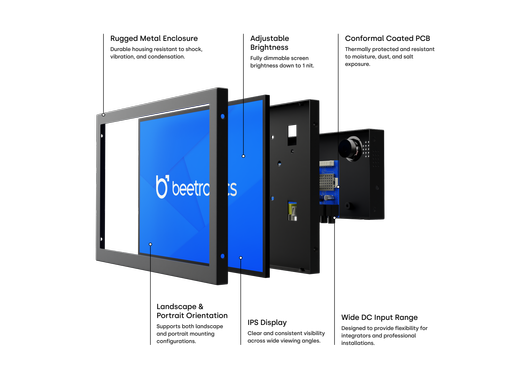

The 10HD7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 36 Volts and features a fully dimmable backlight.

Mounting options

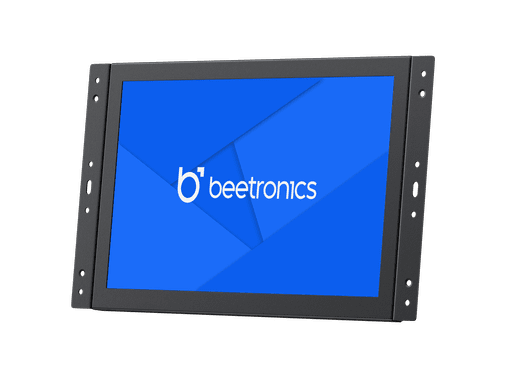

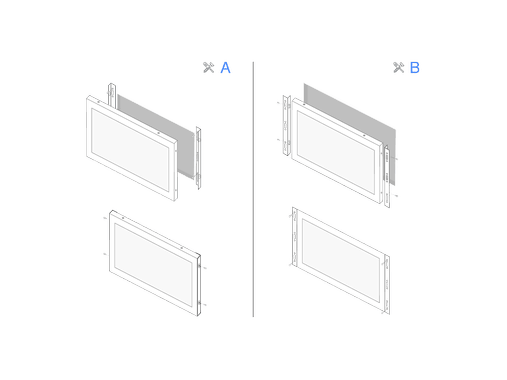

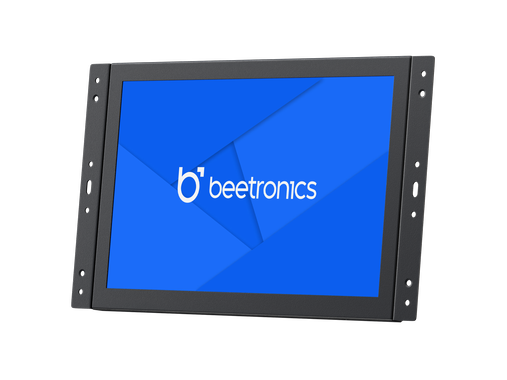

Flush-mount

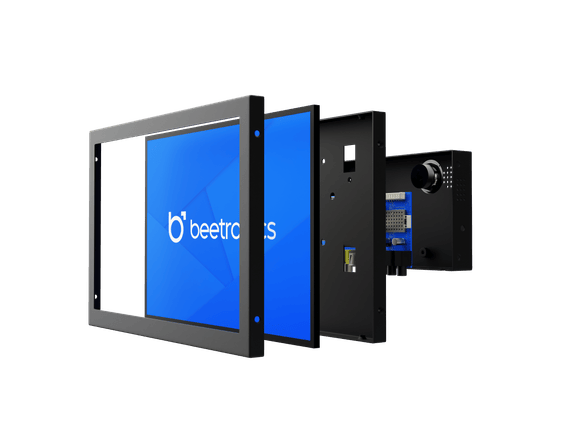

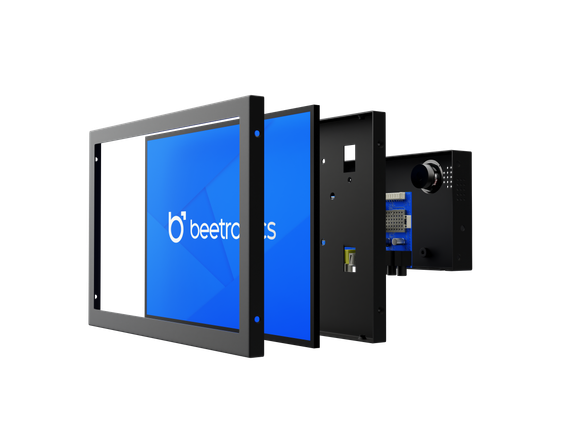

The monitor is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall mount

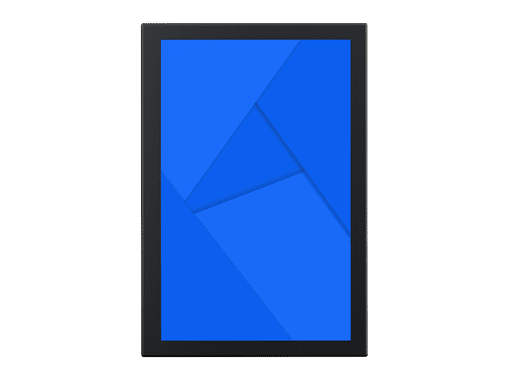

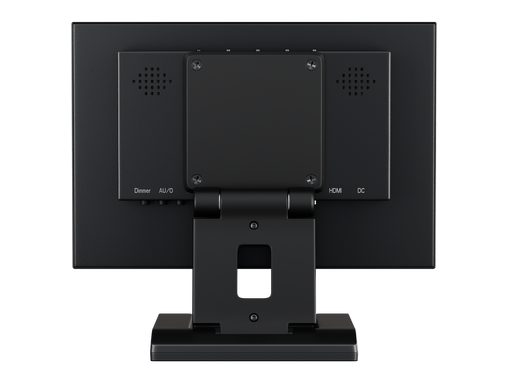

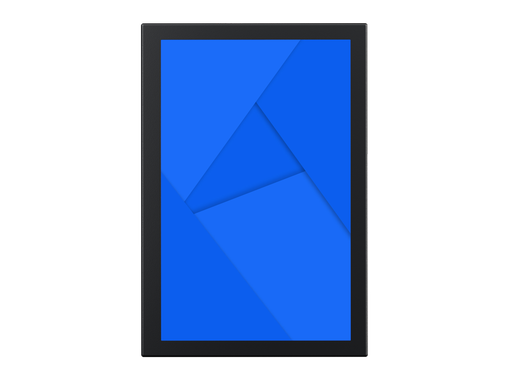

The monitor includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

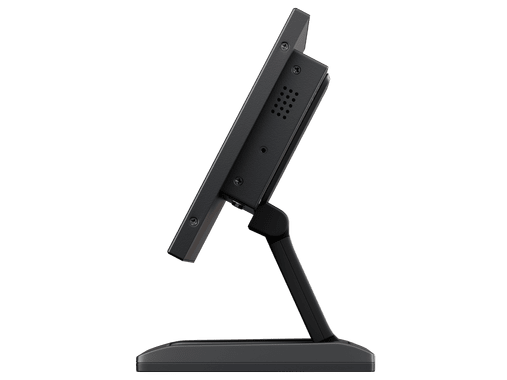

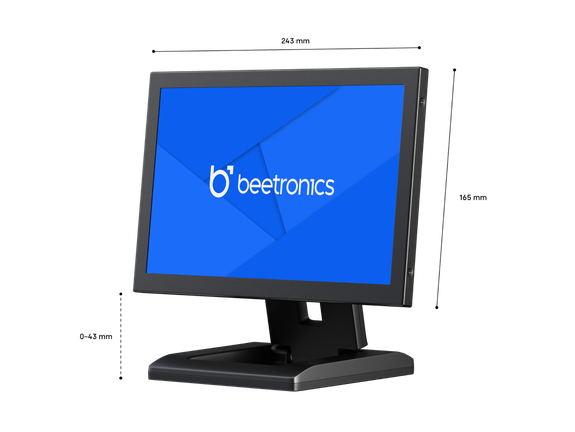

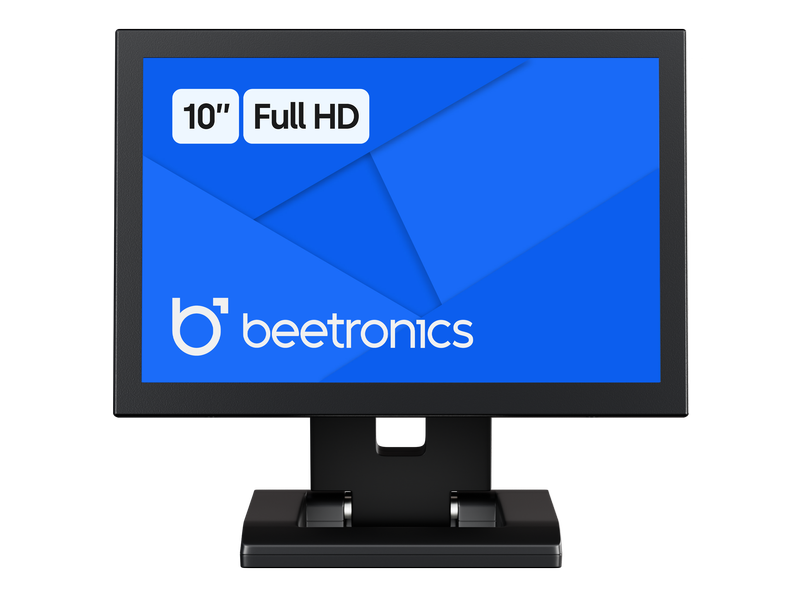

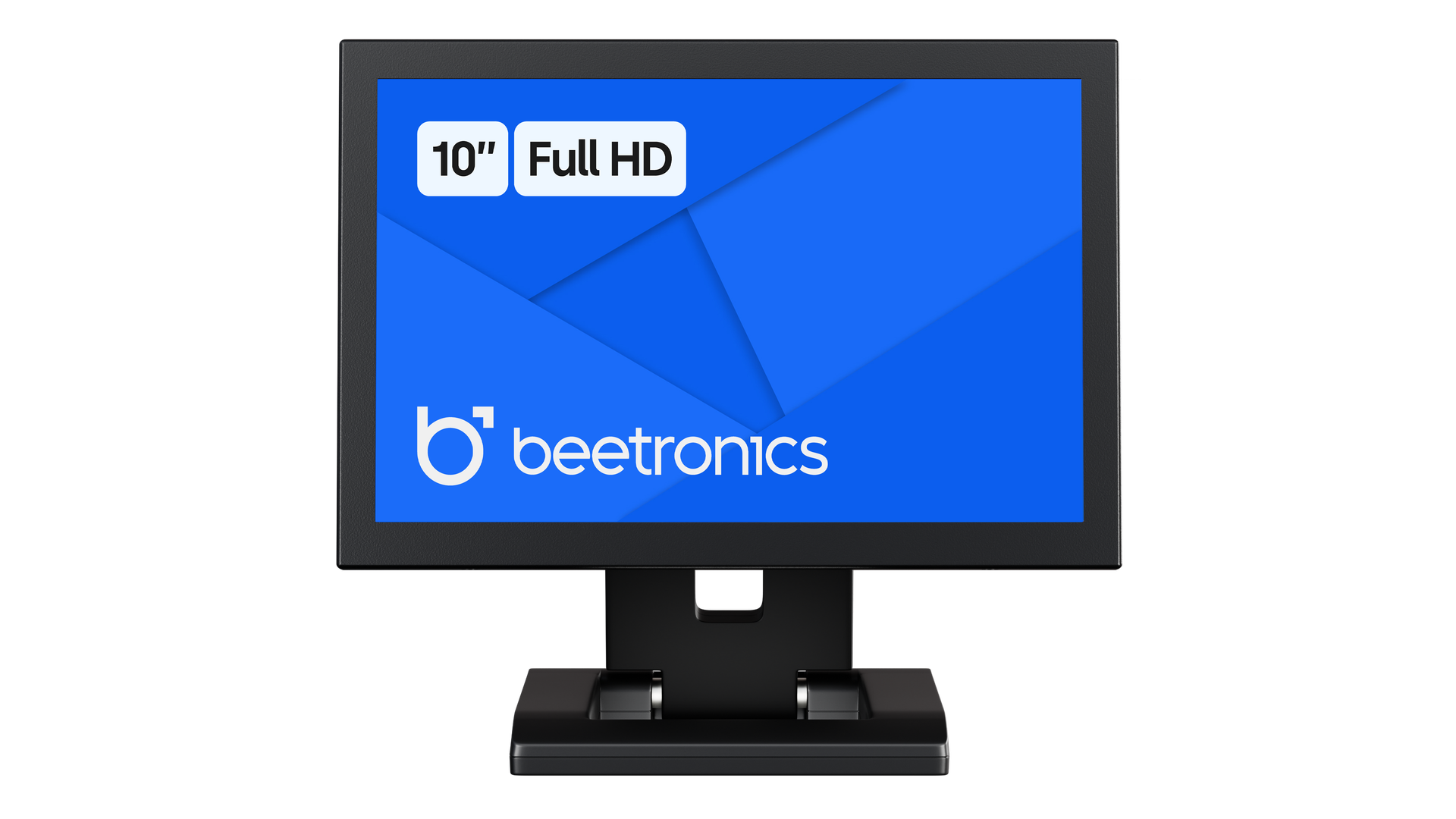

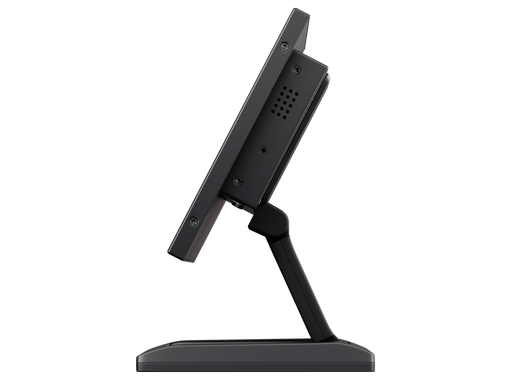

Stand

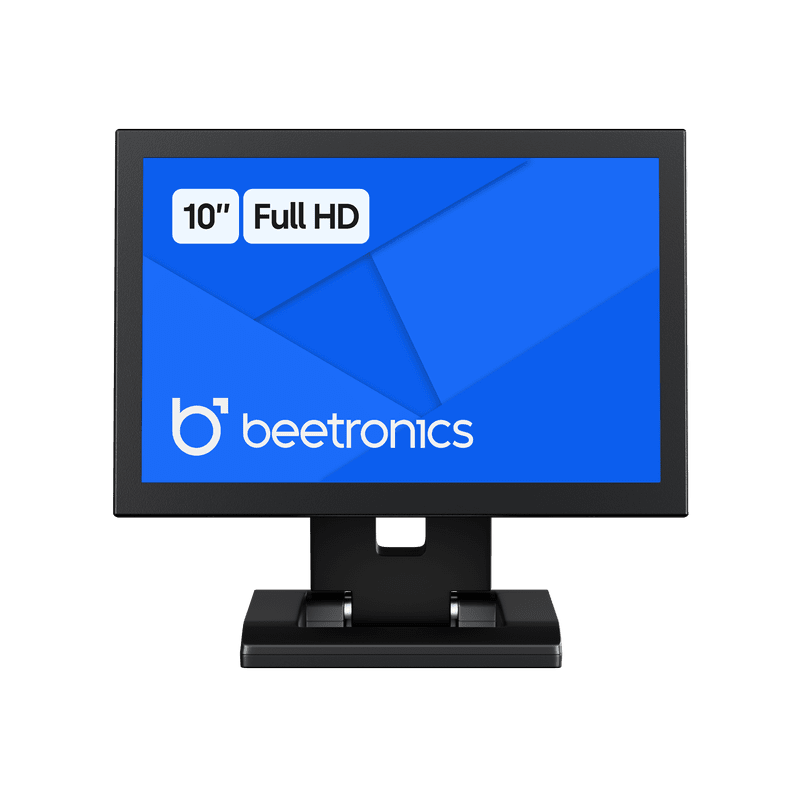

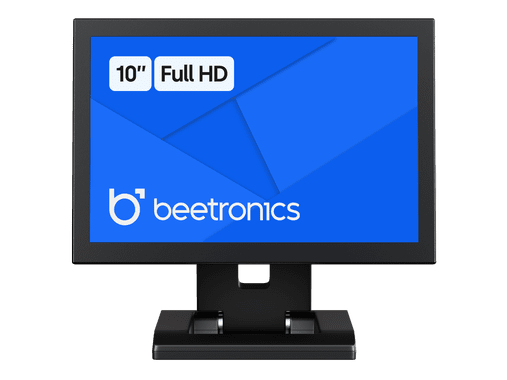

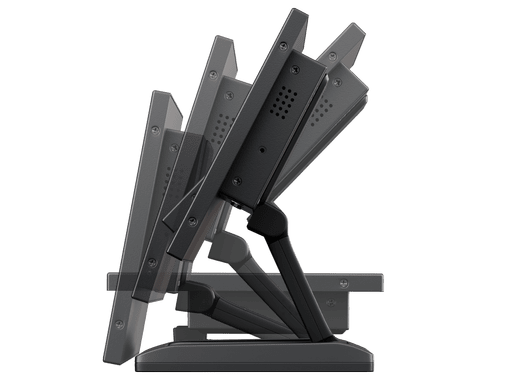

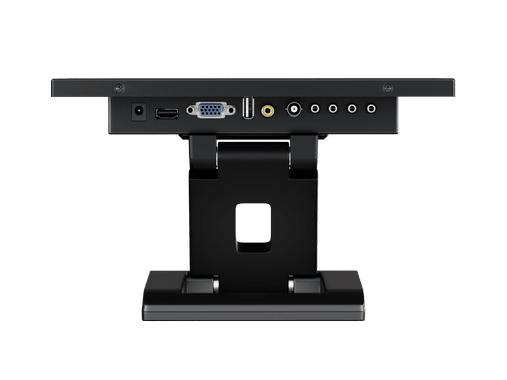

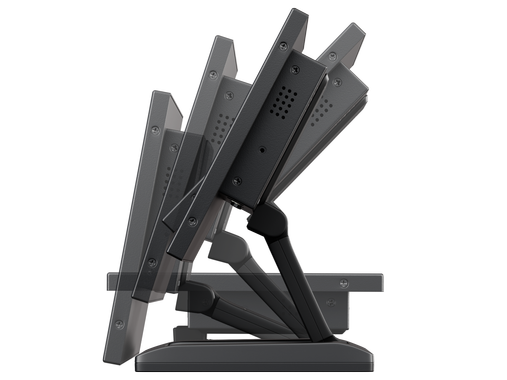

The monitor comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the monitor to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications
General
Manufacturer
Beetronics
Product line
Monitor series
Product name
10 Inch Monitor Metal
Item number
10HD7M
Previous model
10HDM
Product type
Monitor
Warranty
2 years
Datasheet
Download PDF
User manual
Download PDF
Quickstart
Download PDF
Display architecture
Diagonal size
10.2 inches (259 mm)
Aspect ratio
16:10 (16:9, 4:3 adjustable)
Native resolution
1920 x 1200
Pixels per inch
224 PPI
Panel type
IPS-LCD
Backlight
LED
Surface
Anti-glare hard coating (3H)
Supported orientation
Landscape, portrait, face-up
Display performance
Maximum brightness
300 nits (typical)
Minimum brightness
1 nit
Contrast
1500:1
Viewing angle
178° horizontal, 178° vertical
Response time
10 ms
Supported resolutions
1920 x 1200 (max), 640 x 480 (min)
Color encoding system
PAL/NTSC/SECAM
Operational features
Audio
Dual integrated speakers
USB media player
Built-in USB media player with auto-play on power-up and continuous loop playback. Supports common video formats such as: MP4, AVI, MKV, MOV, MPG.
Key-lock
The control buttons can be blocked.
Auto-on
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable backlight brightness via remote control or optional dimmer.
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
USB-A
1x integrated USB media player
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x
Mechanical
Dimensions (without stand)
243 x 165 x 35 mm
Image size
219 x 138 mm
Weight
1000 grams (1400 grams with stand)
Colour
Black
Technical drawing (2D)
Download PDF
Technical drawing (3D)
Download CAD/STP
Mounting
Wall mount
VESA 75x75mm
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Supported mounting orientations
Landscape, portrait, face-up
Power
Input voltage
DC 9-36V
Consumption
11 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-10°C to +60°C (14°F to 140°F)
Storage temperature
-20°C to +70°C (-4°F to 158°F)
Operating humidity
10% - 90% non-condensing
MTBF
50K
Compliance & regulations
Regional standards
CE, UKCA, FCC (Part 15), ISED (ICES-003), CCC
Environmental standards
RoHS, REACH, WEEE, California Proposition 65, Conflict minerals (3TG; supplier declaration-based)
Industry standards
Maritime: IEC 60945, DNV-CG-0339 (requires BEE-PSU1-MAR); Railway: EN 50155, EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455; Medical: EN 60601-1, EN 60601-1-2 (requires BEE-PSU1-MED)
Compliance scope
Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.
Compliance statement
Download PDF
Package content
Includes

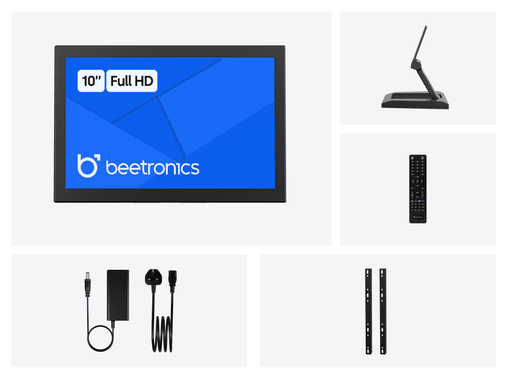

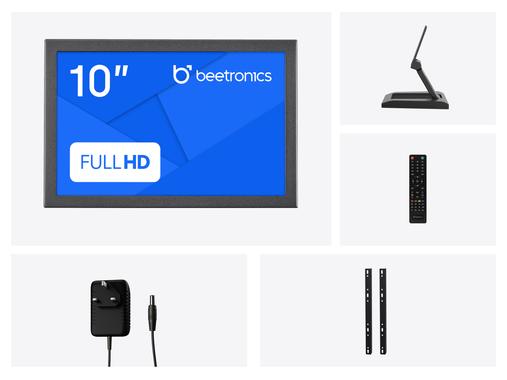

Monitor, mounting strips, stand, remote control, power adapter, quickstart
Compatible accessories
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
VDK3 included as standard
