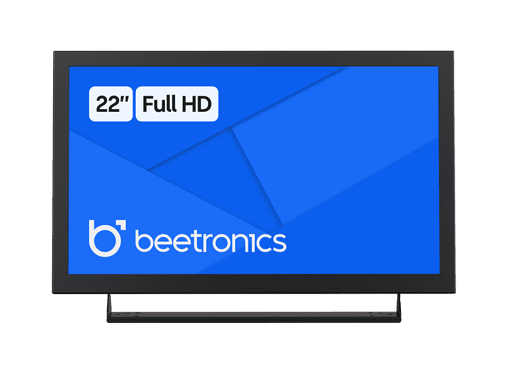

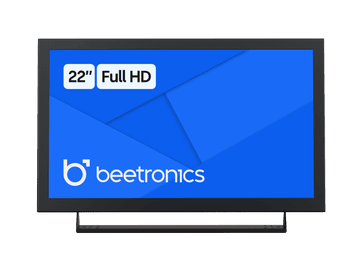

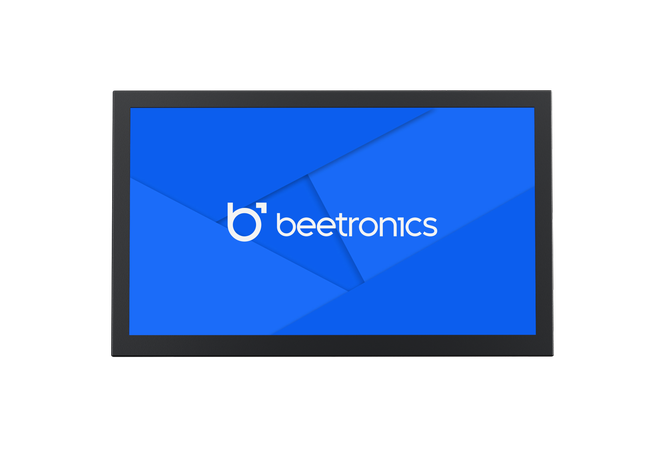

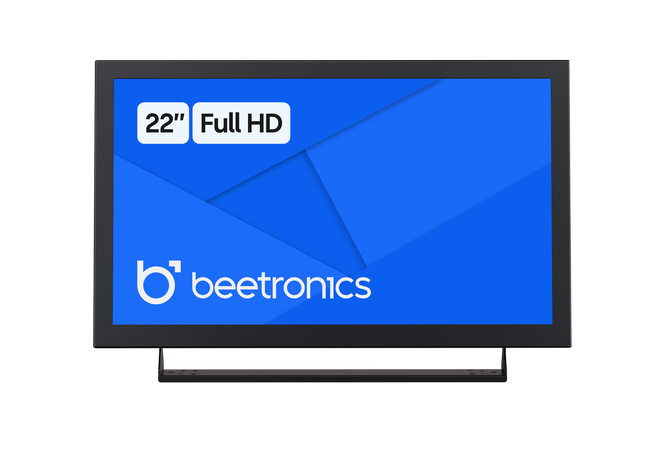

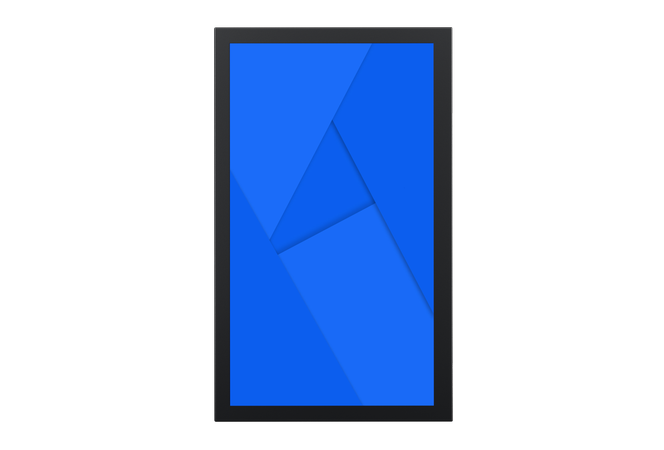

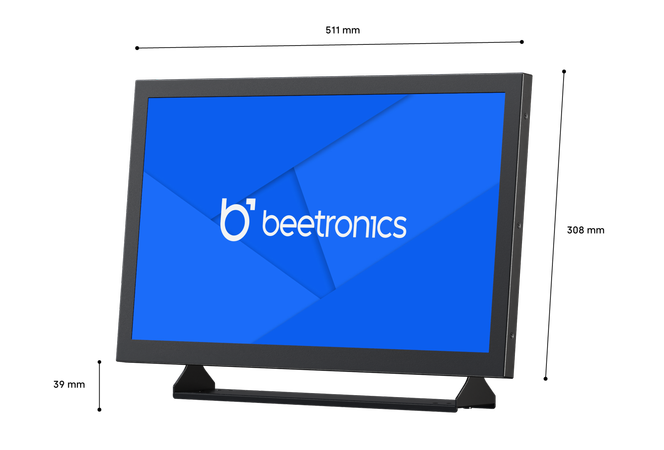

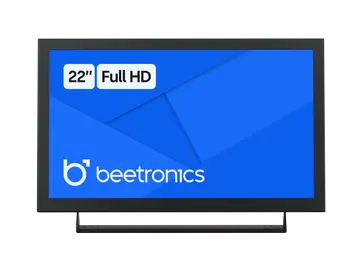

22 inch monitor metal

  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable

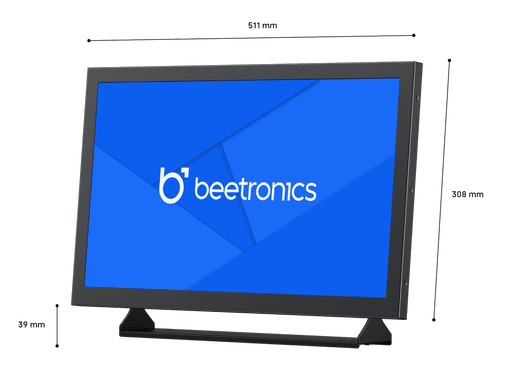

  4. 511 x 309 x 38 mm
Item number: 22HDM
100+ units in stock

Order before 10:00 pm for free delivery on friday

£359.00 £299.17 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

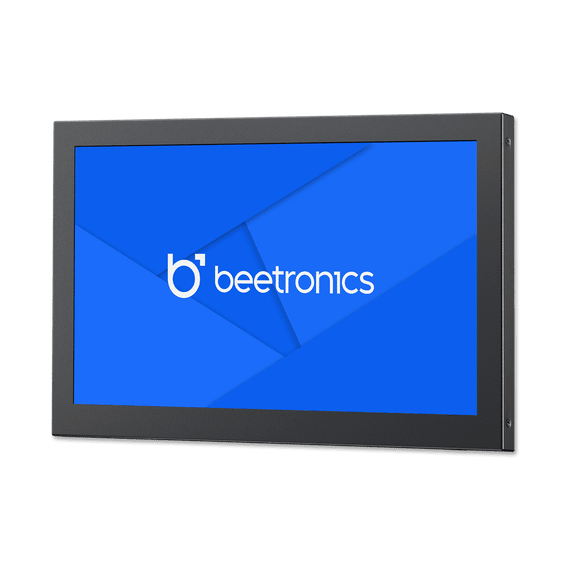

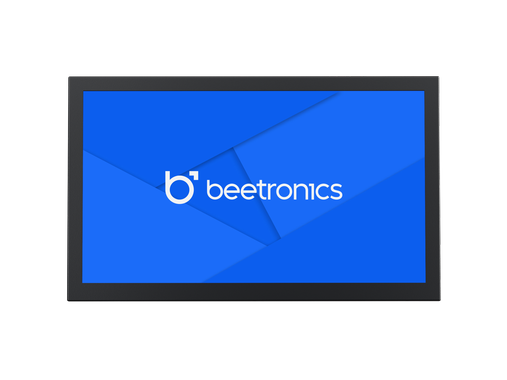

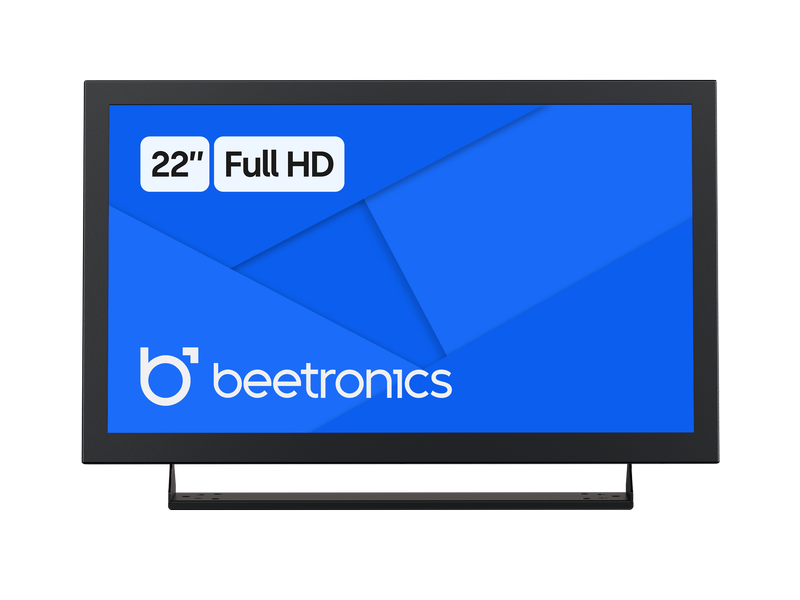

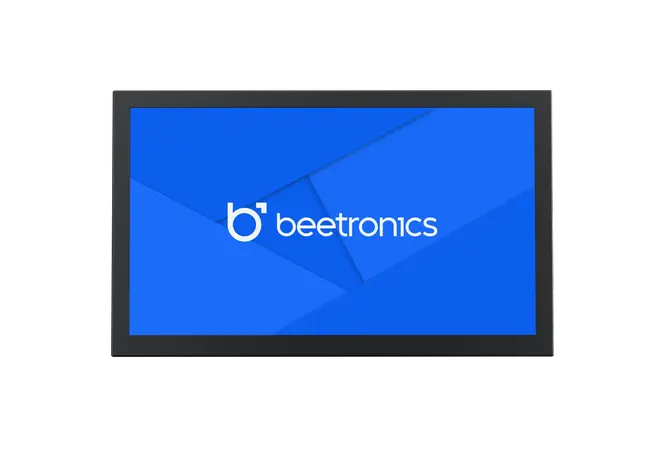

This Full HD 22 inch monitor has a sturdy metal housing  and is suitable for desktop, flush and wall mounting. The monitor has a LED-IPS panel which provides crystal-clear image quality with excellent 178° viewing angles. The 22HDM can be connected through a HDMI, VGA, BNC or RCA connection.

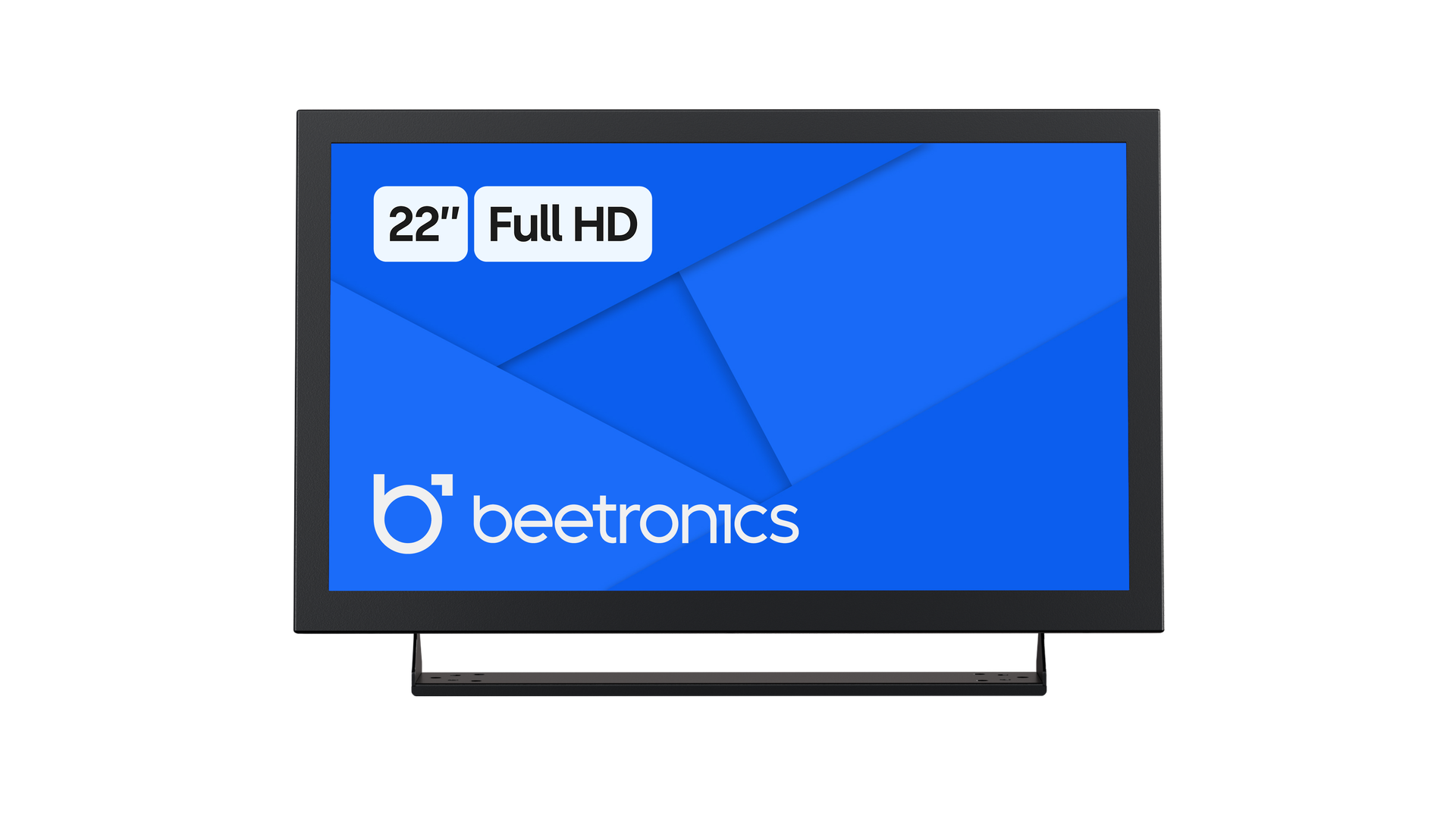

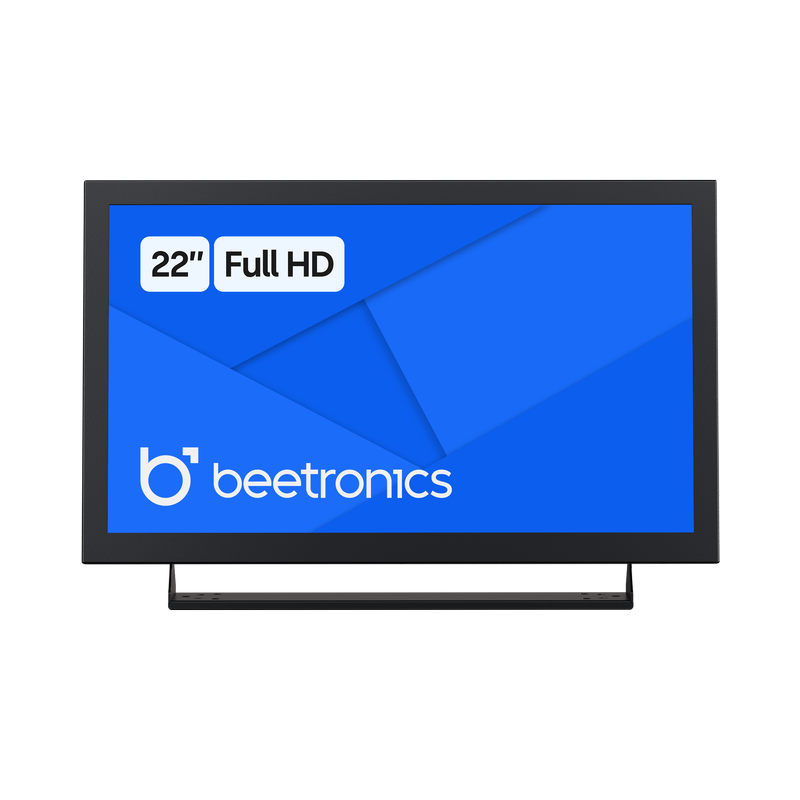

1920 x 1080 resolution (Full HD)

Fitted with a native Full HD IPS panel, this 22 inch monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

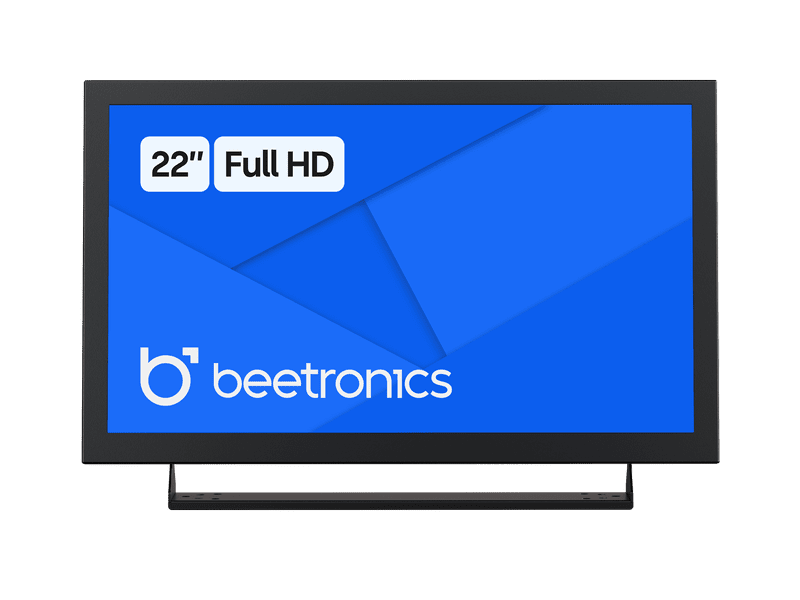

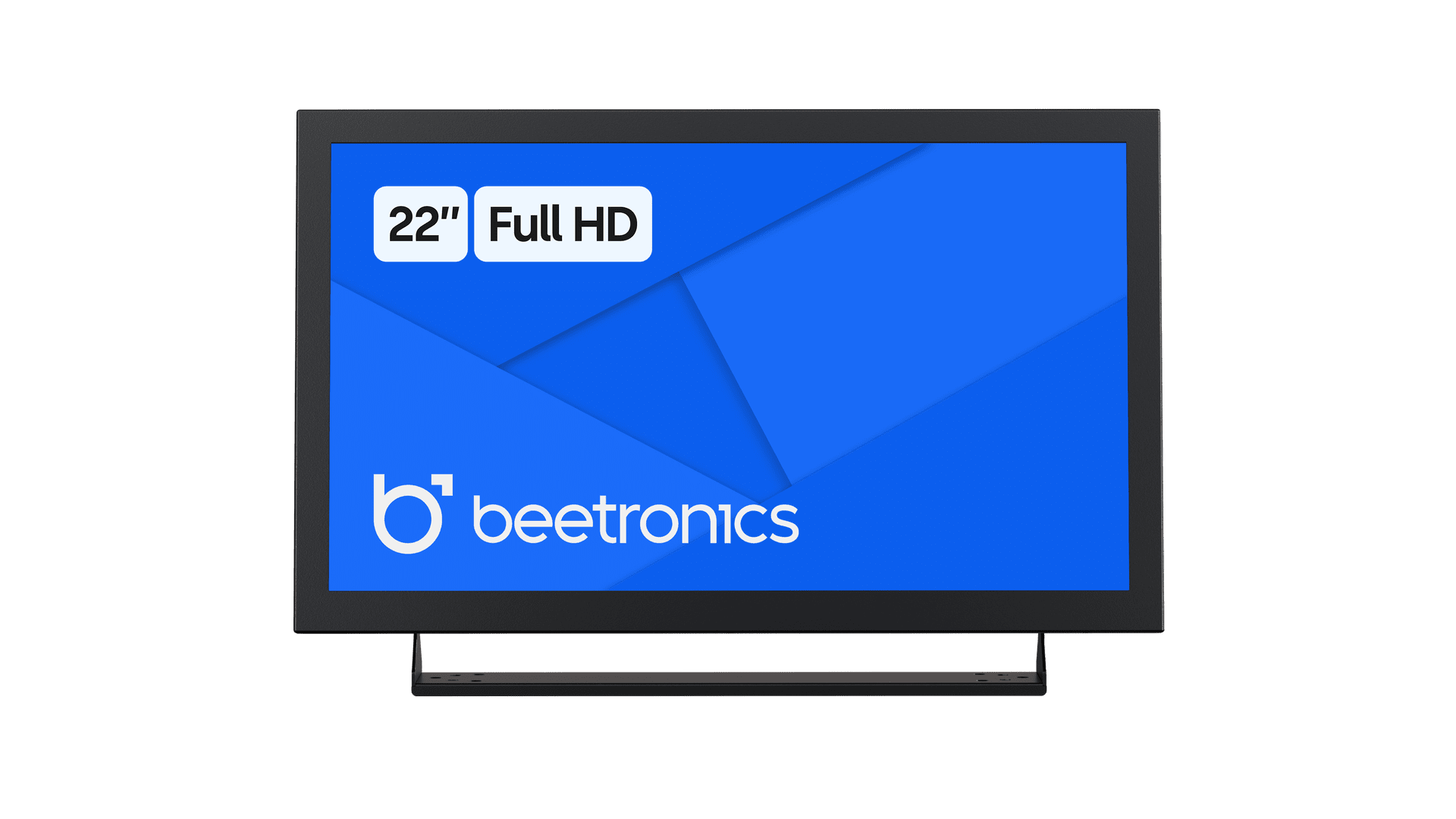

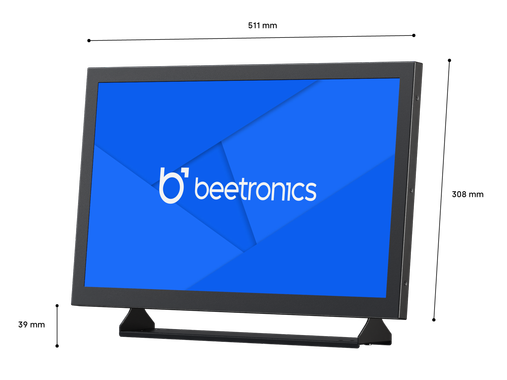

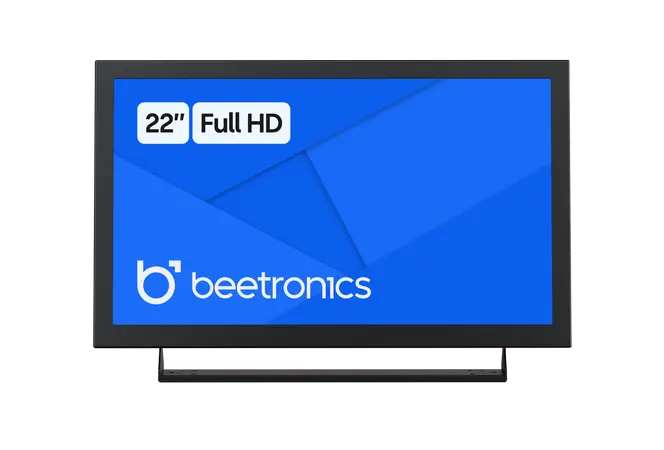

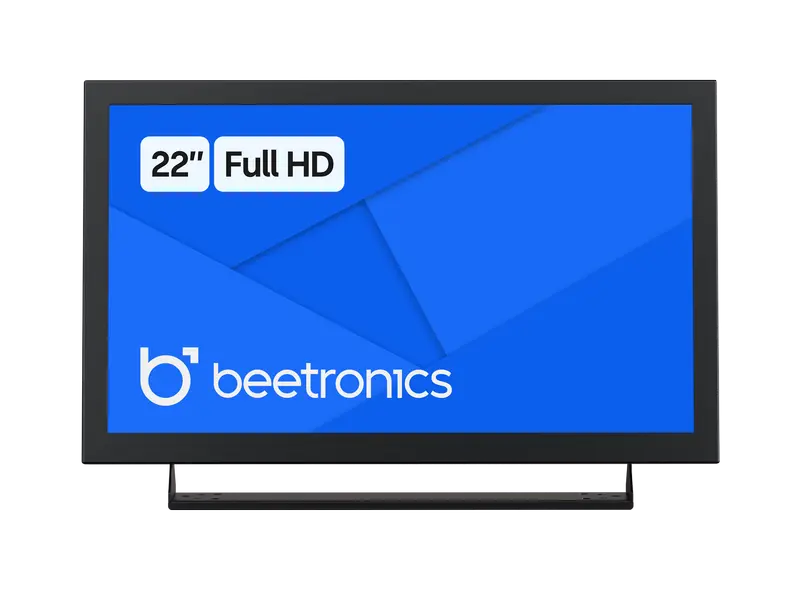

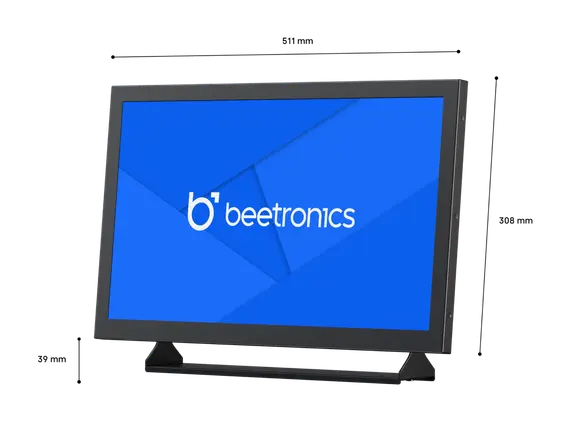

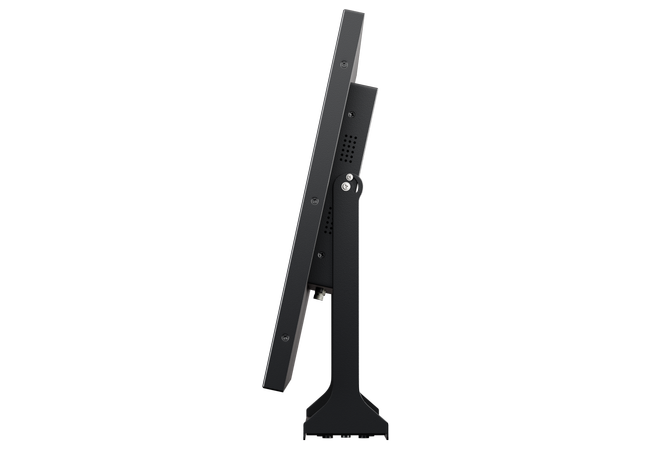

22 inch monitor metal with stand

Input: HDMI, VGA, BNC and RCA

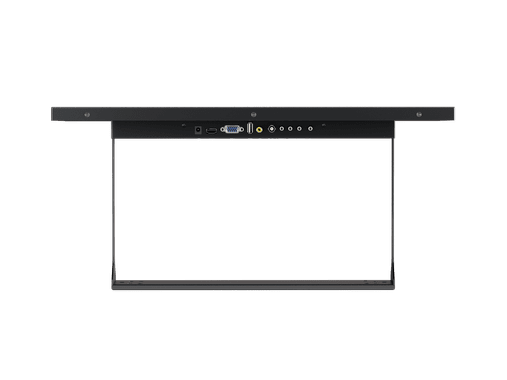

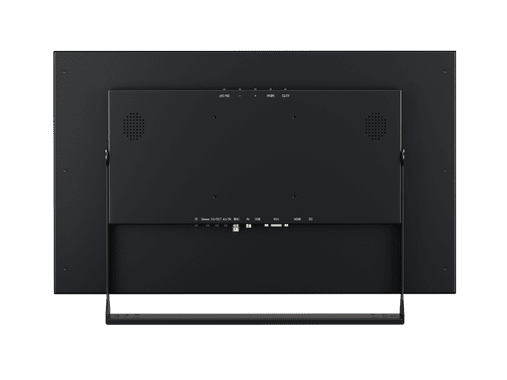

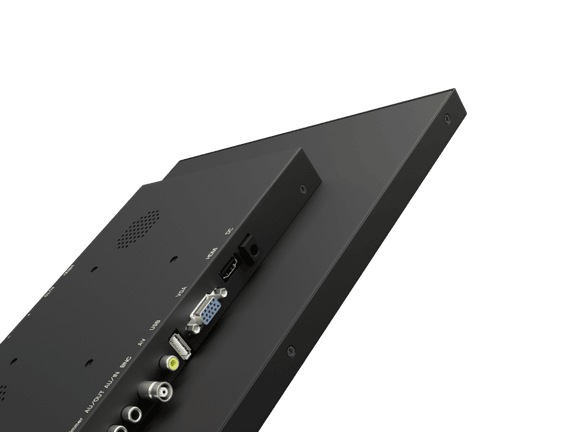

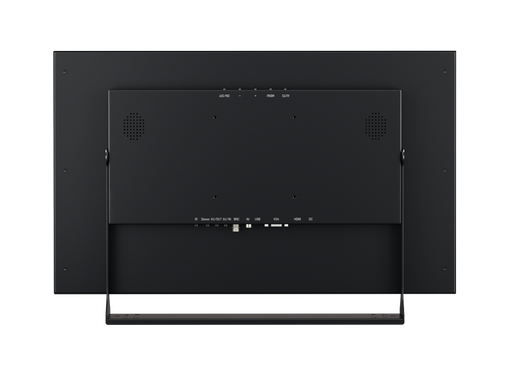

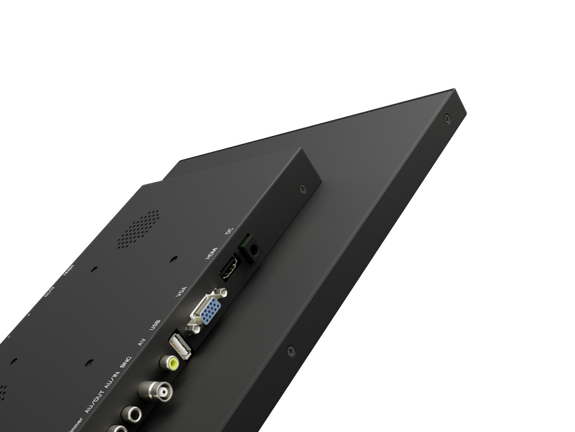

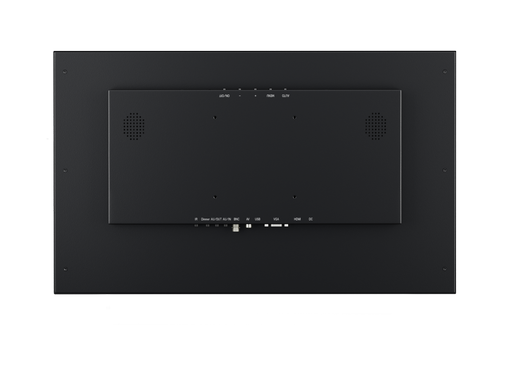

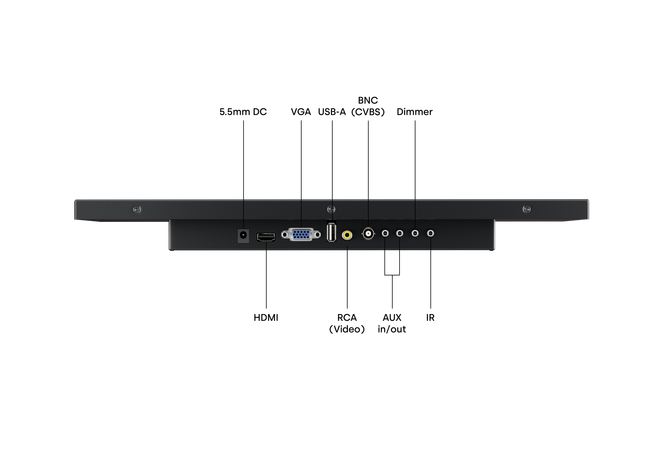

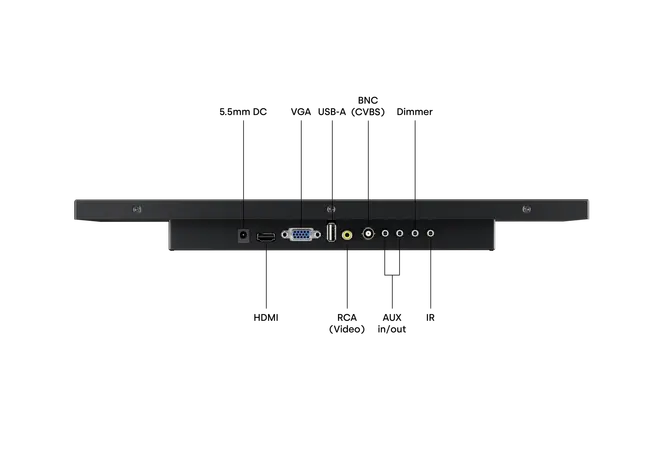

This monitor has an HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.

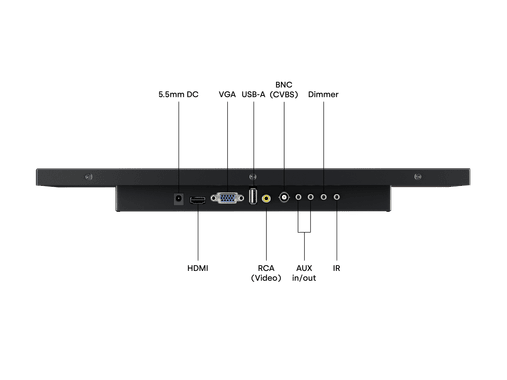

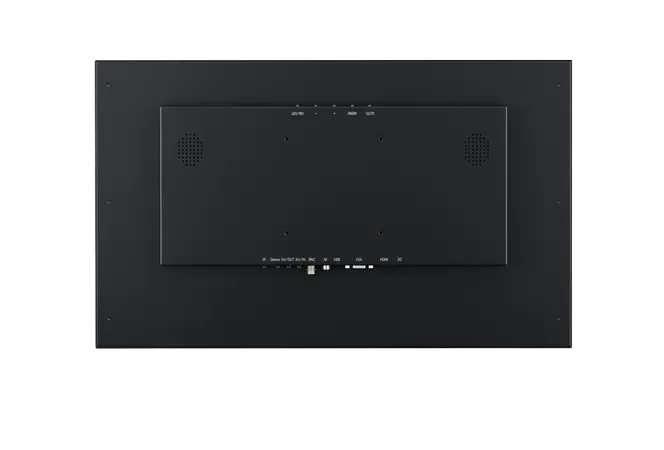

hdmi, vga, rca and bnc connection

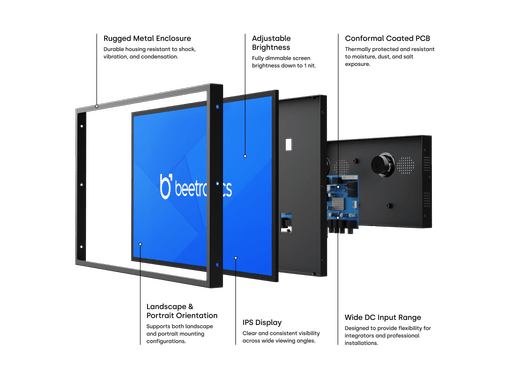

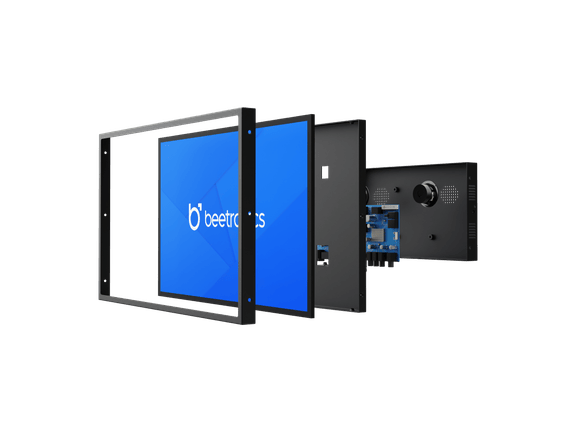

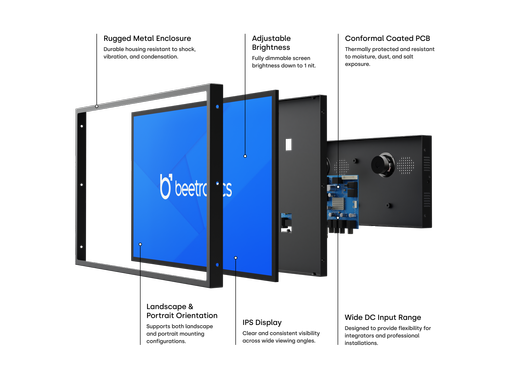

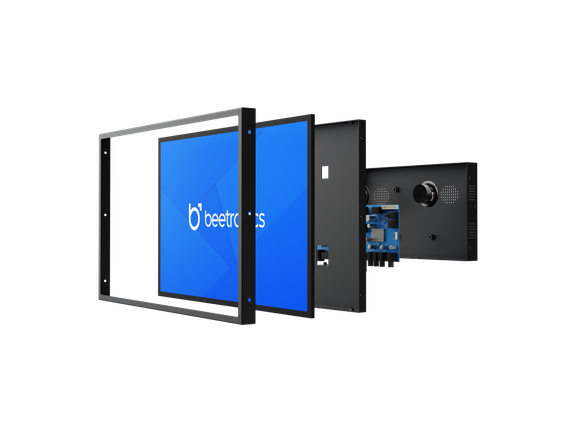

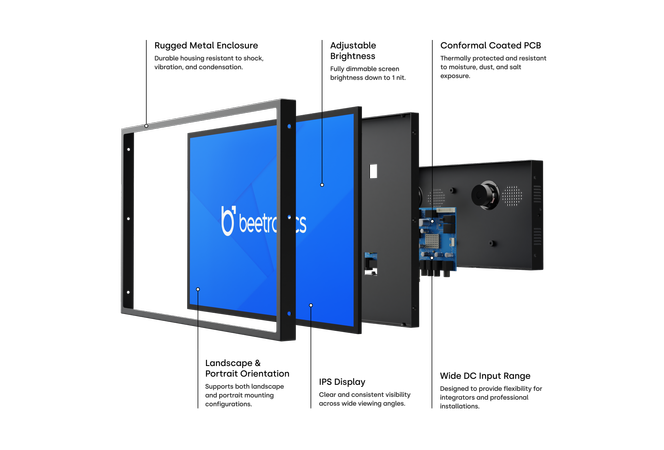

Designed for professional use

Theis 22 inch monitor has a sturdy metal housing and dimmable panel. The monitor is manufactured with high quality components that guarantee reliable operation. This 22 inch monitor is suitable for continuous operation and ideal for professional use.

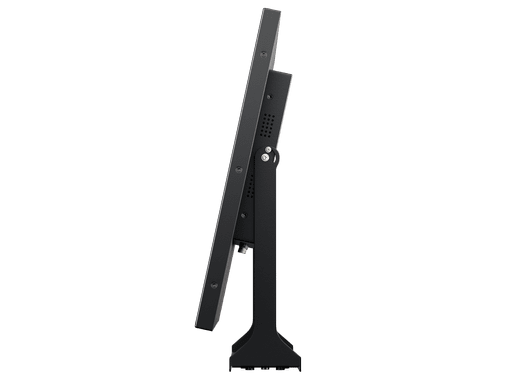

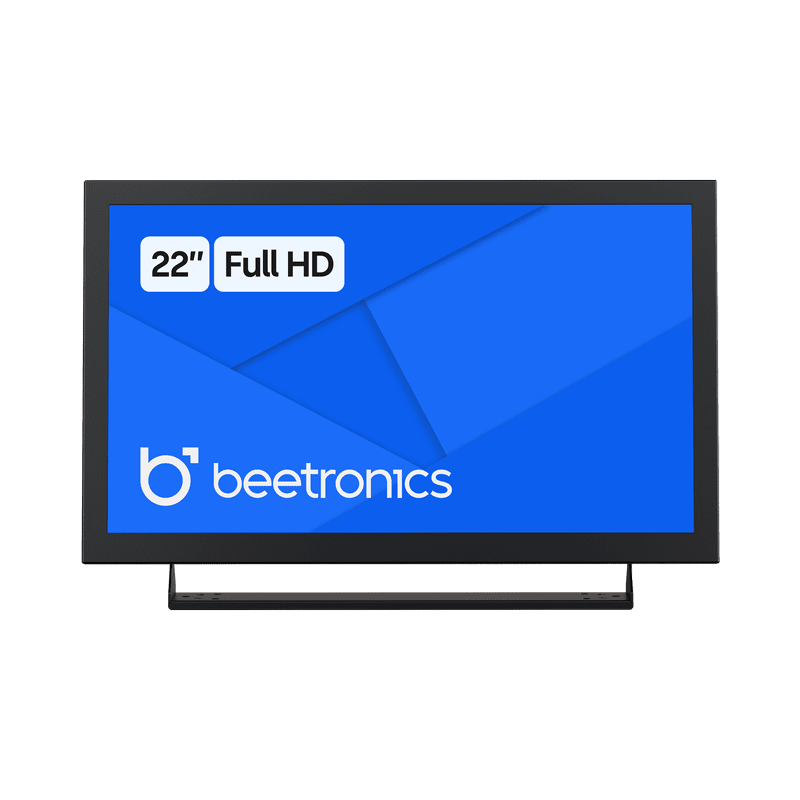

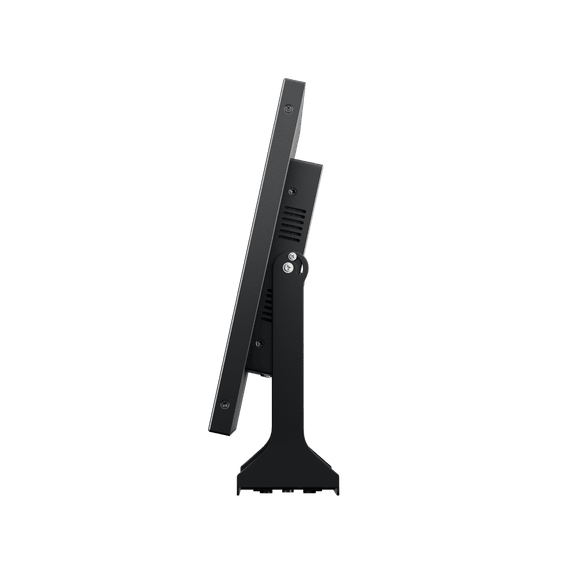

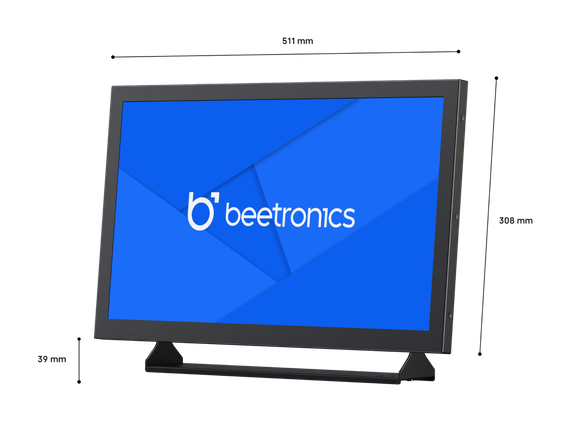

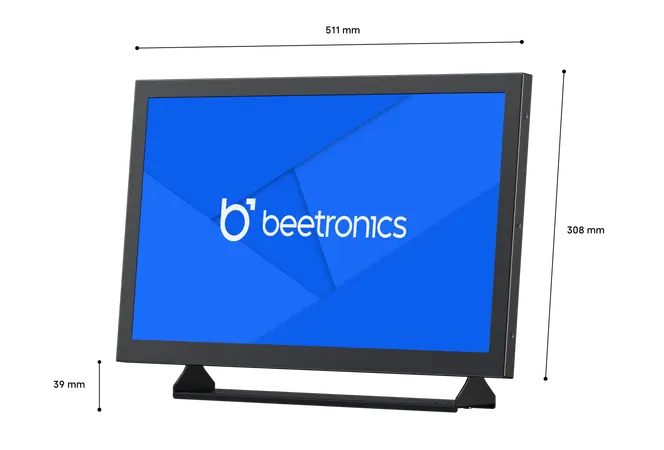

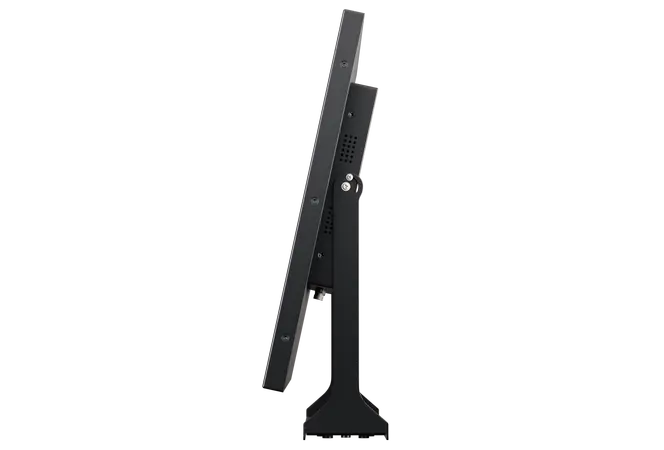

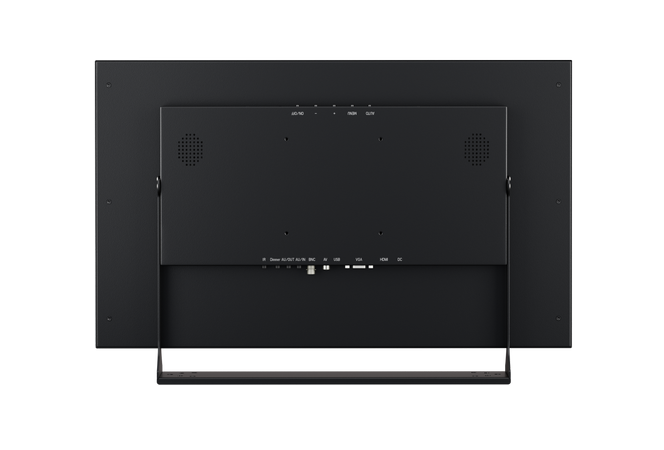

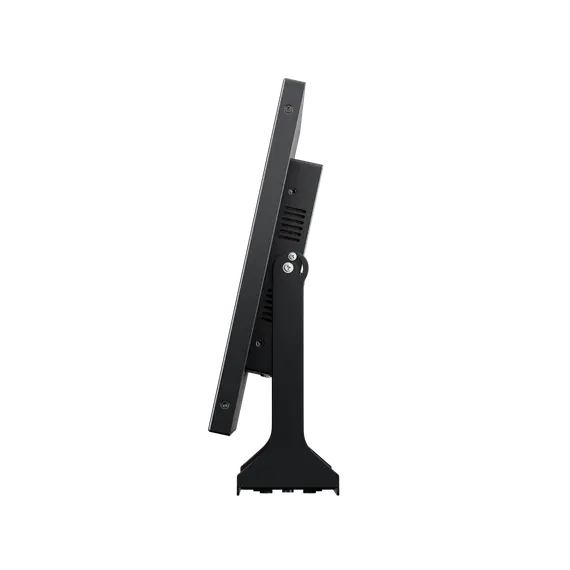

22 inch monitor with adjustable stand

Desktop, flush and wall mountable

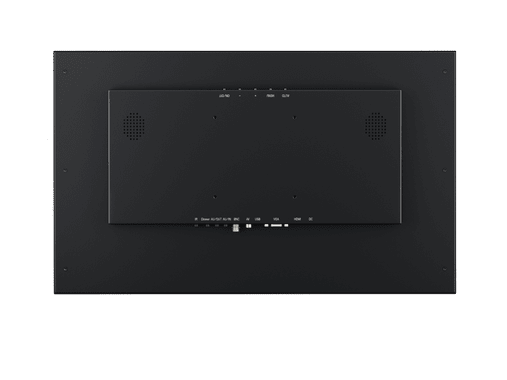

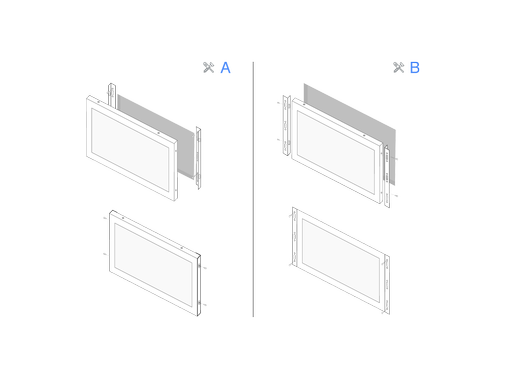

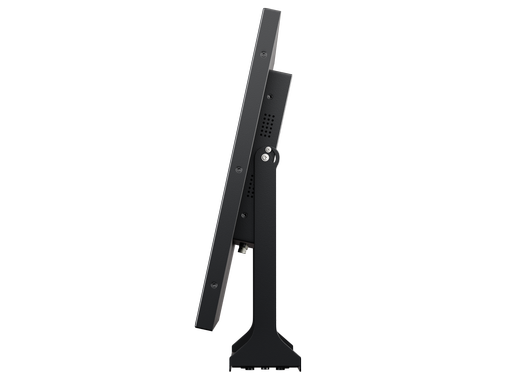

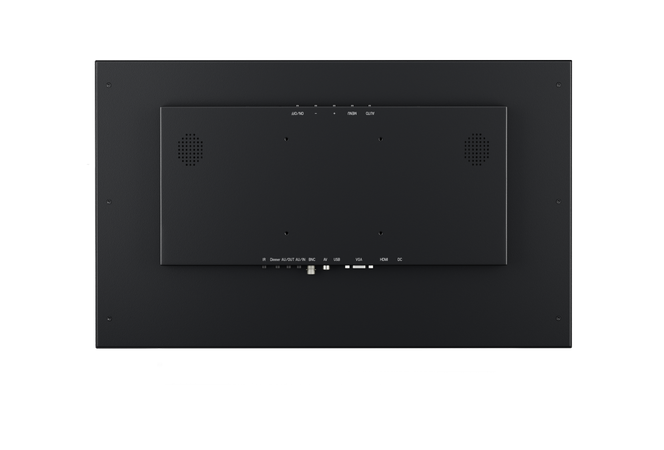

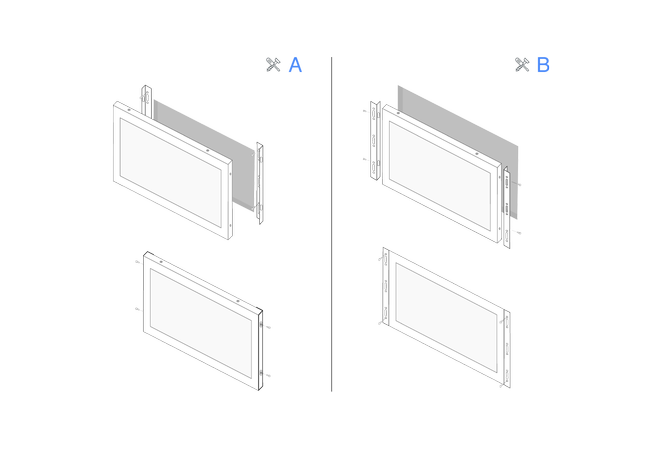

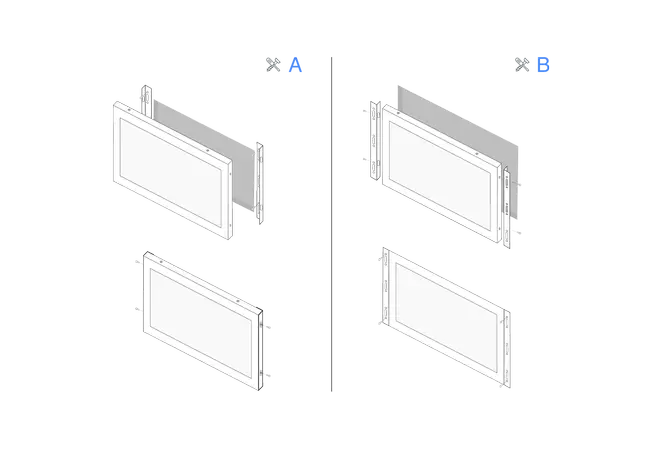

The Beetronics 22HDM is has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 100mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the 22 inch monitor or integrate it into your own application.

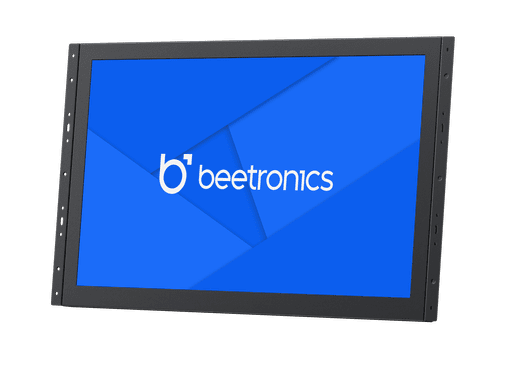

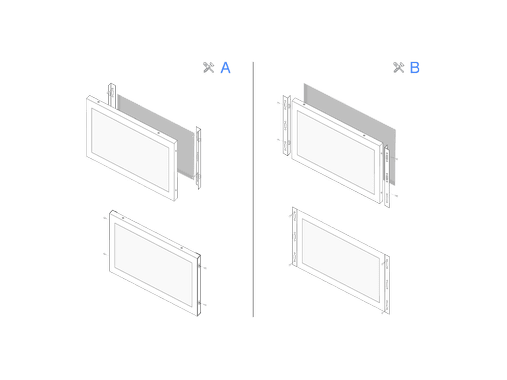

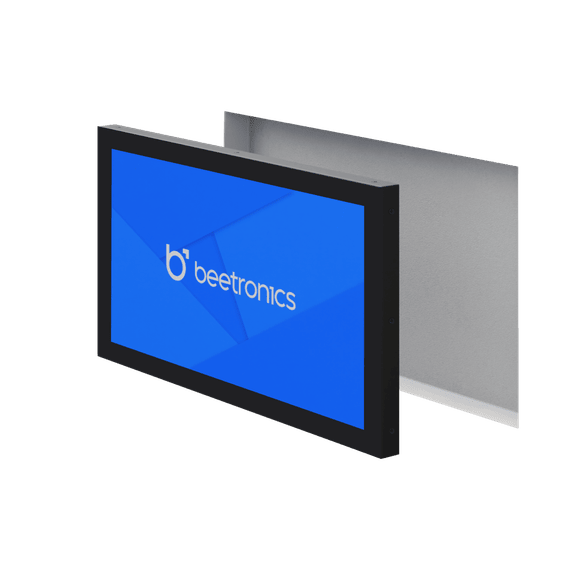

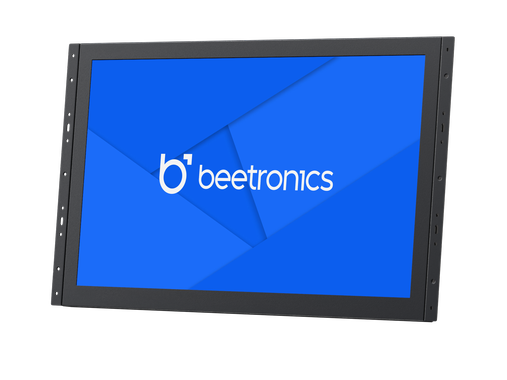

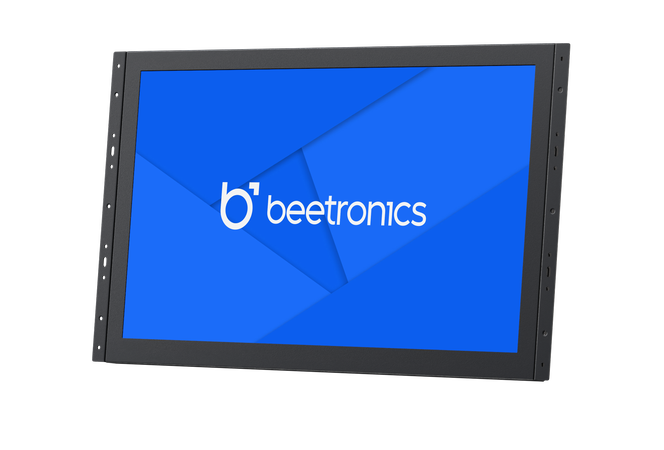

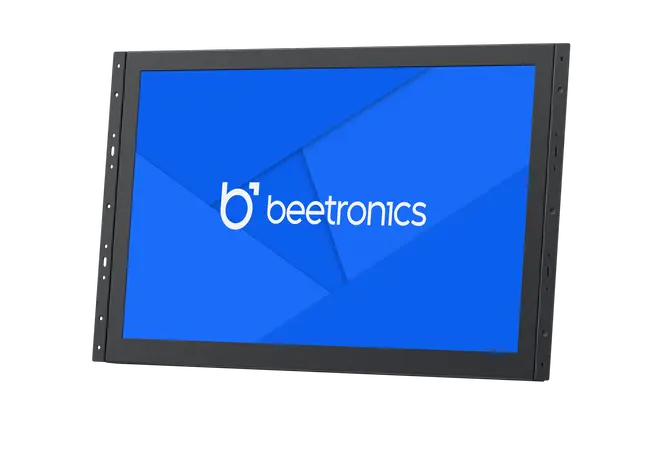

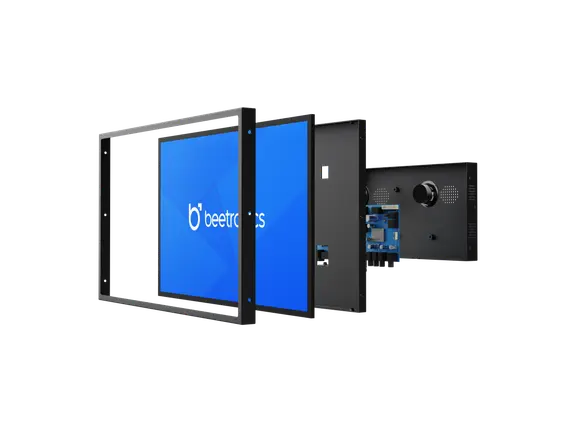

22 inch monitor for flush mounting & open frame
General
Manufacturer Beetronics
Item number 22HDM
Product name 22 inch monitor metal
Warranty 2 years
Datasheet   Download PDF
Manual   Download PDF
Panel
Type Matte, LED-IPS
Screen diagonal 21,5 inch (54,6 cm)
Aspect ratio 16:9 (4:3 adjustable)
Native resolution 1920 x 1080
Supported resolutions 1920 x 1080 (max), 640 x 480 (min)
Pixels per inch 100 PPI
Viewing angle 178° horizontal, 178° vertical
Colour encoding system PAL/NTSC/SECAM
Brightness 300 cd/m2
Contrast 3000:1
Connectivity
HDMI 1x
VGA 1x
BNC (CVBS) 1x
RCA video 1x
AUX output 1x
USB 1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)

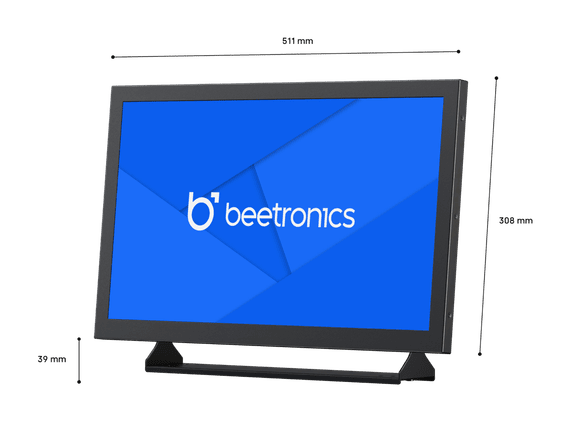

Size & weight
Colour Black
Weight 5290 gram (5960 gram with stand)
Width 511 mm
Height 309 mm (+0 to 30 mm with stand)
Thickness 38 mm
Display dimensions 479 x 270 mm
Technical drawing   Download PDF
Features and functions
Audio Integrated speakers
Key-lock The control buttons can be blocked
Auto-on Automatically powers on when it receives current or a signal
Dimmable Adjustable backlight brightness
Mirroring Image can be mirrored, horizontally and vertically
Power
Input voltage DC 12V
Power supply Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption <15 Watt (0.5 Watt standby)
Environmental
Operating temperature -20c° to +60c°
Storage temperature -20c° to +70c°
Operating humidity 20% - 90% non-condensing
Mounting
Wall mount VESA (100 mm)
Flush mount Mounting strips included
Stand Adjustable and detachable
Certifications & Standards
Certifications CE, FCC, RoHS, REACH

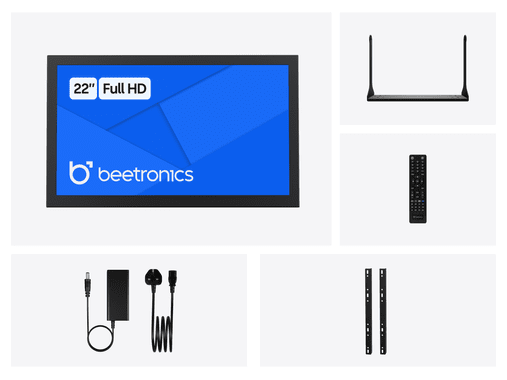

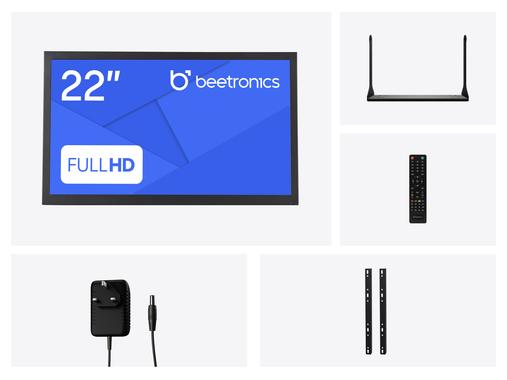

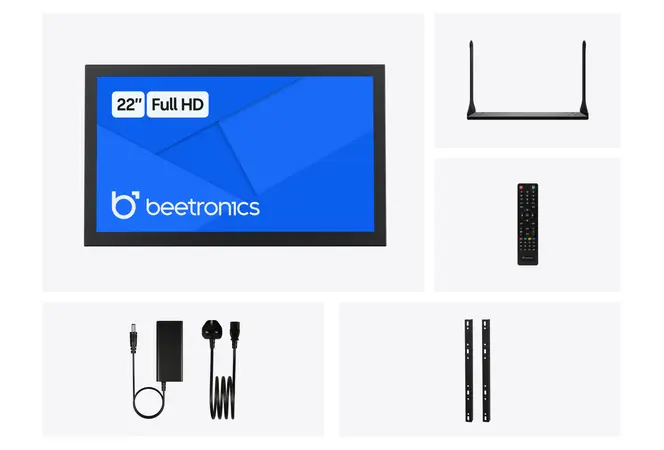

Package content
  1. 22 inch monitor metal
  2. Stand
  3. Remote control
  4. Mounting strips
  5. Mains adaptor
  6. Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
AUX(output)
AUX_audio_35mm
USB(media)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
Files
Product name Item number In stock Quantity Price

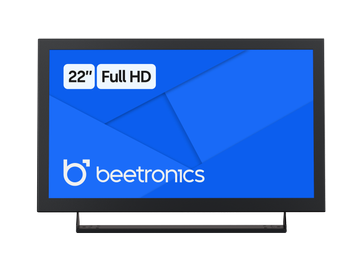

22 inch monitor metal
