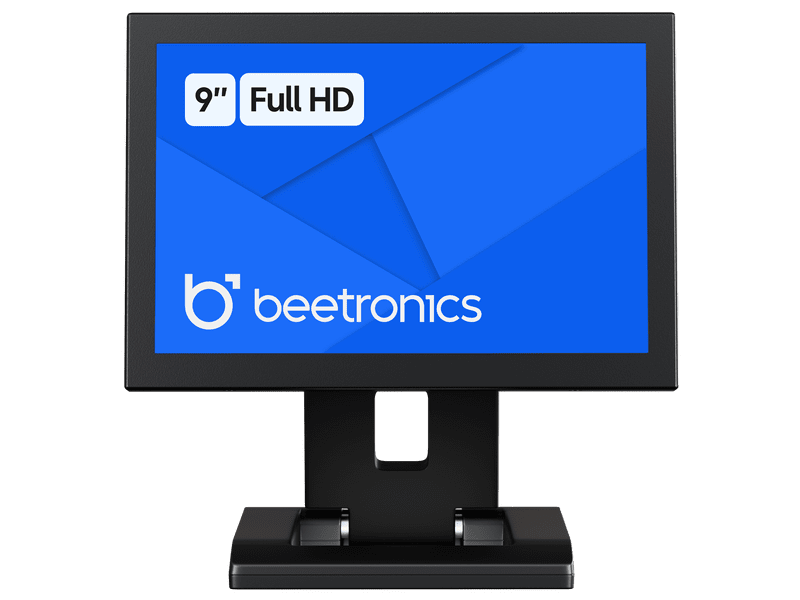

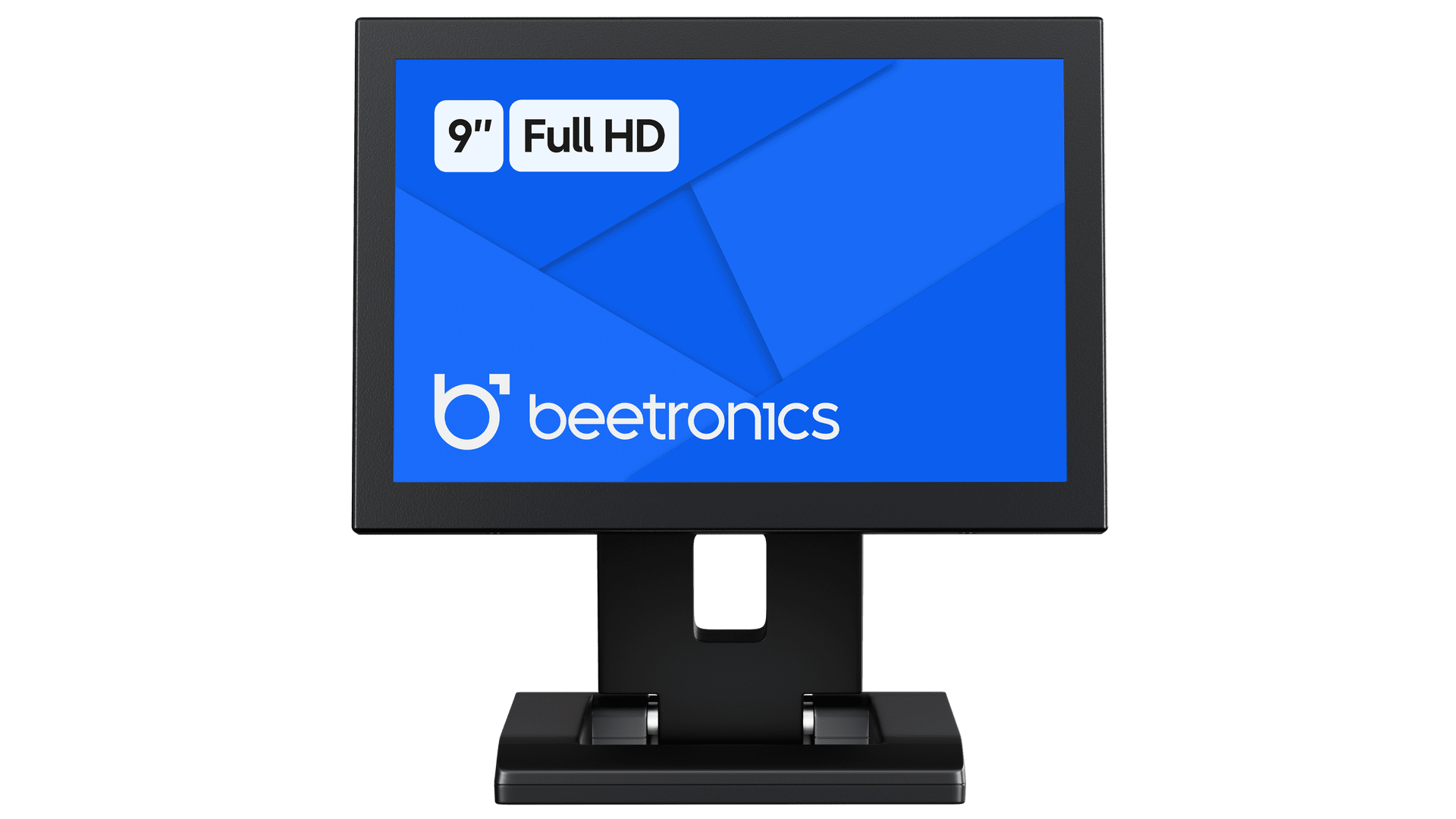

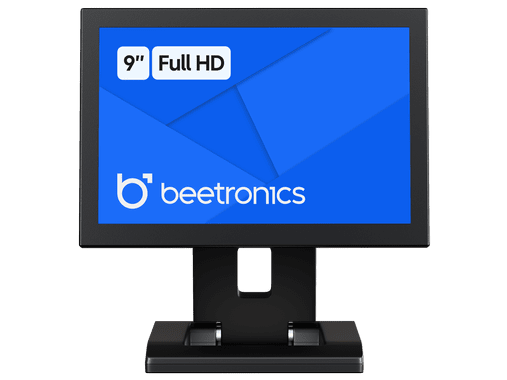

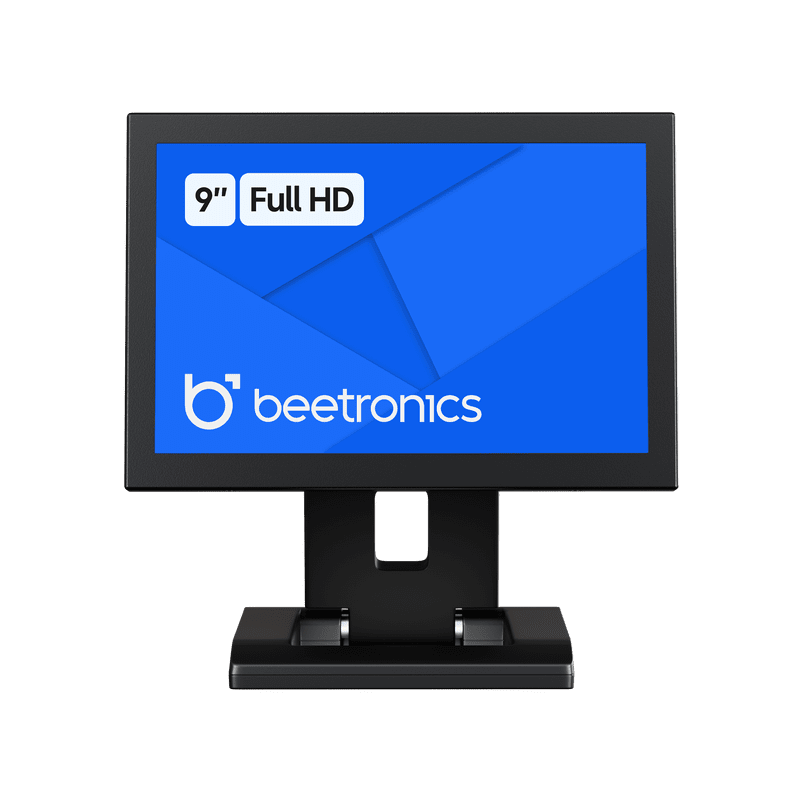

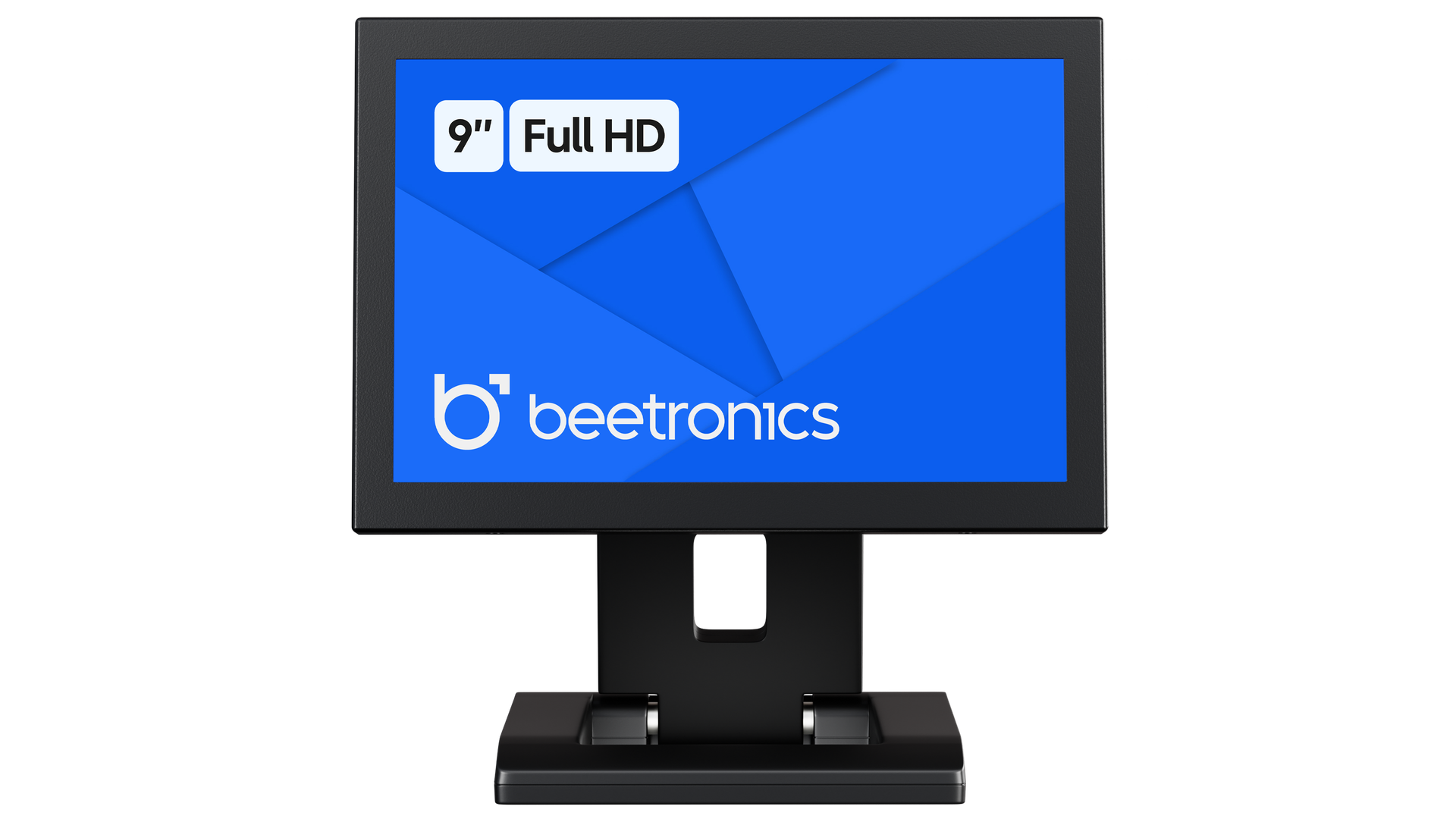

9 inch monitor metal

  1. 1920 x 1200 resolution (Full HD)
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable
  4. 218 x 150 x 35 mm
Item number: 9HD7M
38 units in stock

Order before 10:00 pm for free delivery on friday

£249.00 £207.50 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

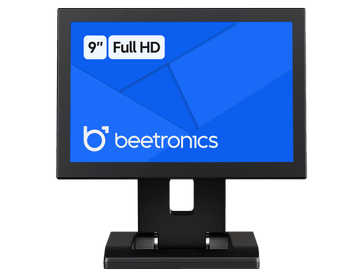

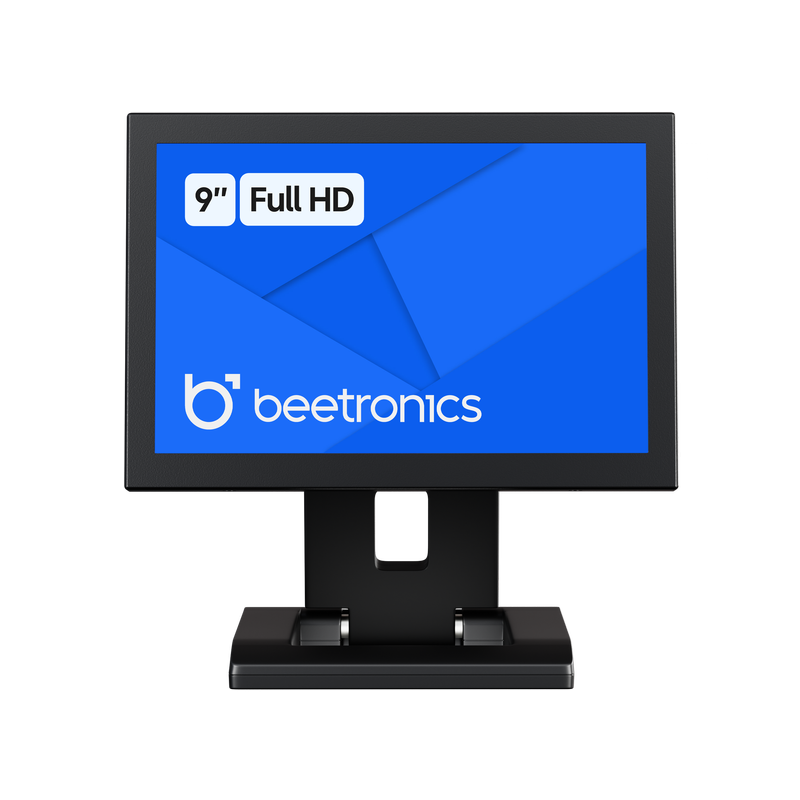

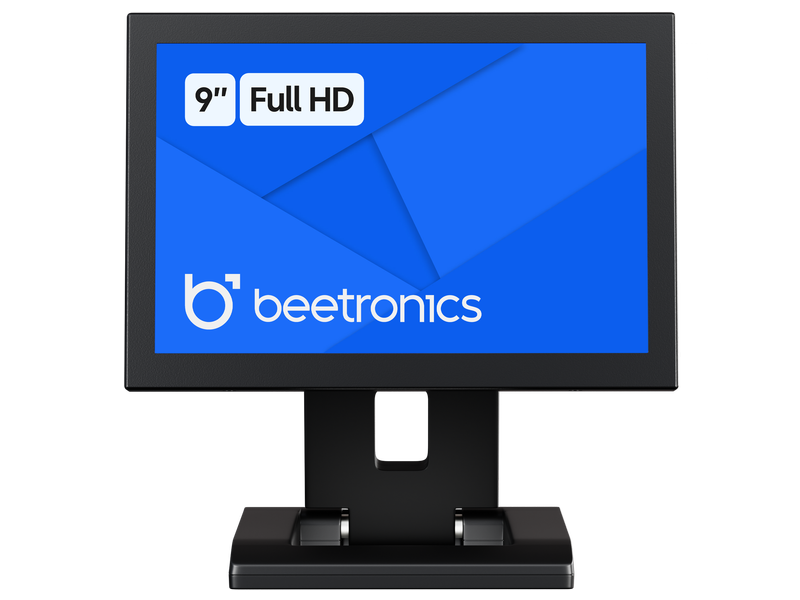

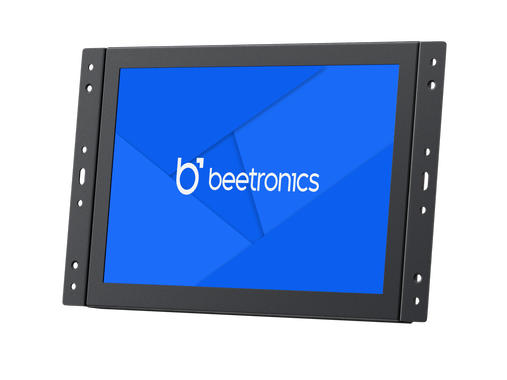

This 9 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 9 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 9HD7M can be connected via HDMI, VGA, BNC or RCA connections.


Outstanding Full HD image quality

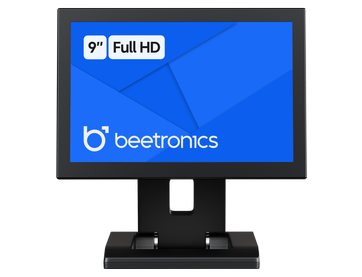

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1200p.

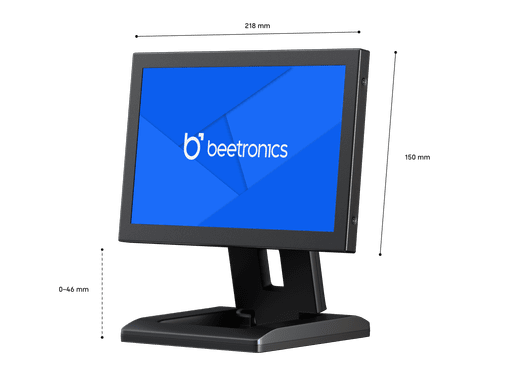

10 inch monitor full hd with stand

Versatile connectivity

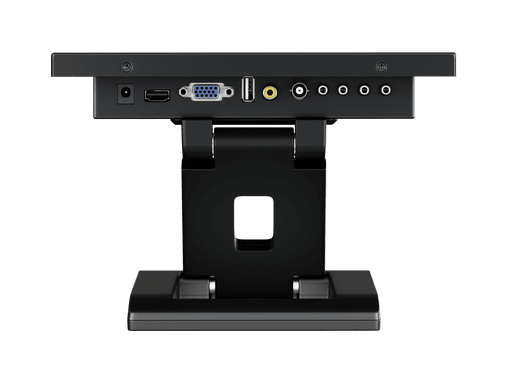

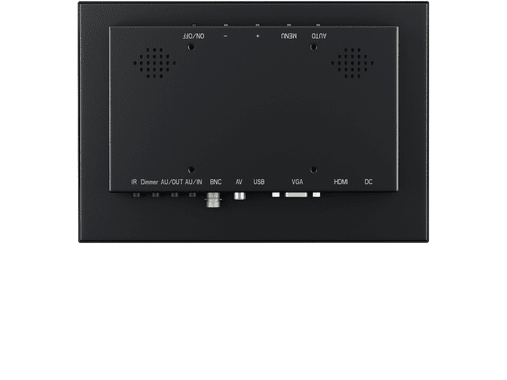

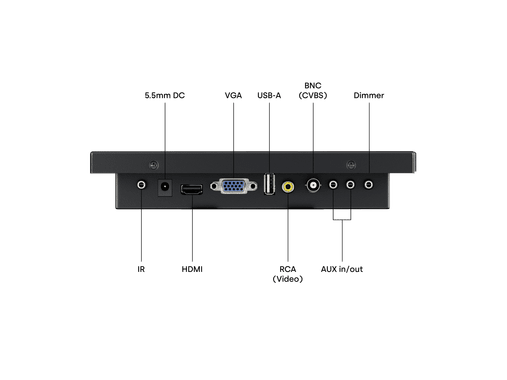

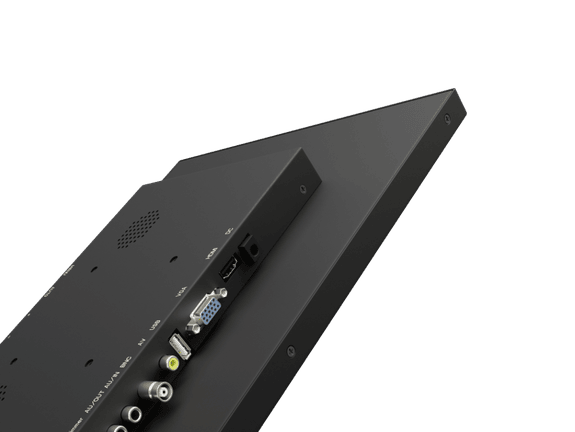

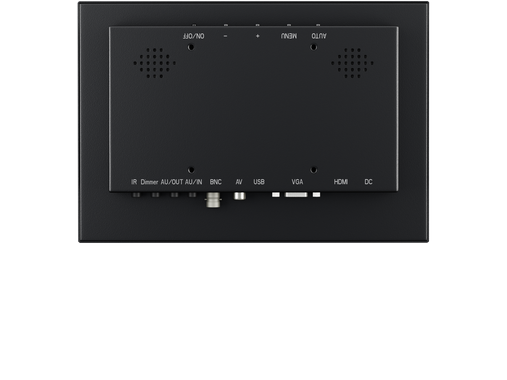

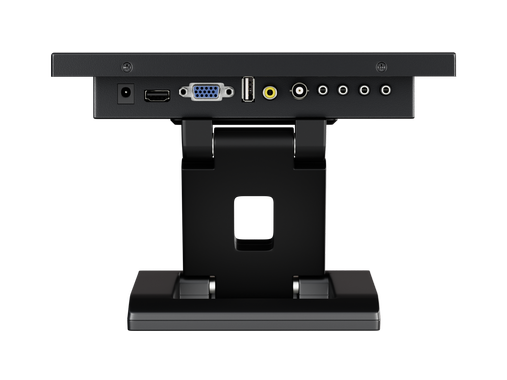

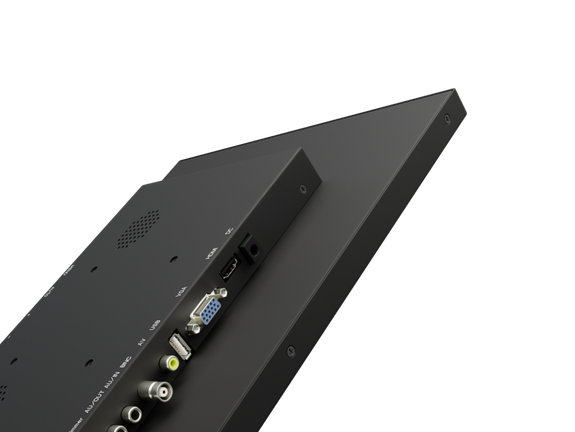

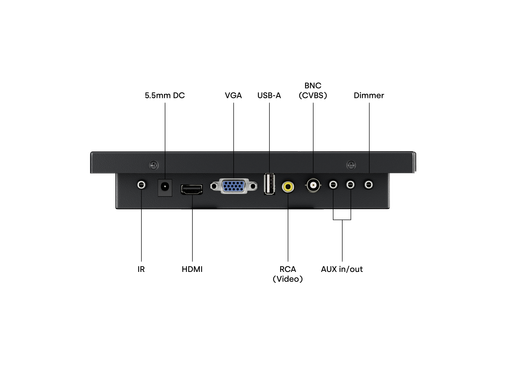

The 9HD7M has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

10" Full hd monitor with hdmi, vga, rca

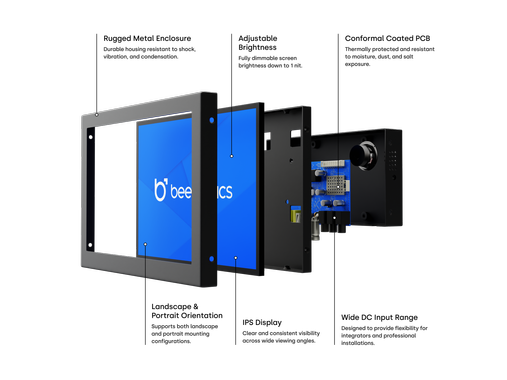

Designed for professional use

The 9HD7M is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

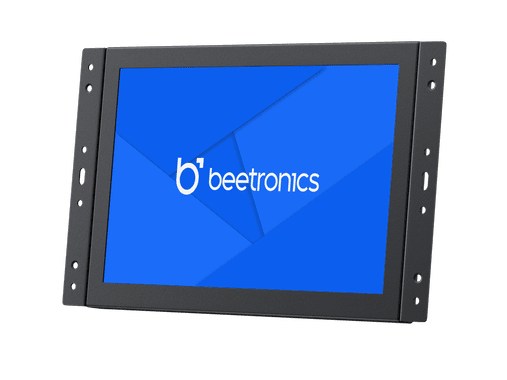

10" monitor full hd flush mount open frame

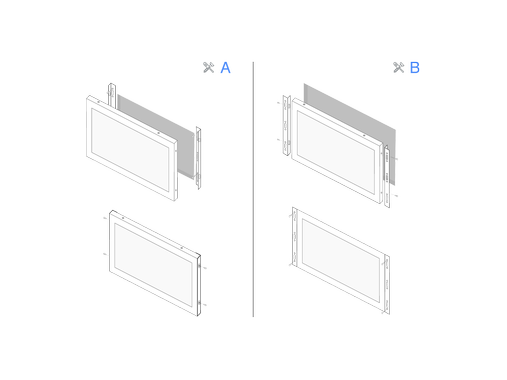

Easily integrated

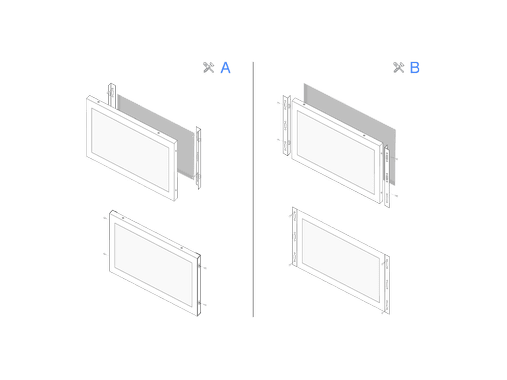

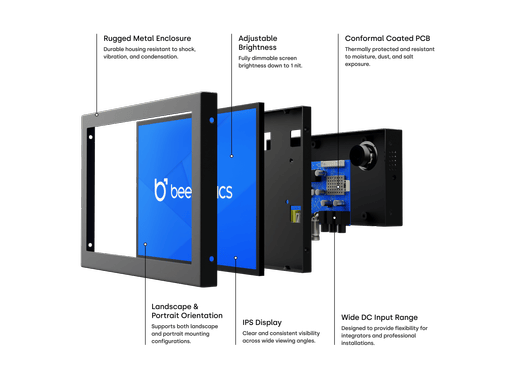

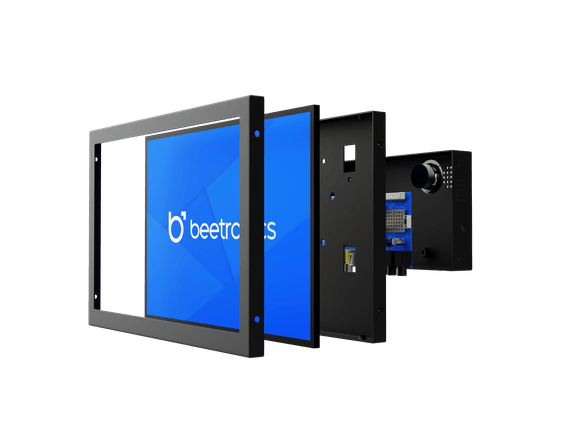

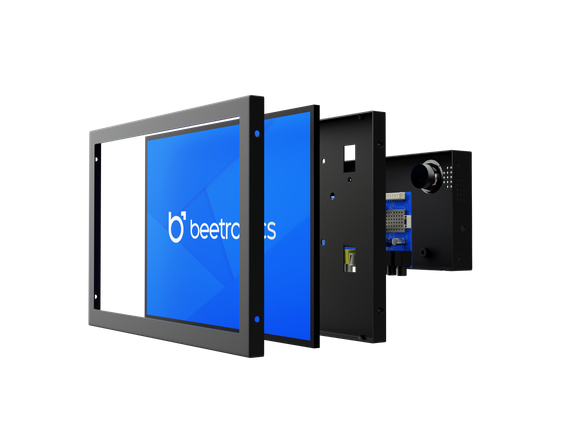

Thanks to numerous mounting options the 9 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

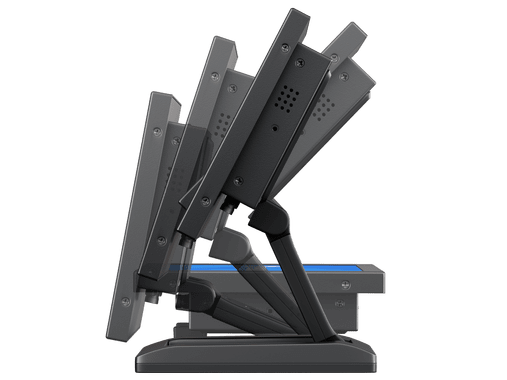

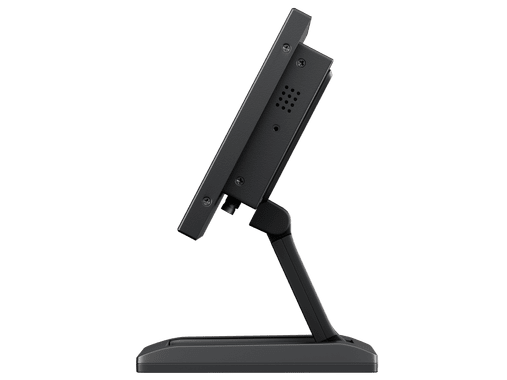

full hd 10" monitor adjustable stand

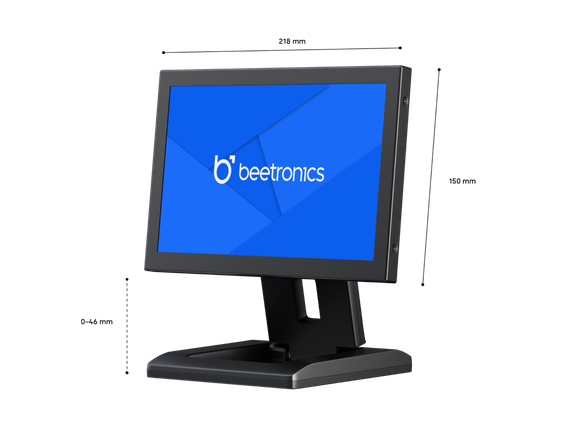

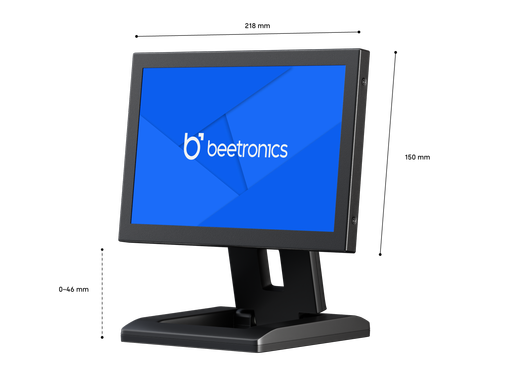

Desktop or wall mounting

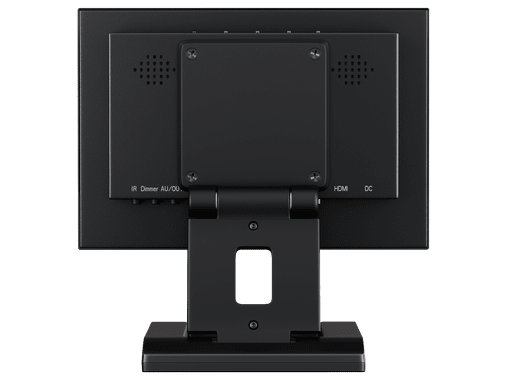

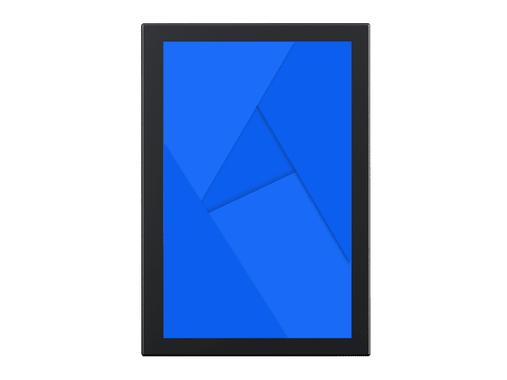

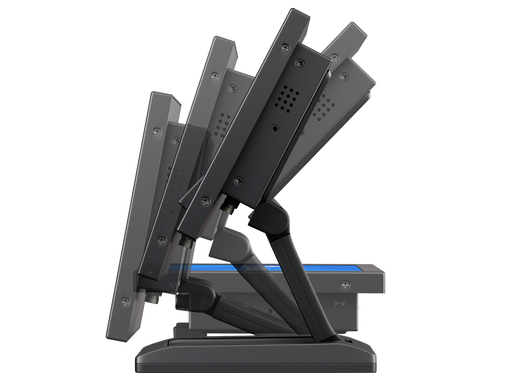

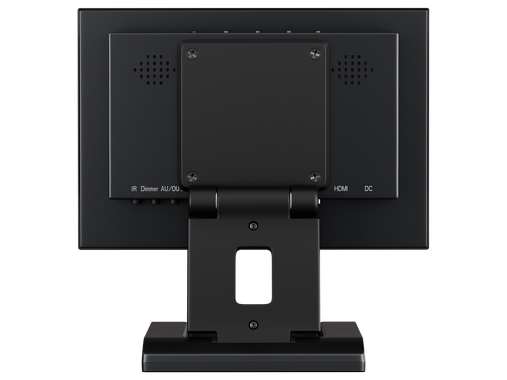

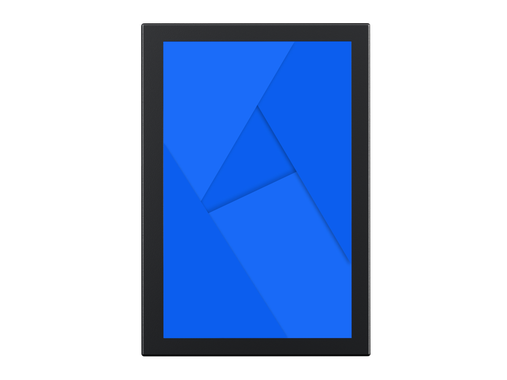

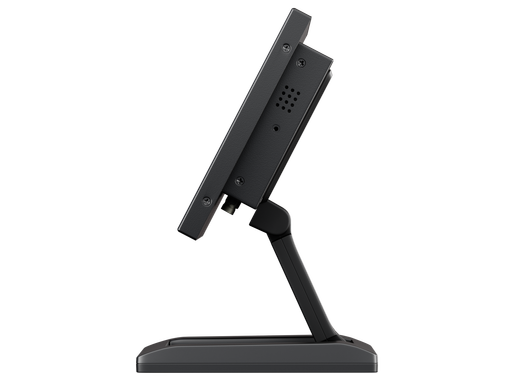

The Beetronics 9HD7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.

10" monitor full hd flush mount open frame
General
Manufacturer
Beetronics
Item number
9HD7M
Previous model
9HDM
Product name
9 inch monitor metal
Warranty
2 years
Datasheet
Manual
Panel
Type
Matte, LED-IPS
Screen diagonal
9 inches (228 mm)
Aspect ratio
16:10 (16:9, 4:3 adjustable)
Native resolution
1920 x 1200
Supported resolutions
1920 x 1200 (max), 640 x 480 (min)
Pixels per inch
251 PPI
Viewing angle
178° horizontal, 178° vertical
Brightness
350 cd/m2
Contrast
900:1
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX input
1x
AUX output
1x
USB
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
Size & weight
Colour
Black
Weight
1150 gram (1570 gram with stand)

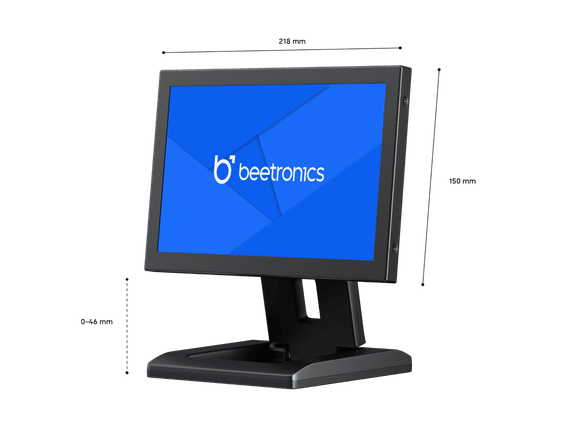

Width
218 mm
Height
150 mm (+0 to 39 mm with stand)
Thickness
35 mm
Display dimensions
193 x 121 mm
Technical drawing
3D drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<12 Watt (0.5 Watt standby)
Environmental
Operating temperature
-20c° to +60c°
Storage temperature
-20c° to +70c°
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH
Package content
Includes

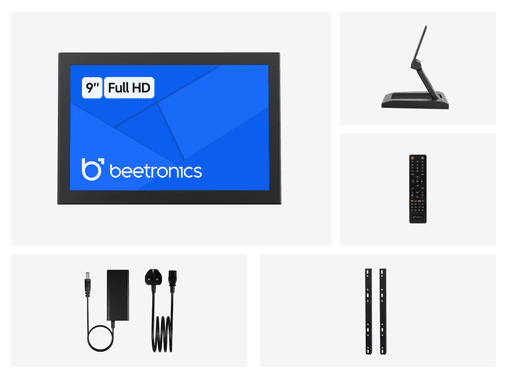

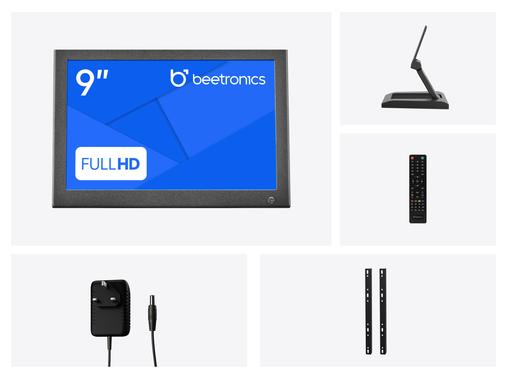

Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
3.5mm (input)
AUX_audio_35mm
3.5mm (output)
AUX_audio_35mm
USB(media)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
3D drawing   Download CAD/STP
Datasheet   Download PDF
