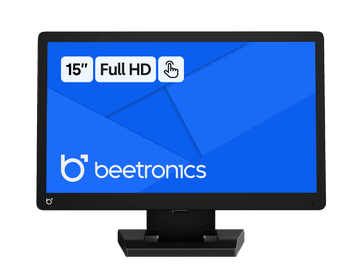

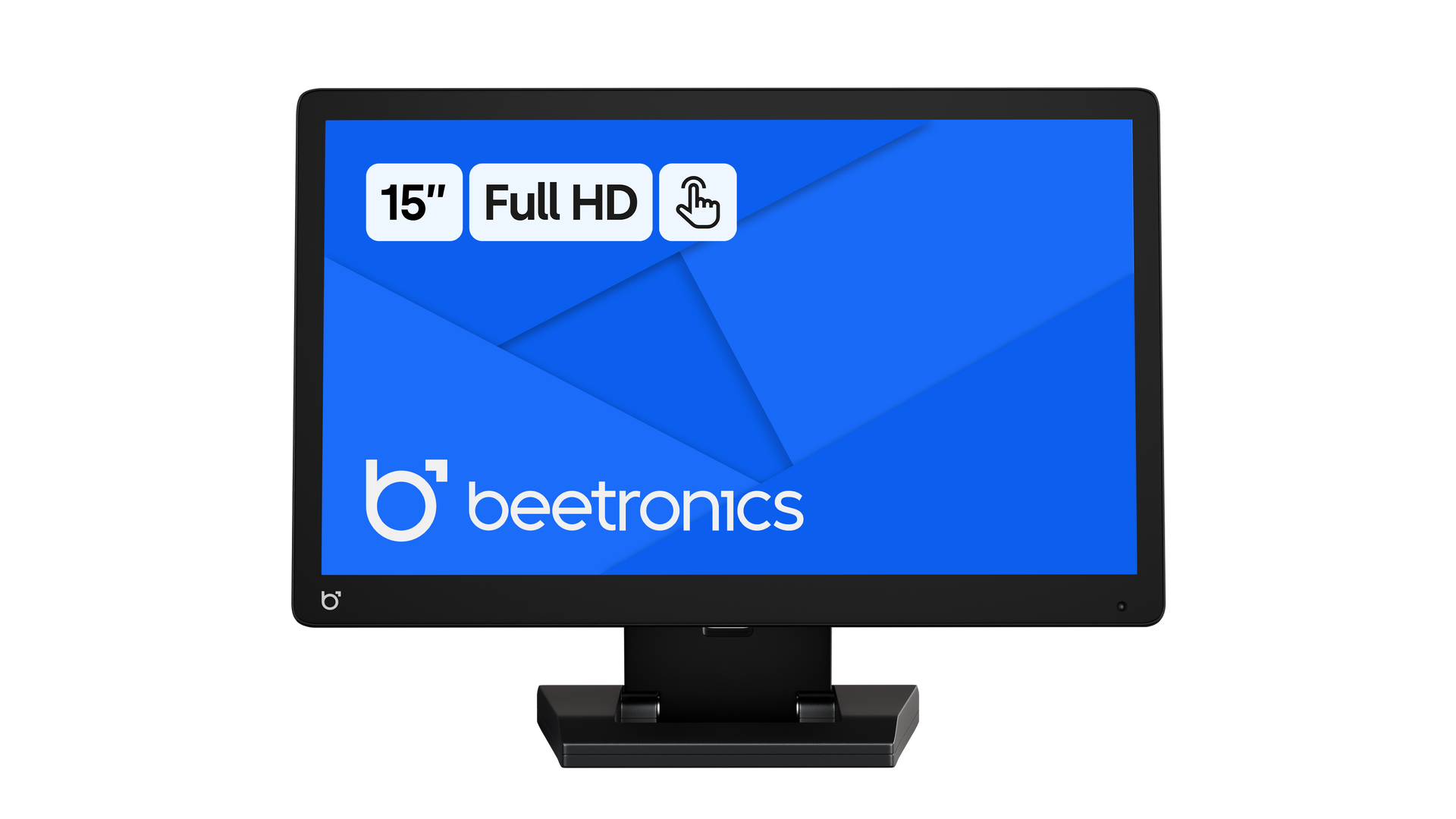

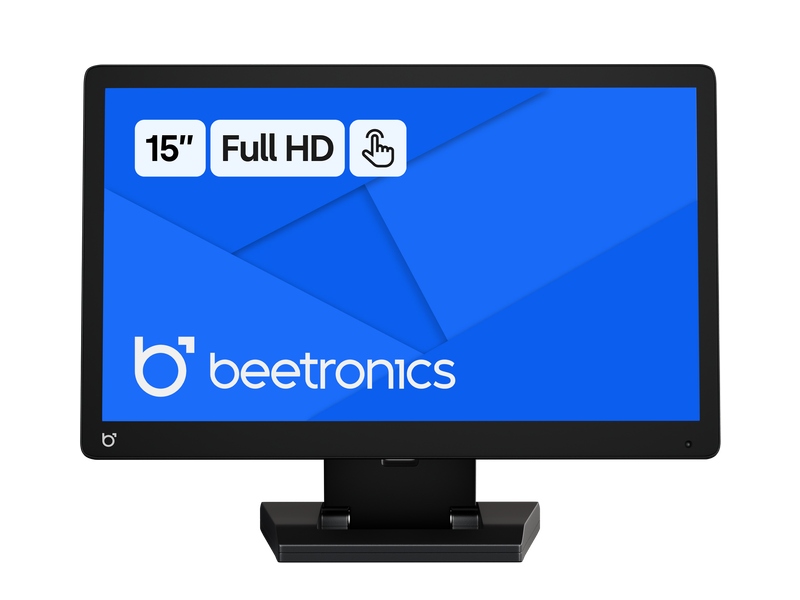

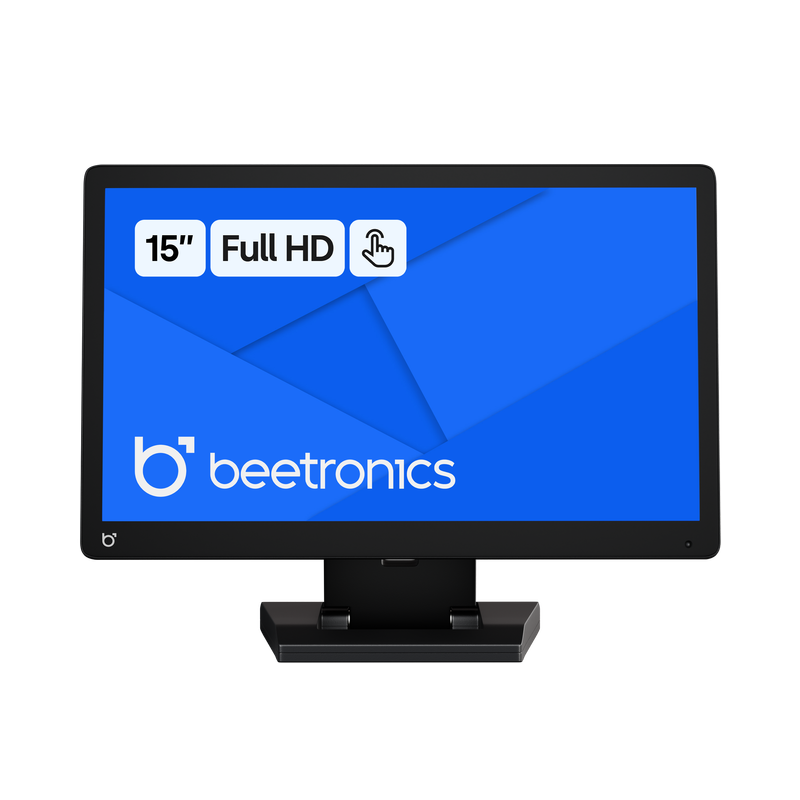

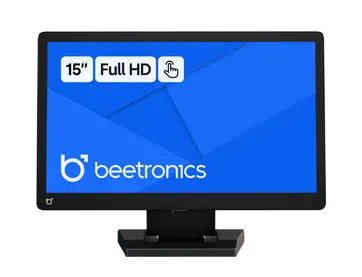

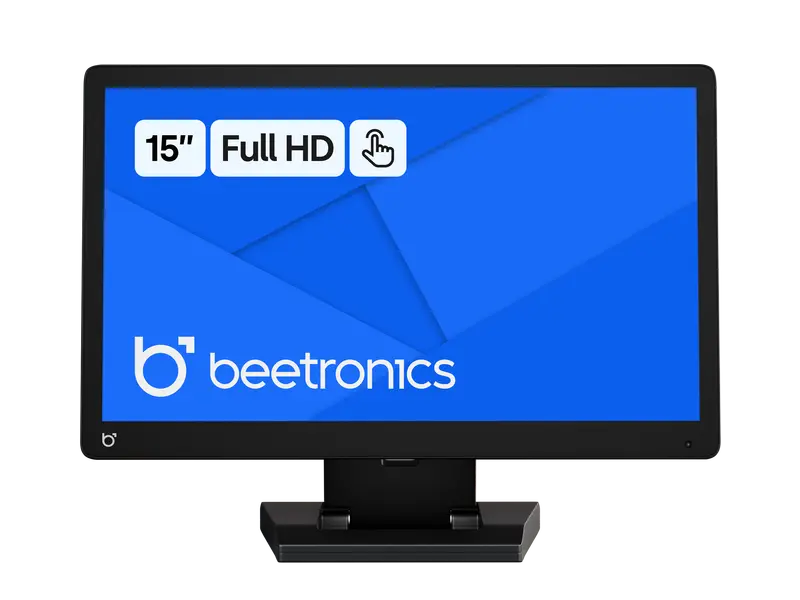

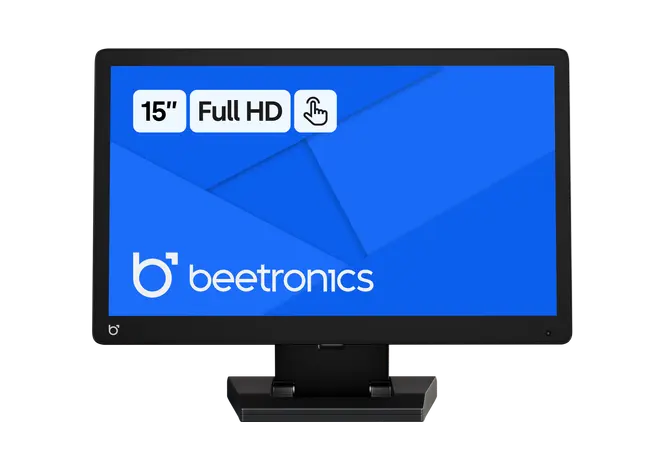

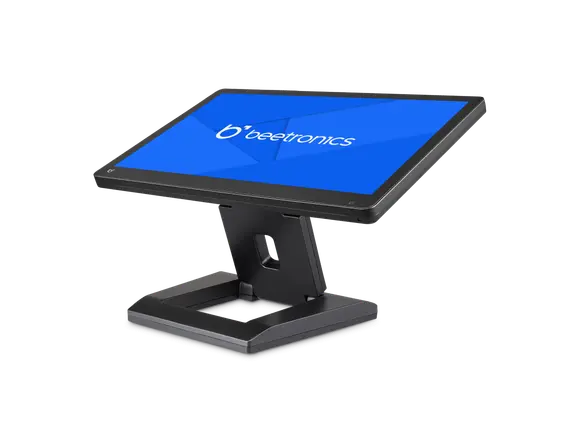

15 inch touchscreen
Model: 15TS7
100+ units in stock
15 inch touchscreen
15 inch touchscreen
15 inch touchscreen
15 inch touchscreen
15 inch touchscreen
15 inch touchscreen
15 inch touchscreen
15 inch touchscreen
15 inch touchscreen

15 inch touchscreen

Model: 15TS7
100+ units in stock
  1. Full HD multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop
  4. External dimensions: 373 x 232 x 33 mm
  5. More specifications
Display type
Monitor
Touchscreen
£502.80 VAT incl.
Order by 6:00 pm for delivery on Thursday
  • Description
  • Specifications
  • Connectivity
  • Downloads

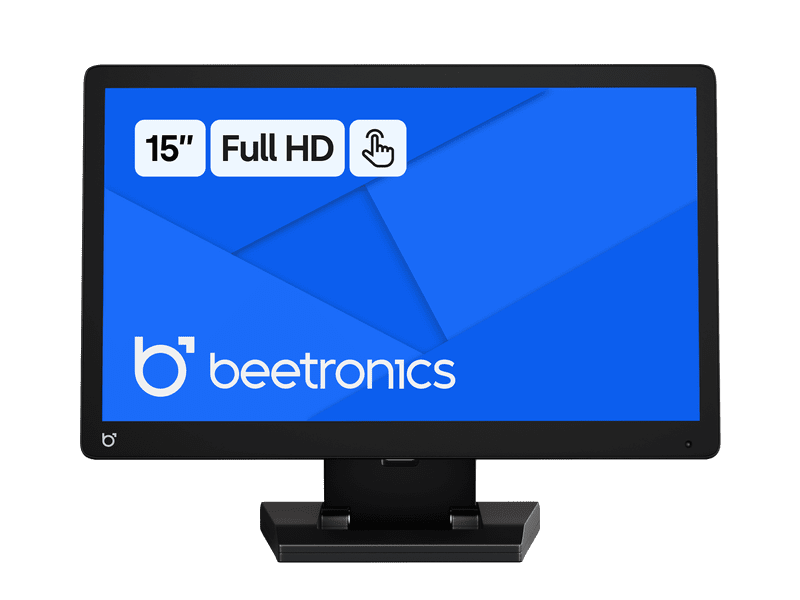

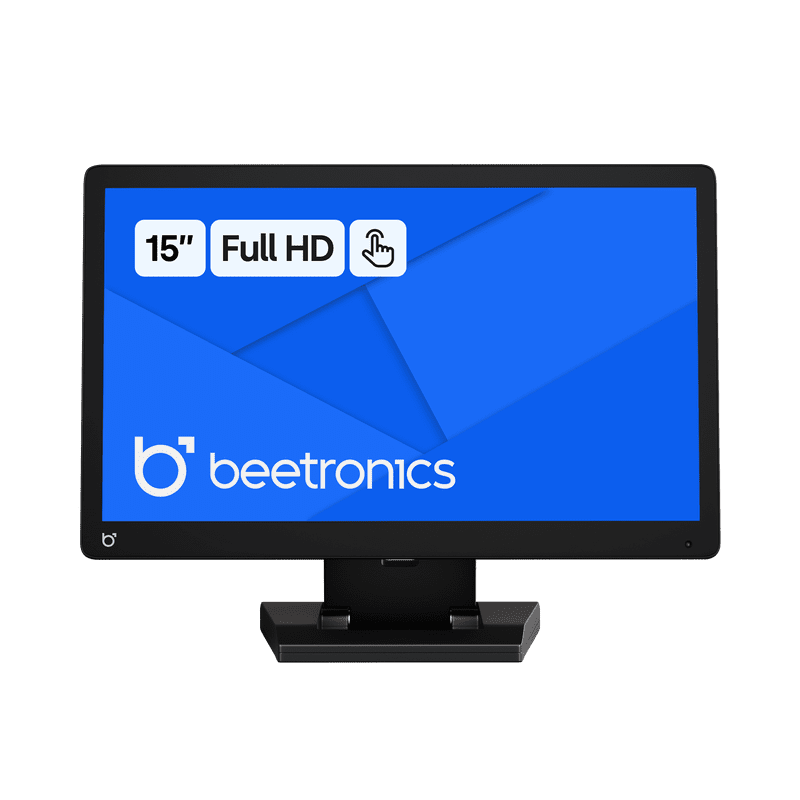

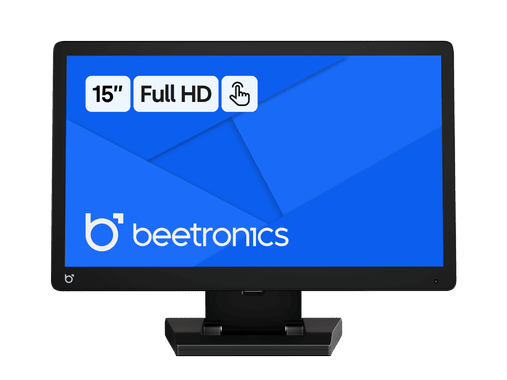

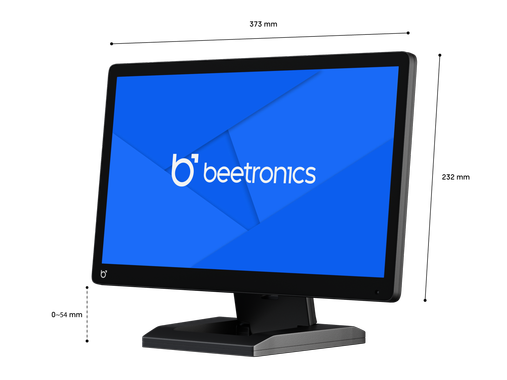

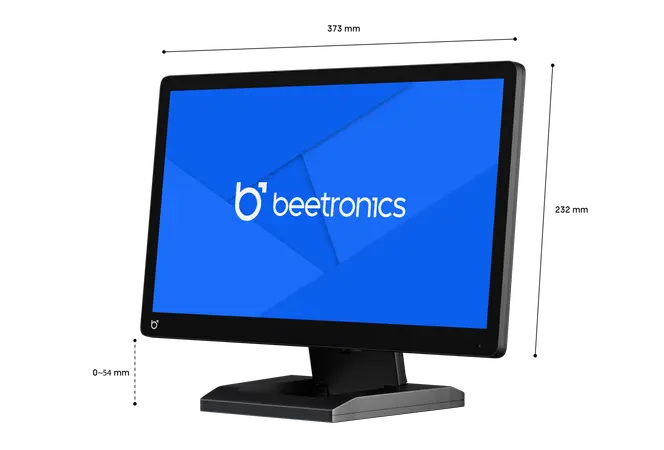

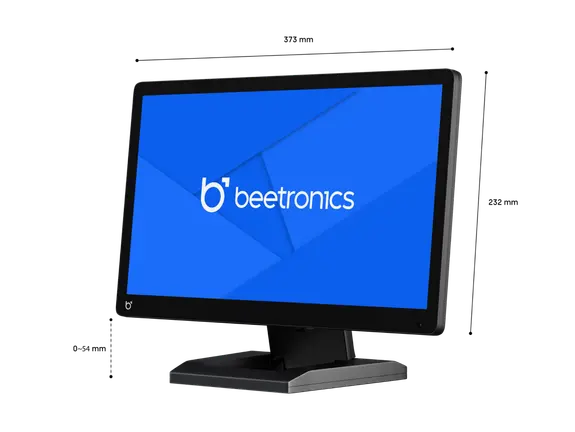

This Full HD 15 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 15TS7 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications and suitable for intensive use.

Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 15TS7 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

15 inch touchscreen

Compatible with Windows,
macOS, ChromeOS and Linux

The 15 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

15 inch touchscreen

Designed for professional use

The 15TS7 is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 9-33 Volts and features a fully dimmable backlight.

15 inch touchscreen

Designed for professional use

This touchscreen is compatible with Windows, Mac & Linux operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.



15 inch touchscreen
General
Manufacturer
Beetronics
Item number
15TS7
Product name
15 inch touchscreen
Warranty
2 years
Datasheet
User manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Big Sur, Monterey, Ventura, Sonoma
Linux
All Linux distributions
Panel
Diagonal size
15.6 inches (395 mm)
Panel type
IPS-LCD
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
350 cd/m2
Contrast
700:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Surface
Mat tempered glas
Capacitive, 10-point multi-touch (PCAP)
Touch control
Stylus, hand, glove

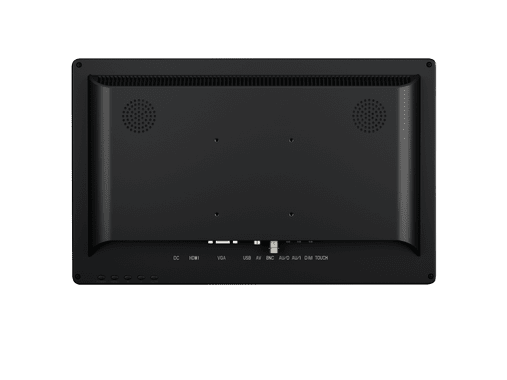

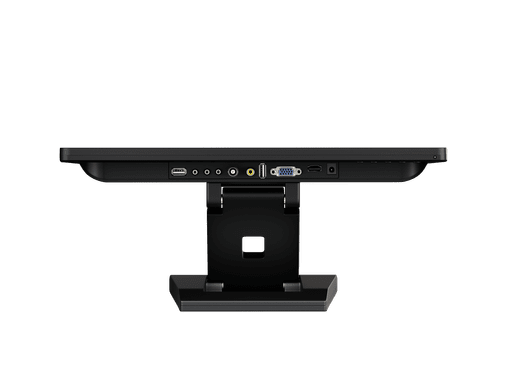

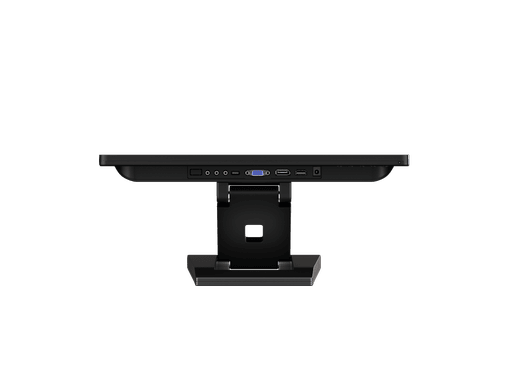

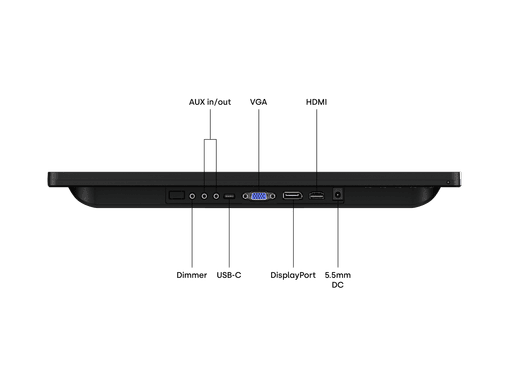

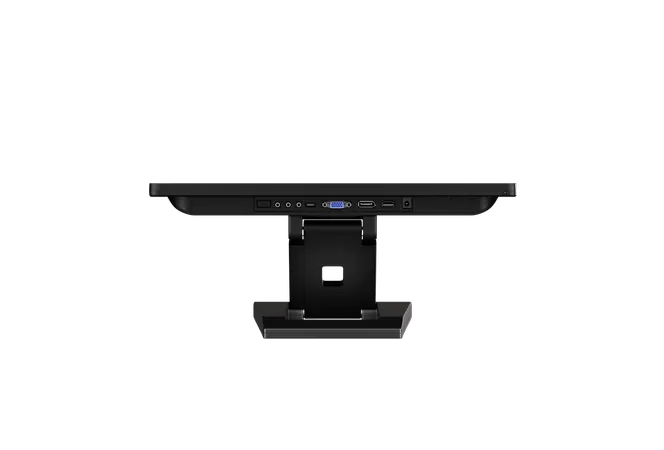

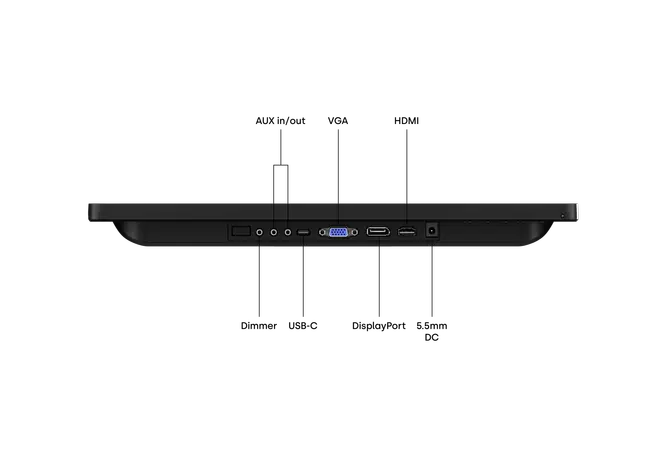

Connectivity
HDMI
1x
VGA
1x
RCA video
1x
AUX input
1x
AUX output
1x
Only for touchscreen functionality
Size & weight
Colour
Black

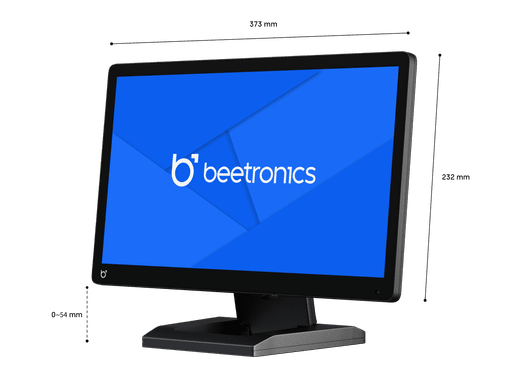

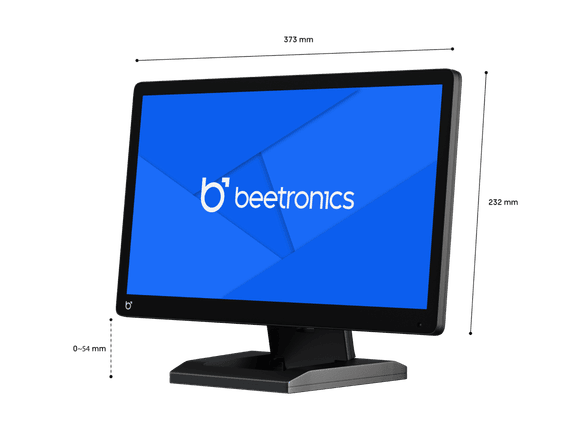

Dimensions (without stand)
373 x 232 x 33 mm
Active area
344 x 194 mm
Weight
1200 grams (1800 grams with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically

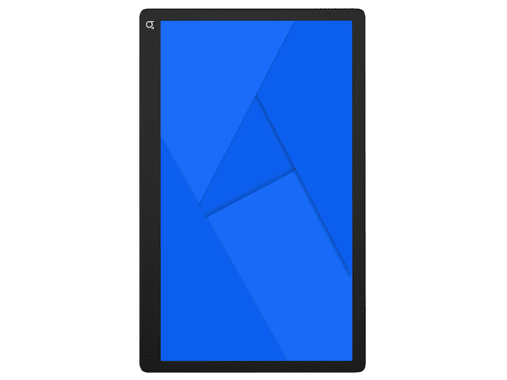

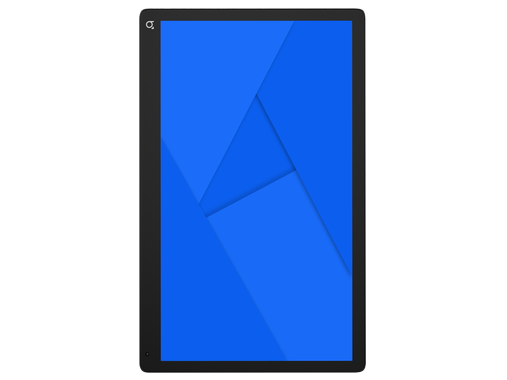

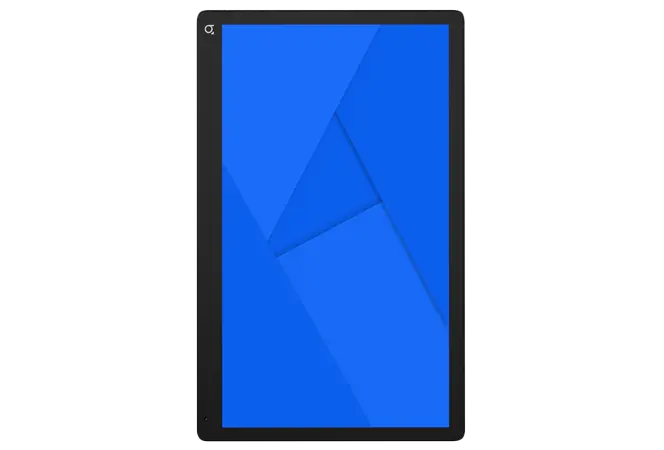

Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 9-33V
Consumption
typical: 11.2 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-3A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 90% non-condensing

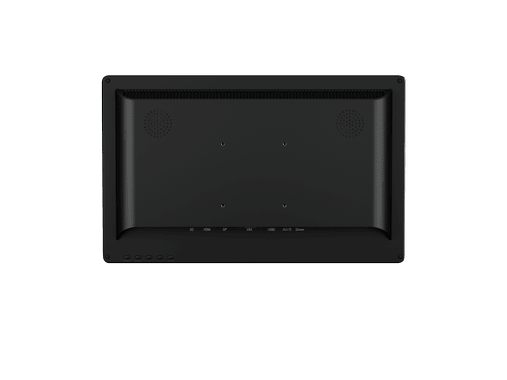

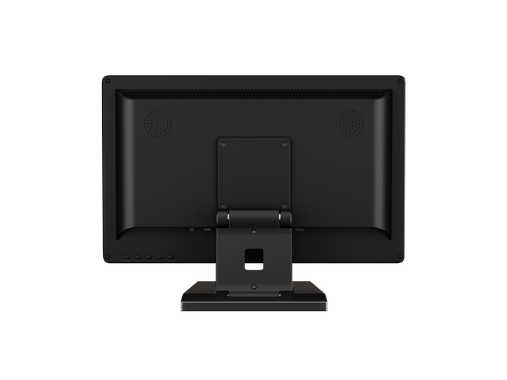

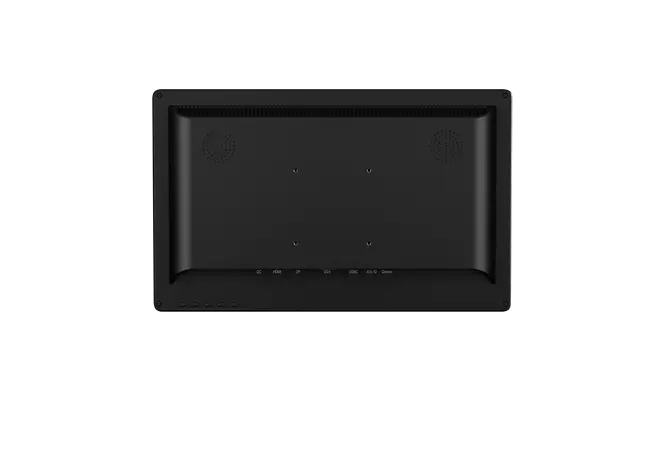

Mounting
VESA (75 mm)
Flush mount
Possible, no accessories available

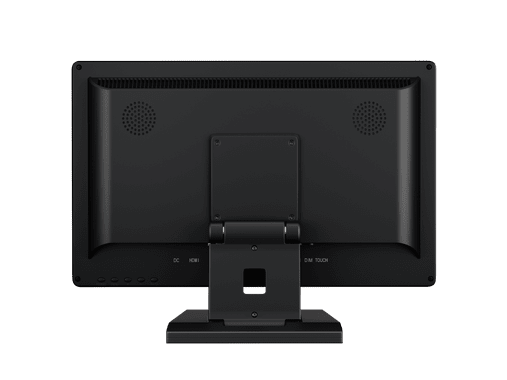

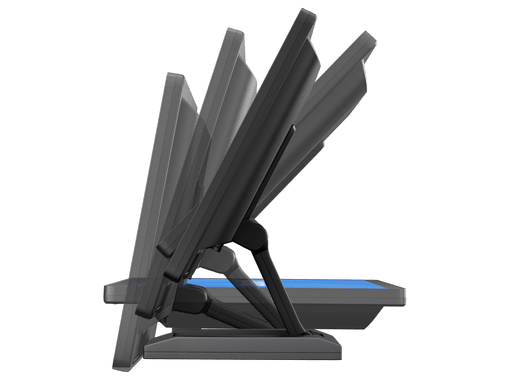

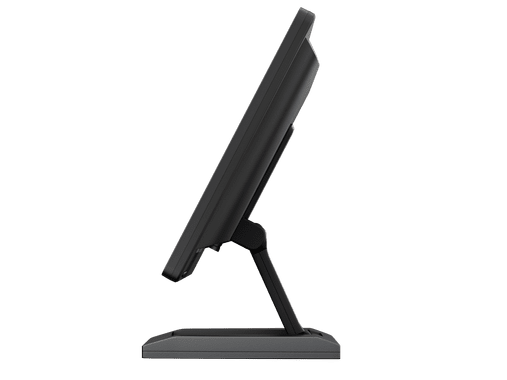

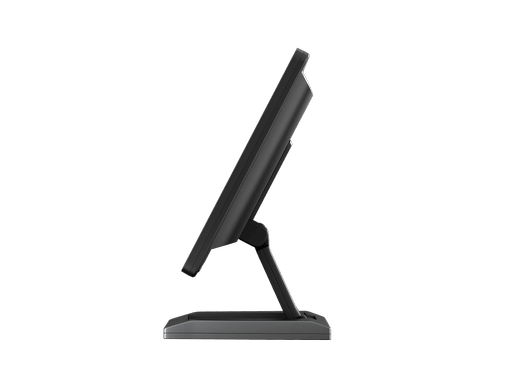

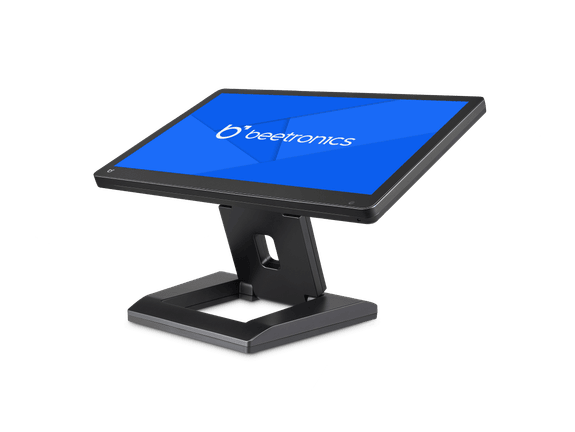

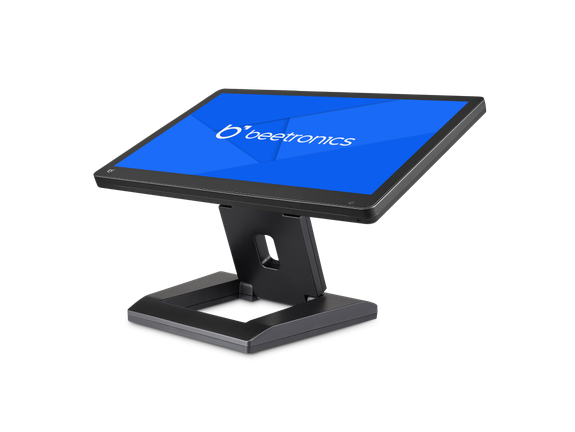

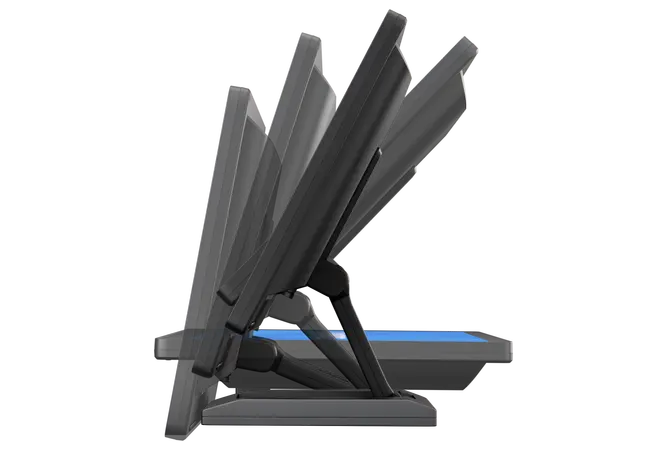

Stand

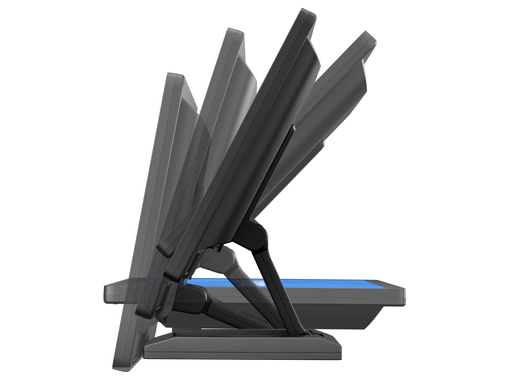

Adjustable and detachable
Certifications & Standards
IP65 front panel
Impact protection
IK07
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC

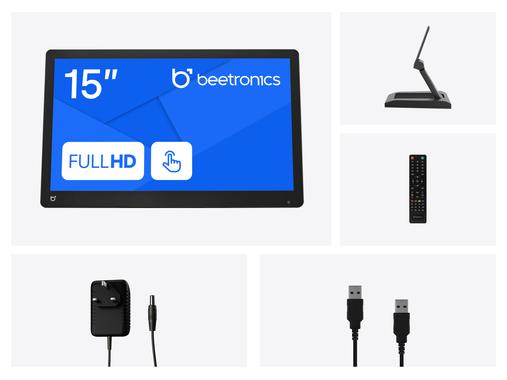

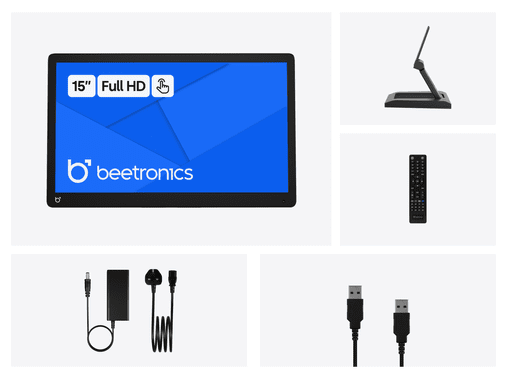

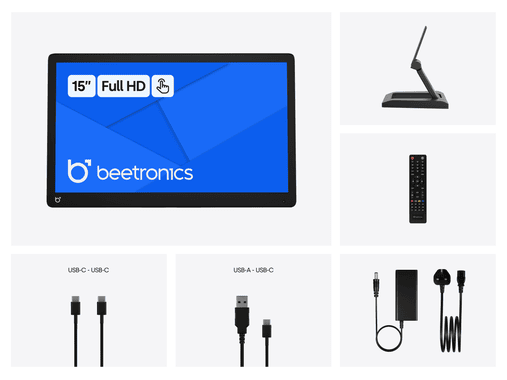

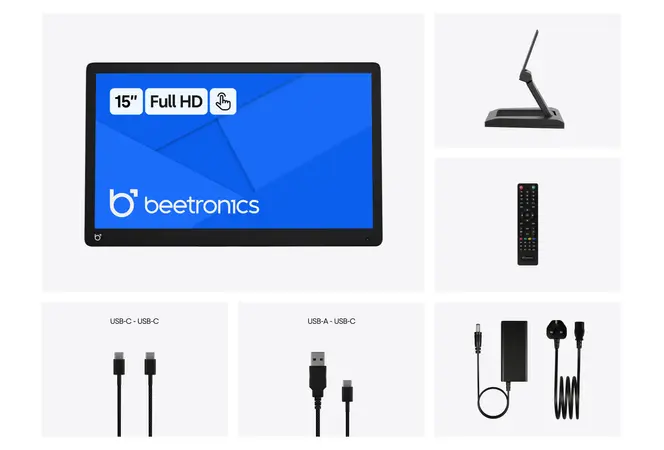

Package content
Includes
Touchscreen, AC power adapter, Remote control, USB cable, Stand, Manual
Compatible accessories
Infrared extension
Compatible with infrared extender (IRC7)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
VDK4 included as standard
Touch pen
Compatible with CTS7 capacitive touchscreen stylus
15 inch touchscreen
Downloads
User manual
Quickstart
Technical drawing
3D Drawing
Datasheet
