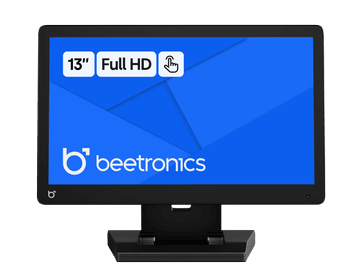

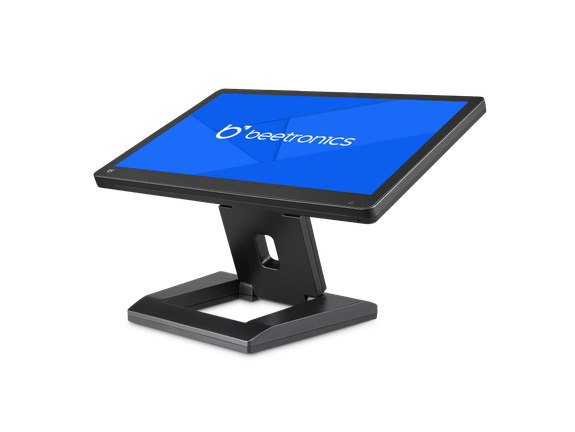

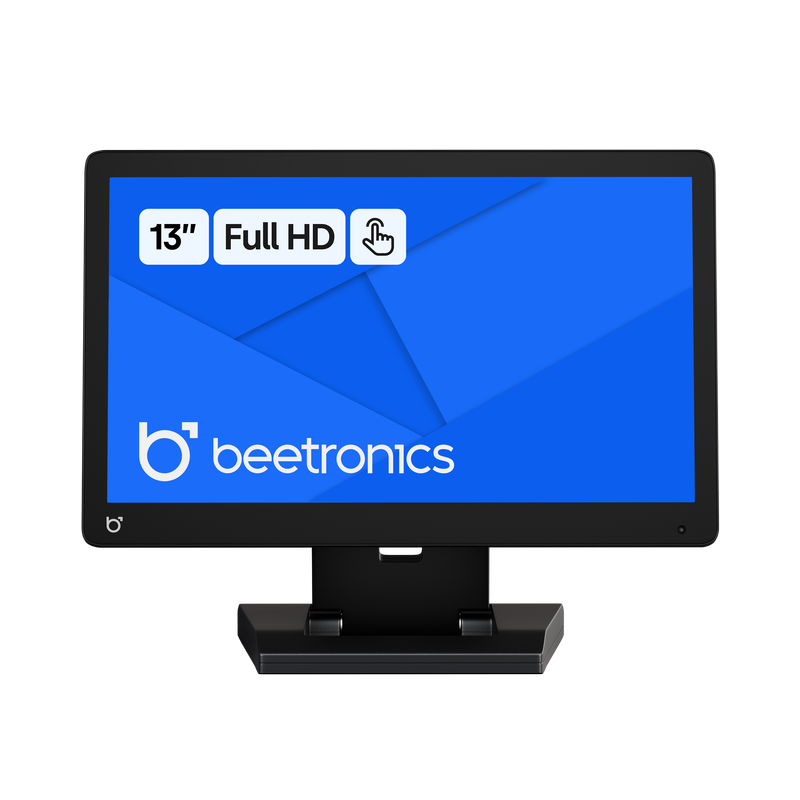

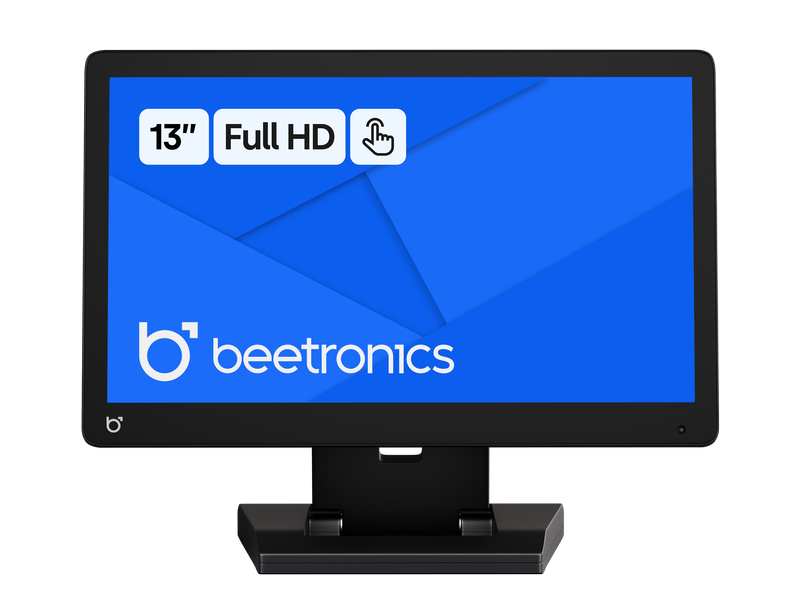

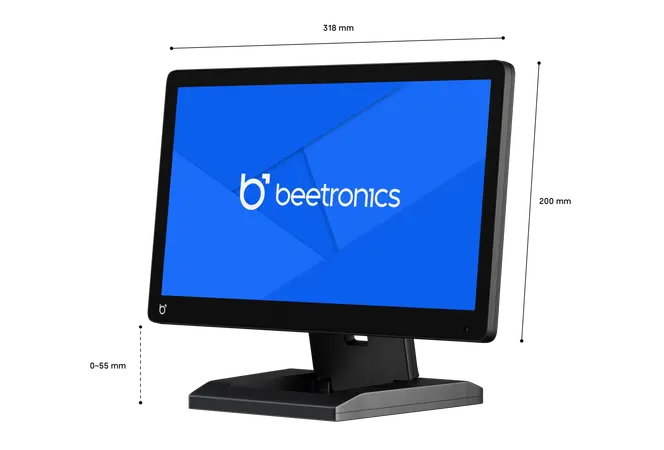

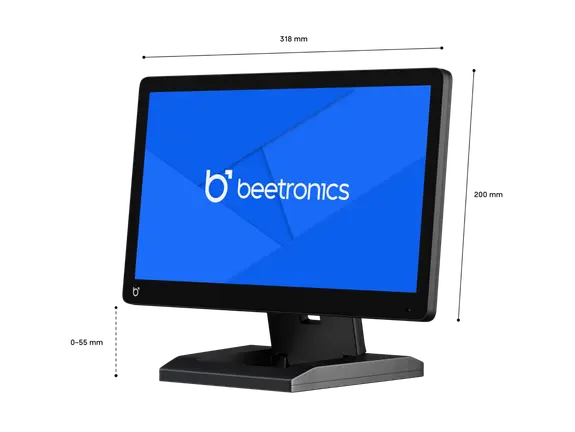

13 inch touchscreen
- Full HD multi-touch panel
- Windows, Mac, Linux & Android compatible
- Desktop and wall mountable
- 319 x 200 x 33 mm
Order before 10:00 pm for free delivery on Wednesday
£319.00
£265.83 Ex VAT
- Description
- Specifications
- Connections

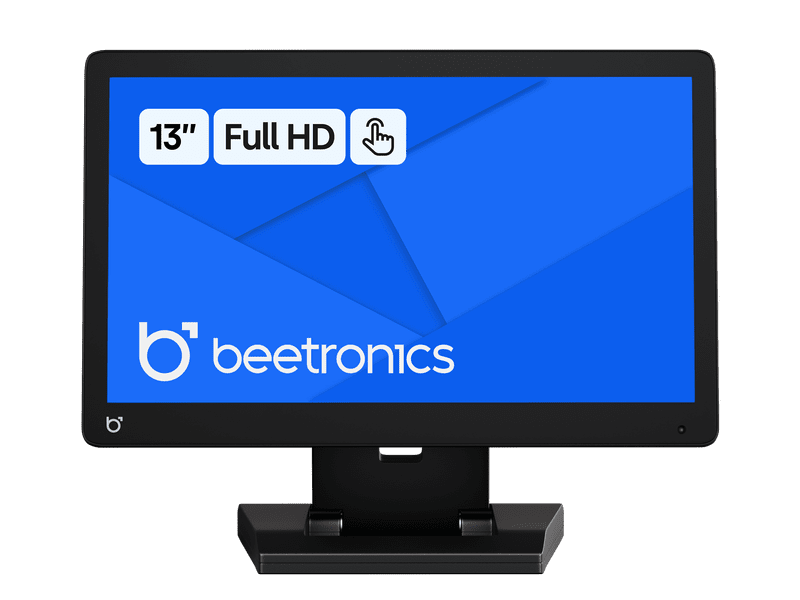

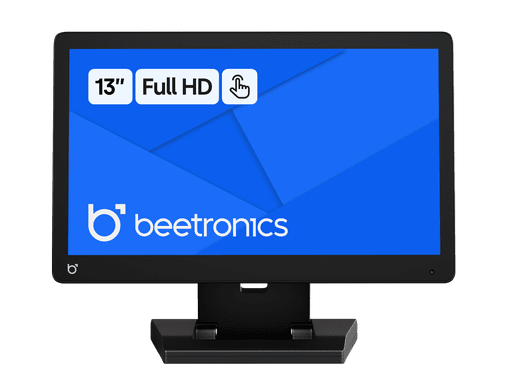

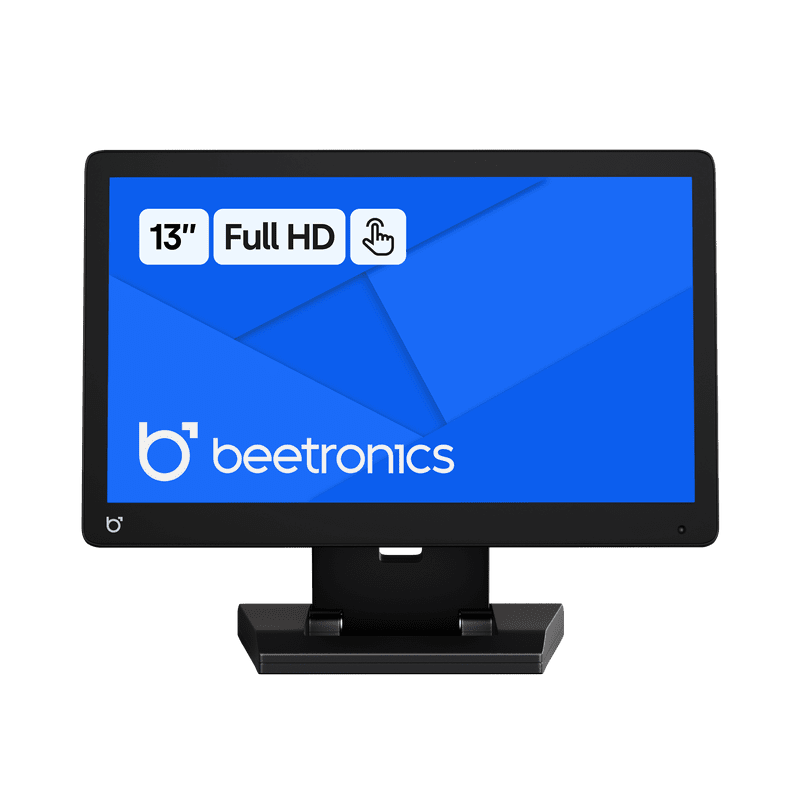

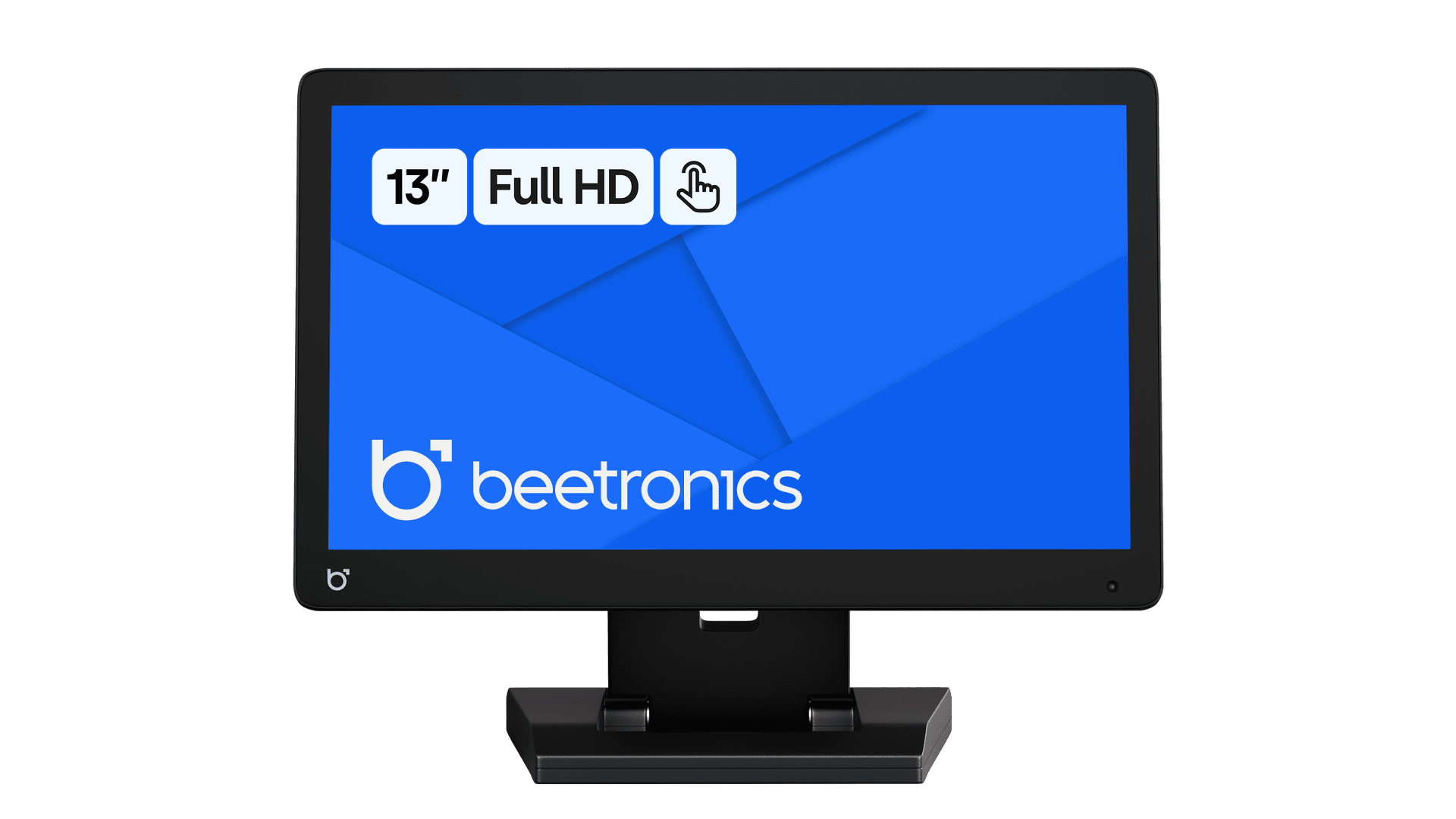

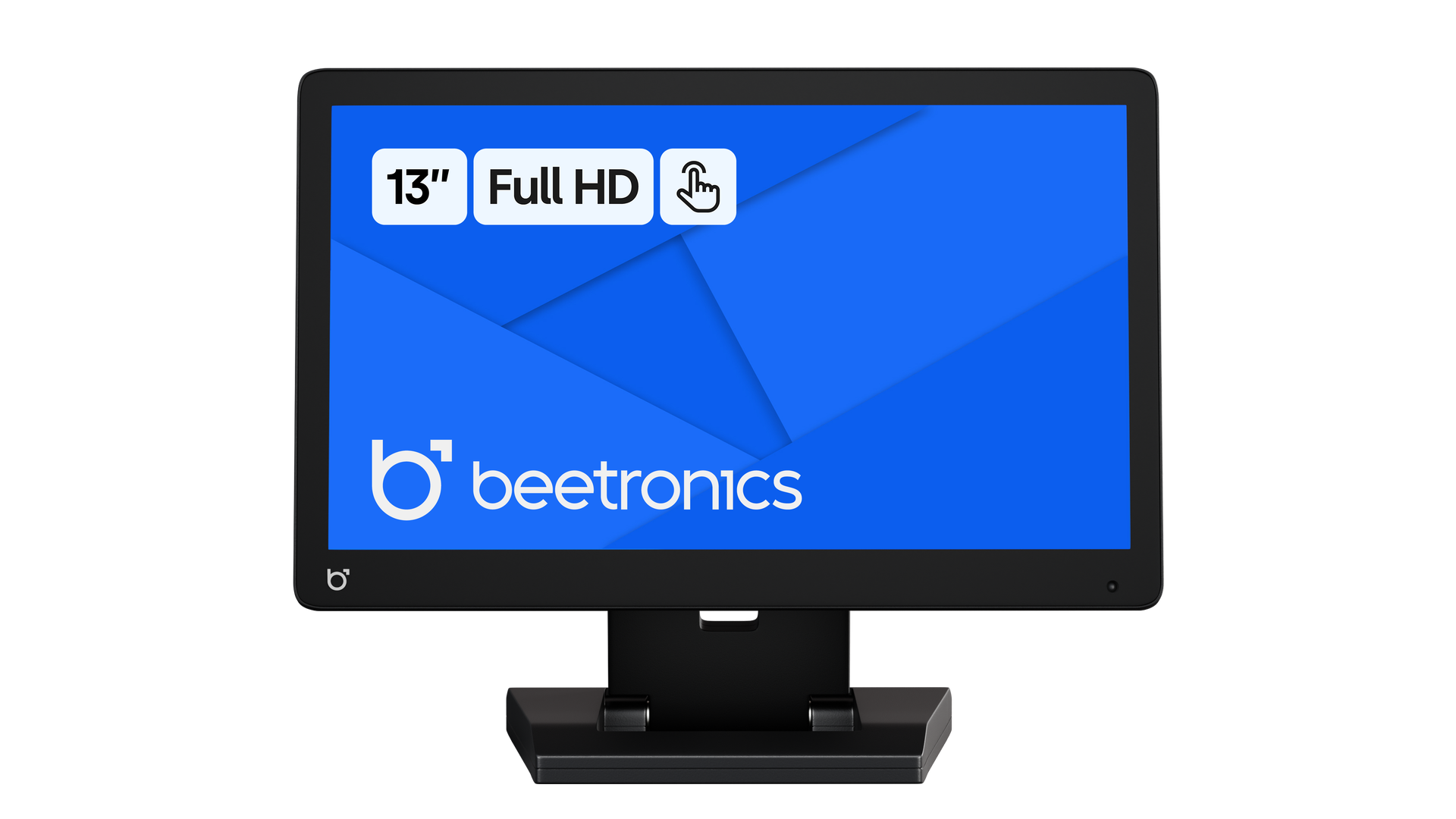

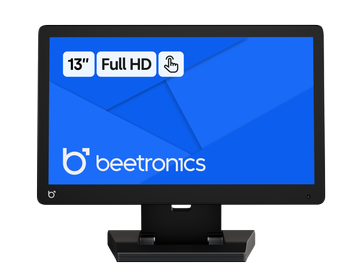

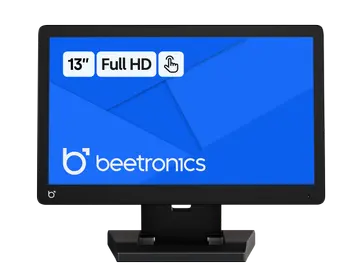

This Full HD 13 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 13TS3 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.

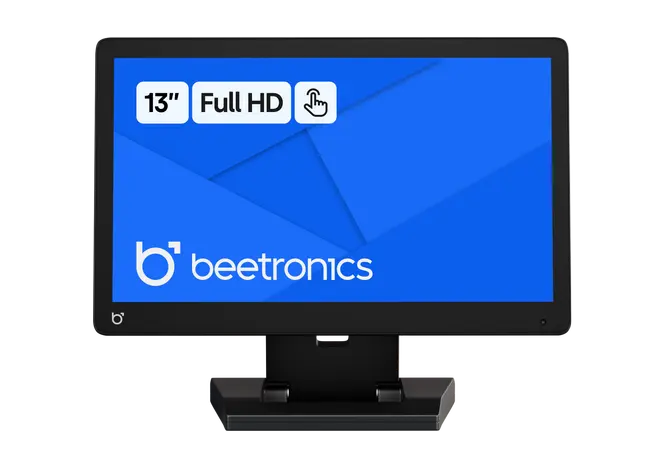

Full HD multi-touch panel
Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 13TS3 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.
Windows, Mac, Linux & Android compatiblele

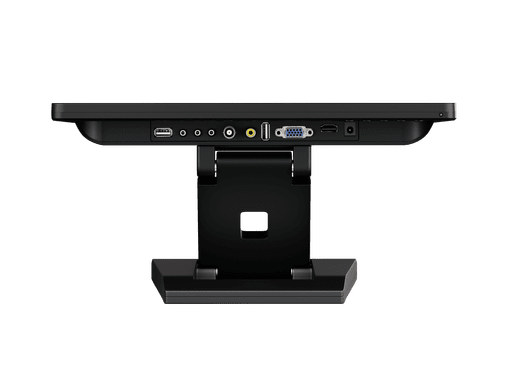

This touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.
.jpg)
Designed for professional use
This touchscreen is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing and dimmable panel, the 13TS3 is ideal for professional use.

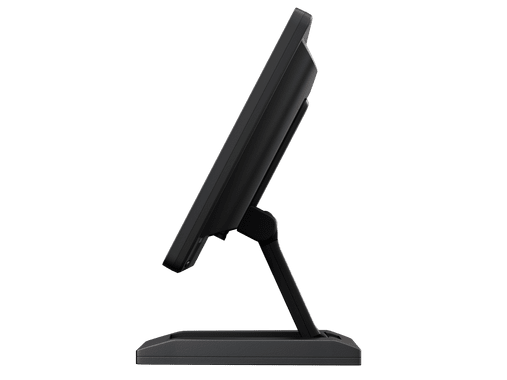

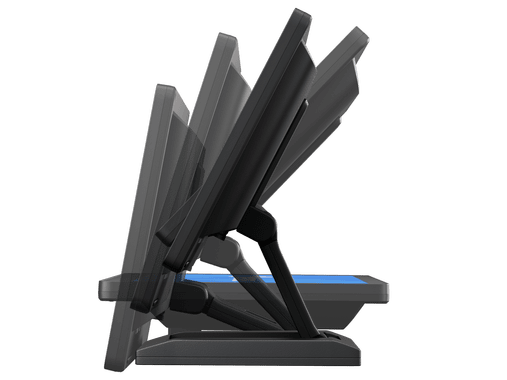

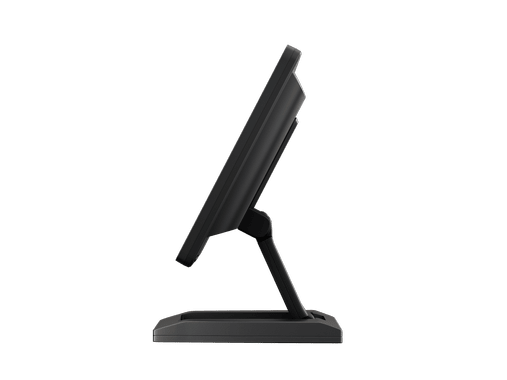

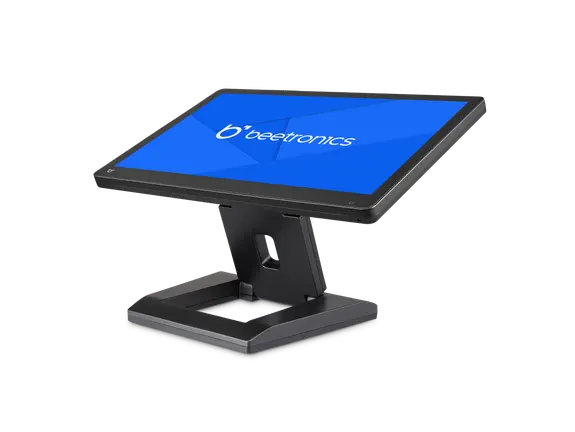

Desktop and wall mountable

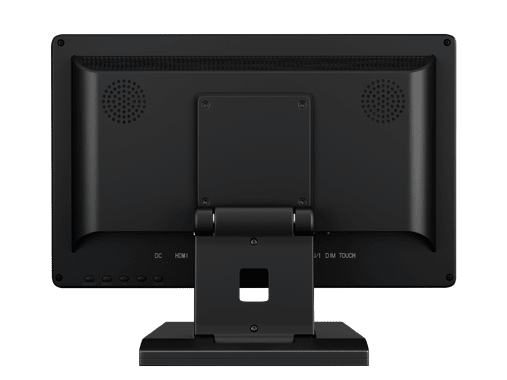

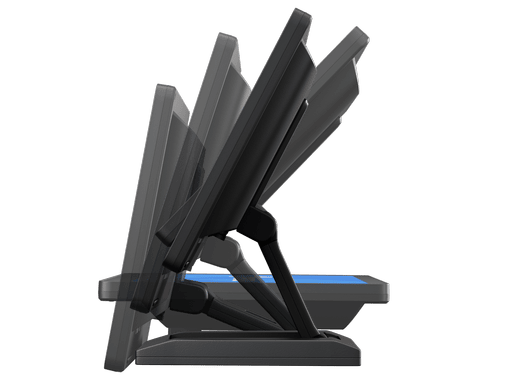

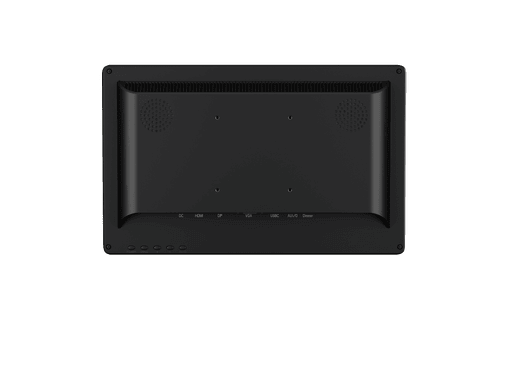

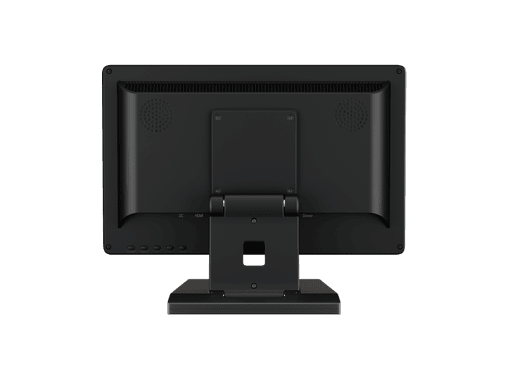

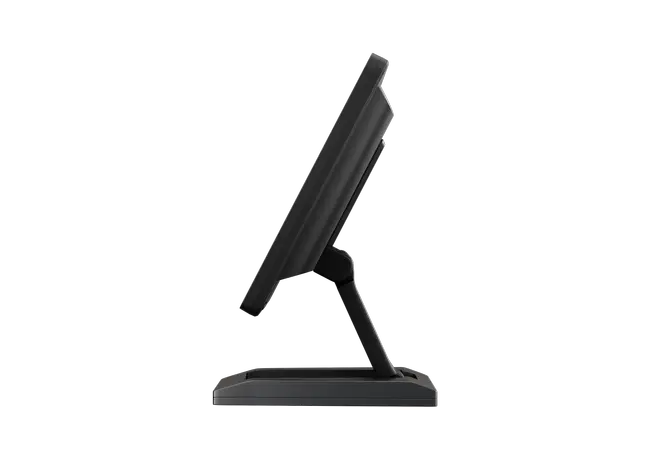

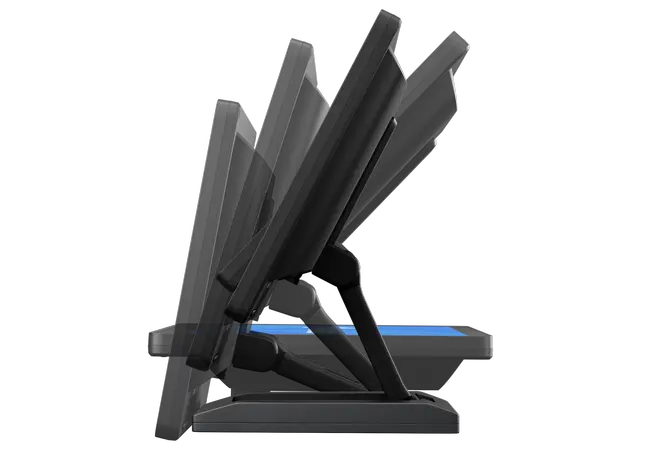

The Beetronics 13TS3 has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket.
.jpg)
| General | |
|---|---|
| Manufacturer |
Beetronics
|
| Item number |
13TS3
|
| Product name |
13 inch touchscreen
|
| Warranty |
2 years
|
| Datasheet | |
| Manual | |
| Supported operating systems | |
|---|---|
| Windows |
(Windows 7, 8, 10)
|
| Windows Embedded |
(Windows embedded 7, 8, 10)
|
| Mac |
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
|
| Linux |
|
| Android |
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
|
| Drivers |
No drivers needed. Plug & Play
|
| Panel | |
|---|---|
| Type |
LED-IPS
|
| Screen diagonal |
13.3 inches (338 mm)
|
| Aspect ratio |
16:9 (4:3 adjustable)
|
| Native resolution |
1920 x 1080
|
| Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
| Pixels per inch |
165 PPI
|
| Viewing angle |
178° horizontal, 178° vertical
|
| Colour encoding system |
PAL/NTSC/SECAM
|
| Brightness |
400 cd/m2
|
| Contrast |
1000:1
|
| Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
| Touch control |
Stylus, hand, glove
|
| Connectivity | |
|---|---|
| HDMI |
1x
|
| VGA |
1x
|
| BNC (CVBS) |
1x
|
| RCA video |
1x
|
| AUX output |
1x
|
| USB |
Only for touchscreen functionality
|

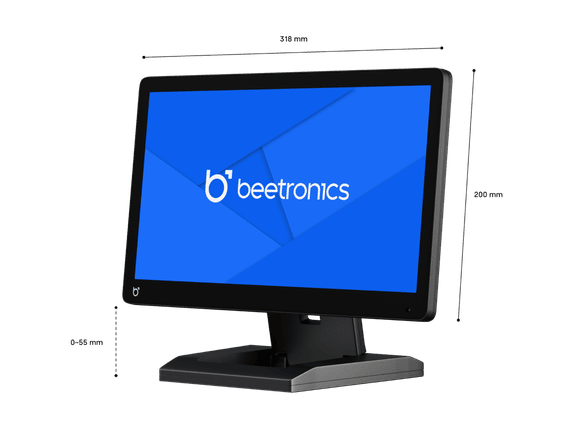

| Size & weight | |
|---|---|
| Colour |
Black
|
| Weight |
890 gram (1310 gram with stand)
|

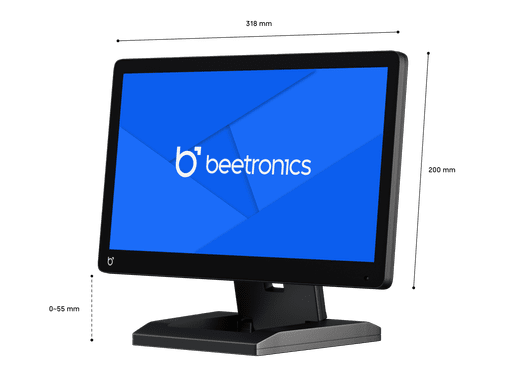

| Width |
319 mm
|
| Height |
200 mm (+0 to 37 mm with stand)
|
| Thickness |
33 mm
|
| Display dimensions |
305 x 188 mm
|
| Technical drawing | |
| Features and functions | |
|---|---|
| Audio |
Integrated speakers
|
| Key-lock |
The control buttons can be blocked
|
| Auto-on |
Automatically powers on when it receives current or a signal
|
| Dimmable |
Adjustable backlight brightness
|
| Mirroring |
Image can be mirrored, horizontally and vertically
|
| Power | |
|---|---|
| Input voltage |
DC 12V
|
| Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
| Consumption |
<15 Watt (0.5 Watt standby)
|
| Environmental | |
|---|---|
| Operating temperature |
-20c° to +60c°
|
| Storage temperature |
-20c° to +70c°
|
| Operating humidity |
20% - 90% non-condensing
|
| Mounting | |
|---|---|
| Wall mount |
VESA (75 mm)
|
| Flush mount |
Possible, no accessories available
|
| Stand |
Adjustable and detachable
|
| Certifications & Standards | |
|---|---|
| IP rating |
IP65 front panel
|
| Certifications |
CE, FCC, RoHS, REACH
|

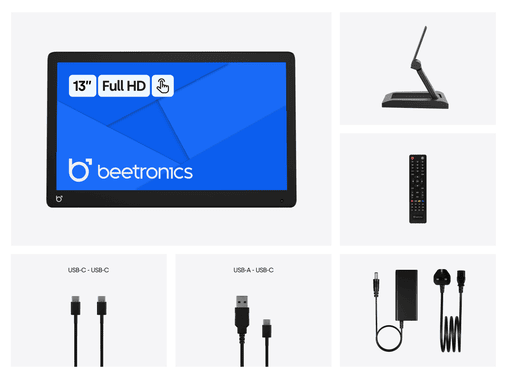

| Package content | |
|---|---|

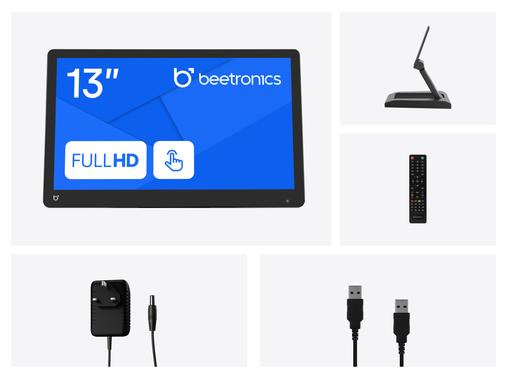

| Includes |

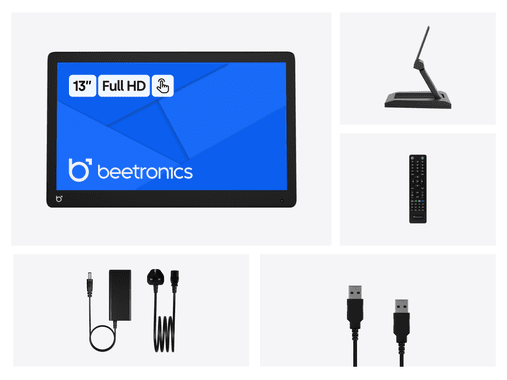

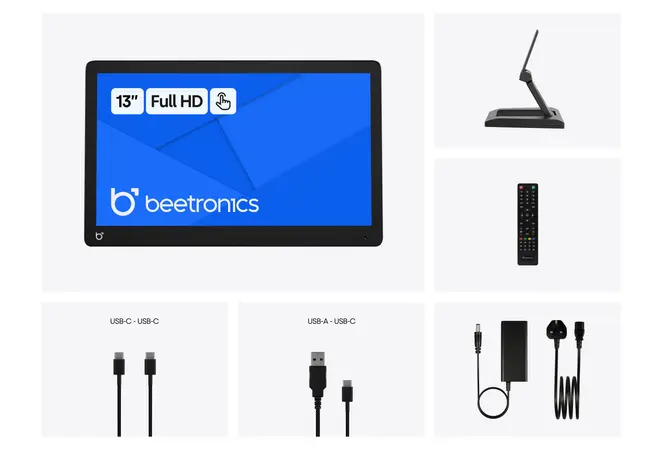

Touchscreen, Mains adaptor, Remote control, USB cable, Stand, Manual
|

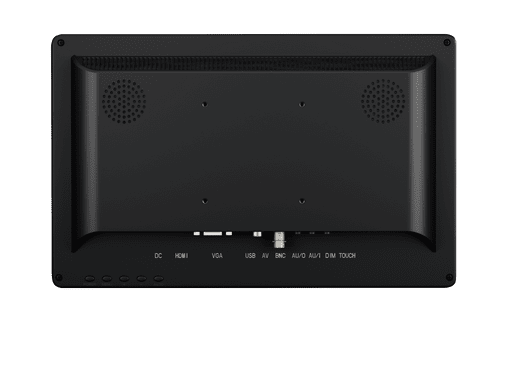

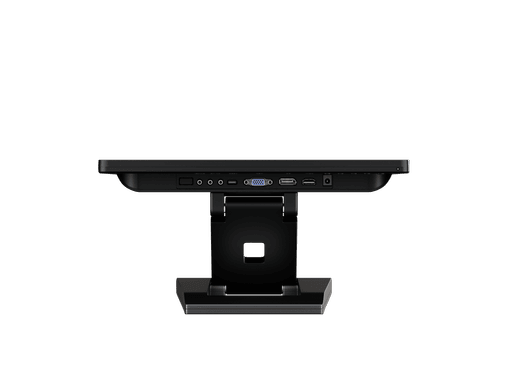

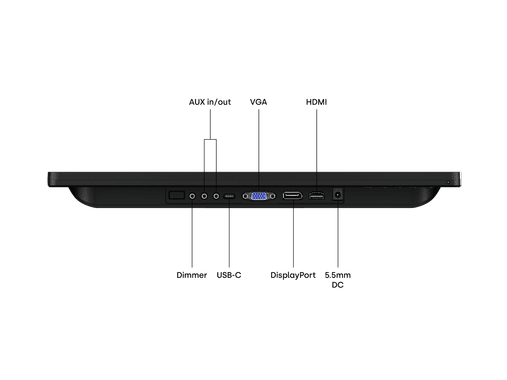

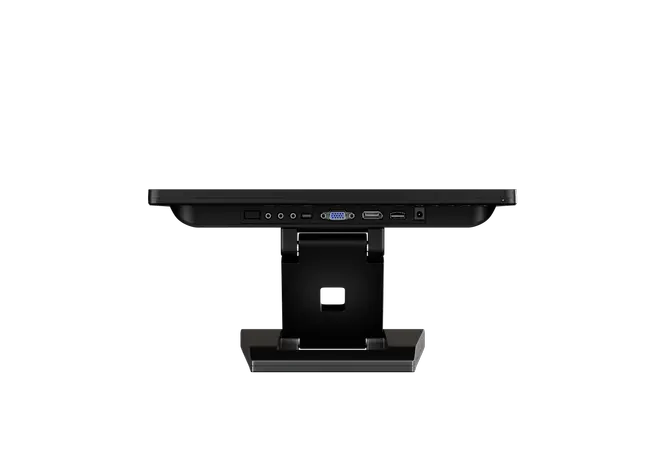

HDMI
VGA
BNC
RCA(video)
AUX(output)
USB(touch)
| Product name | Item number | In stock | Quantity | Price |
|---|---|---|---|---|
13 inch touchscreen
|
13TS3 |
|
|
£319.00 |
 |
VWB1 |
|
|
£25.00 |
 |
KHD2 |
|
|
£15.00 |
 |
VGA1 |
|
|
£15.00 |
|
|
||||
