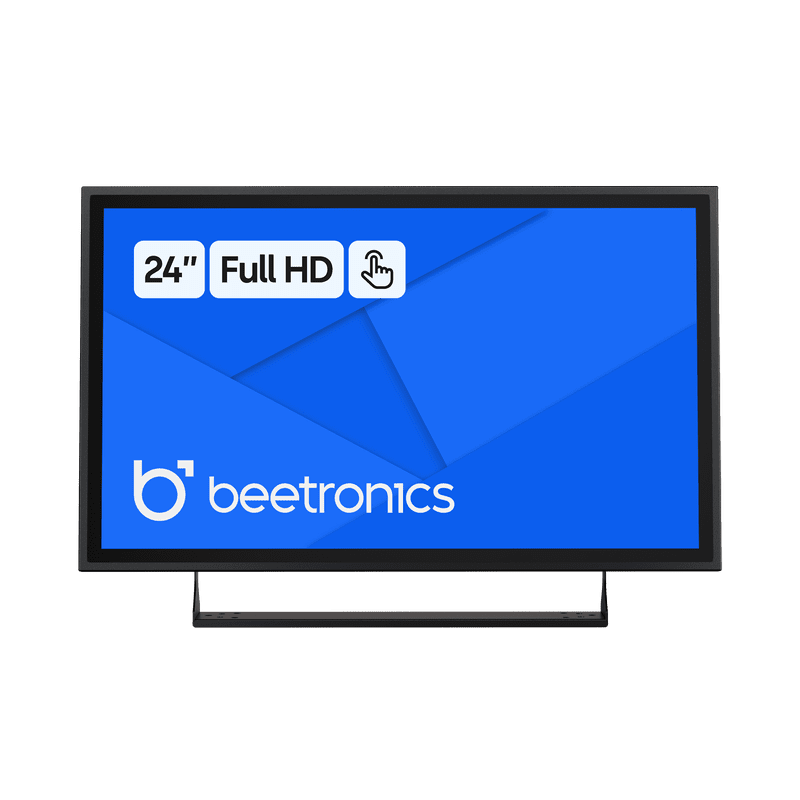

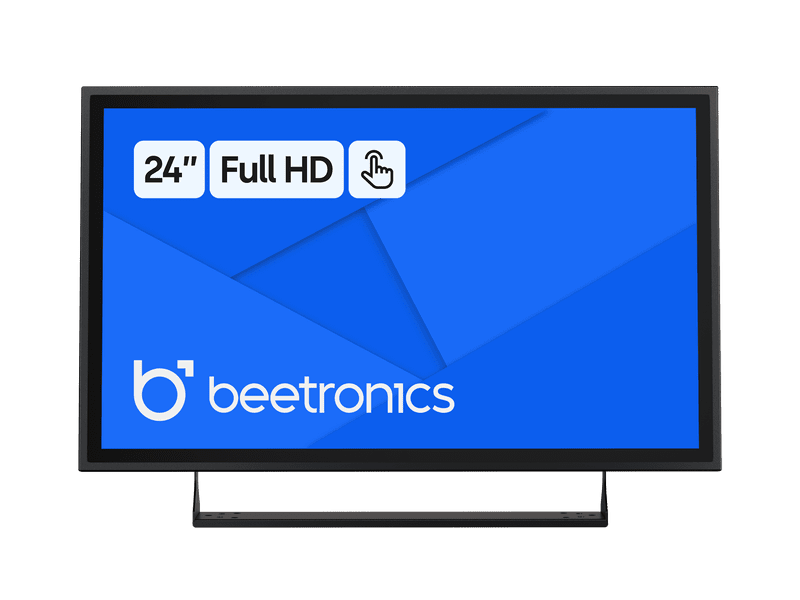

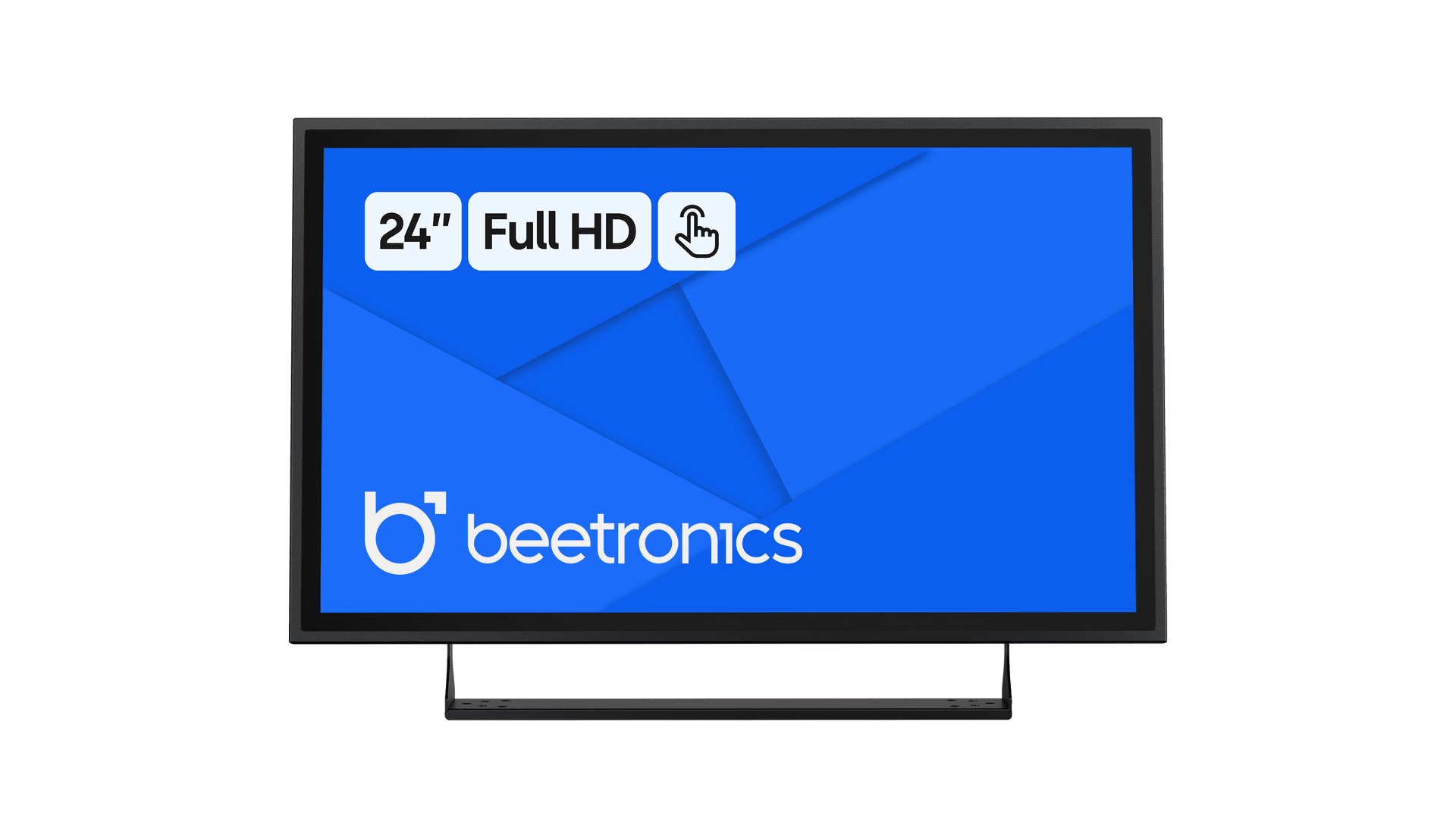

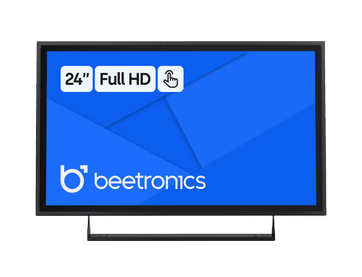

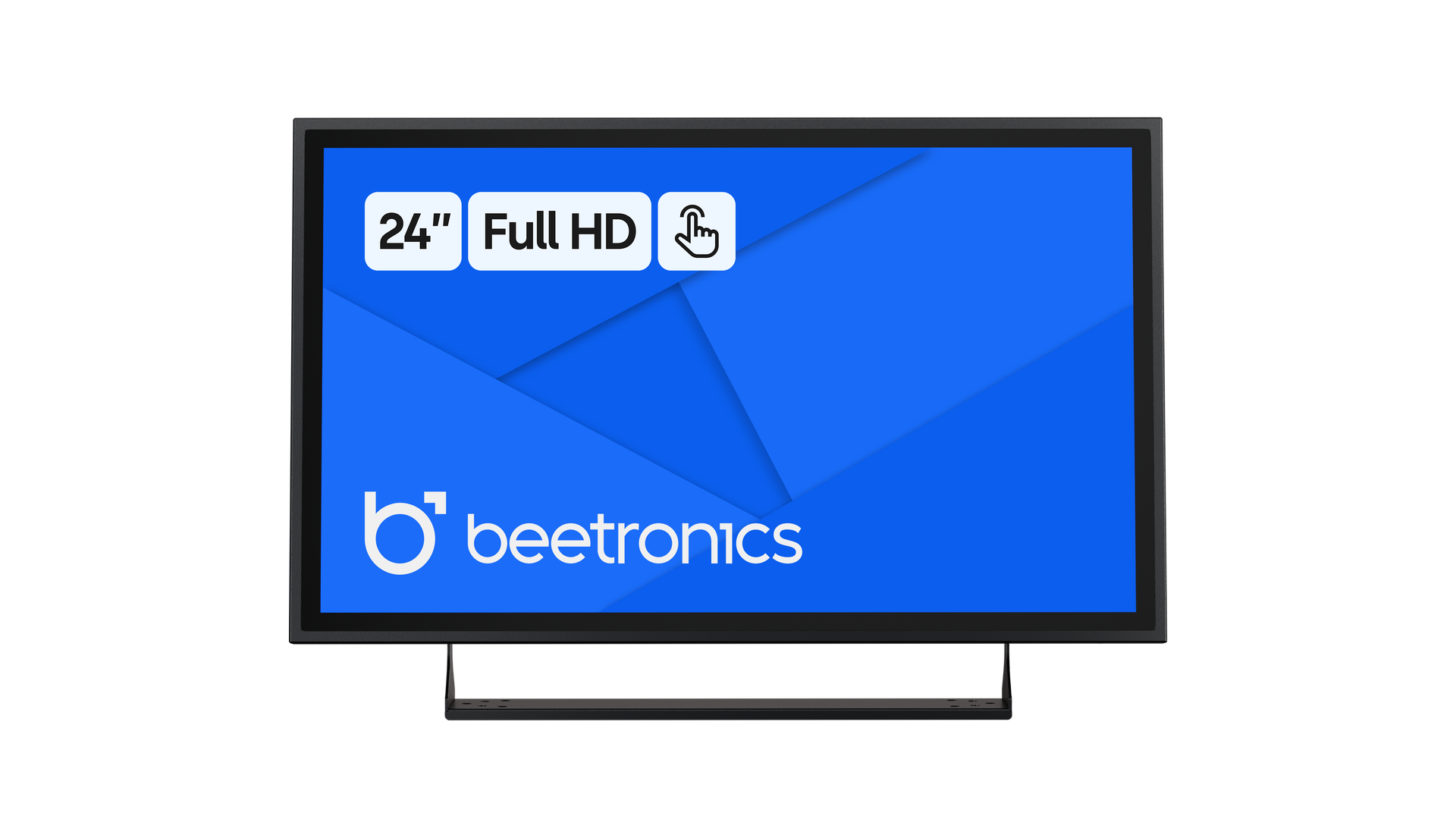

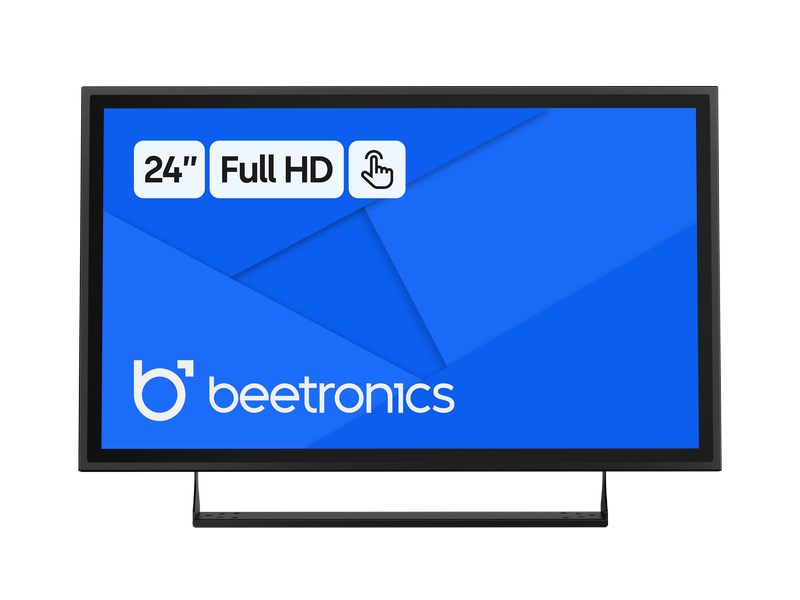

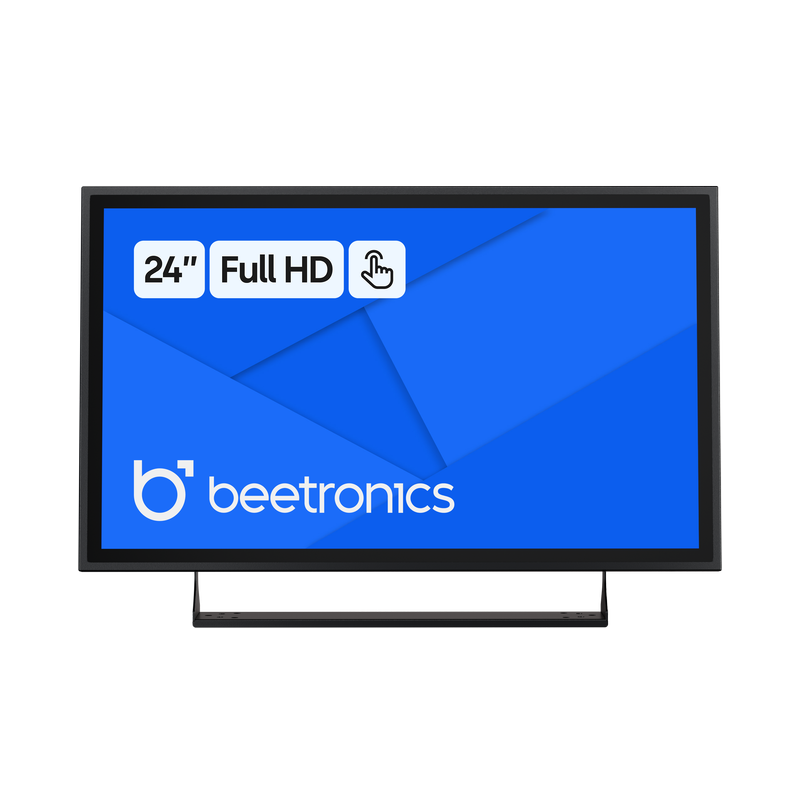

24 inch touchscreen metal
Model: 24TS7M
100+ units in stock
24 inch touchscreen metal
24 inch touchscreen metal
24 inch touchscreen metal
24 inch touchscreen metal
24 inch touchscreen metal
24 inch touchscreen metal
24 inch touchscreen metal
24 inch touchscreen metal
24 inch touchscreen metal
24 inch touchscreen metal

24 inch touchscreen metal

Model: 24TS7M
100+ units in stock
  1. Full HD multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 576 x 348 x 45 mm
Display type
Monitor
Touchscreen
£658.80 VAT incl.
Order by 4:00 pm for delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

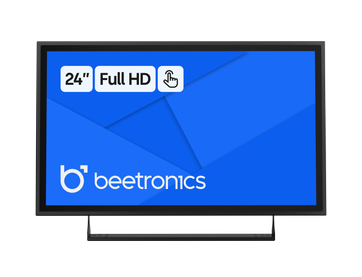

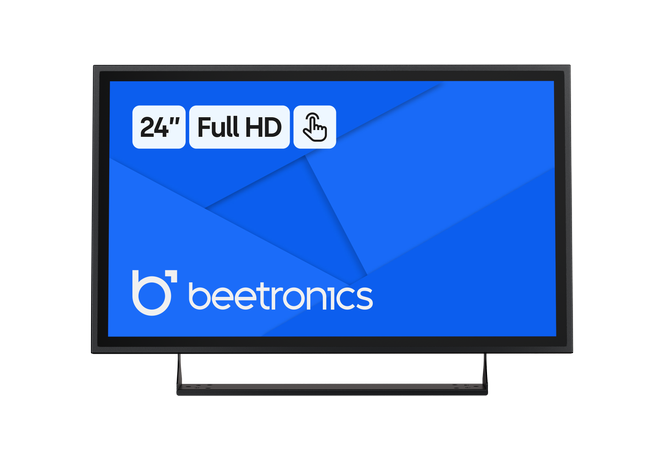

This Full HD 24 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 24TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colors and excellent 178° viewing angles. The 24TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

24 inch touchscreen metal

Compatible with Windows,
macOS, ChromeOS and Linux

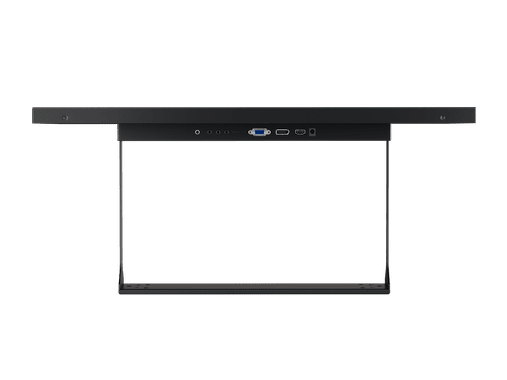

The 24 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

24 inch touchscreen metal

Designed for professional use

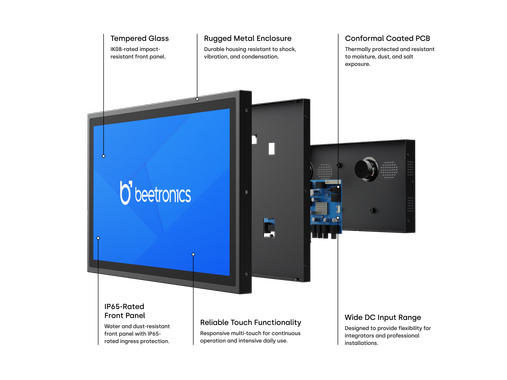

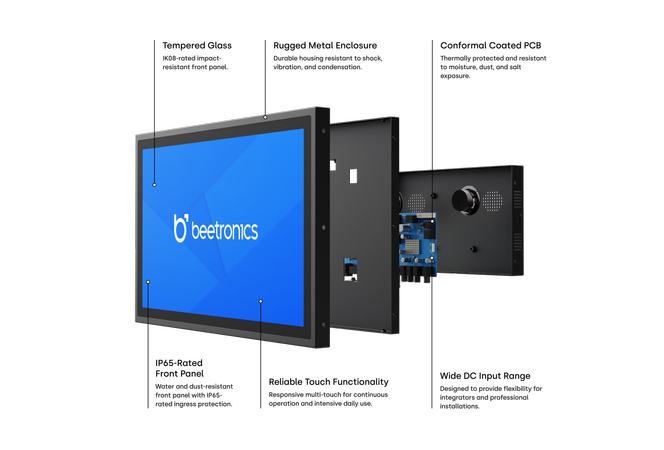

The 24TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

24 inch touchscreen metal

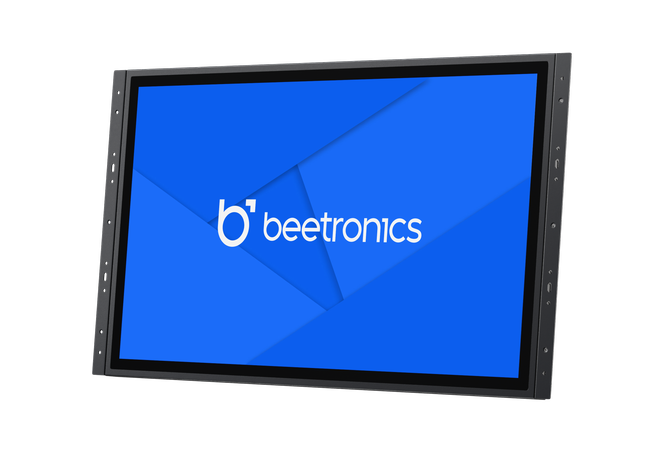

Easily integrated

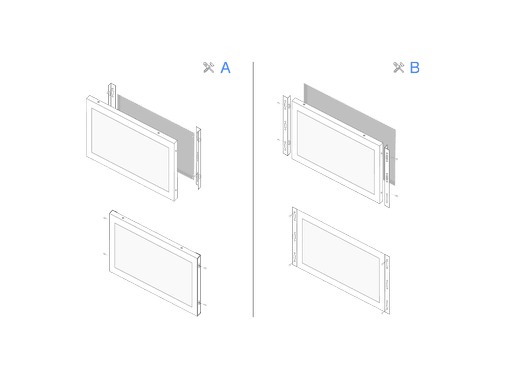

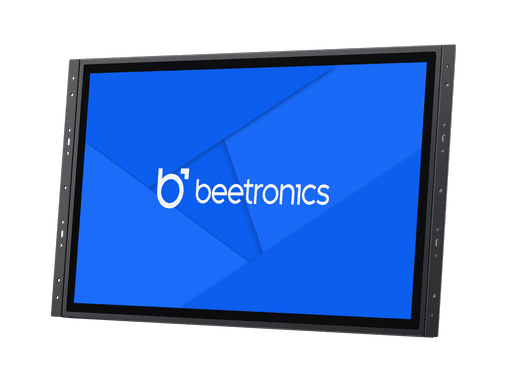

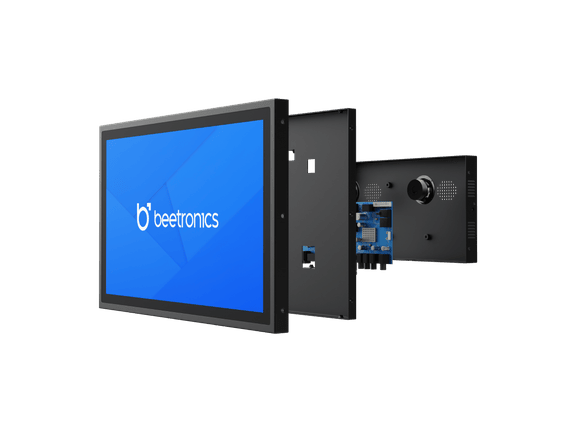

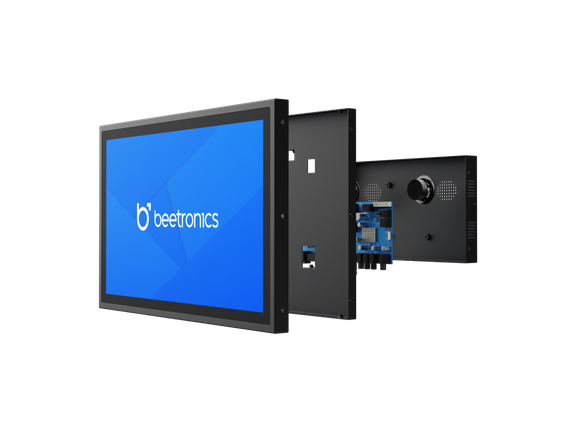

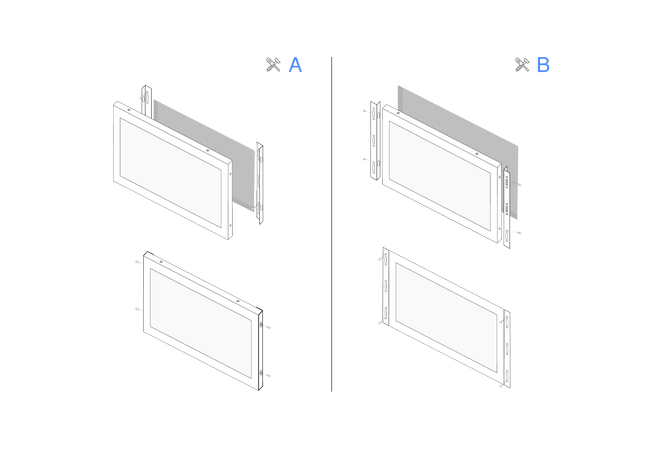

Thanks to numerous mounting options, the 24 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

24 inch touchscreen metal

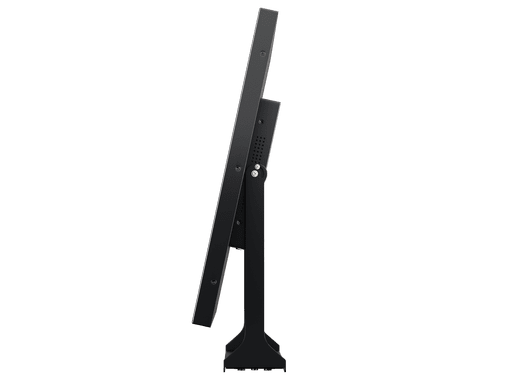

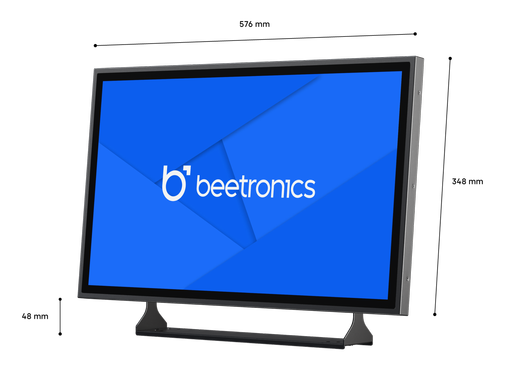

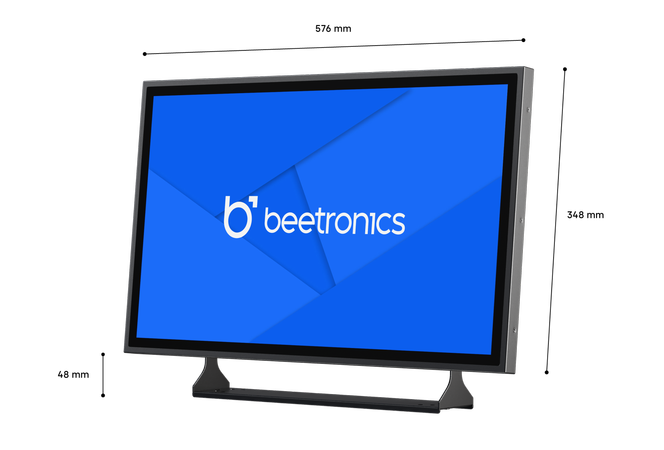

Desktop or wall mounting

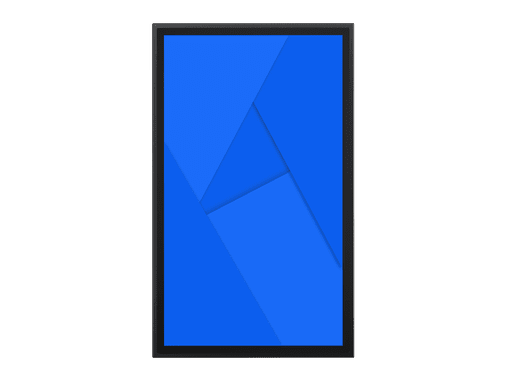

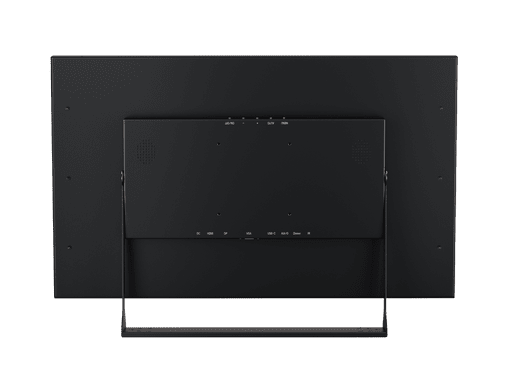

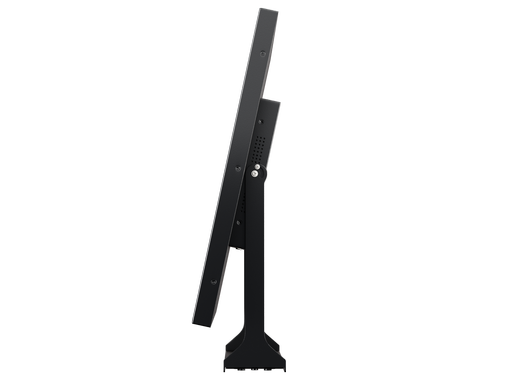

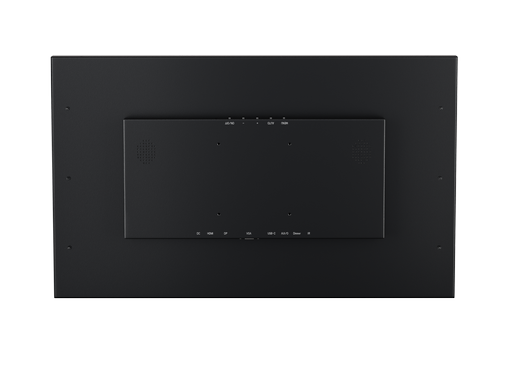

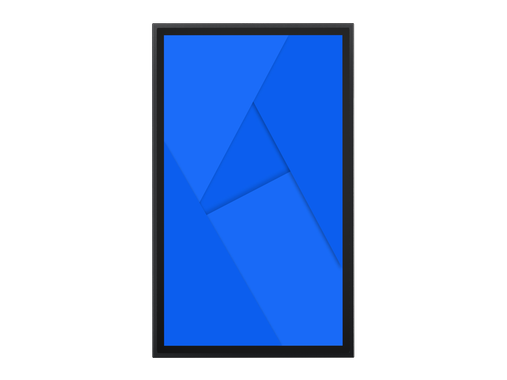

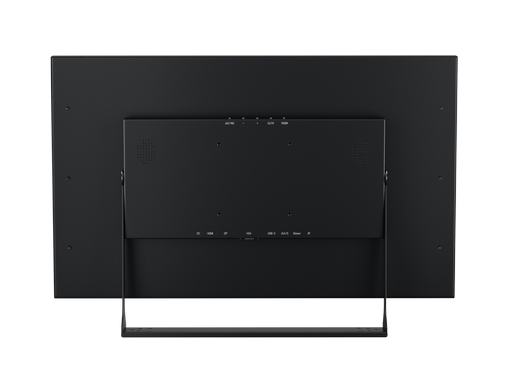

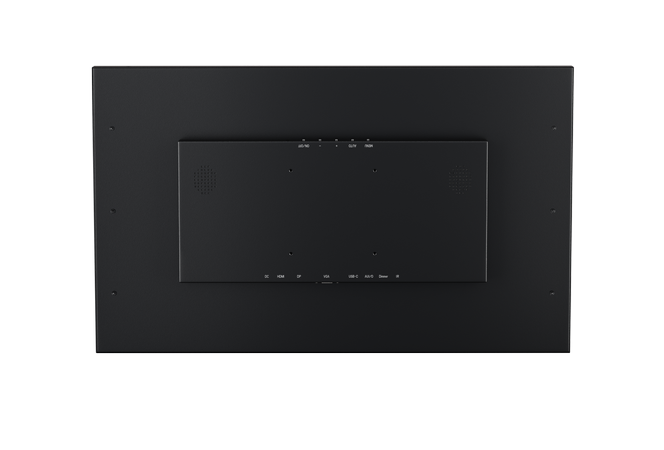

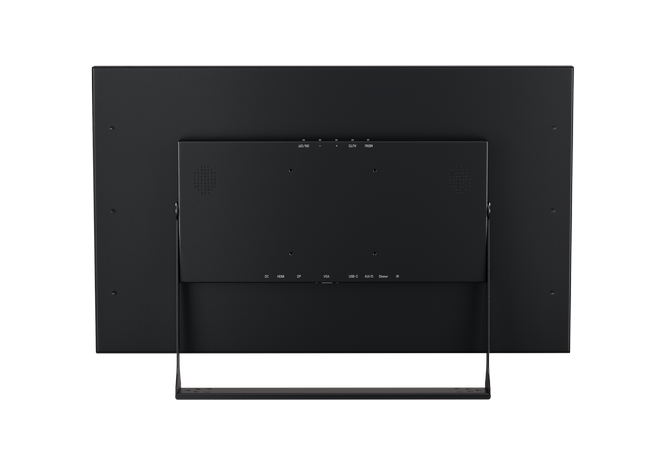

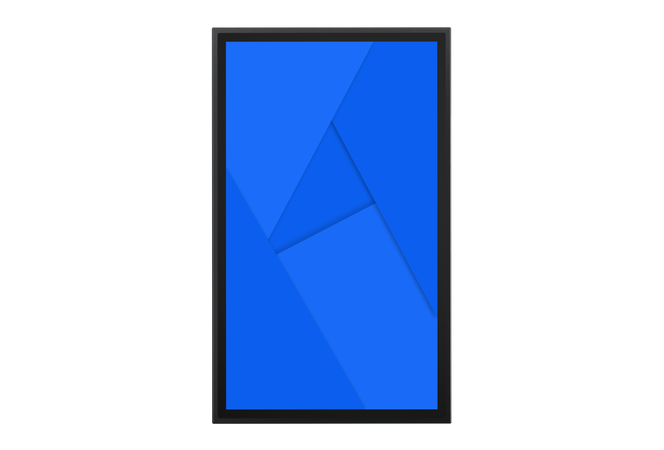

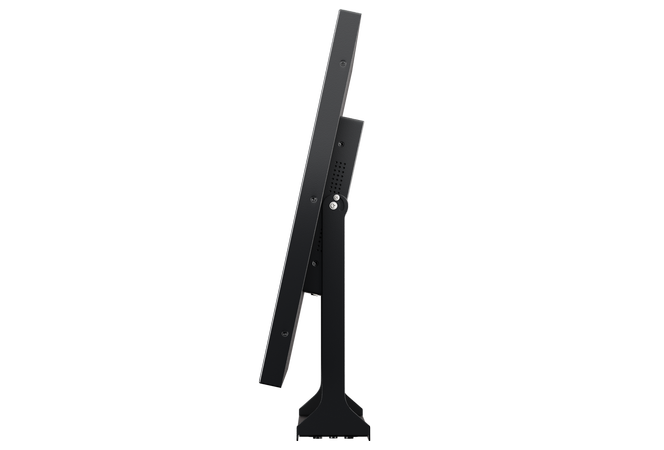

The Beetronics 24TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

24 inch touchscreen metal
General
Manufacturer
Beetronics
Item number
24TS7M
Product name
24 inch touchscreen metal
Warranty
2 years
Datasheet
Manual
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Big Sur, Monterey, Ventura, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
LED-IPS
Diagonal size
23.6 inches (601 mm)
16:9 (4:3 adjustable)
1920 x 1080 (max), 640 x 480 (min)
178° horizontal, 178° vertical
Color encoding system
PAL/NTSC/SECAM
Brightness
300 cd/m2
Contrast
3000:1
Capacitive, 10-point multi-touch (PCAP)
Control
Stylus, hand, glove

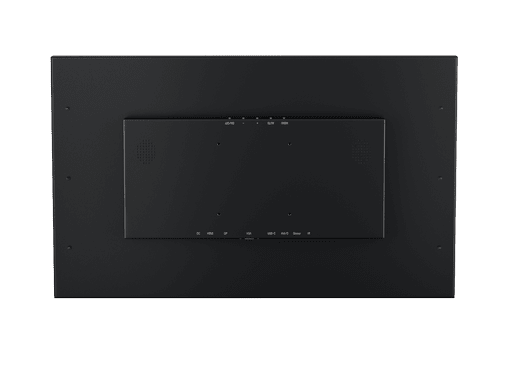

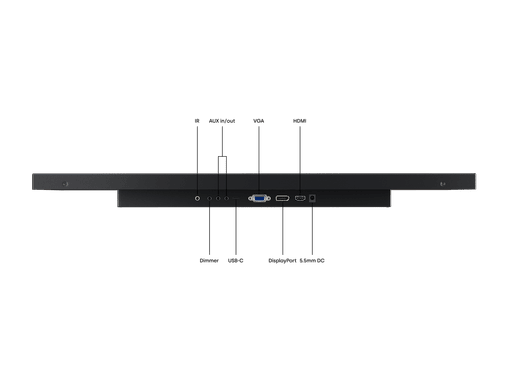

Connectivity
HDMI
1x
VGA
1x
RCA video
1x
AUX input
1x
AUX output
1x
1x integrated USB media player
Size & weight
Colour
Black
Weight
6200 grams (7100 grams with stand)

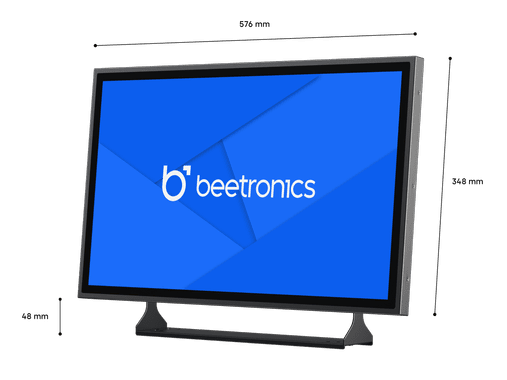

Width
576 mm
Height
348 mm
Thickness
45 mm
Display dimensions
523 x 327 mm
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-4A
Consumption
19.6 Watt
Environmental
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 80% non-condensing
Mounting
VESA (100 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP65 front panel
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, CCC

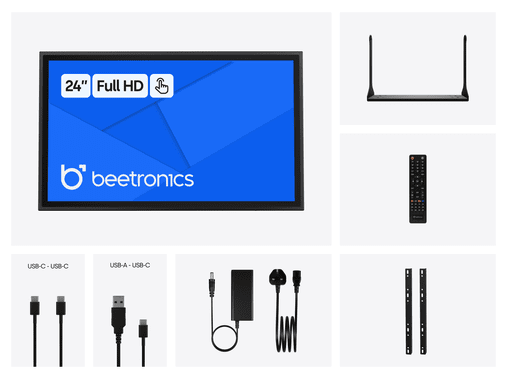

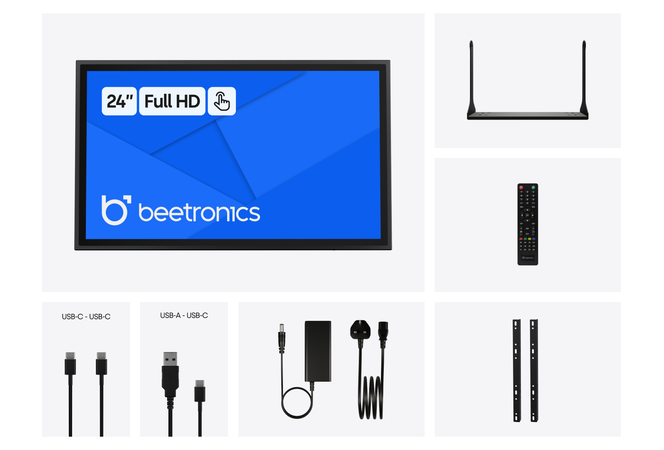

Package content
Includes
Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
Compatible accessories
Infrared extension
Compatible with infrared extender (IRC7)
Dimmer
Compatible with external dimmer (DMK7)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
Compatible with VDK7 metal stand
Touch pen
Compatible with CTS7 capacitive touchscreen stylus
24 inch touchscreen metal
Downloads
Manual
Technical drawing
3D Drawing
Datasheet
