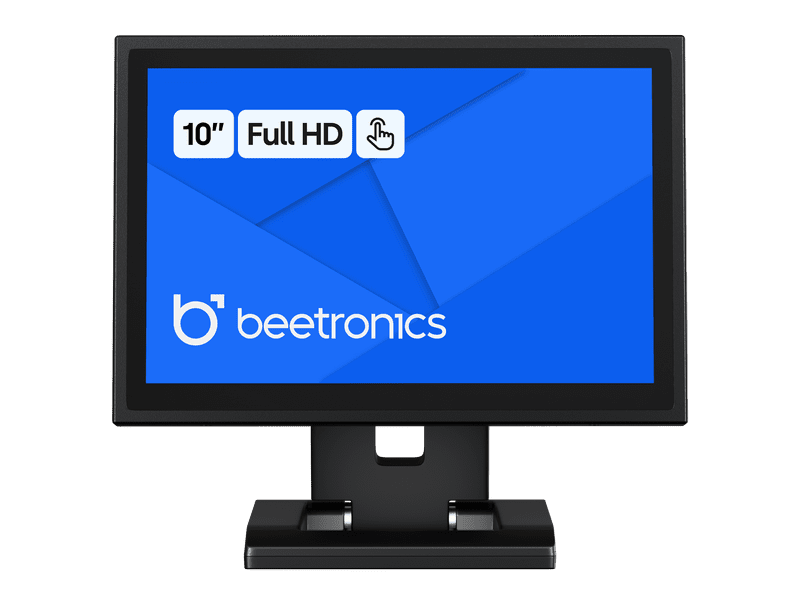

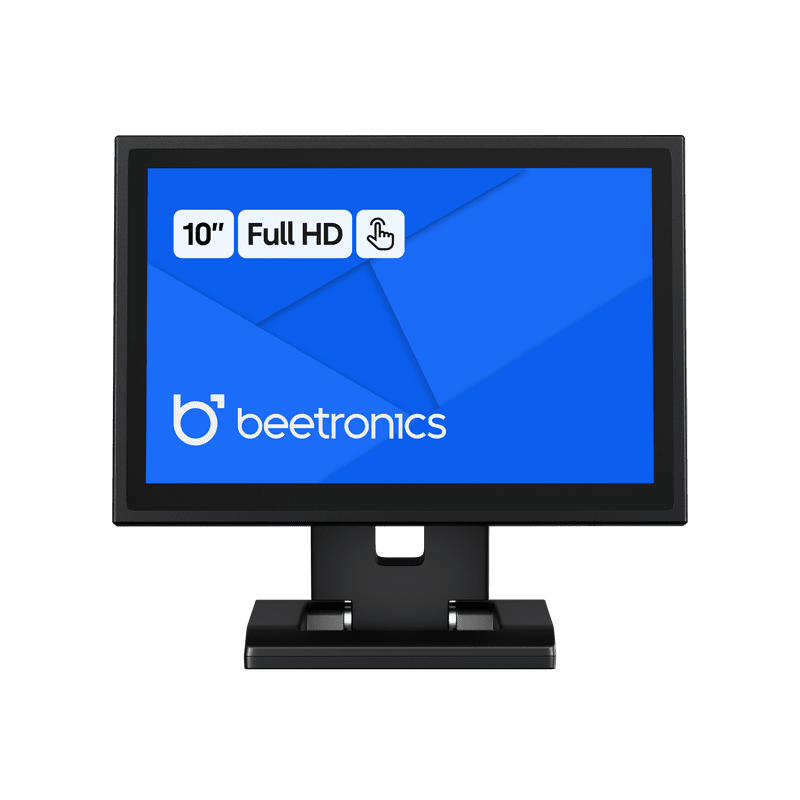

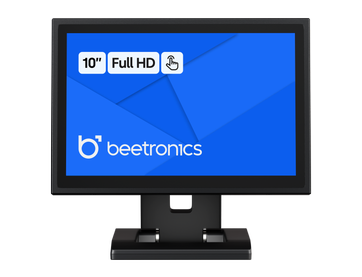

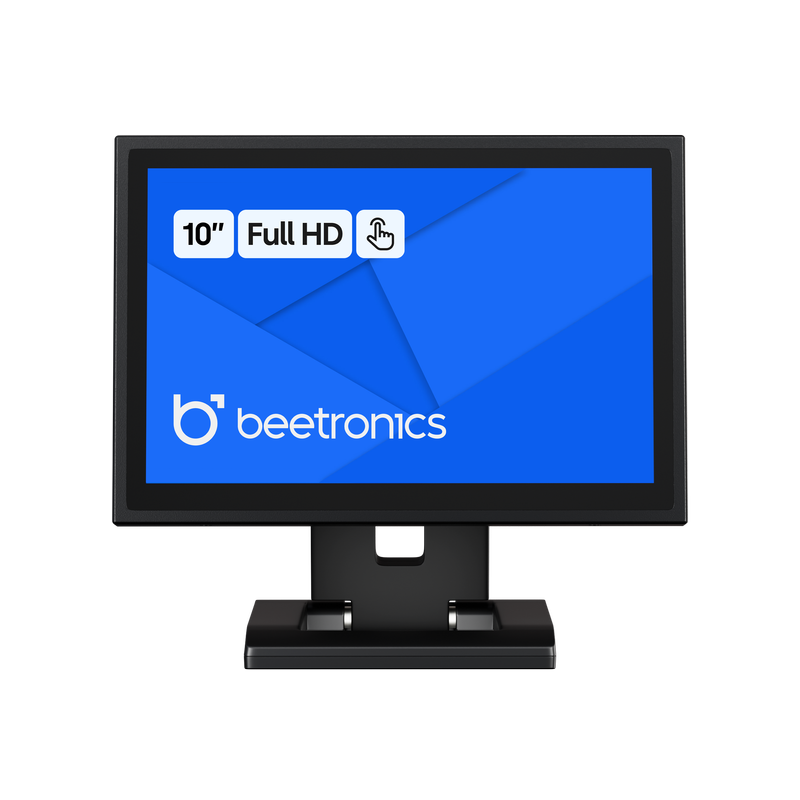

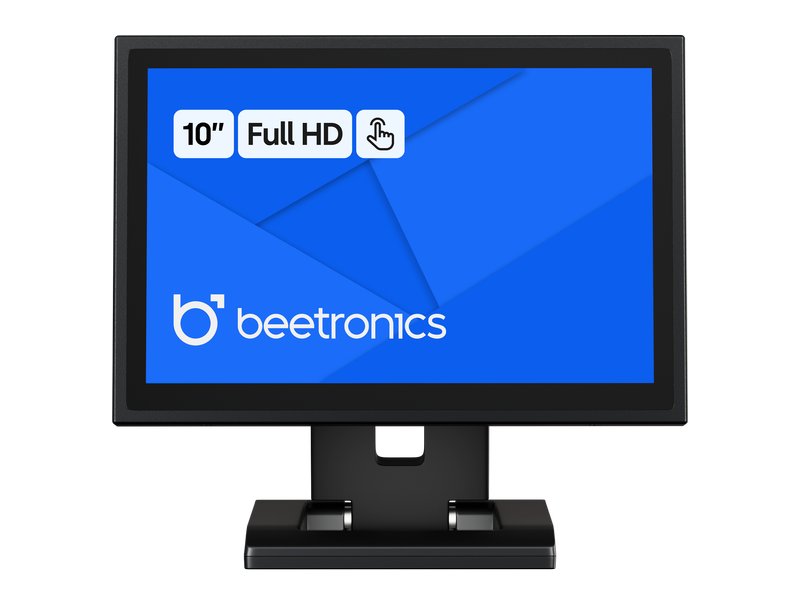

10 inch touchscreen metal

  1. Full HD multi-touch panel
  2. Windows, Mac, Linux & Android compatible
  3. Desktop, flush and wall mountable
  4. 249 x 170 x 37 mm
Item number: 10TS5M
100+ units in stock

Order before 10:00 pm for free delivery on friday

£349.00 £290.83 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

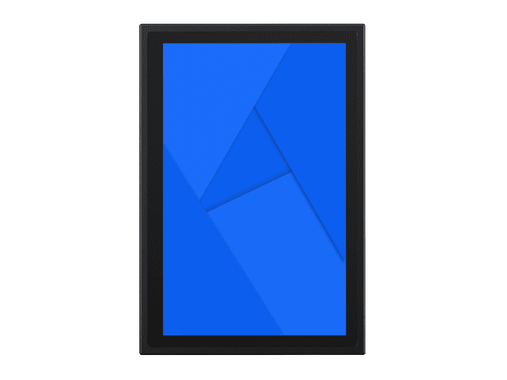

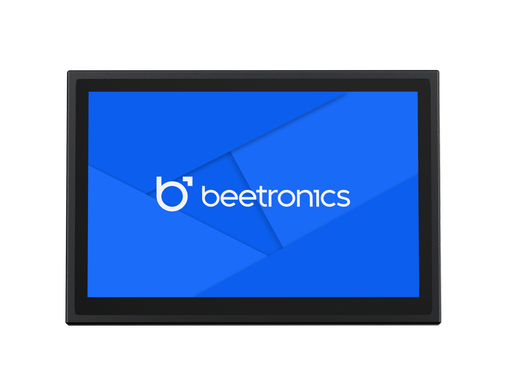

This Full HD 10 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 10TS5M provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.


Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 10TS5M has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

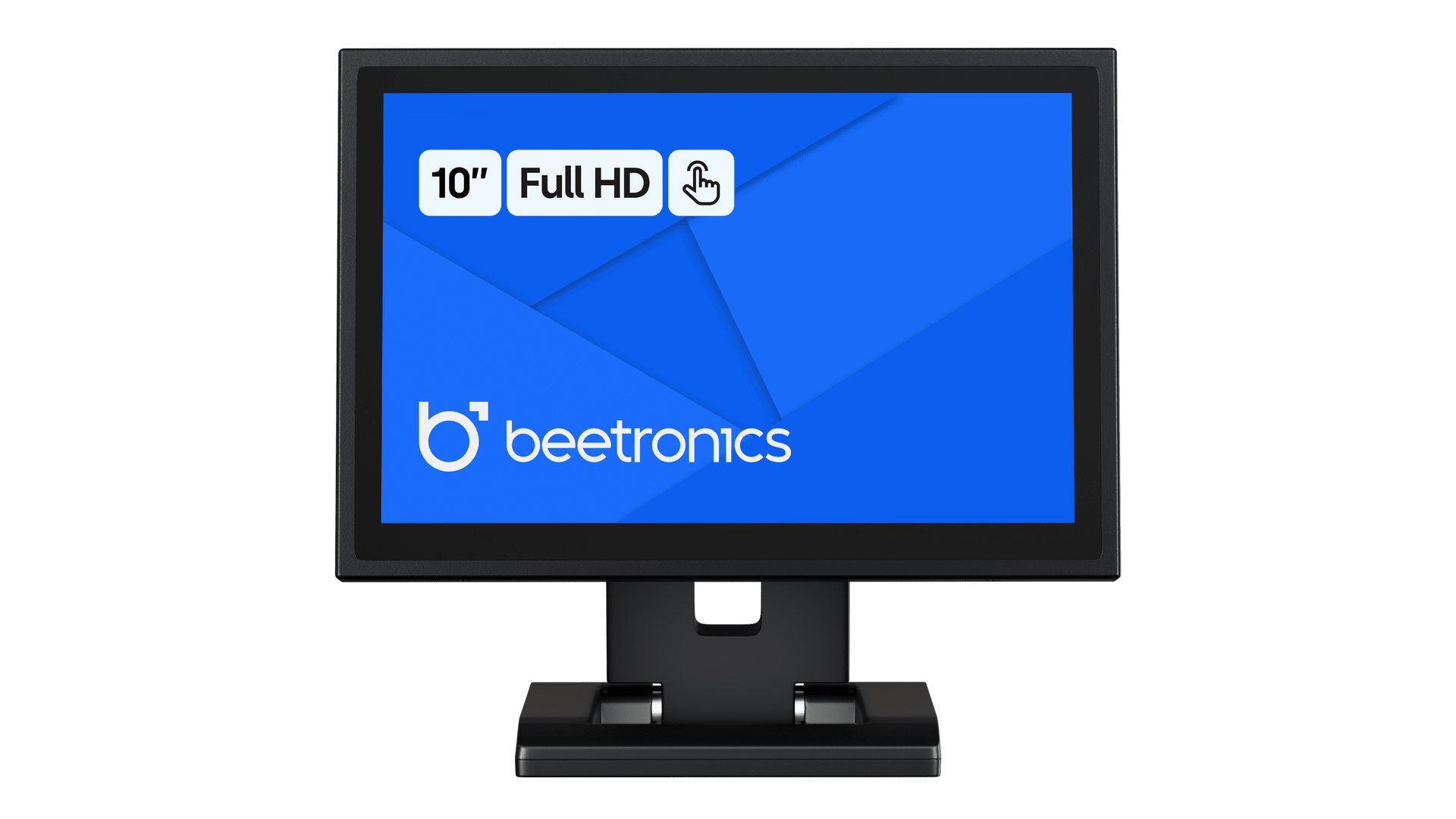

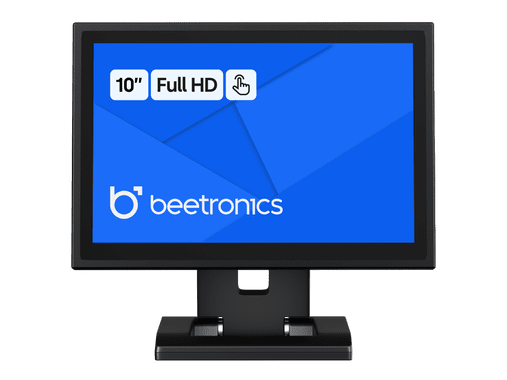

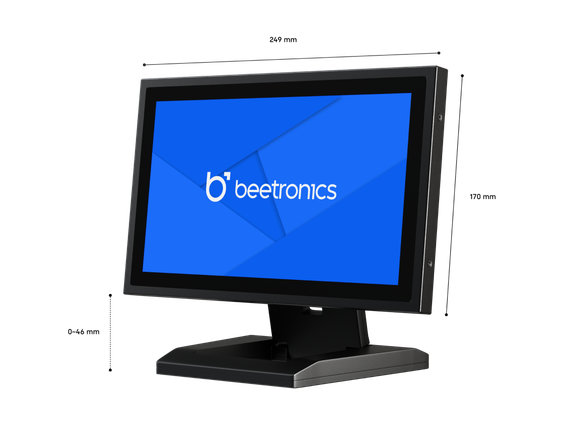

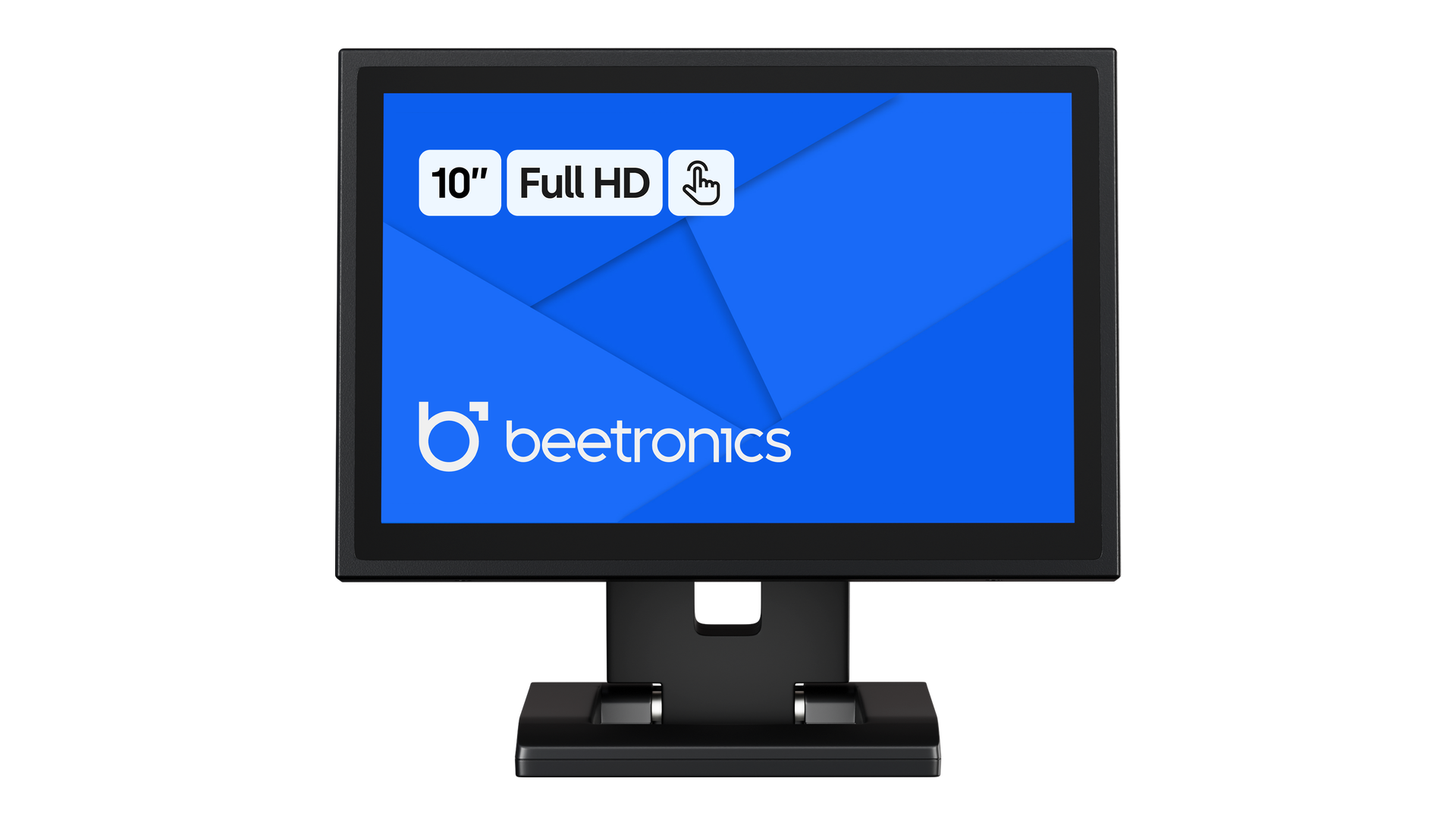

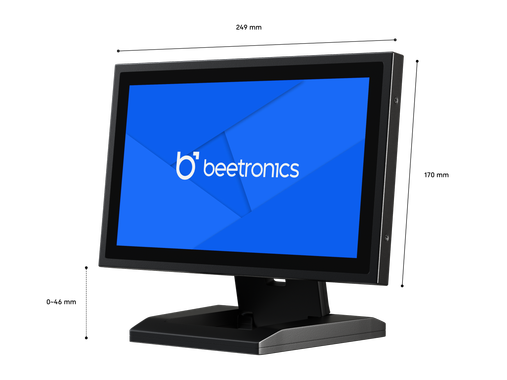

10 inch touchscreen with stand

Windows, Mac, Linux & Android compatible

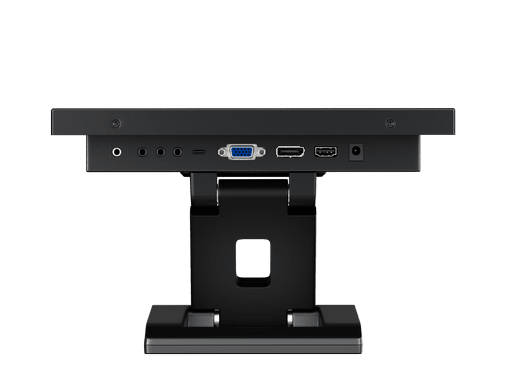

The 10TS5M touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

10 inch touchscreen windows mac linux and android

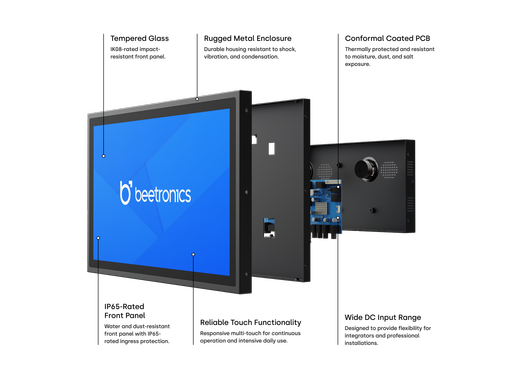

Designed for professional use

This monitor is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing the 10TS5M is ideal for professional use.

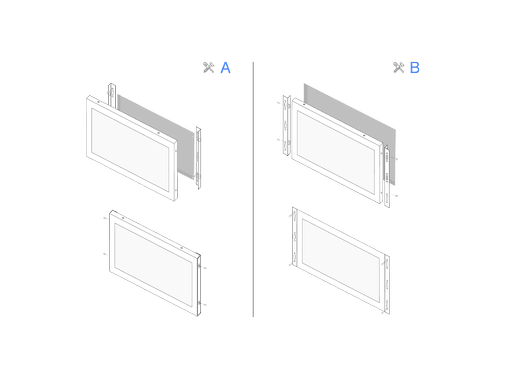

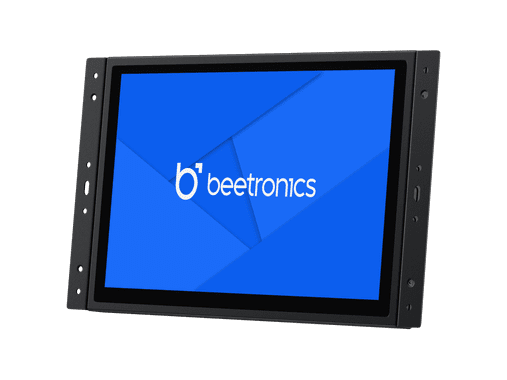

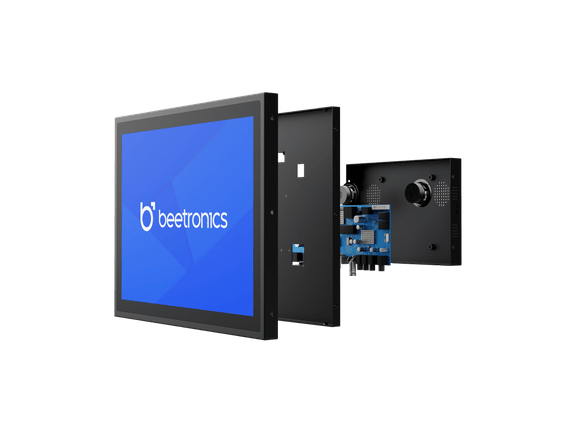

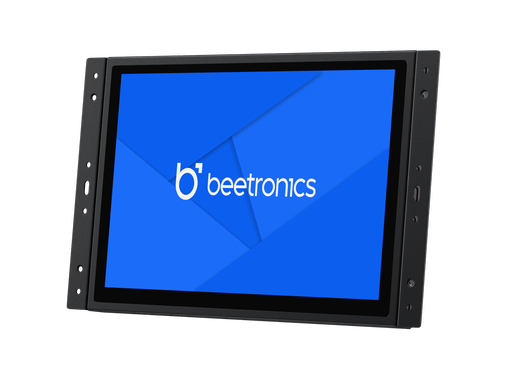

10 inch touchscreen open frame, flush mount

Desktop, flush and wall mountable

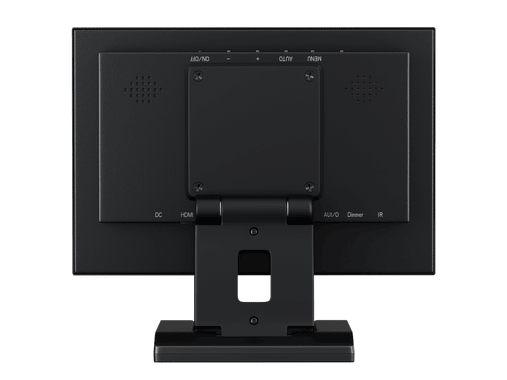

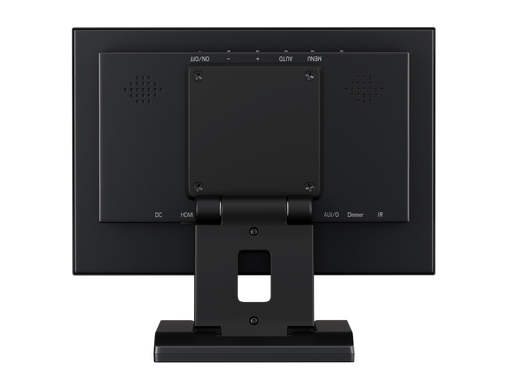

The Beetronics 10TS5M has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

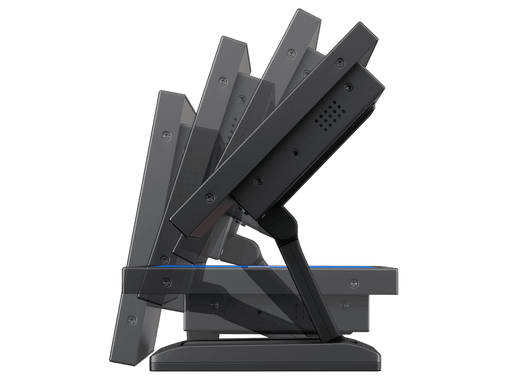

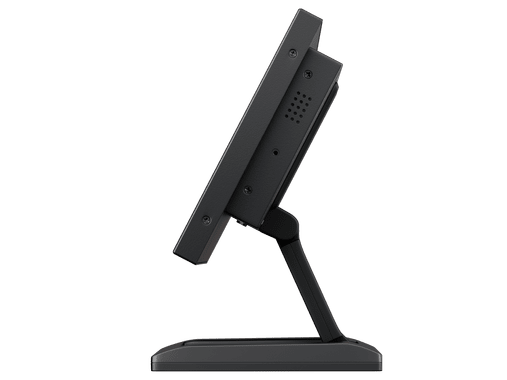

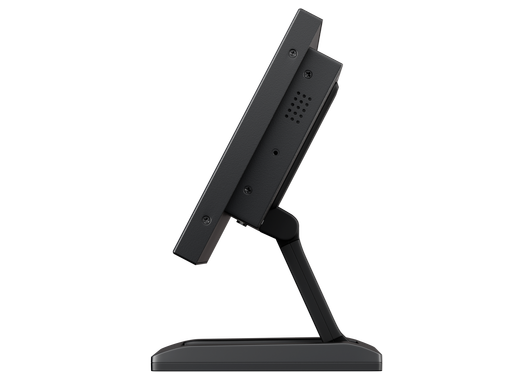

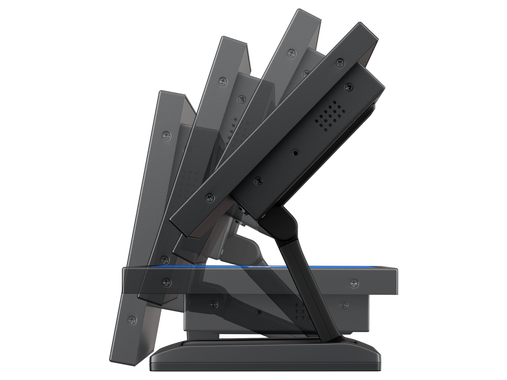

touchscreen 10 inch with adjustable stand
General
Manufacturer Beetronics
Item number 10TS5M
Product name 10 inch touchscreen metal
Warranty 2 years
Datasheet   Download PDF
Manual   Download PDF
Supported operating systems
Windows (Windows 7, 8, 10)
Windows Embedded (Windows embedded 7, 8, 10)
Mac (Yosemite, El Capitan, Sierra, High Sierra, Mojave)
Linux
Android (Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
Drivers No drivers needed. Plug & Play
Panel
Type LED-IPS
Screen diagonal 10.1 inch (25,7 cm)
Aspect ratio 16:10 (16:9, 4:3 adjustable)
Native resolution 1920 x 1200
Supported resolutions 1920 x 1200 (max), 640 x 480 (min)
Pixels per inch 226 PPI
Viewing angle 178° horizontal, 178° vertical
Colour encoding system PAL/NTSC/SECAM
Brightness 400 cd/m2
Contrast 600:1
Touch technology Capacitive, 10-point multitouch (PCAP)
Touch control Stylus, hand, glove

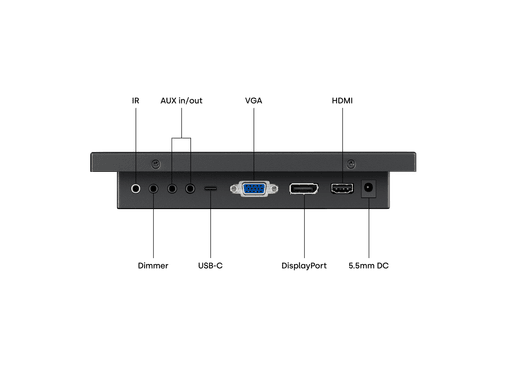

Connectivity
HDMI 1x
VGA 1x
BNC (CVBS) 1x
RCA video 1x
AUX input 1x
AUX output 1x
USB Only for touchscreen functionality

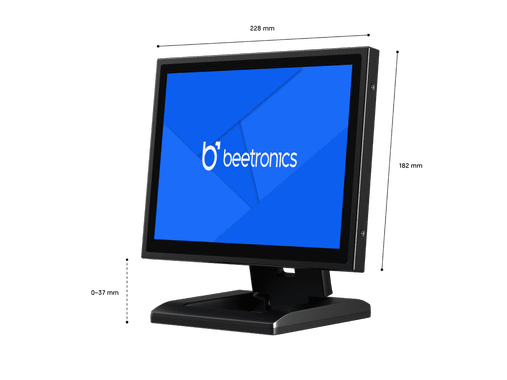

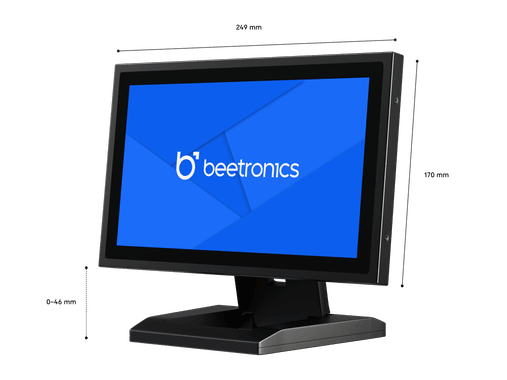

Size & weight
Colour Black
Weight 1290 gram (1710 gram with stand)
Width 249 mm
Height 170 mm (+0 to 39 mm with stand)
Thickness 37 mm
Display dimensions 237 x 158 mm
Technical drawing   Download PDF
Features and functions
Audio Integrated speakers
Key-lock The control buttons can be blocked
Auto-on Automatically powers on when it receives current or a signal
Dimmable Adjustable backlight brightness
Mirroring Image can be mirrored, horizontally and vertically
Power
Input voltage DC 12V
Power supply Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption <15 Watt (0.5 Watt standby)
Environmental
Operating temperature -20c° to +60c°
Storage temperature -20c° to +70c°
Operating humidity 20% - 90% non-condensing
Mounting
Wall mount VESA (75 mm)
Flush mount Mounting strips included
Stand Adjustable and detachable
Certifications & Standards
IP rating IP65 front panel
Certifications CE, FCC, RoHS, REACH

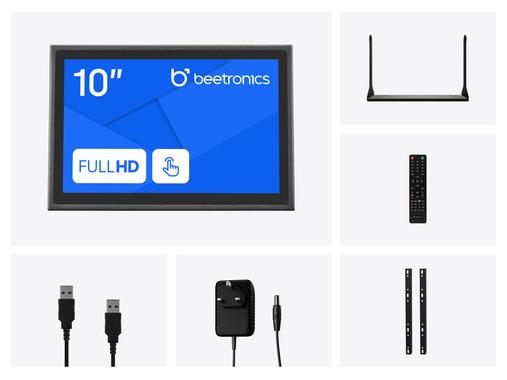

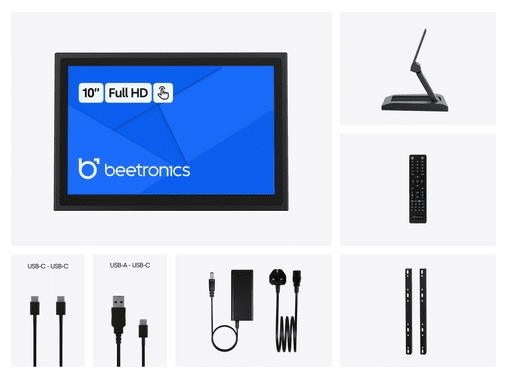

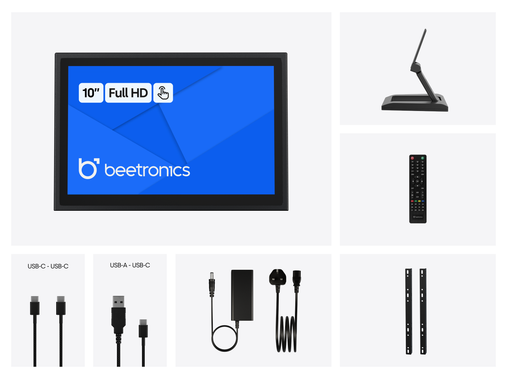

Package content
  1. 10 inch touchscreen metal
  2. USB cable
  3. Remote control
  4. Mains adaptor
  5. Stand
  6. Installation strips
  7. Manual

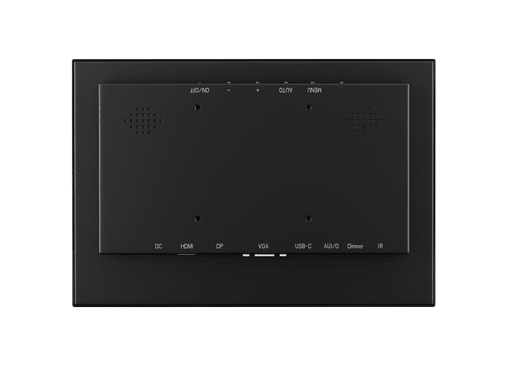

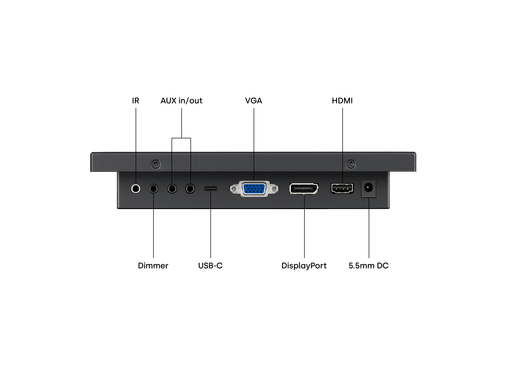

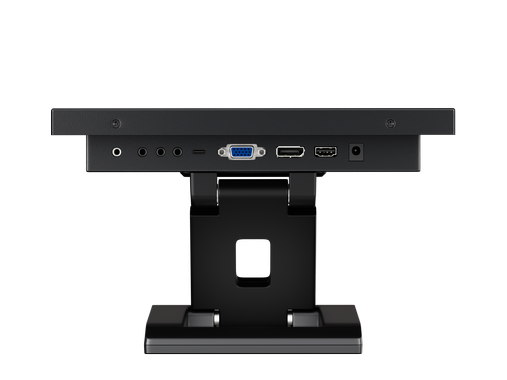

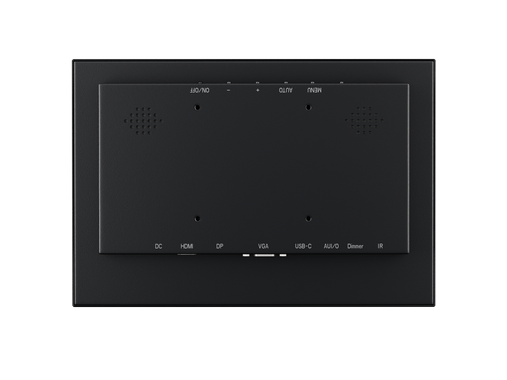

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA(video)
RCA
AUX(output)
AUX_audio_35mm
USB(touch)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
