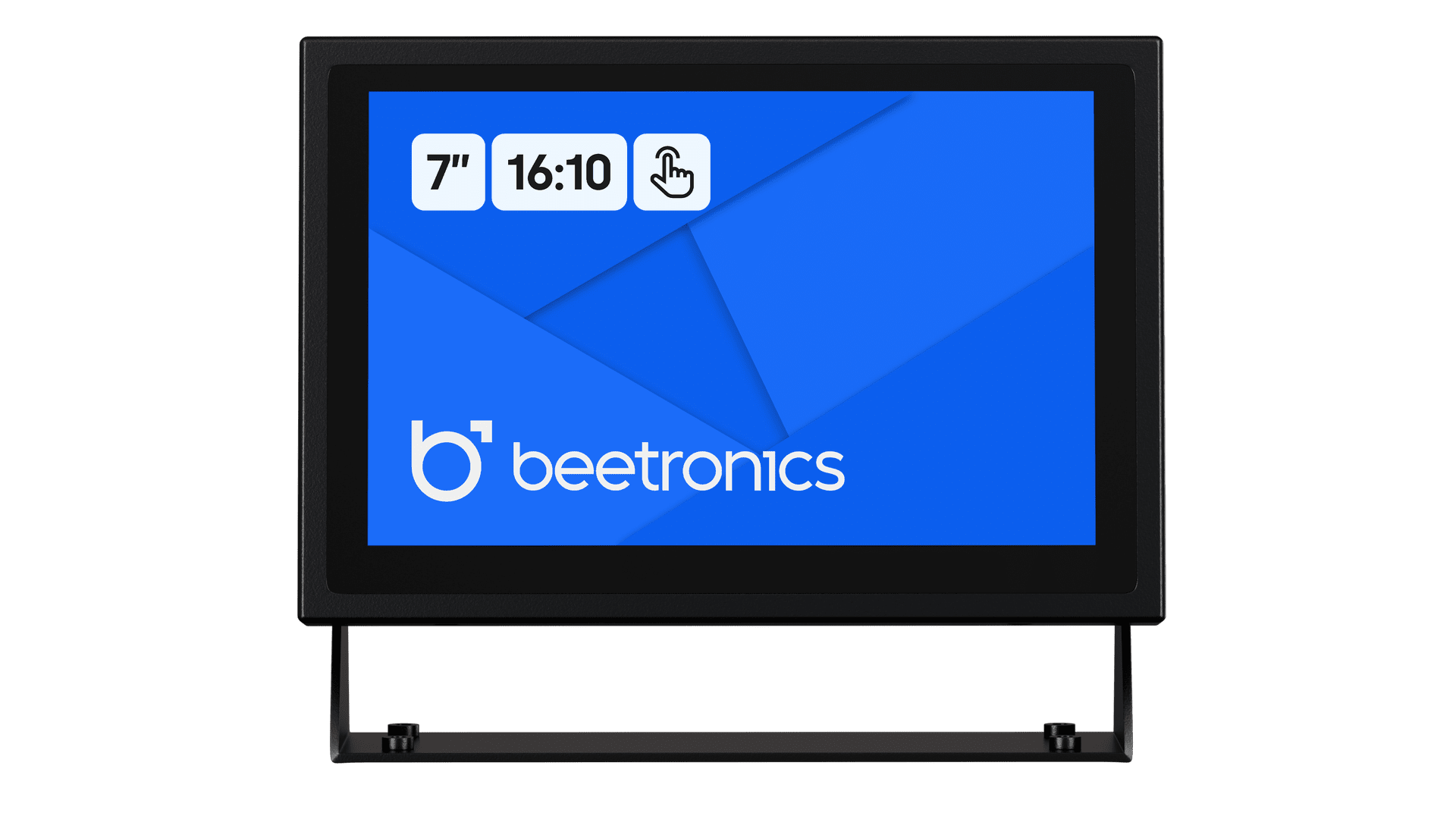

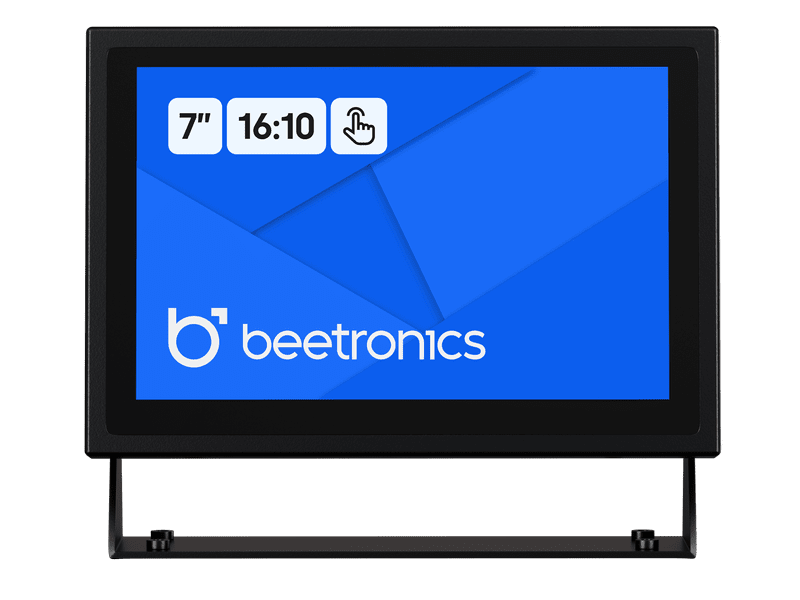

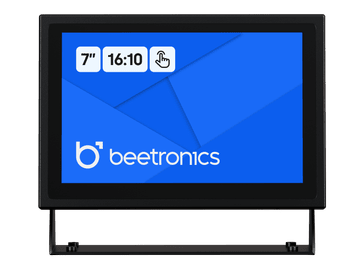

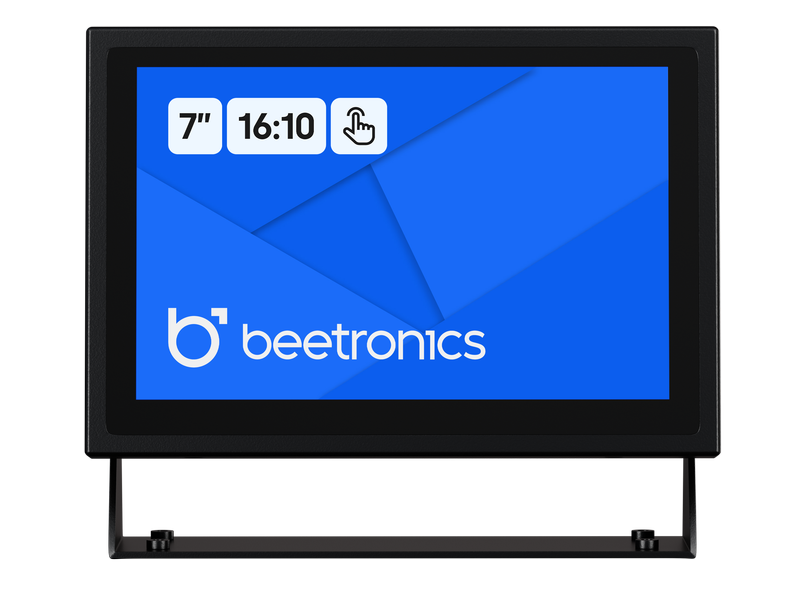

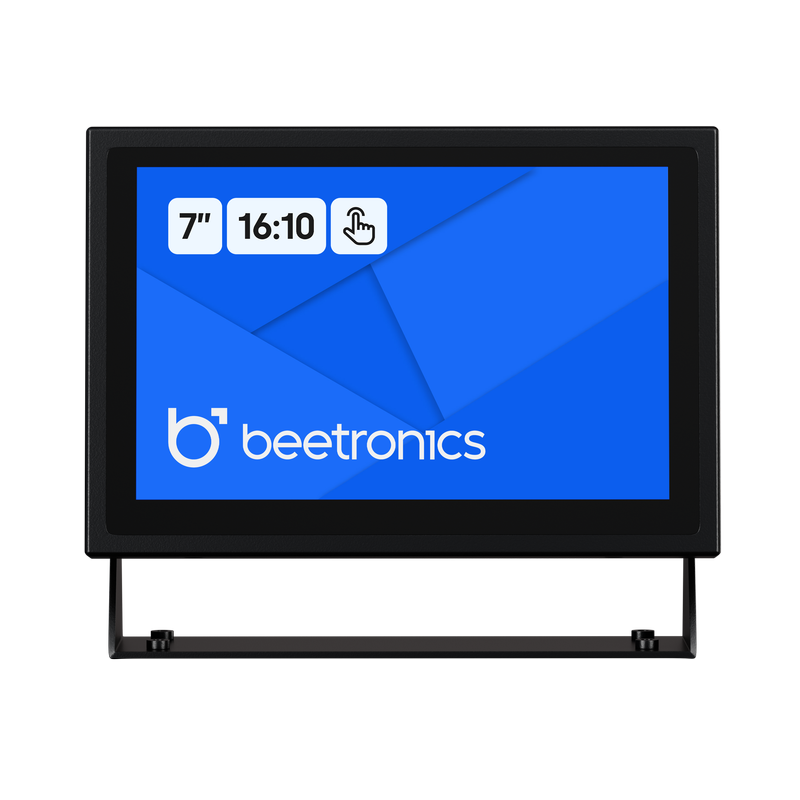

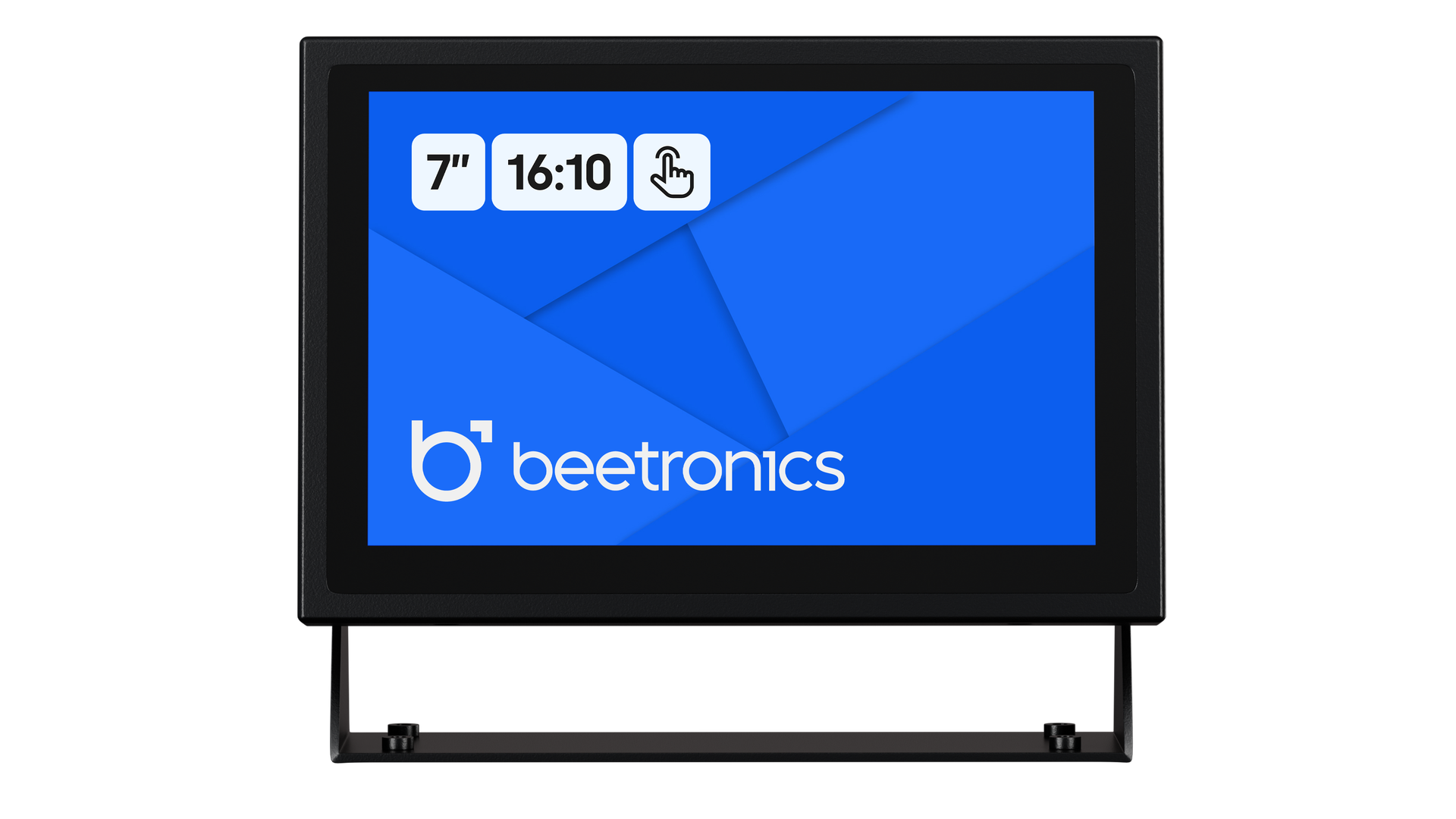

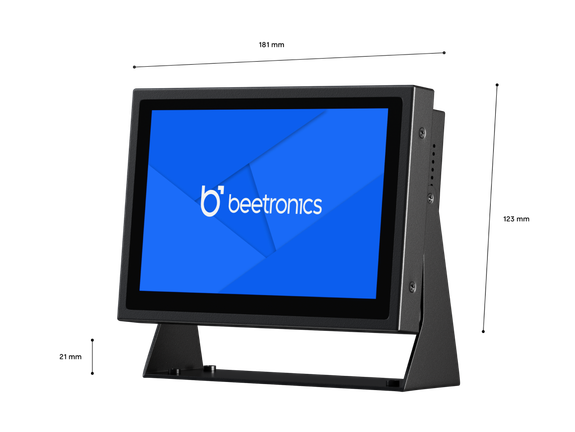

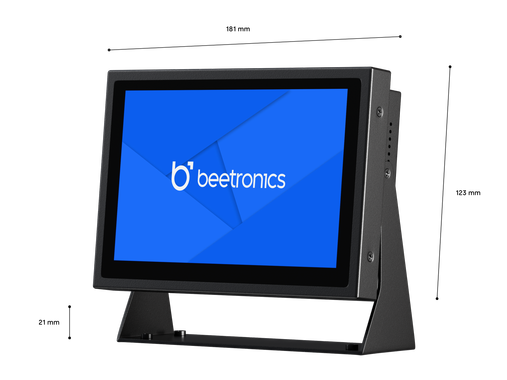

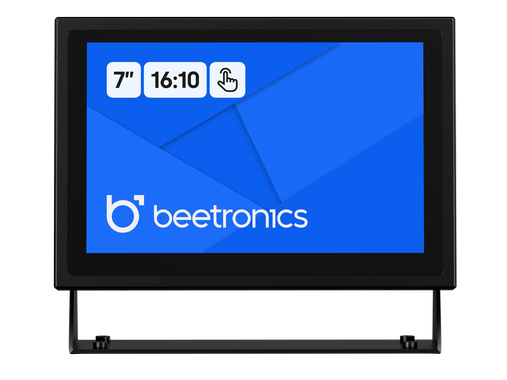

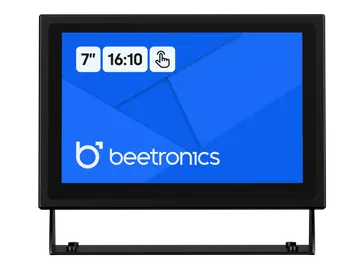

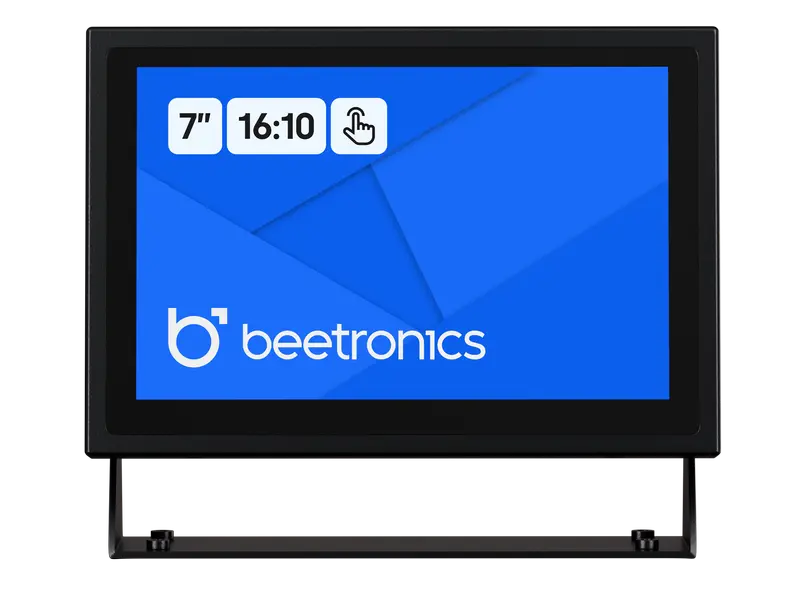

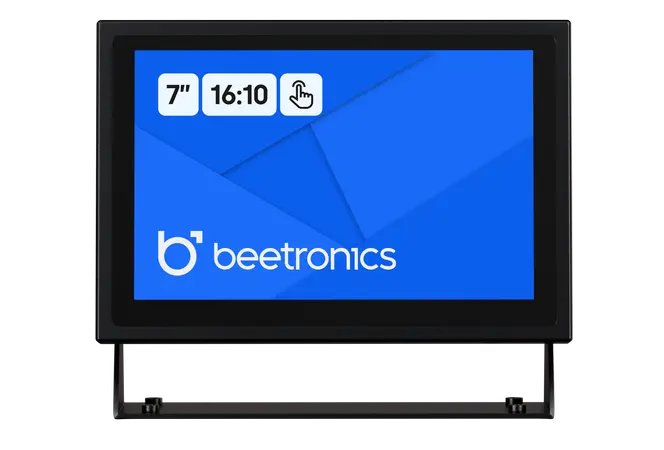

This high resolution 7 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 7TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.
Fitted with a high resolution IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 7TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

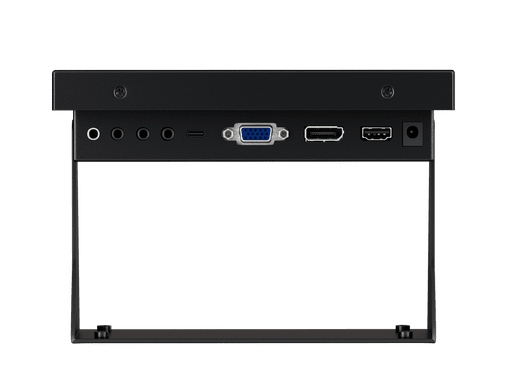

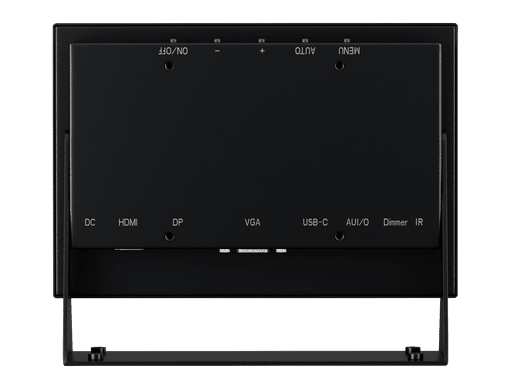

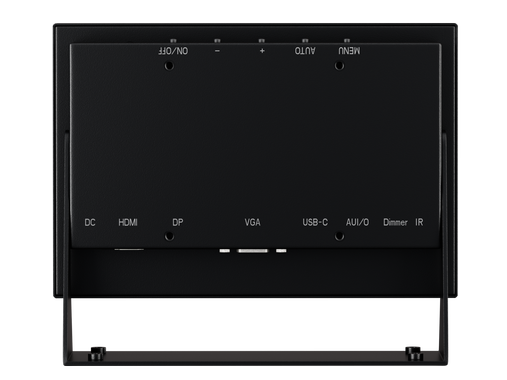

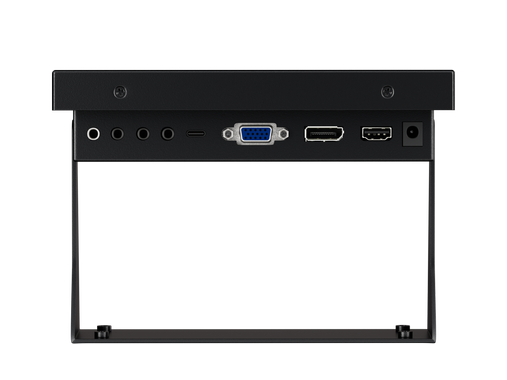

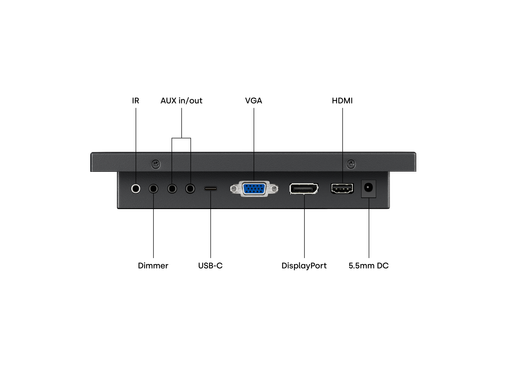

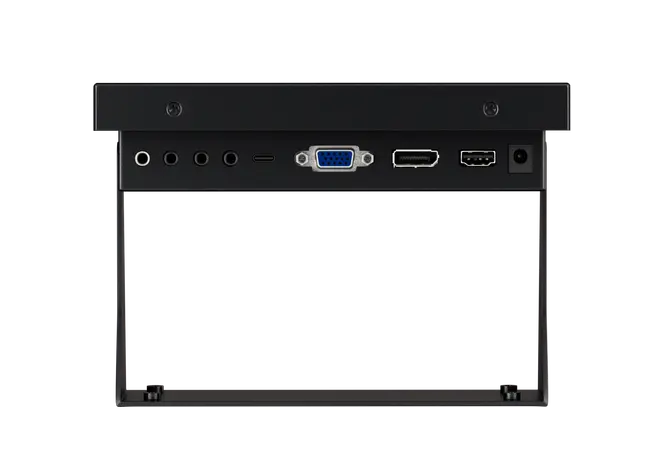

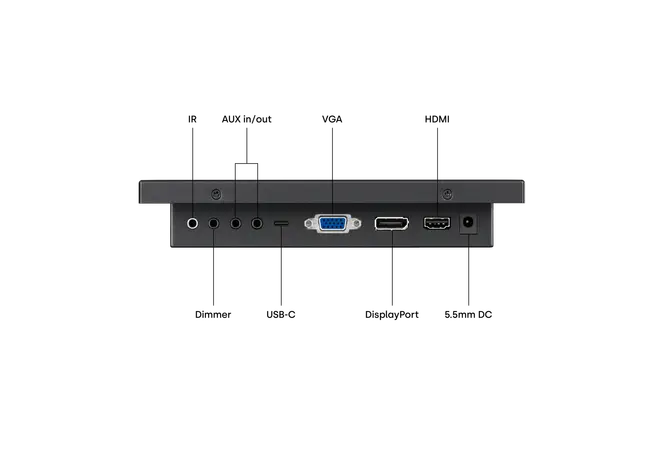

The 7TS7M touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

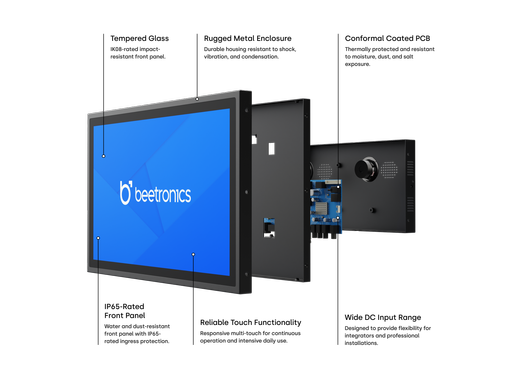

The 7TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

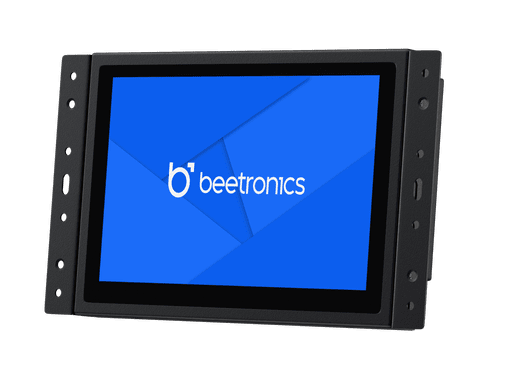

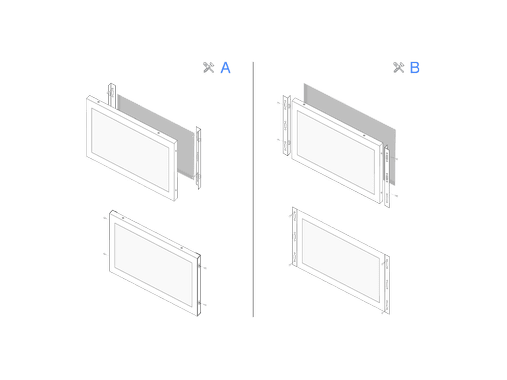

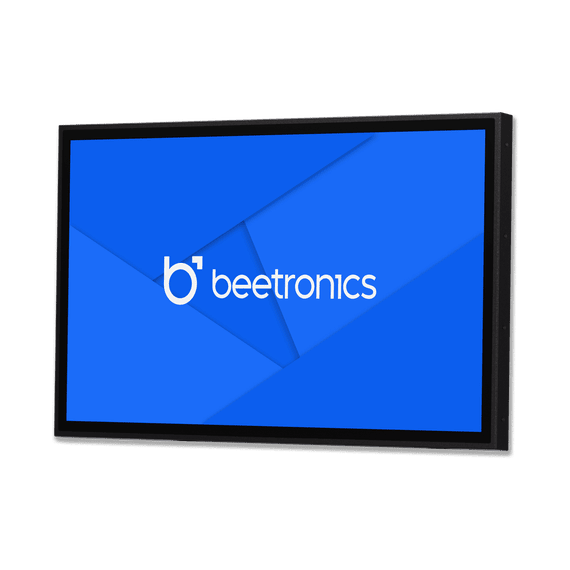

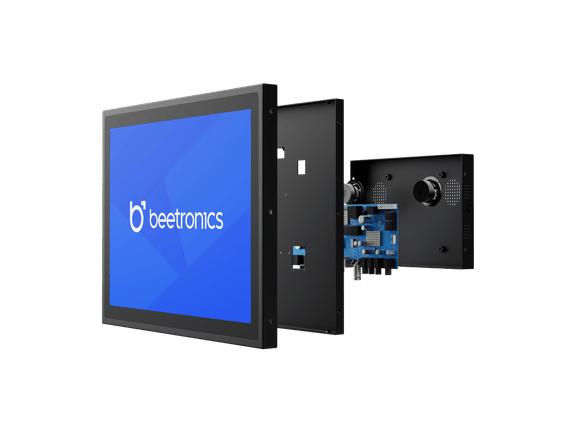

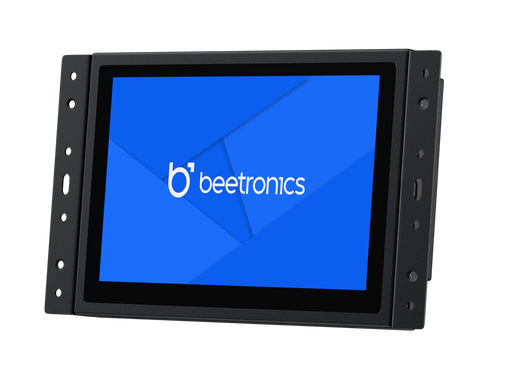

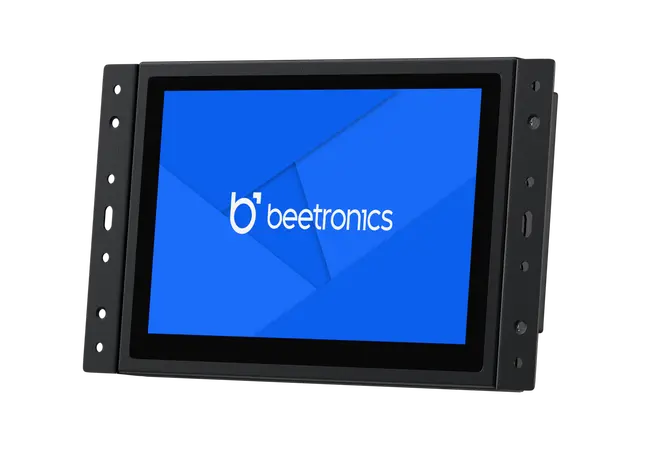

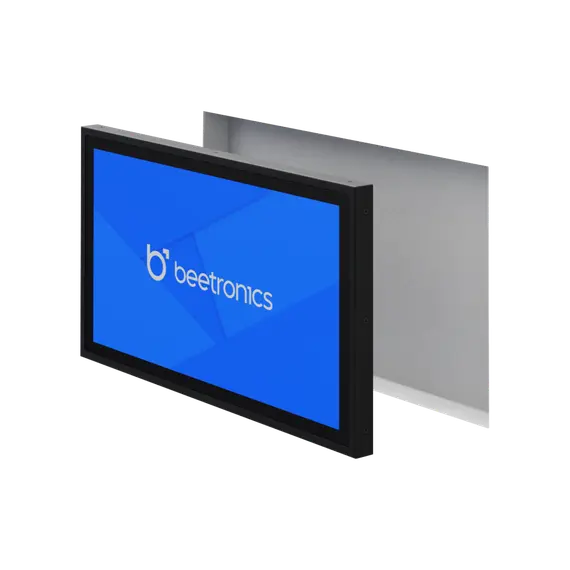

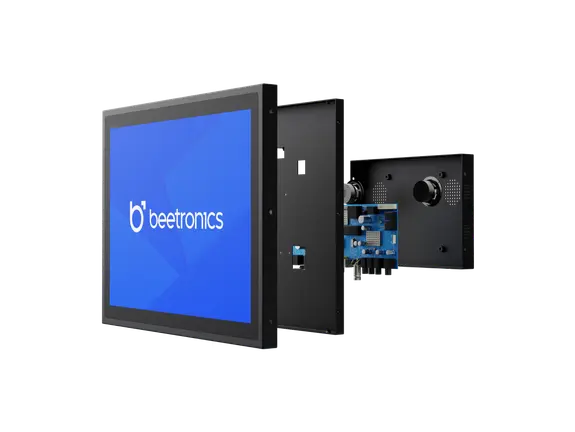

Thanks to numerous mounting options, the 7 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

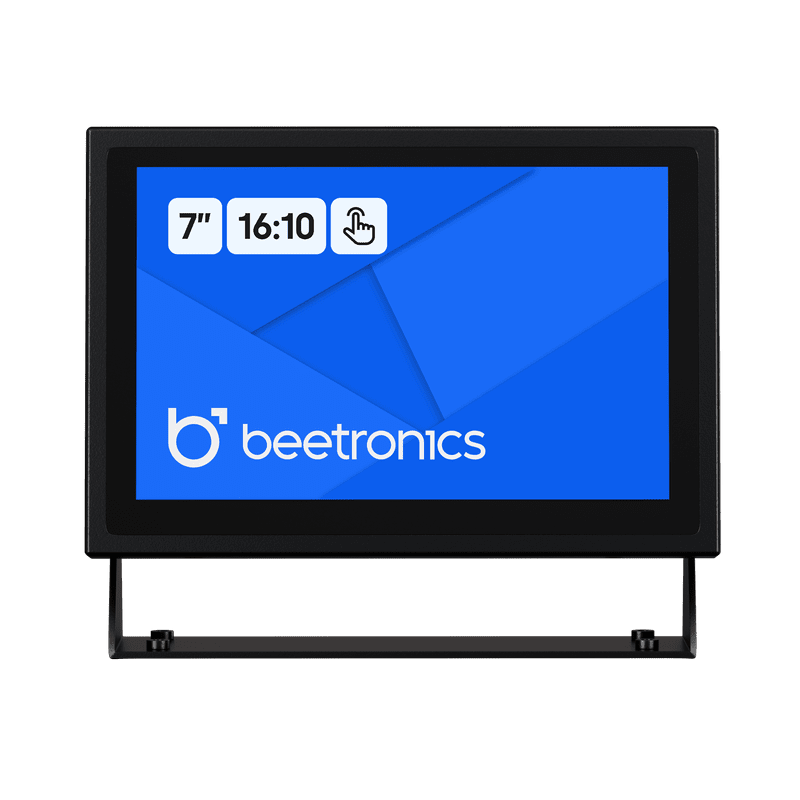

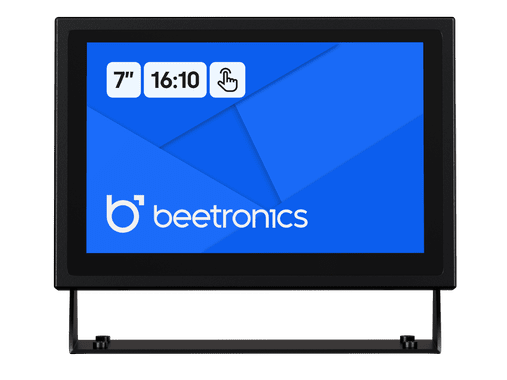

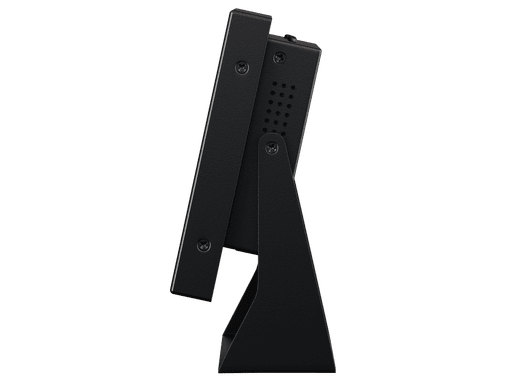

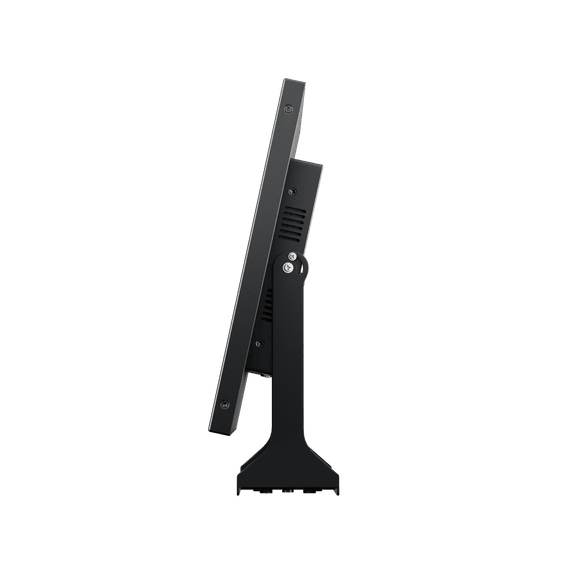

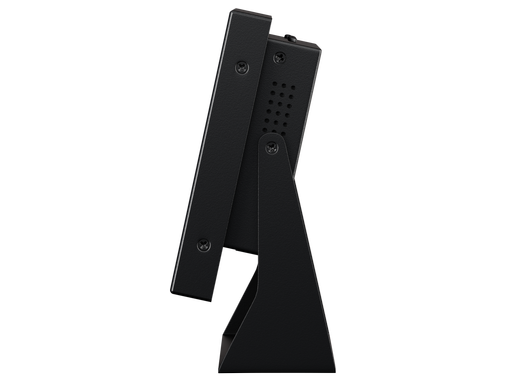

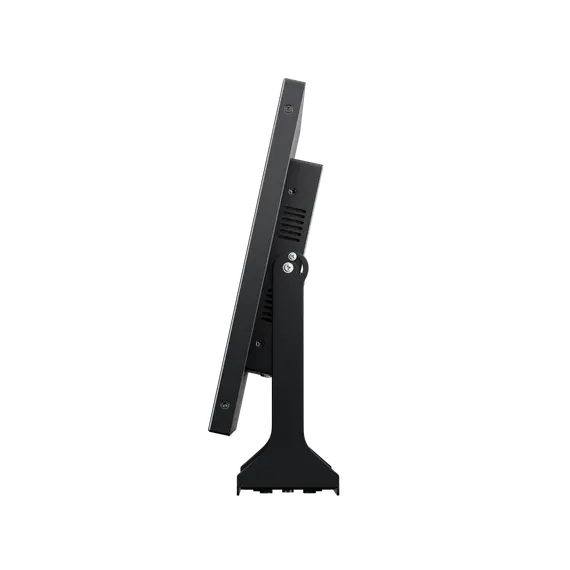

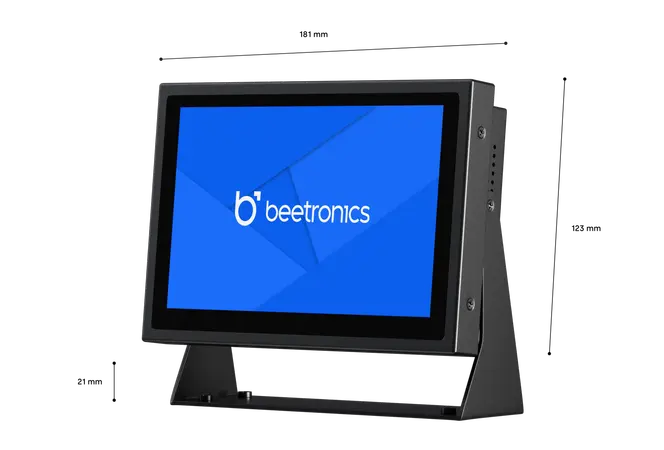

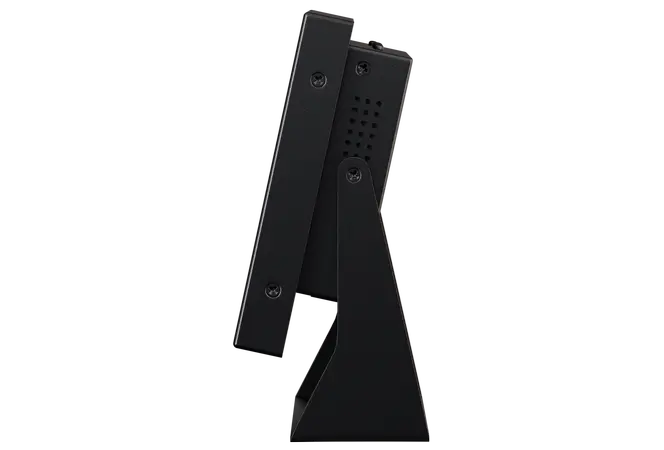

The Beetronics 7TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
7TS7M
|
Previous model |
7TS4M
|
Product name |
7 inch touchscreen metal
|
Warranty |
2 years
|
Datasheet | |
Manual |
Supported operating systems | |
---|---|
Windows |
(Windows 7, 8, 10)
|
Windows Embedded |
(Windows embedded 7, 8, 10)
|
Mac |
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
|
Linux |
|
Android |
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
|
Drivers |
No drivers needed. Plug & Play
|
Panel | |
---|---|
Type |
LED-IPS
|
Screen diagonal |
7.0 inches (178 mm)
|
Aspect ratio |
16:10 (16:9, 4:3 adjustable)
|
Native resolution |
1280 x 800
|
Supported resolutions |
1920 x 1200 (max), 640 x 480 (min)
|
Pixels per inch |
215 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Brightness |
400 cd/m2
|
Contrast |
800:1
|
Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
Touch control |
Stylus, hand, glove
|

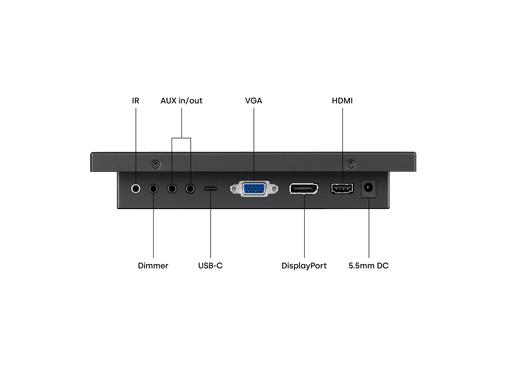

Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX input |
1x
|
AUX output |
1x
|
USB |
Only for touchscreen functionality
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
980 gram (1598 gram with stand)
|

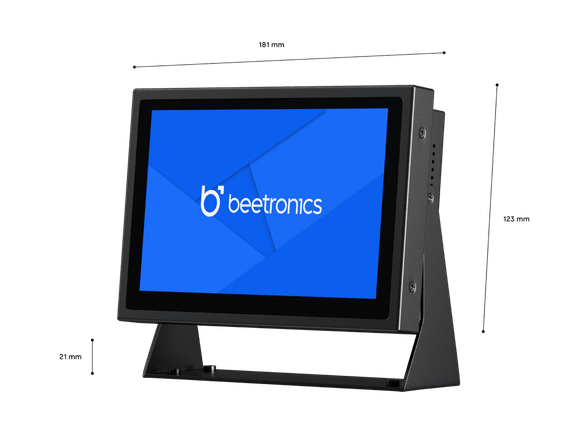

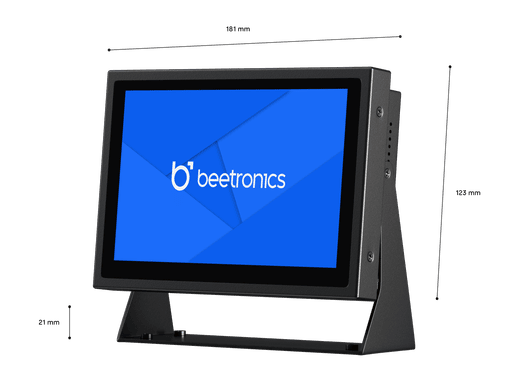

Width |
180 mm
|
Height |
123 mm (+0 to 39 mm with stand)
|
Thickness |
39 mm
|
Display dimensions |
151 x 95 mm
|
Technical drawing | |
3D drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 9-33V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
<12 Watt (0.5 Watt standby)
|
Environmental | |
---|---|
Operating temperature |
-20c° to +60c°
|
Storage temperature |
-20c° to +70c°
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Mounting strips included
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
IP rating |
IP65 front panel
|
Certifications |
CE, FCC, RoHS, REACH
|

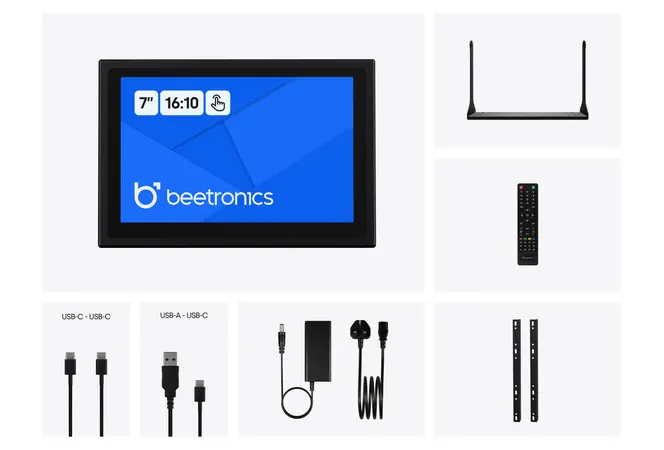

Package content | |
---|---|
Includes |

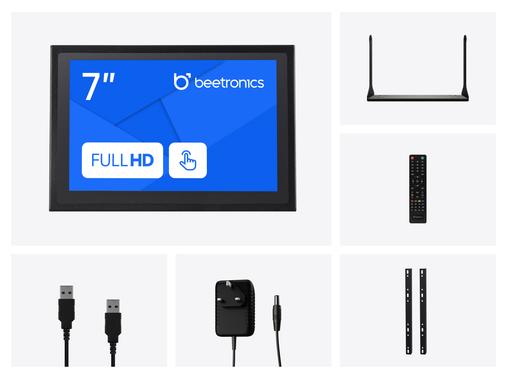

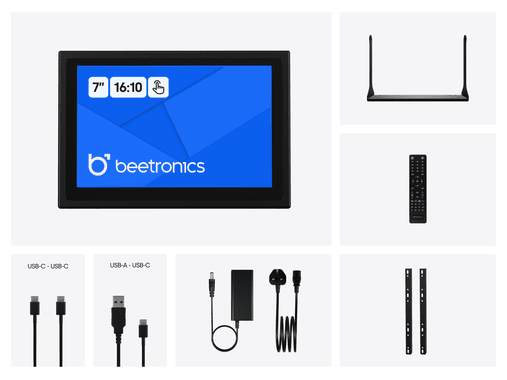

Touchscreen, USB cable, Remote control, Mains adaptor, Stand, Installation strips, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
3D drawing | Download CAD/STP |
Datasheet | Download PDF |
Files |
---|
Product name | Item number | In stock | Quantity | Price |
---|---|---|---|---|
![]()
7 inch touchscreen metal
|
7TS7M |
|
|
£265.00 |
![]() |
VWB1 |
|
|
£25.00 |
![]() |
VDK3 |
|
|
£35.00 |
![]() |
KHD2 |
|
|
£19.00 |
![]() |
VGA1 |
|
|
£19.00 |
![]() |
DMK7 |
|
|
£19.00 |
|
