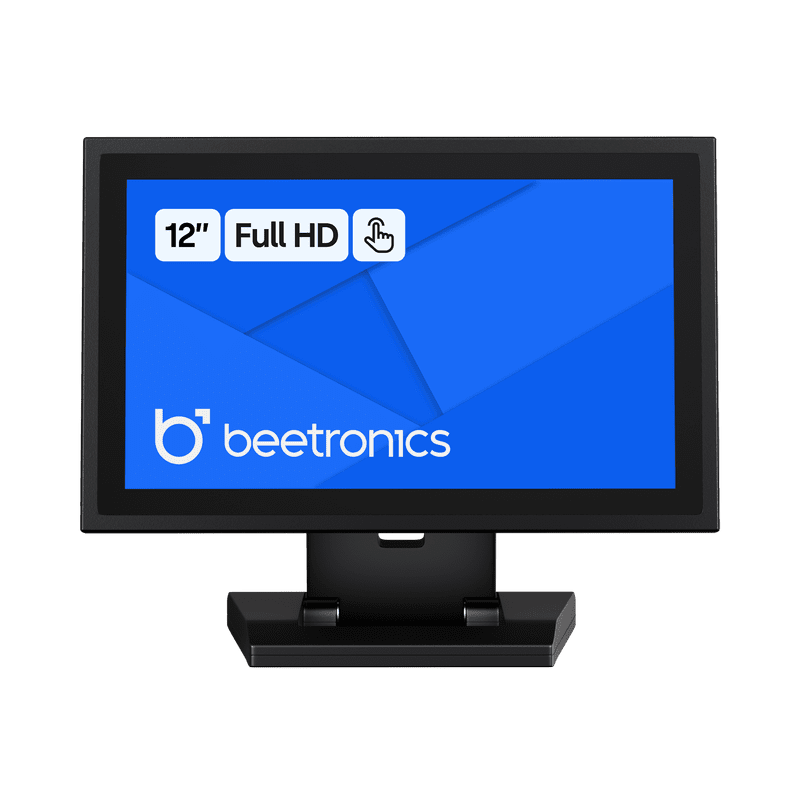

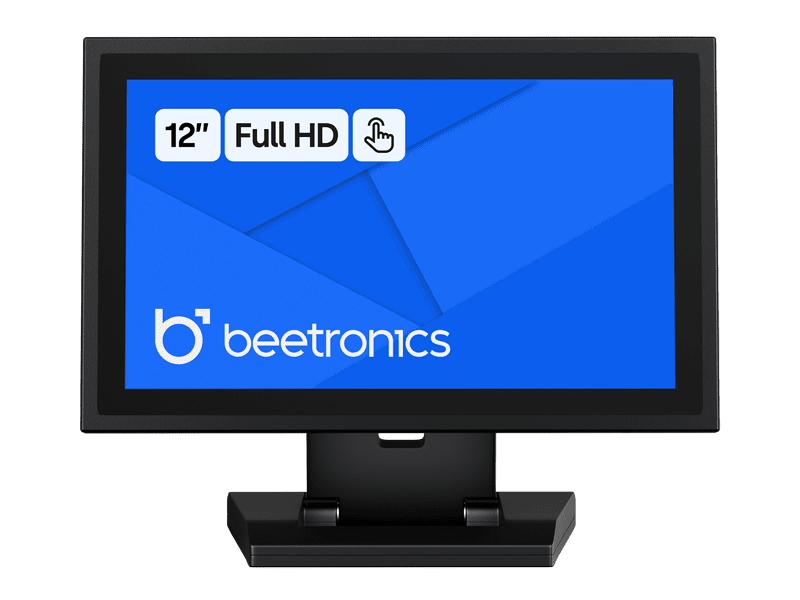

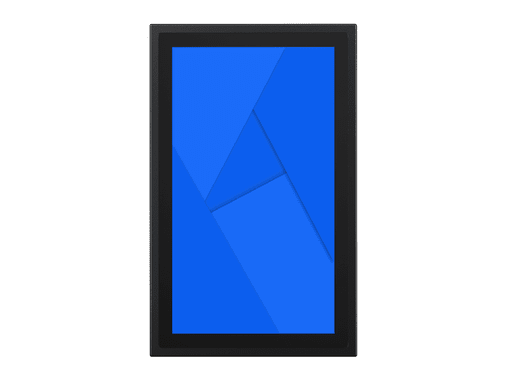

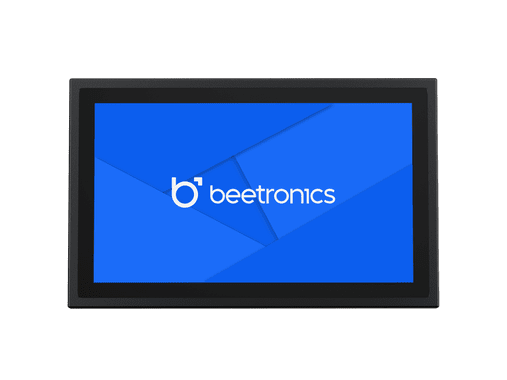

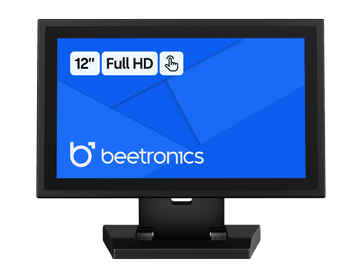

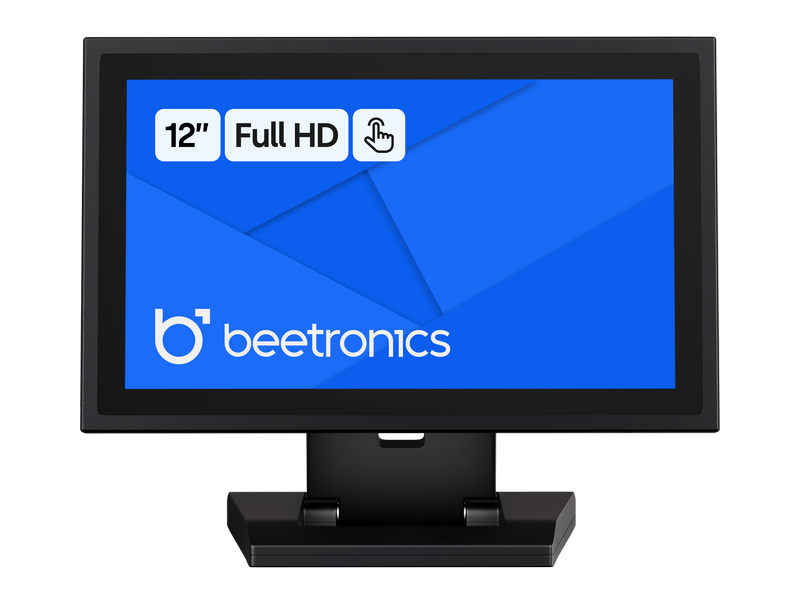

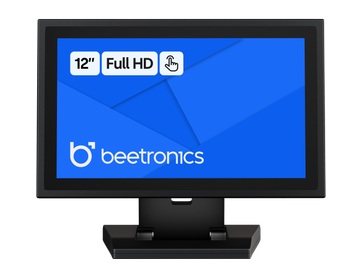

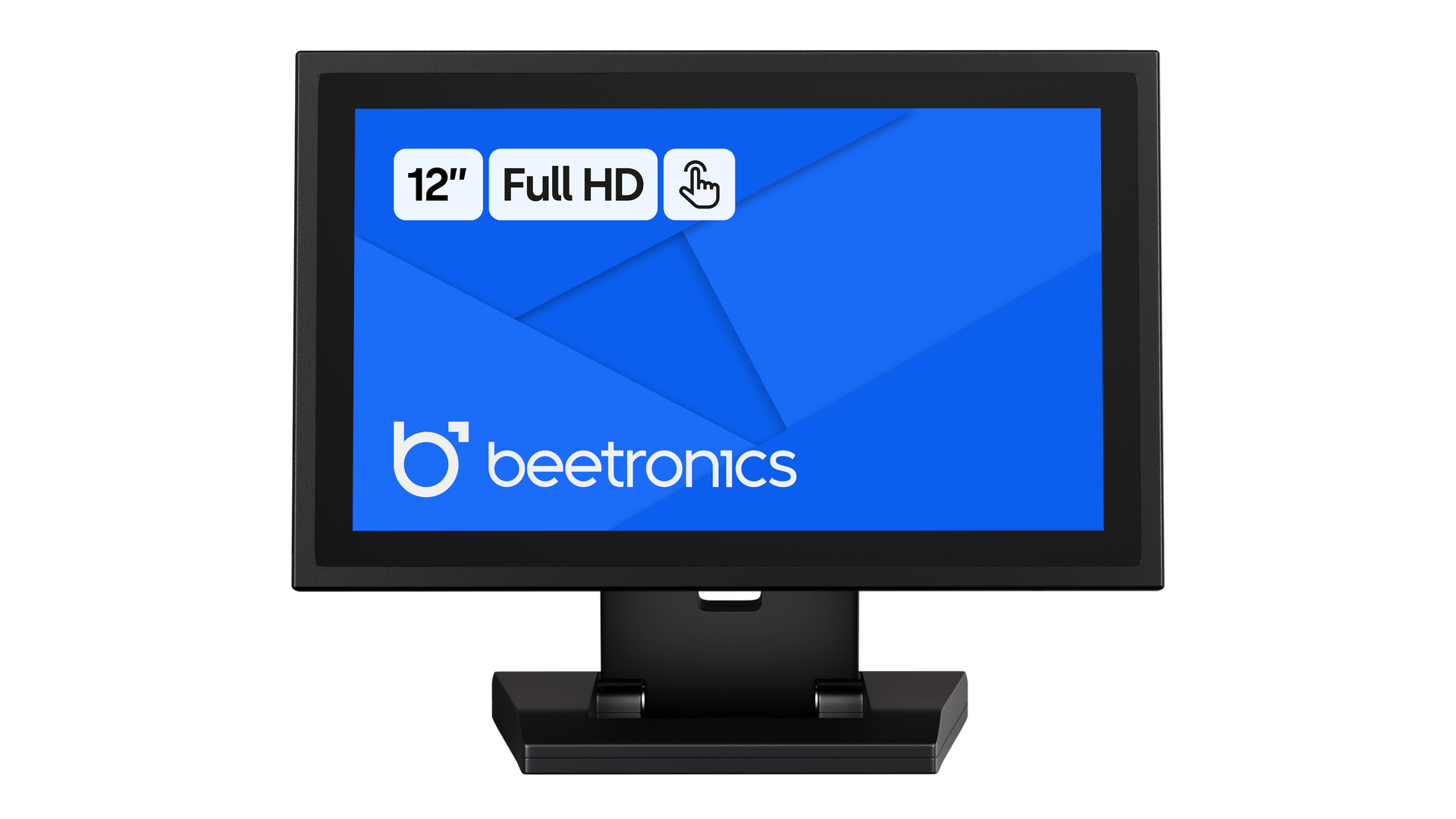

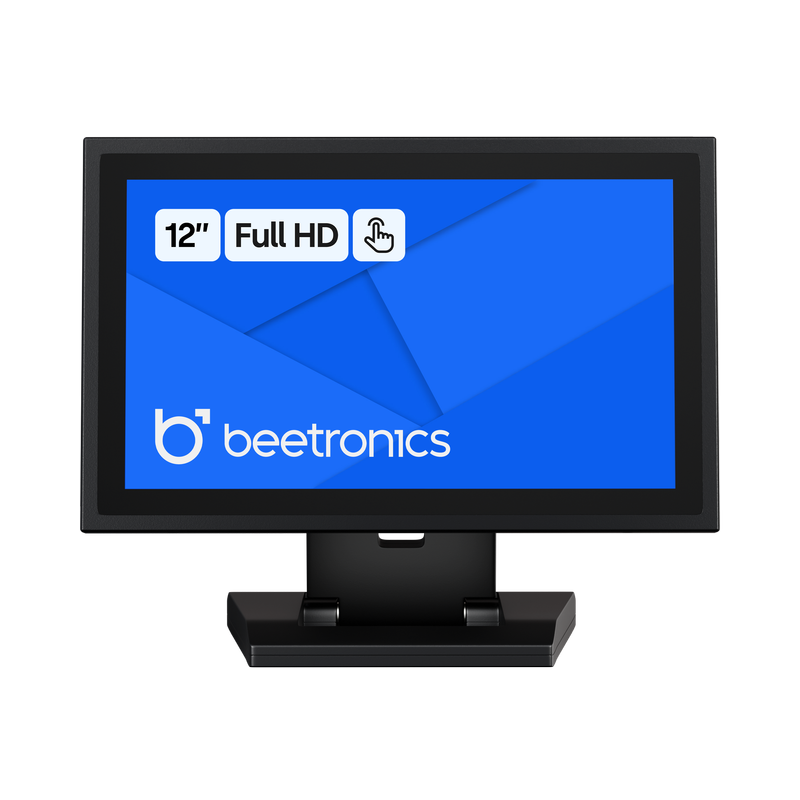

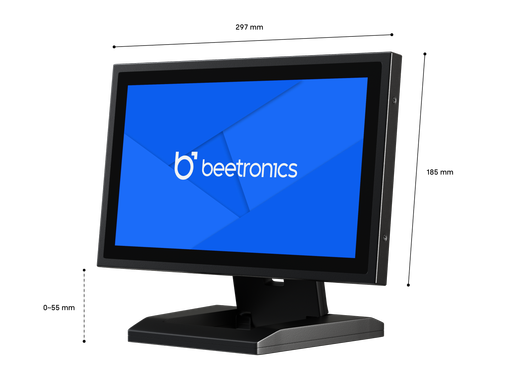

This Full HD 12 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 12TS5M provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.

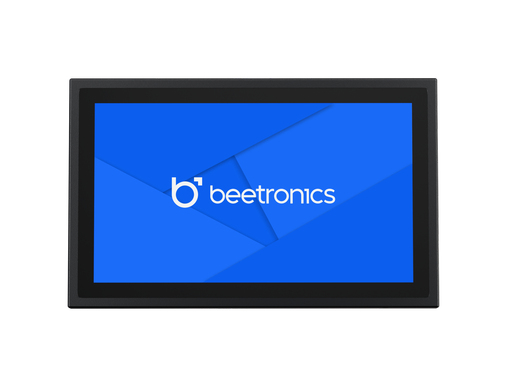

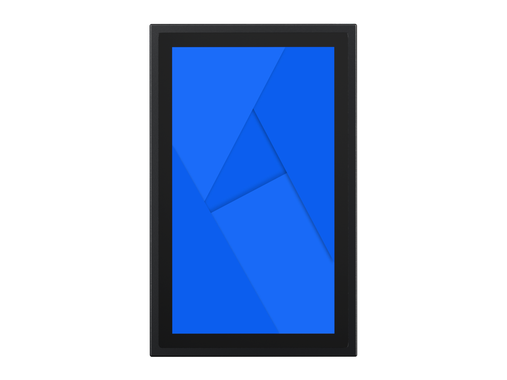

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 12TS5M has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

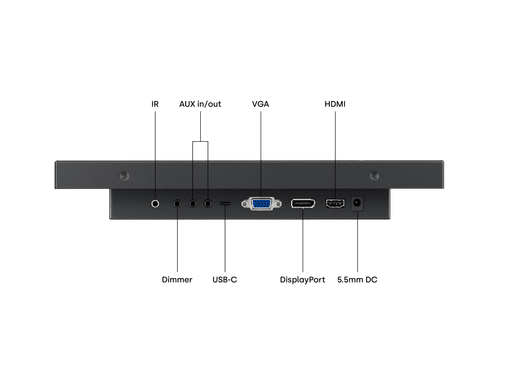

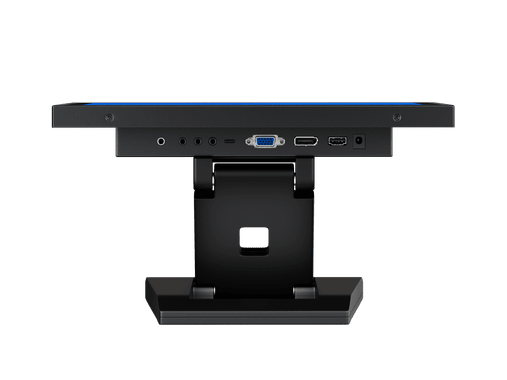

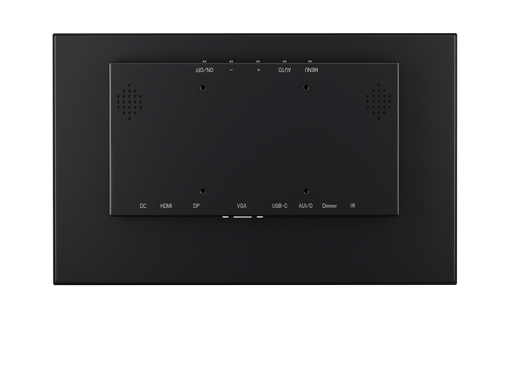

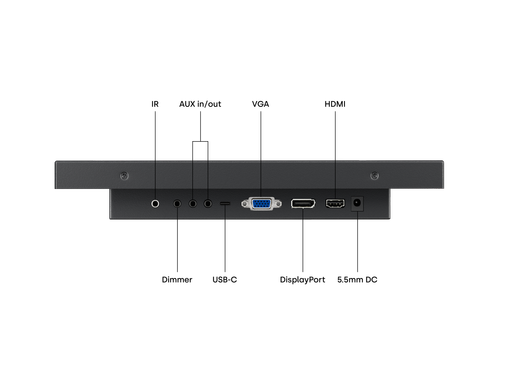

This touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

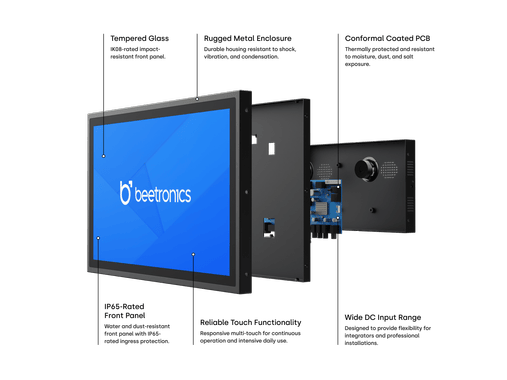

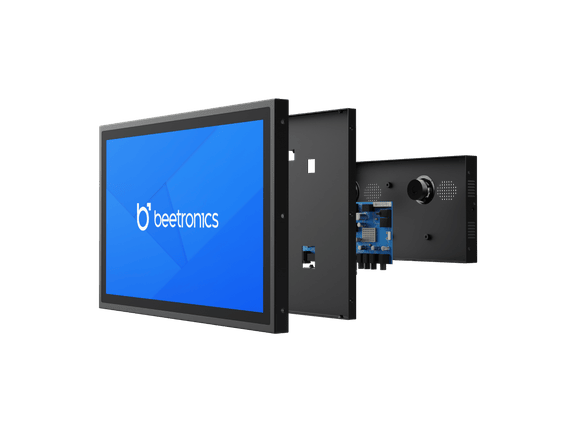

This touchscreen is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing the 12TS5M is ideal for professional use.

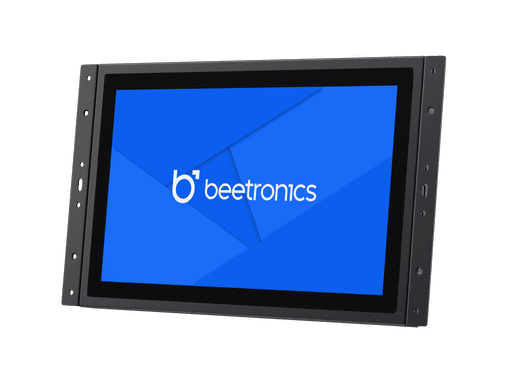

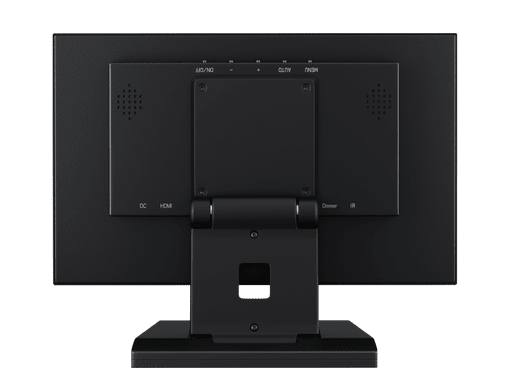

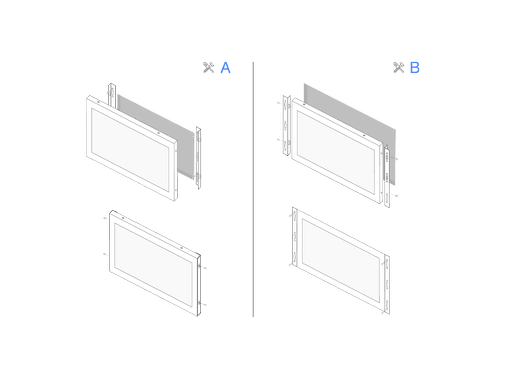

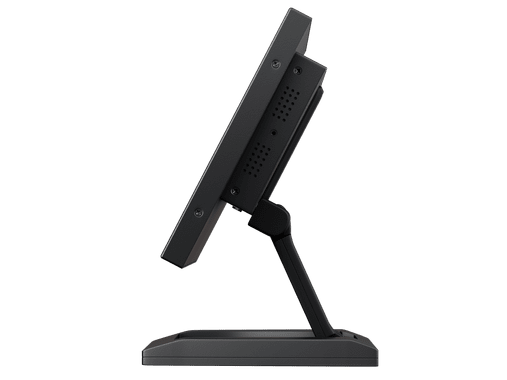

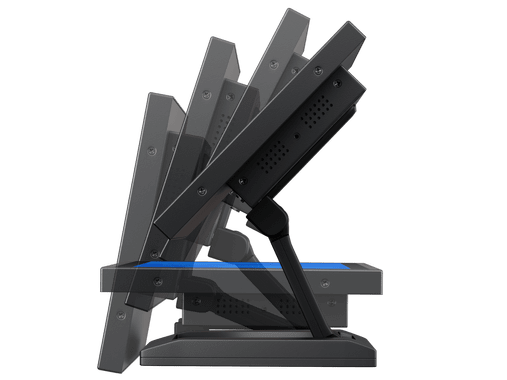

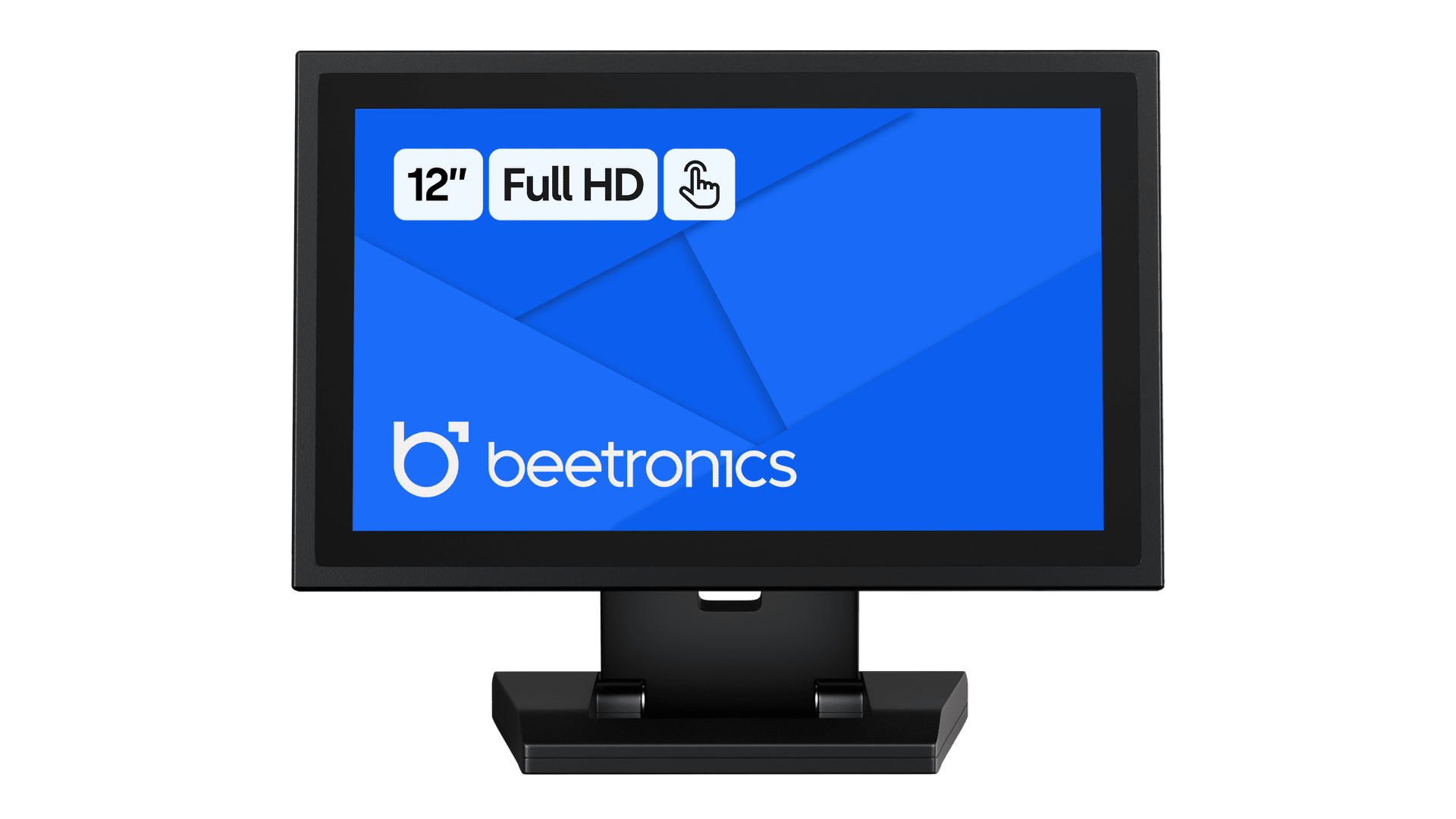

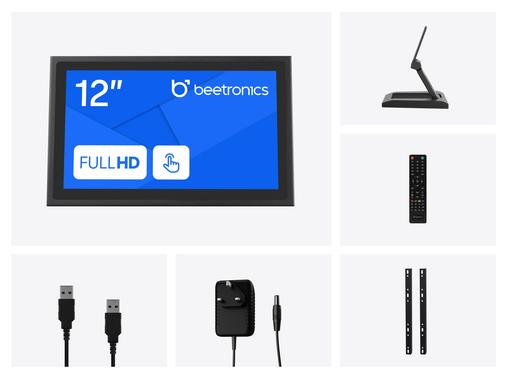

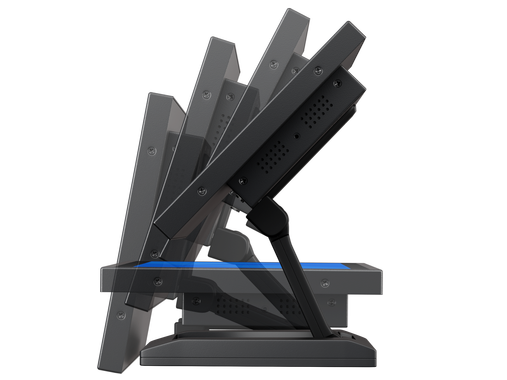

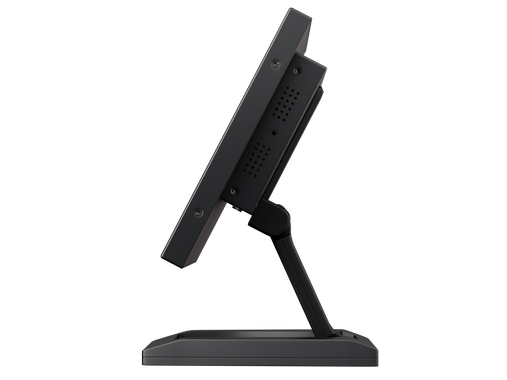

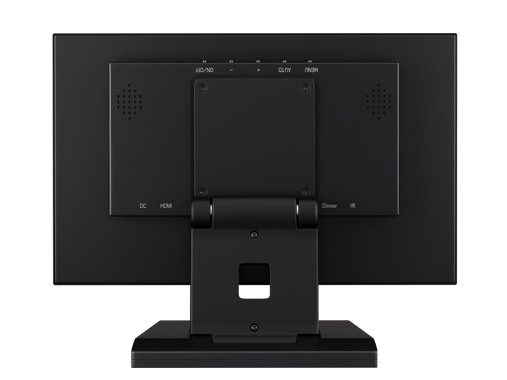

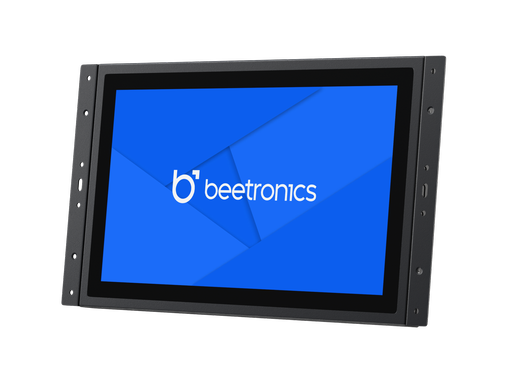

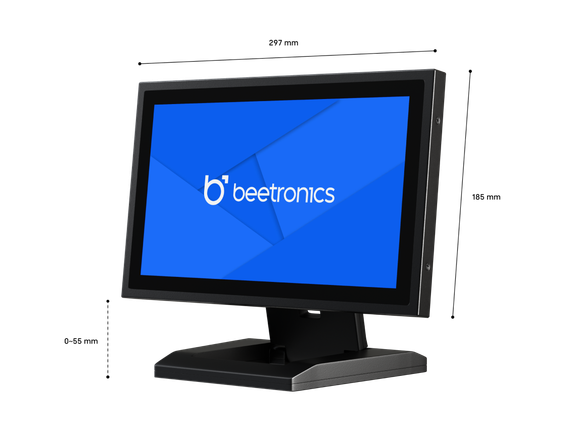

The Beetronics 12TS5M has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.
|Product name||12 inch touchscreen metal|
|Supported operating systems|
|Windows||(Windows 7, 8, 10)|
|Windows Embedded||(Windows embedded 7, 8, 10)|
|Mac||(Yosemite, El Capitan, Sierra, High Sierra, Mojave)|
|Android||(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)|
|Drivers||No drivers needed. Plug & Play|
|Diagonal size||11.6 inch (29,5 cm)|
|Native resolution||1920 x 1080|
|Supported resolutions||1920 x 1080 (max), 640 x 480 (min)|
|Pixels per inch||184 PPi|
|Technique||Capacitive, 10-point multitouch (PCAP)|
|Control||Stylus, hand, glove|
|Viewing angle||178° horizontal, 178° vertical|
|Aspect ratio||16:9 (4:3 adjustable)|
|Current||12 Volt (Mains adaptor included)|
|Consumption||<15 Watt (0.5 Watt standby)|
|Operation temperature||-20c° to +60c°|
|USB||Only for touchscreen functionality|

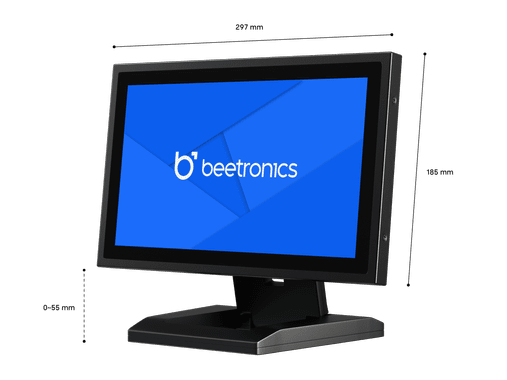

|Size & weight|
|Weight||1290 gram (1710 gram with stand)|
|Height||185 mm (+0 to 39 mm with stand)|
|Display dimensions||281 x 169 mm|
|Technical drawing||Download PDF|
|Key-lock||The control buttons can be blocked|
|Auto-on||Automatically powers on when it receives current or a signal|
|Dimmable||Adjustable backlight brightness|
|Mirroring||Image can be mirrored, horizontally and vertically|
|Wall mount||VESA (75 mm)|

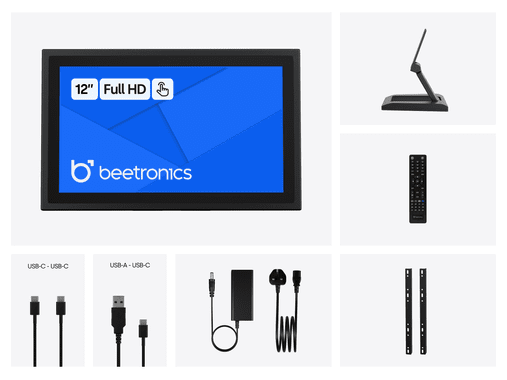

|Flush mount||Mounting strips included|
|Stand||Adjustable and detachable|
