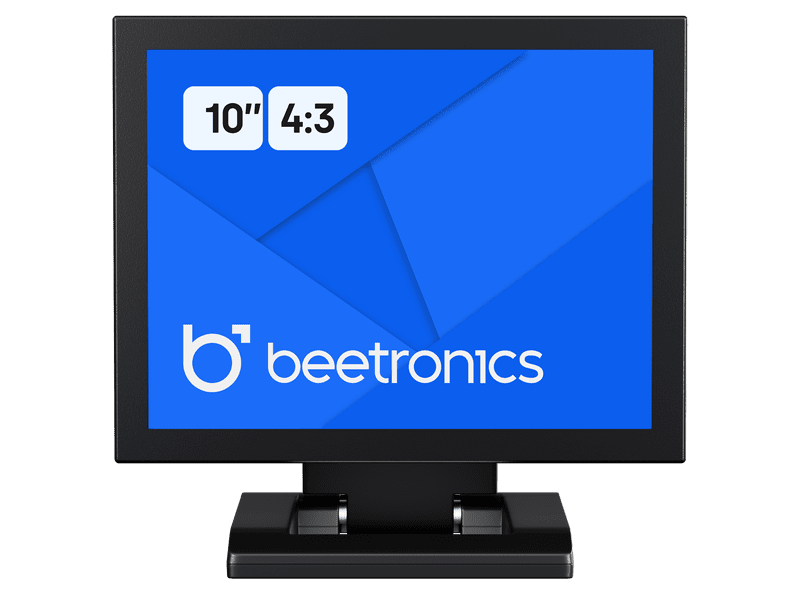

10 inch monitor metal (4:3)

  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable

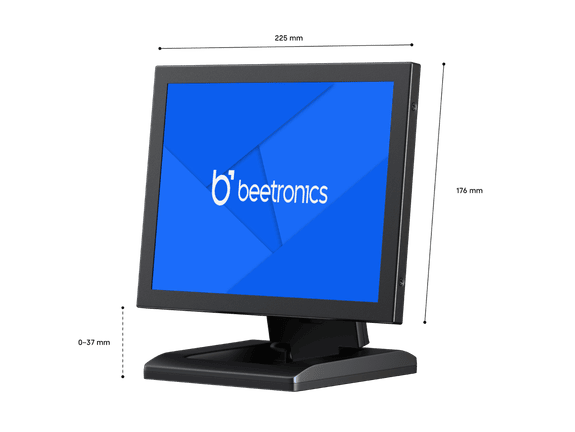

  4. 225 x 176 x 32 mm
Item number: 10VG3
100+ units in stock

Order before 10:00 pm for free delivery on wednesday

£209.00 £174.17 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

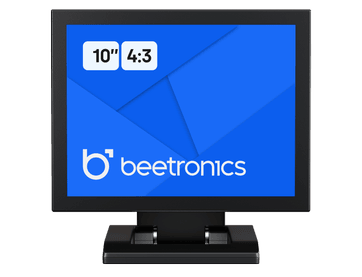

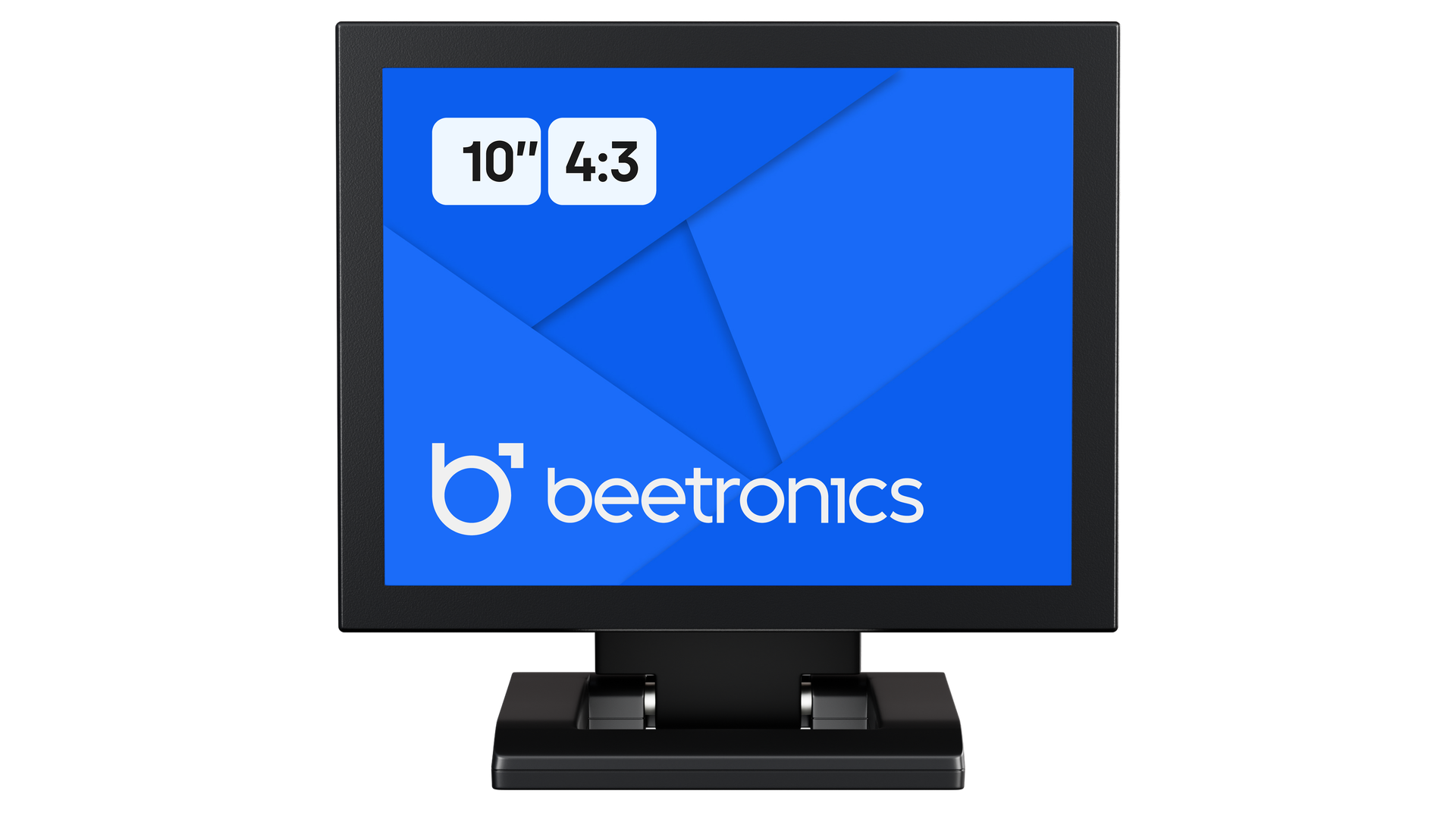

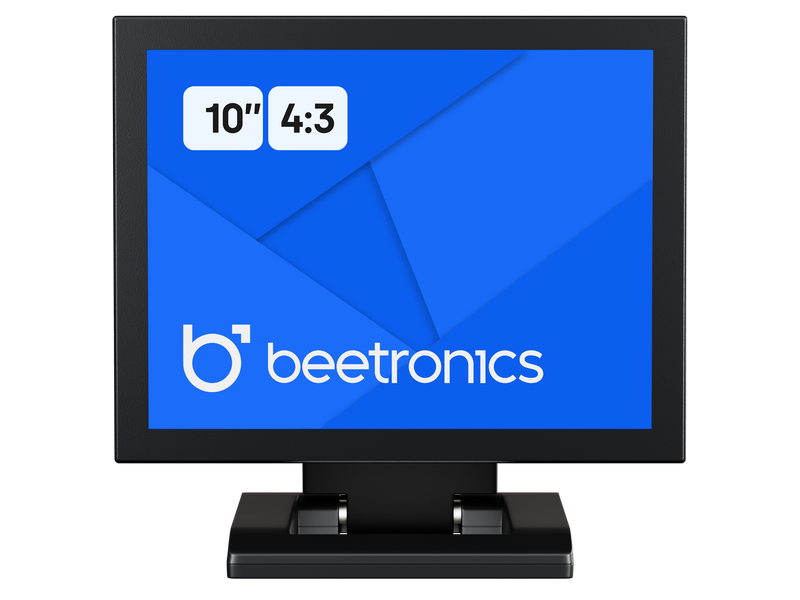

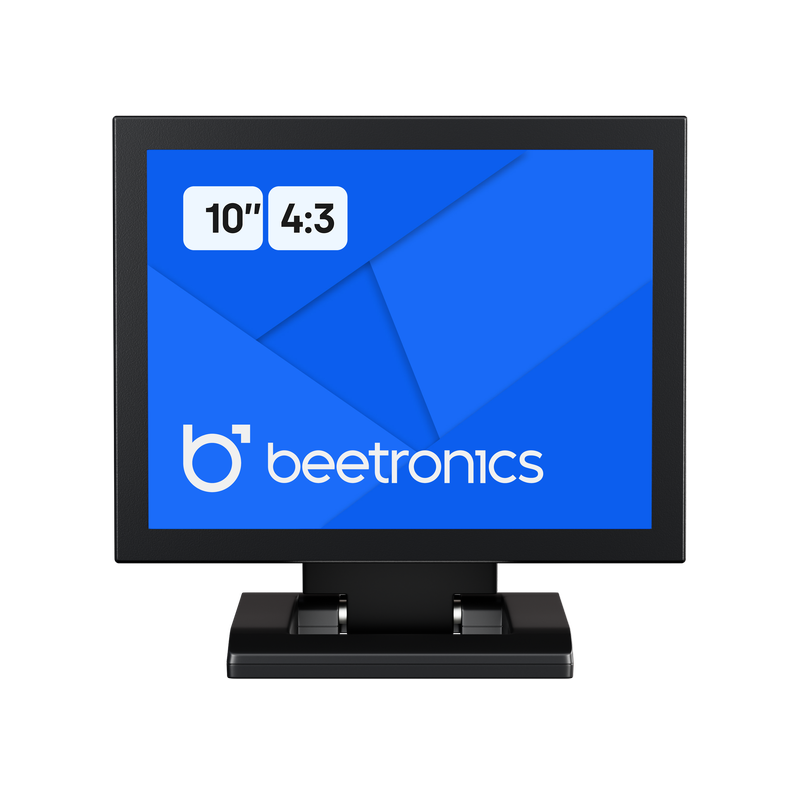

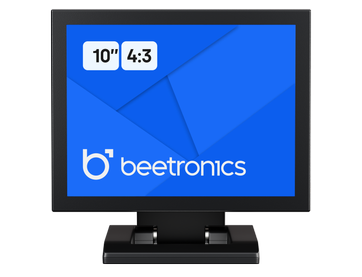

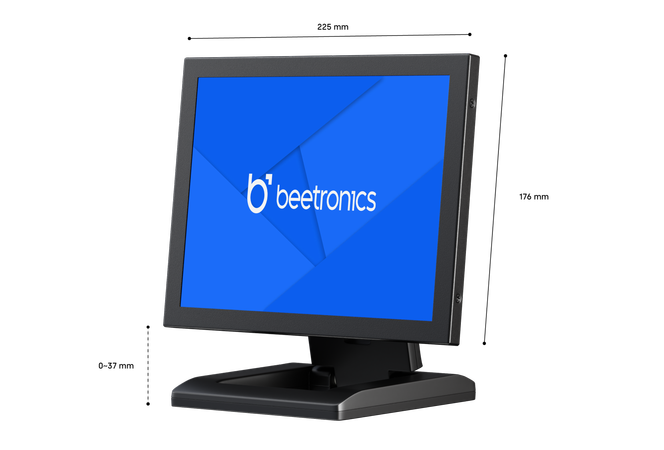

This 10 inch monitor has a sturdy metal housing and is suitable for desktop, flush and wall mounting. The monitor is equipped with an IPS panel with a 4:3 aspect ratio which provides crystal-clear image quality with excellent 178° viewing angles. The 10VG3 can be connected through a HDMI, VGA, BNC or RCA connection.

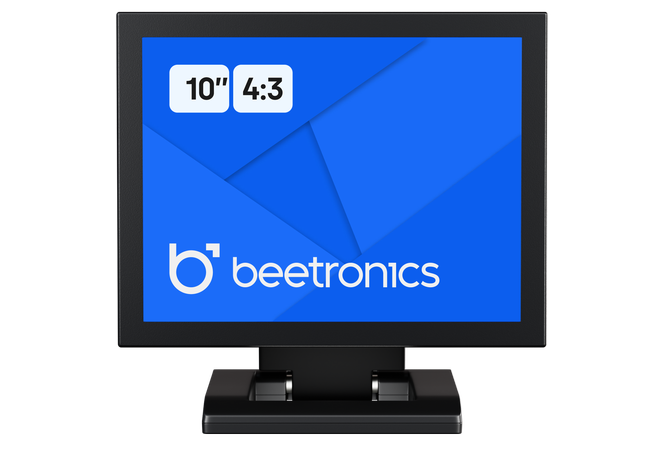

4:3 aspect ratio

The 10 inch monitor is equipped with an IPS panel with a 4:3 aspect ratio. The monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust.

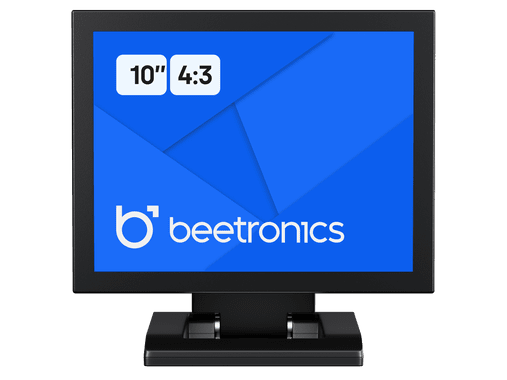

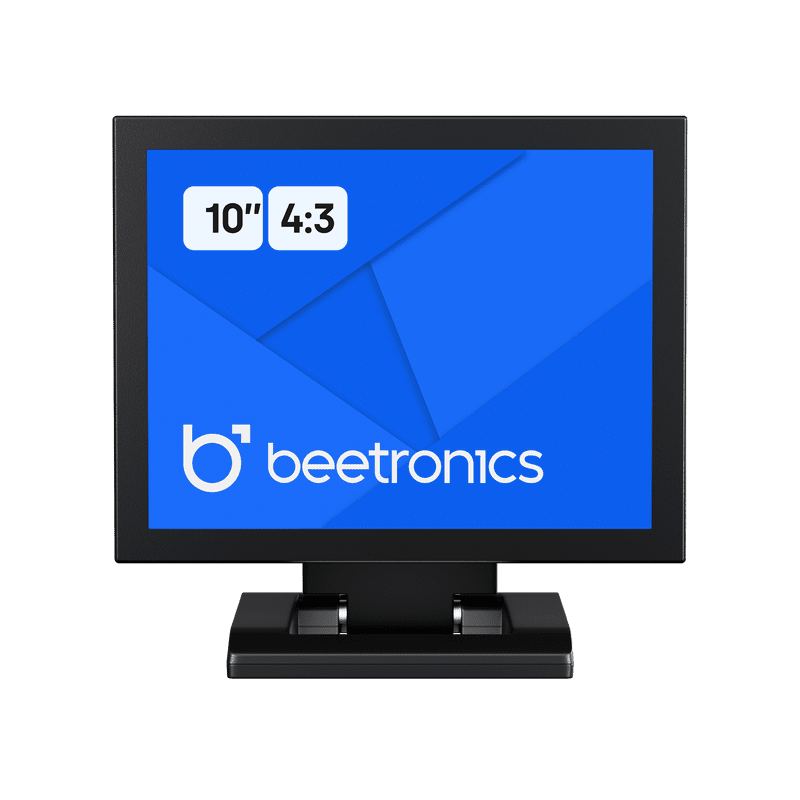

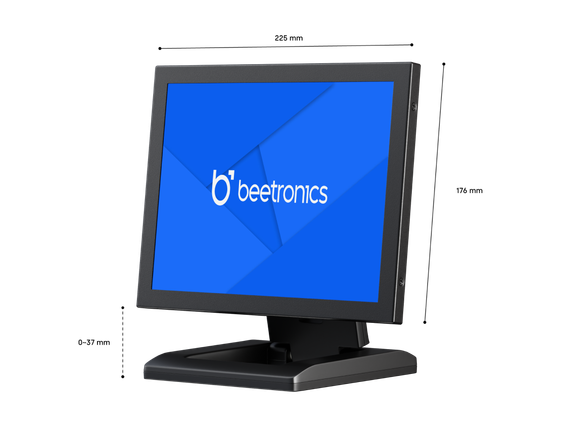

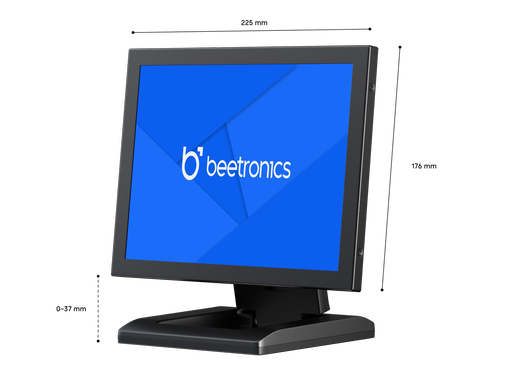

10 inch monitor with 4:3 ratio

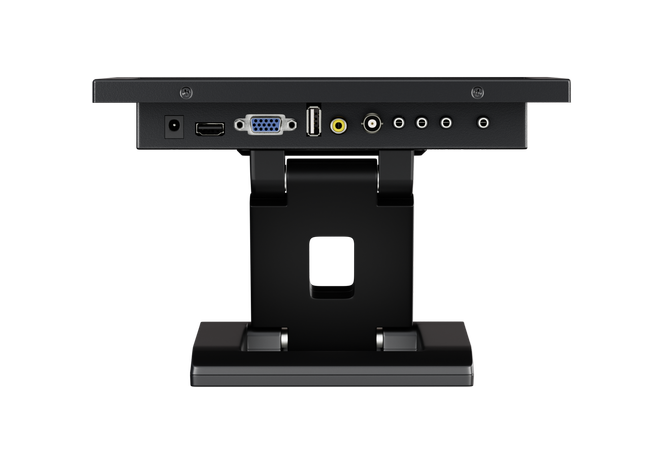

Input: HDMI, VGA, BNC and RCA

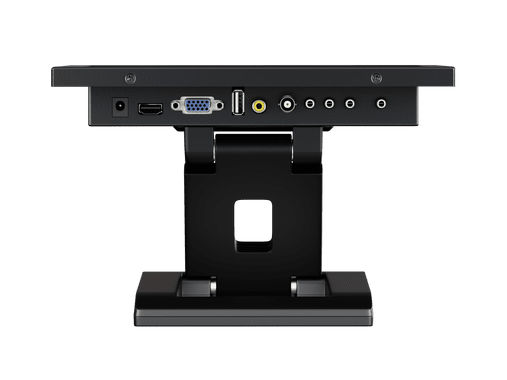

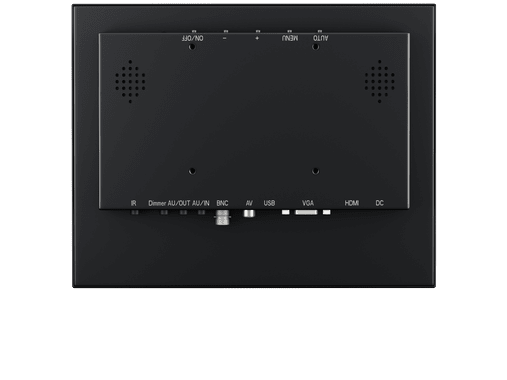

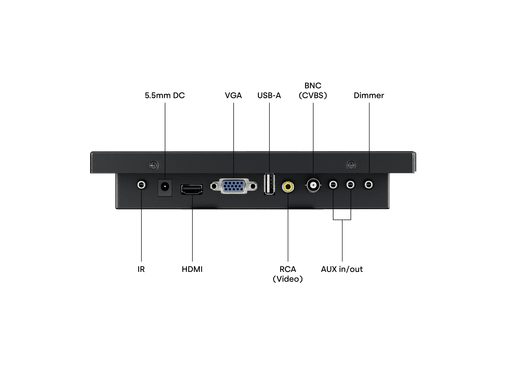

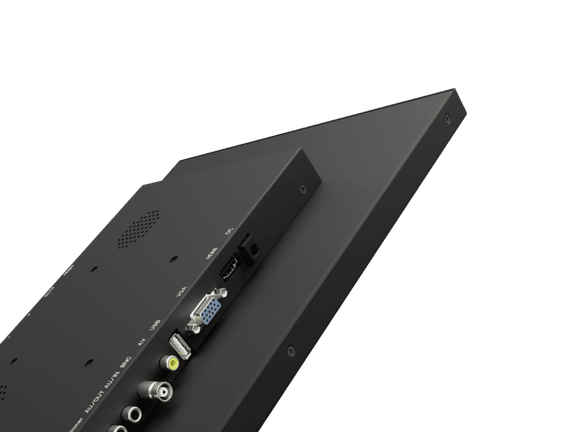

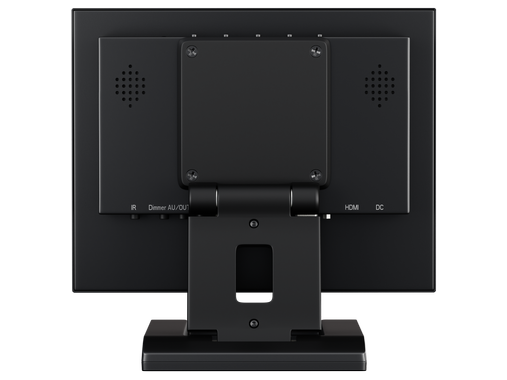

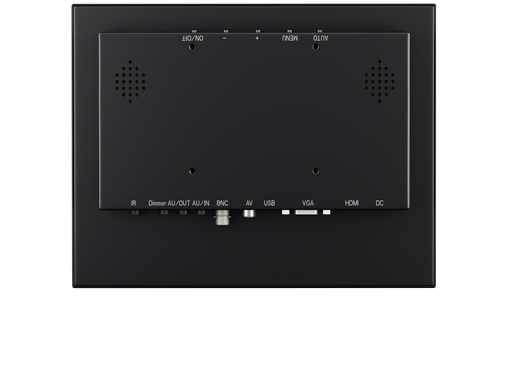

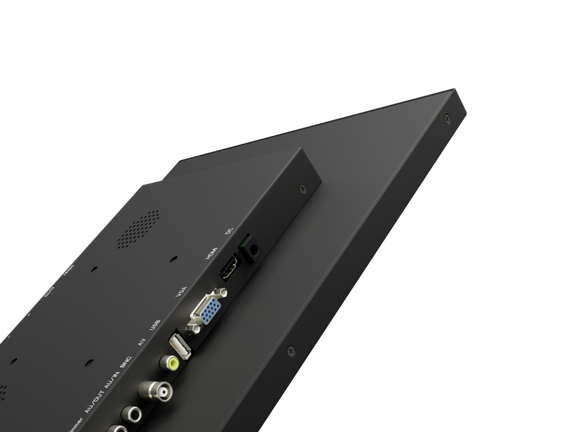

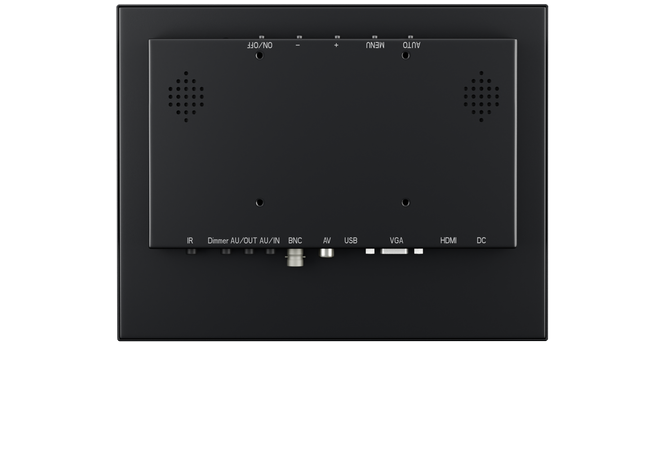

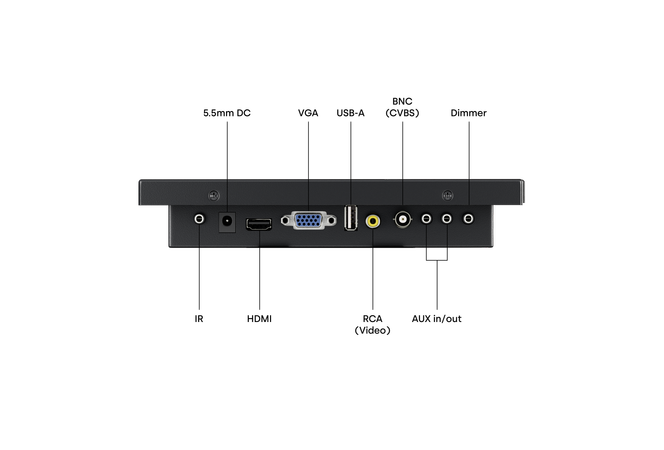

The 10VG3 monitor has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.

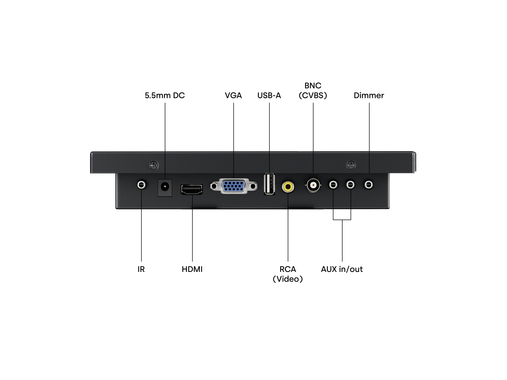

10 inch 4:3 ratio screen hdmi bnc

Designed for professional use

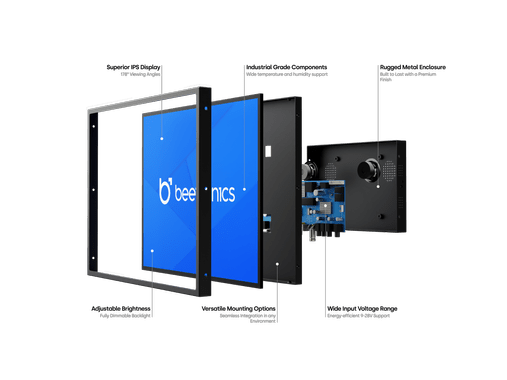

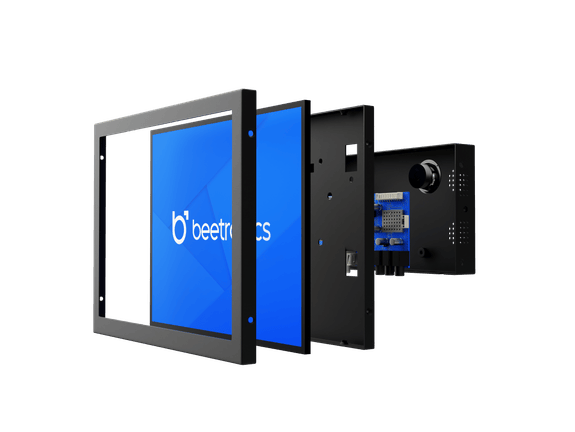

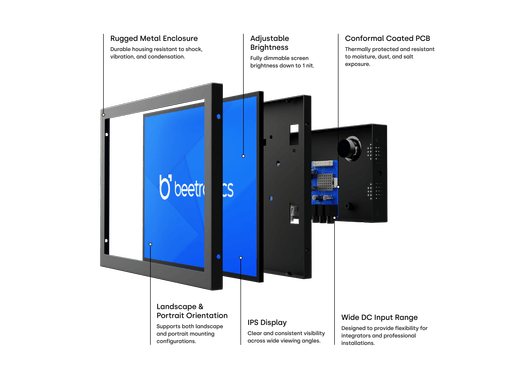

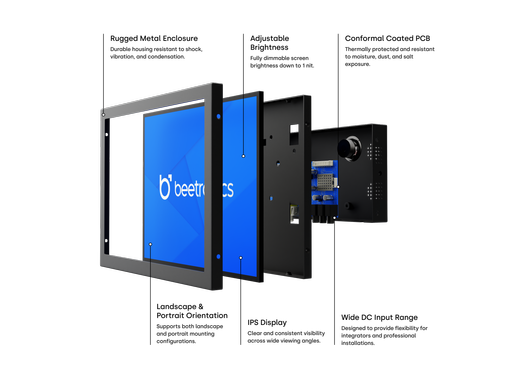

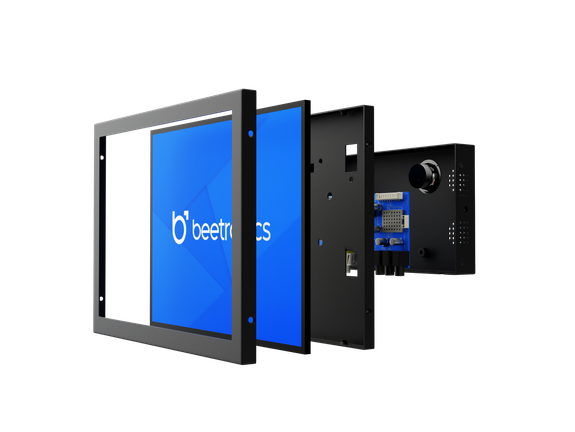

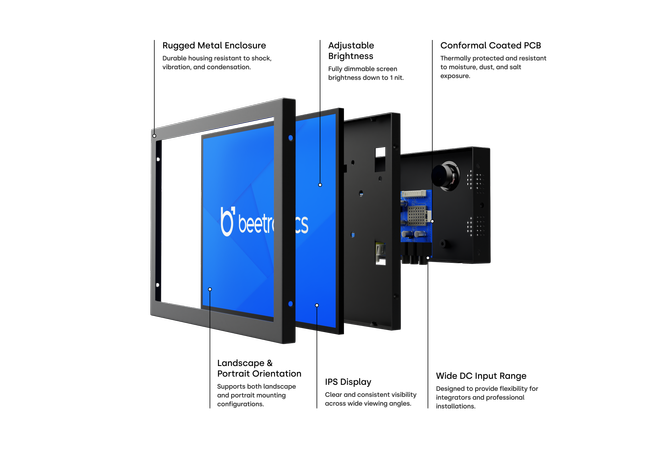

The 10VG3 has a sturdy metal housing and dimmable panel. The monitor is manufactured with high quality components that guarantee reliable operation. The 10VG3 is suitable for continuous operation and ideal for professional use.

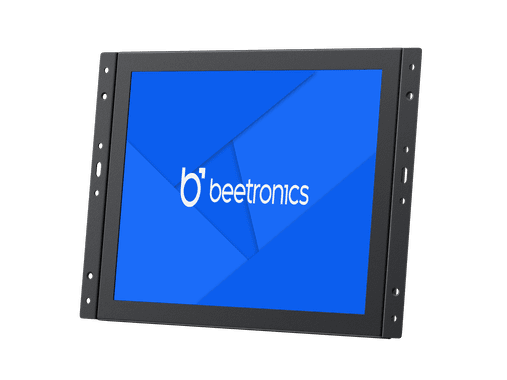

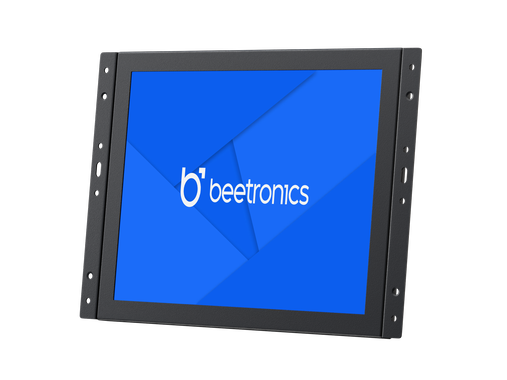

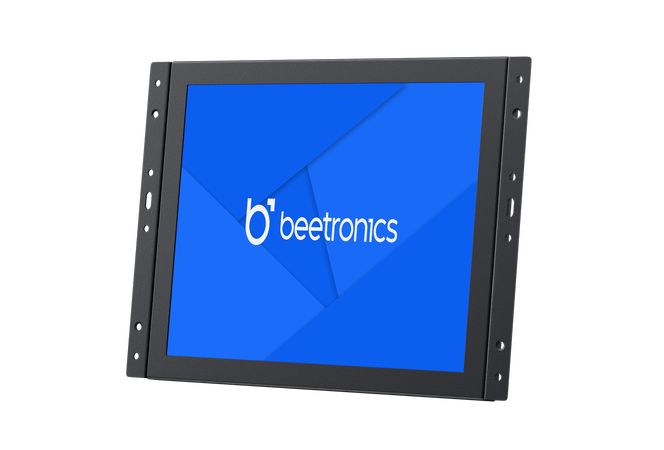

10 inch flush mount open frame monitor

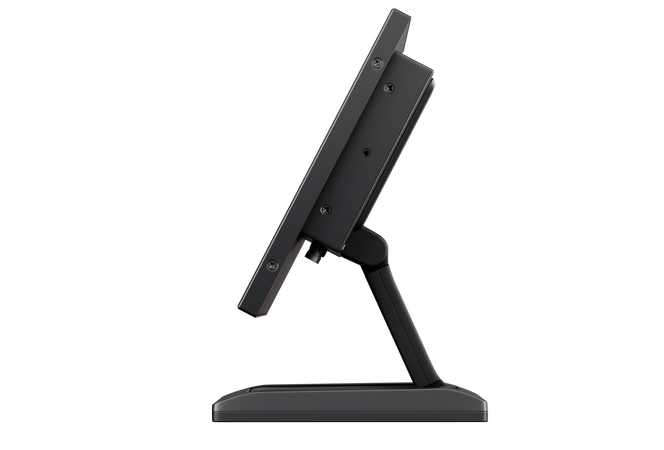

Desktop, flush and wall mountable

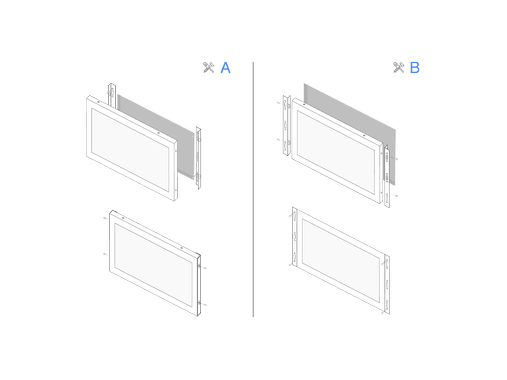

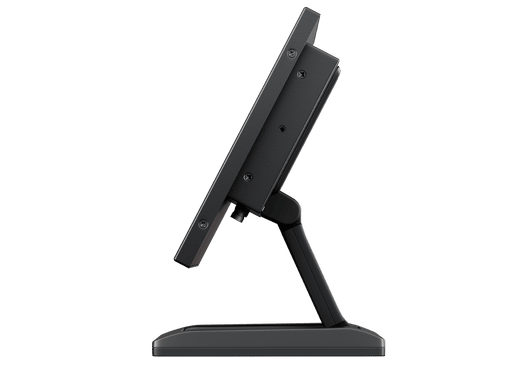

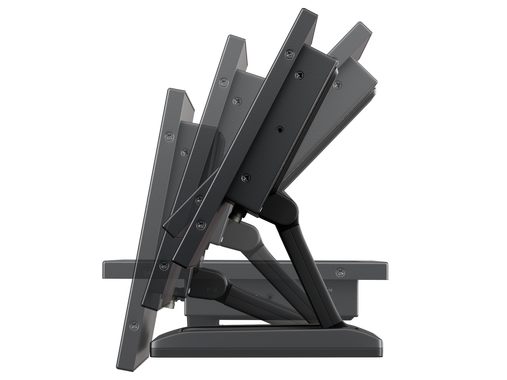

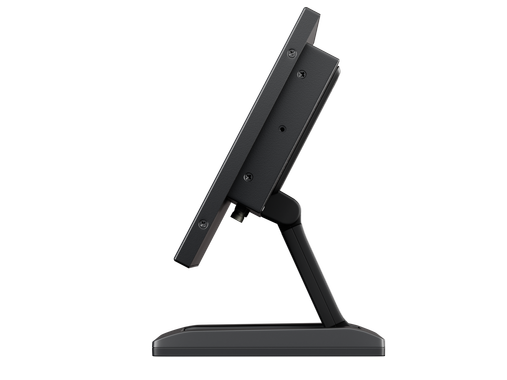

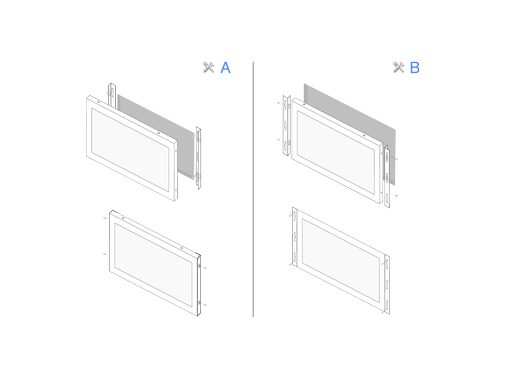

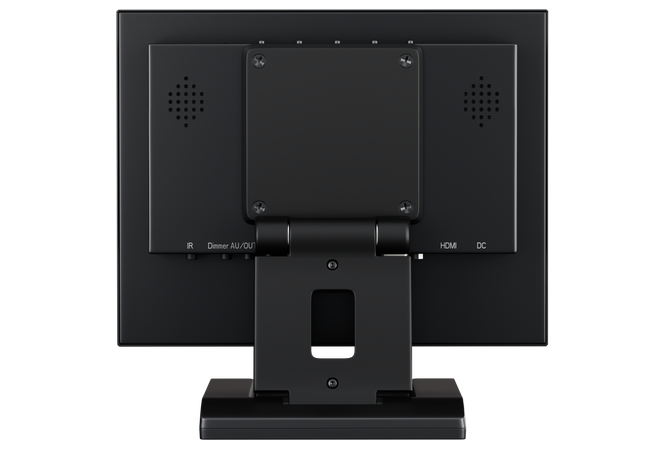

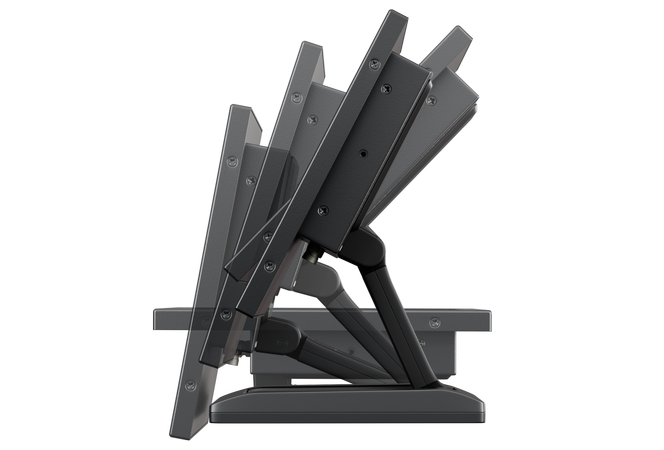

The Beetronics 10VG3 has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

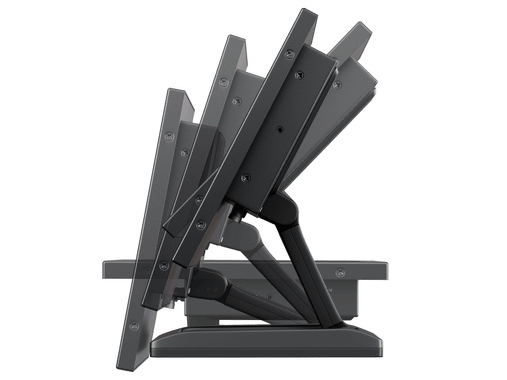

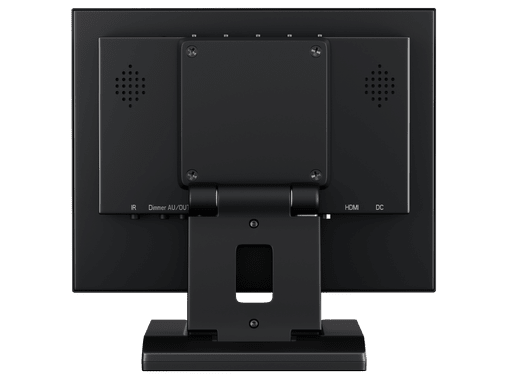

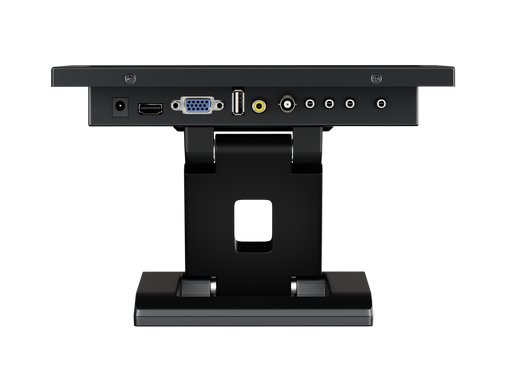

10 inch monitor collapsible stand
General
Manufacturer
Beetronics
Item number
10VG3
Product name
10 inch monitor metal (4:3)
Warranty
2 years
Datasheet
Manual
Panel
Type
Matte, LED-IPS
Screen diagonal
9 inch (22,8 cm)
Aspect ratio
4:3
Native resolution
1024 x 768
Supported resolutions
1920 x 1200 (max), 640 x 480 (min)
Pixels per inch
127 PPi
Viewing angle
178° horizontal, 178° vertical
Colour encoding system
PAL/NTSC/SECAM
Brightness
350 cd/m2
Contrast
800:1
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX output
1x
USB
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
Size & weight
Colour
Black
Weight
1250 gram (1670 gram with stand)
Width
225 mm
Height
176 mm (+0 to 39 mm with stand)
Thickness
32 mm
Display dimensions
199 x 150 mm
Technical drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 12V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<12 Watt (0.5 Watt standby)
Environmental
Operating temperature
-20c° to +60c°
Storage temperature
-20c° to +70c°
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH

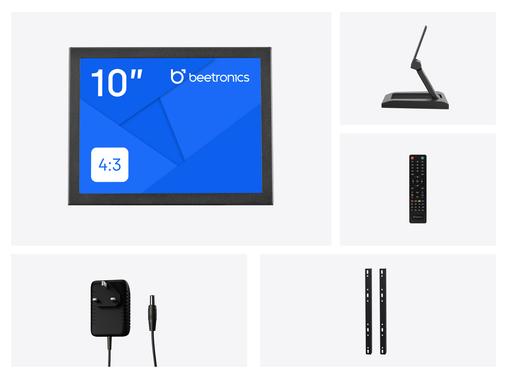

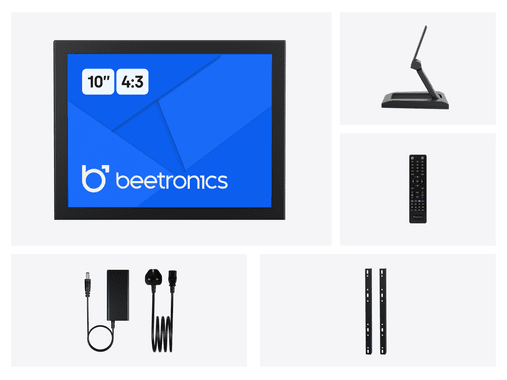

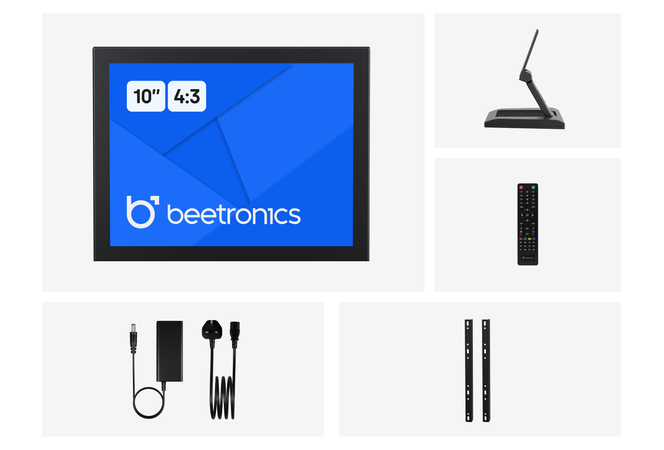

Package content
Includes
Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
AUX(output)
AUX_audio_35mm
USB(media)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
Files
Product name Item number In stock Quantity Price

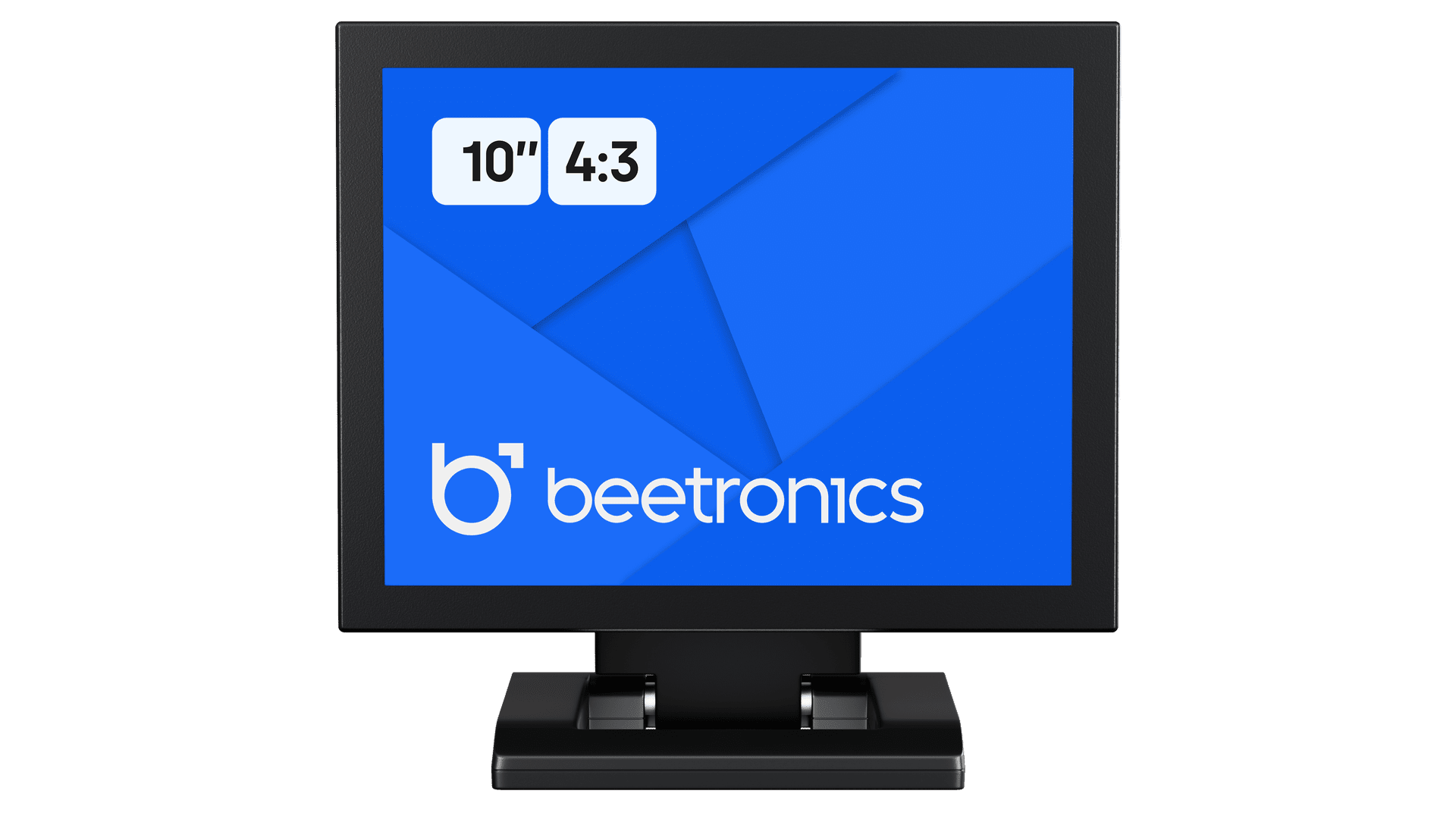

10 inch monitor metal (4:3)
