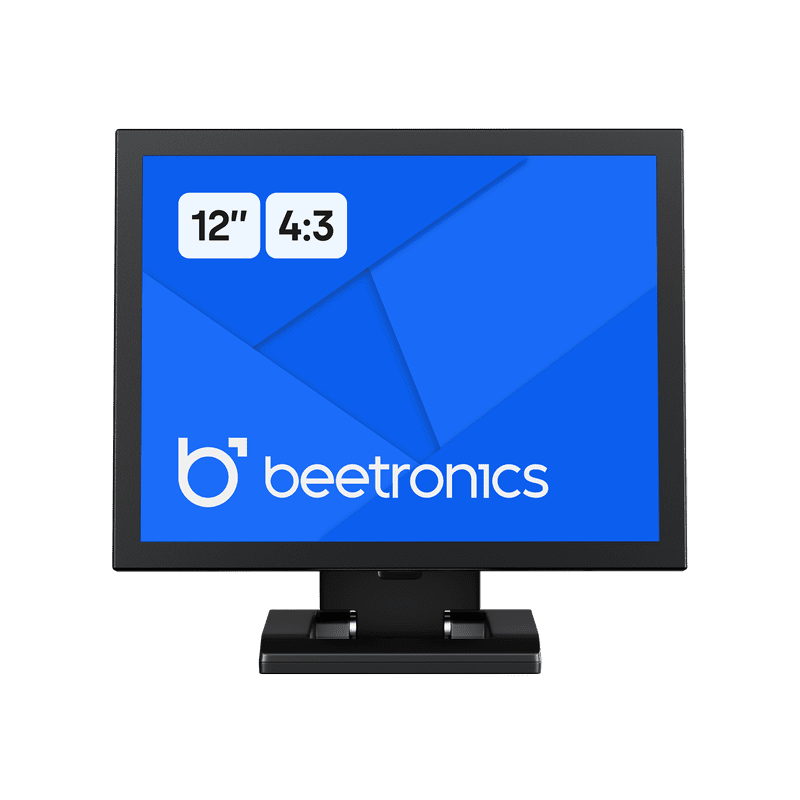

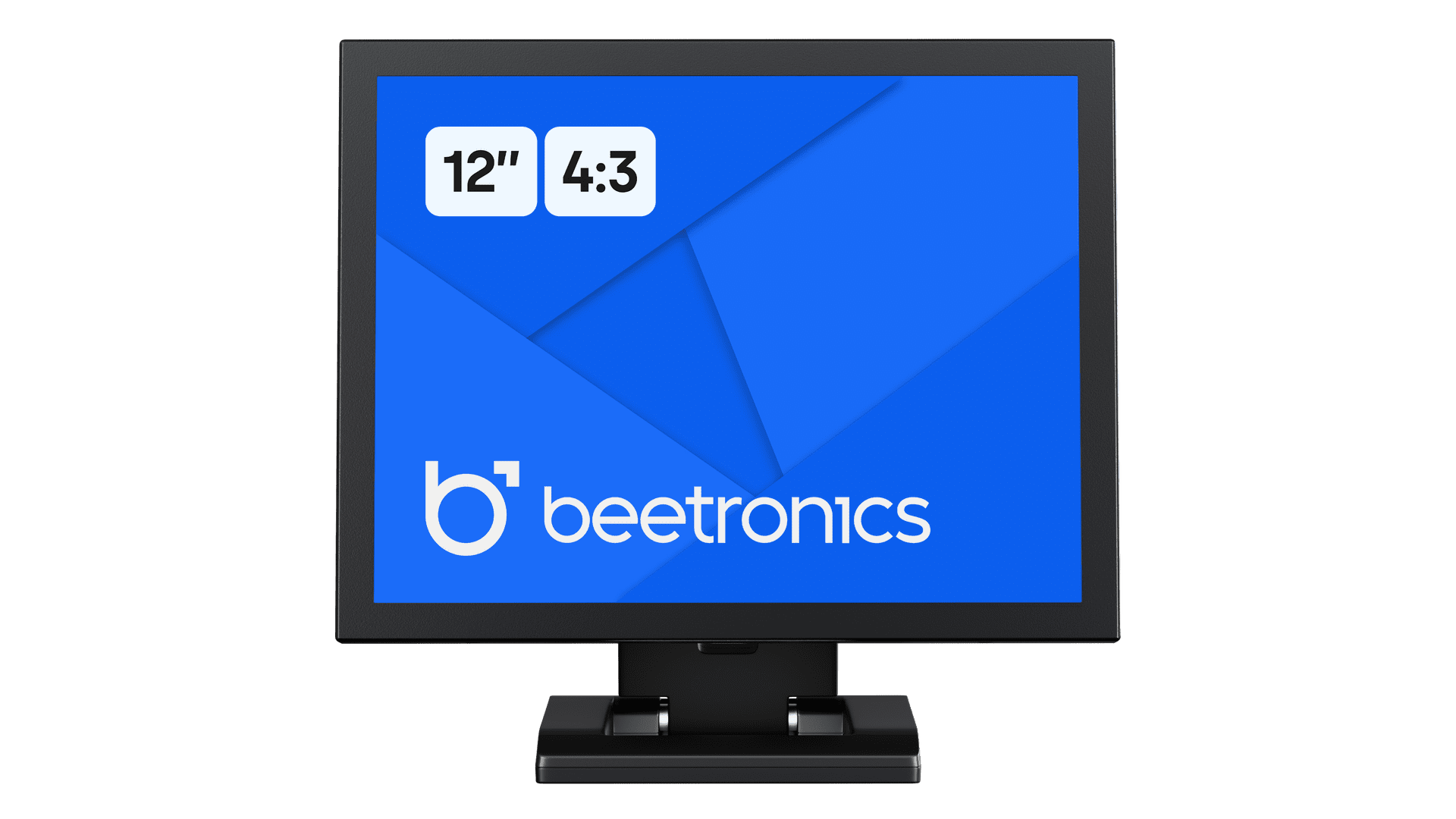

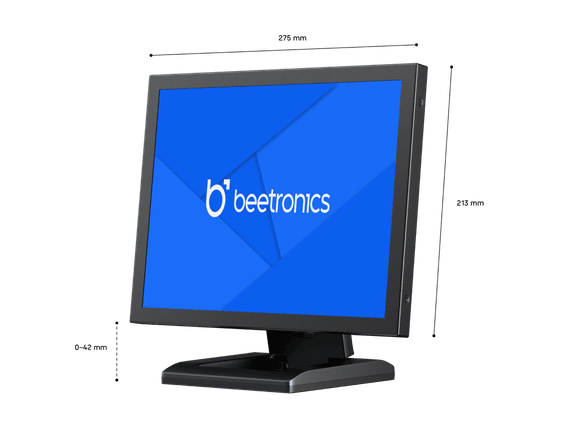

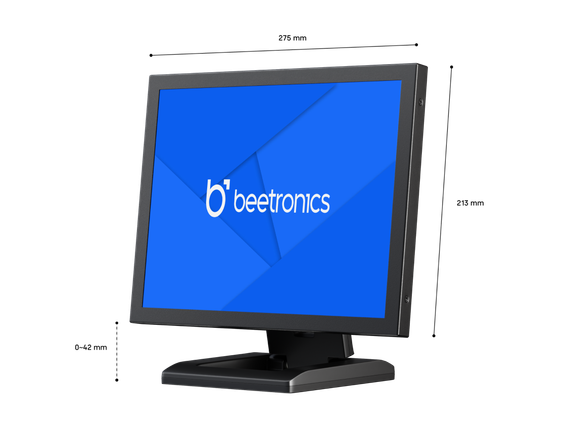

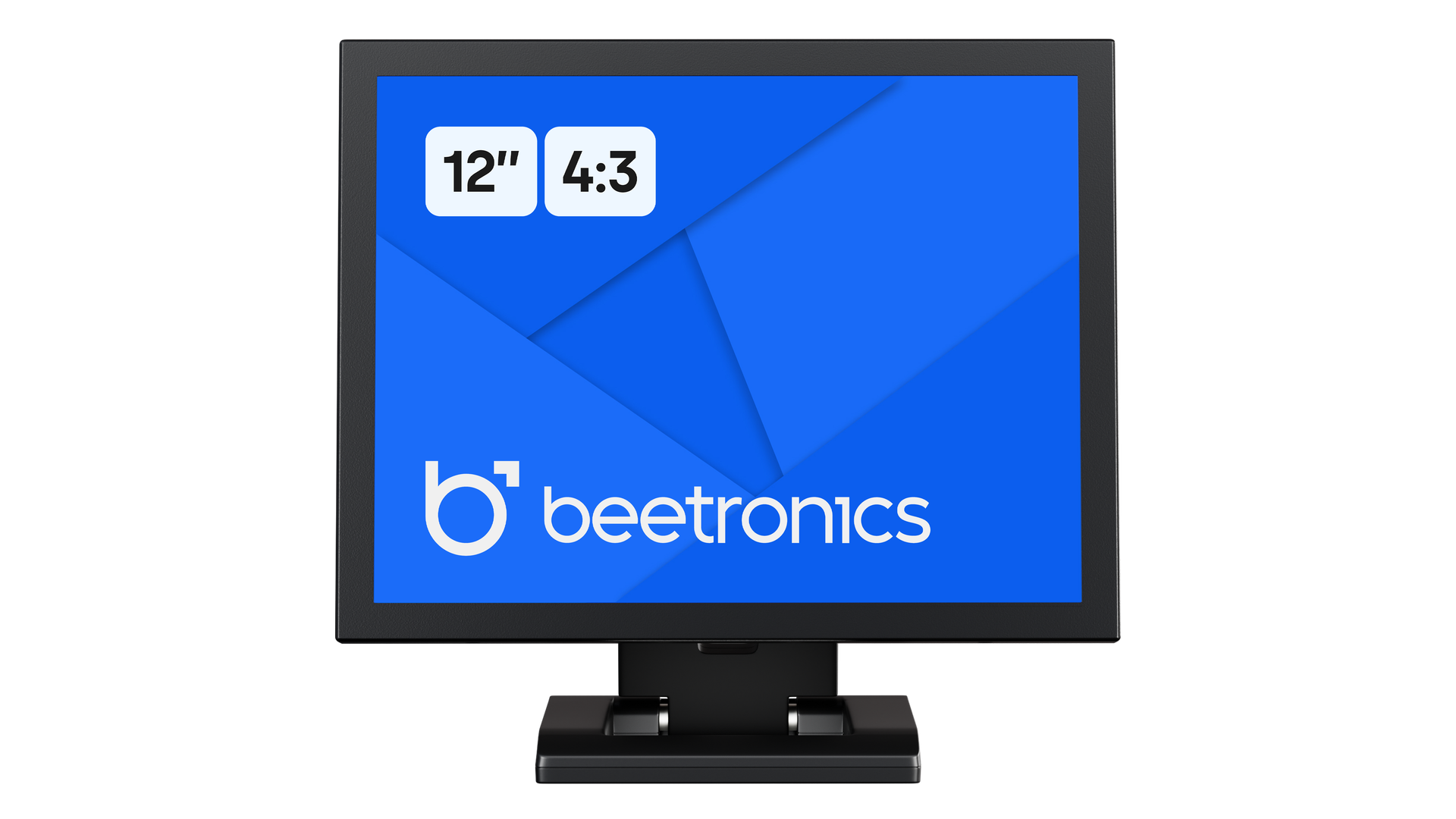

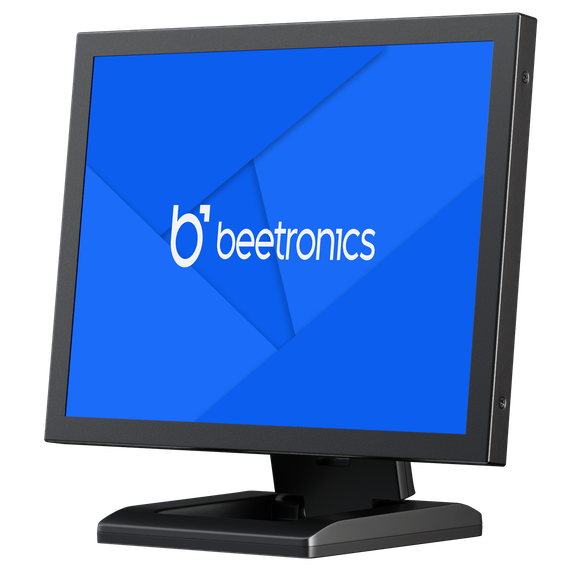

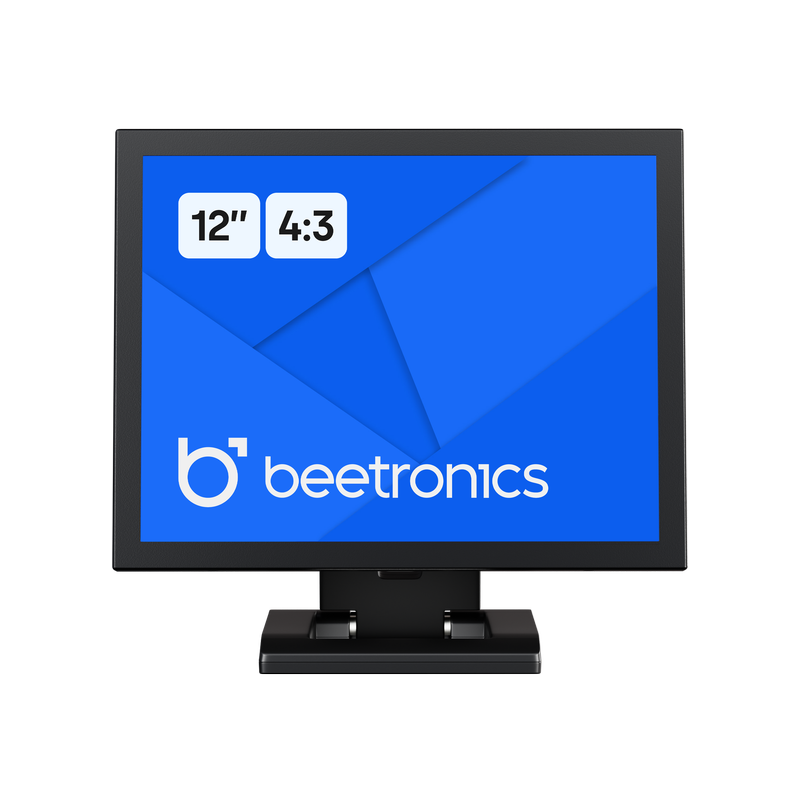

12 inch monitor metal (4:3)

  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable
  4. 275 x 213 x 36 mm
Item number: 12VG3
55 units in stock

Order before 10:00 pm for free delivery on thursday

£239.00 £199.17 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

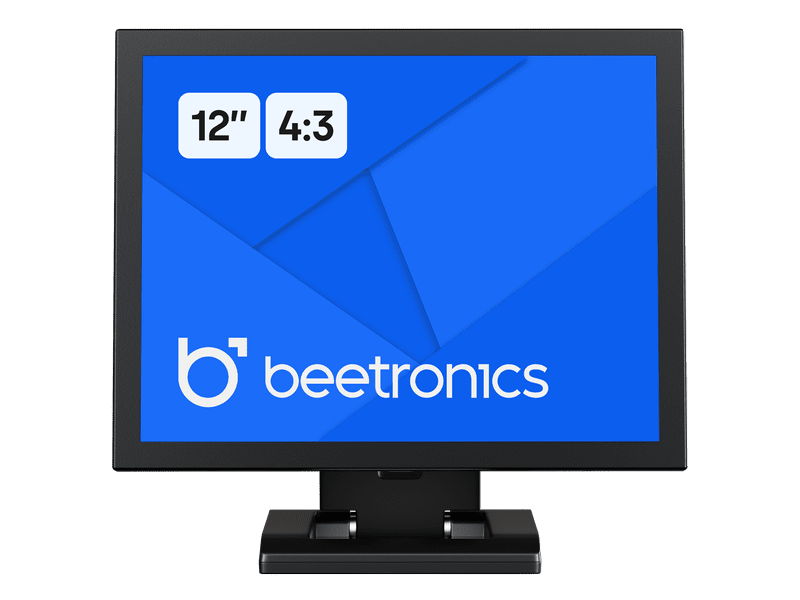

This 12 inch monitor has a sturdy metal housing and is suitable for desktop, flush and wall mounting. The monitor is equipped with an IPS panel with a 4:3 aspect ratio which provides crystal-clear image quality with excellent 178° viewing angles. The 12VG3 can be connected through a HDMI, VGA, BNC or RCA connection.

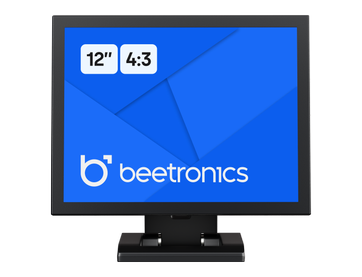

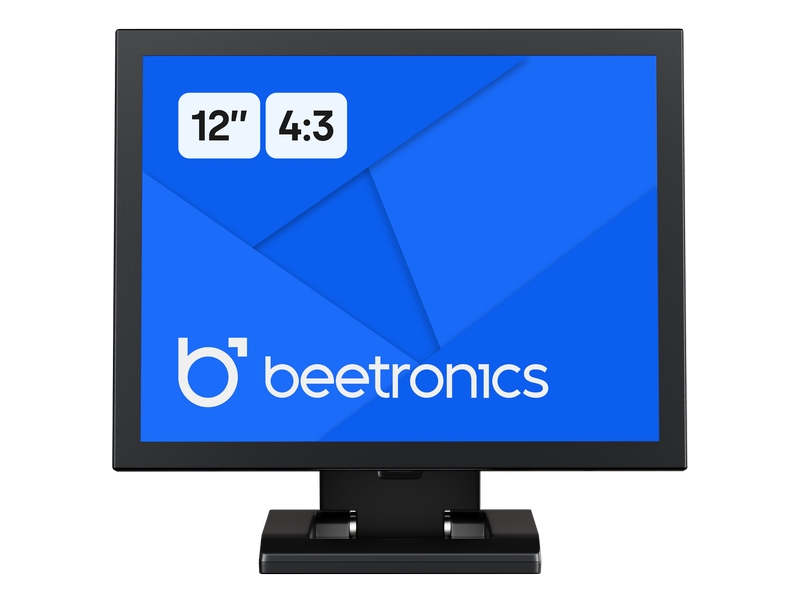

4:3 aspect ratio

The monitor is equipped with an IPS panel with a 4:3 aspect ratio. The monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast and colour are all very easy to adjust.

12 inch monitor 4:3 metal

Input: HDMI, VGA, BNC and RCA

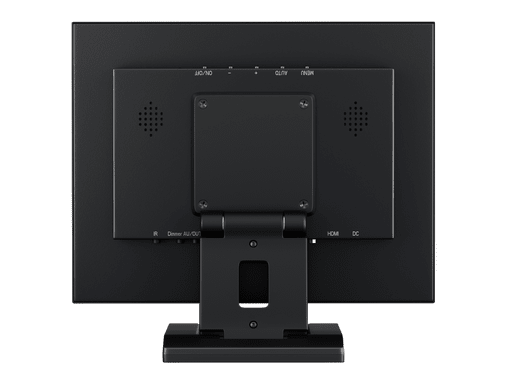

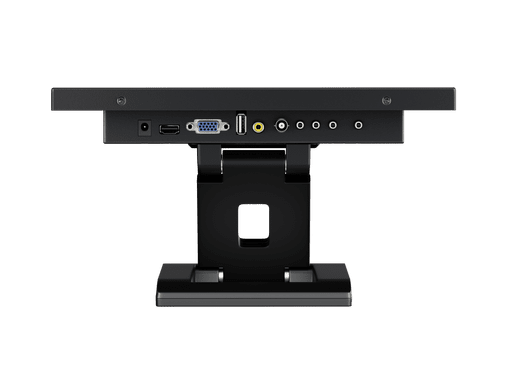

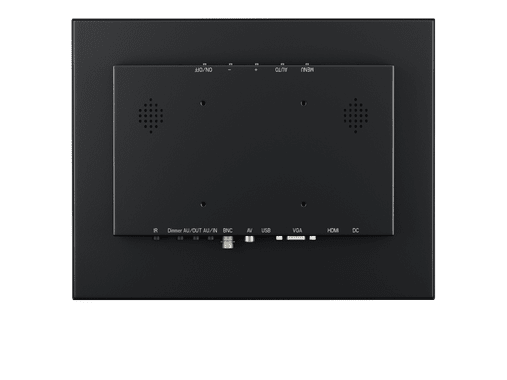

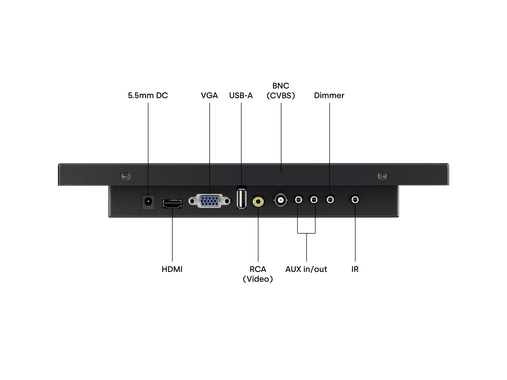

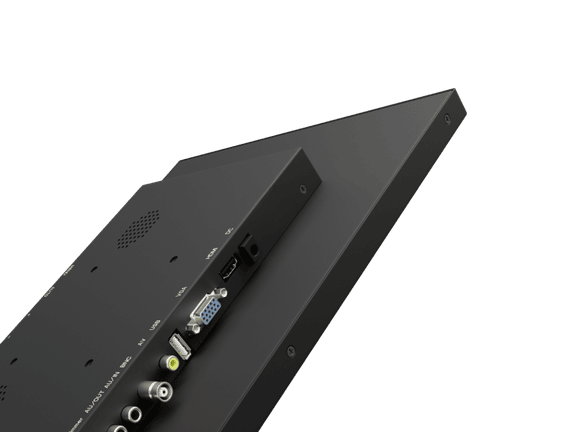

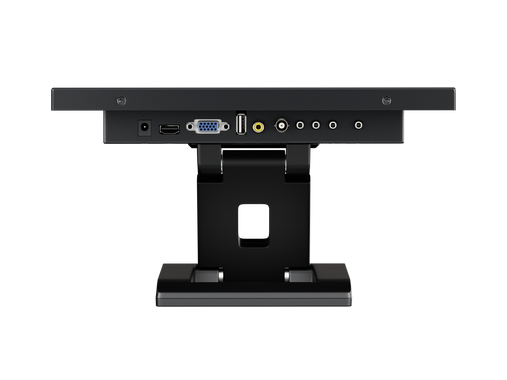

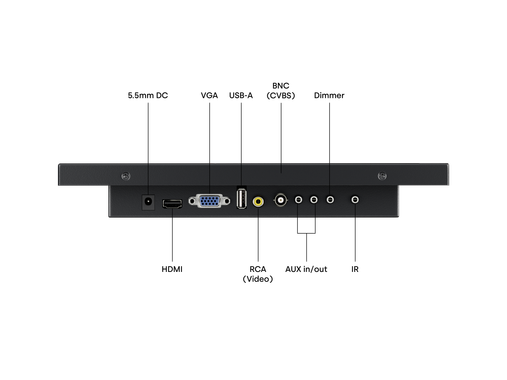

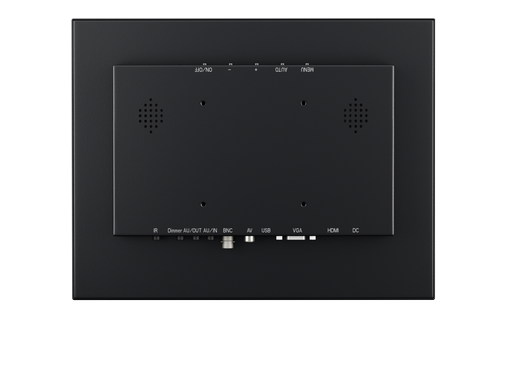

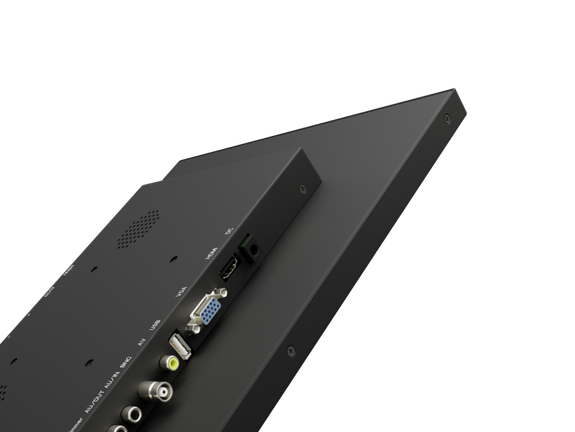

The 12 inch 12VG3 has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.

12 inch monitor hdmi vga rca bnc

Designed for professional use

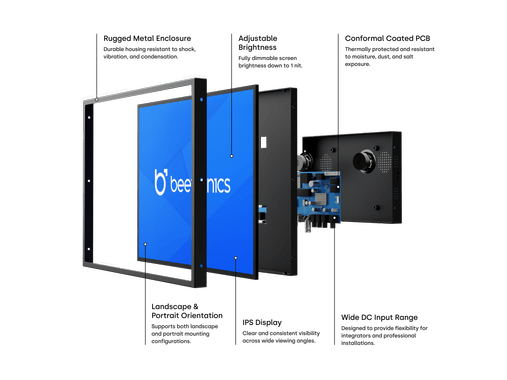

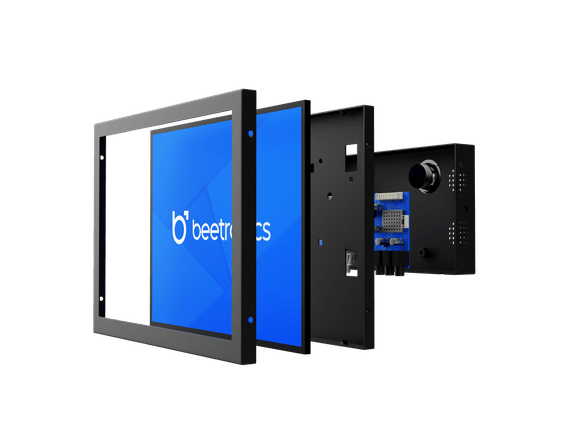

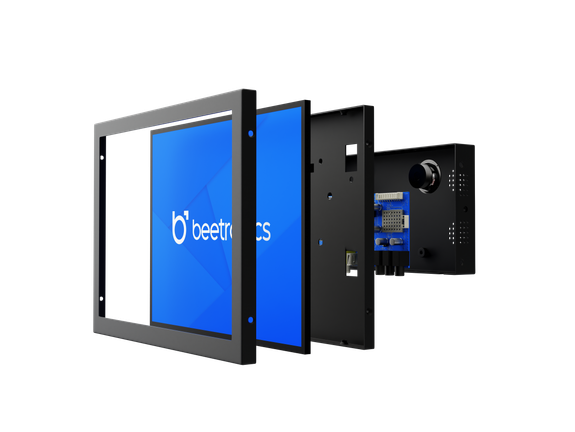

The 12VG3 comes with a sturdy metal housing. The monitor is manufactured with high-quality components that guarantee reliable operation. The 12VG3 is suitable for continuous operation and ideal for professional use.

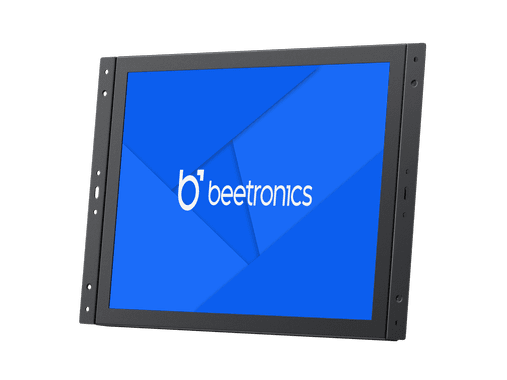

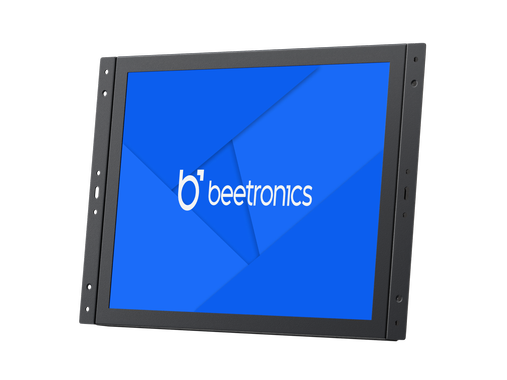

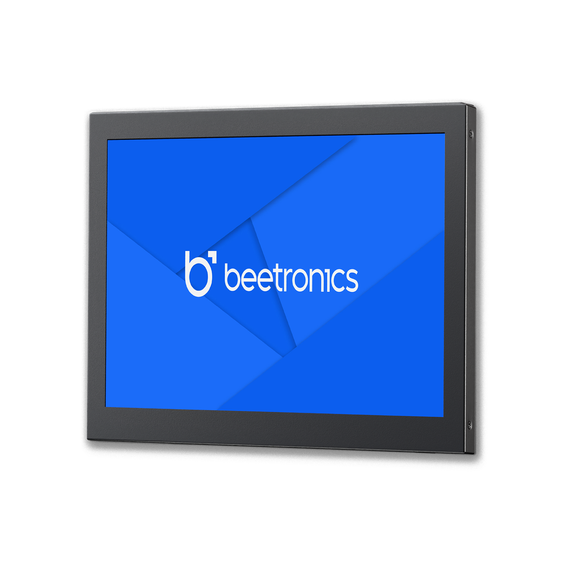

12 inch monitor metal open frame flush mount

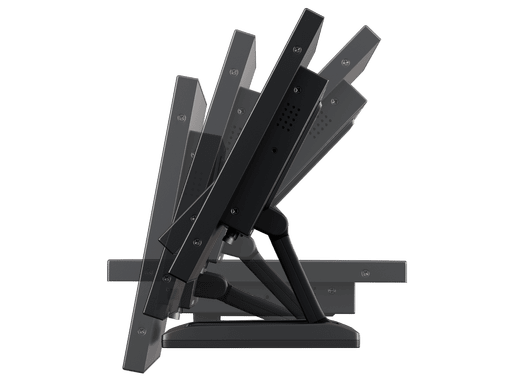

Desktop, flush and wall mountable

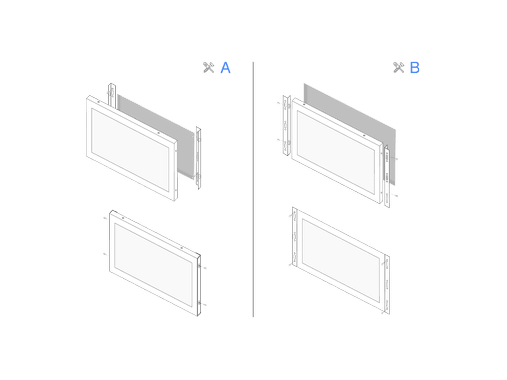

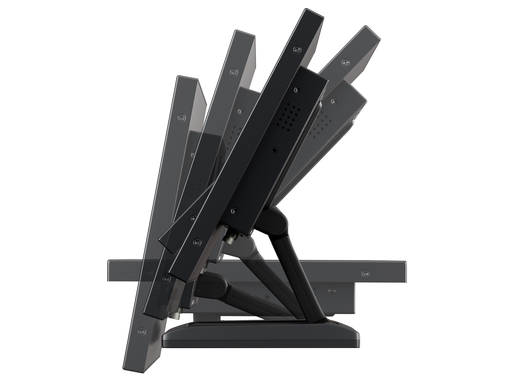

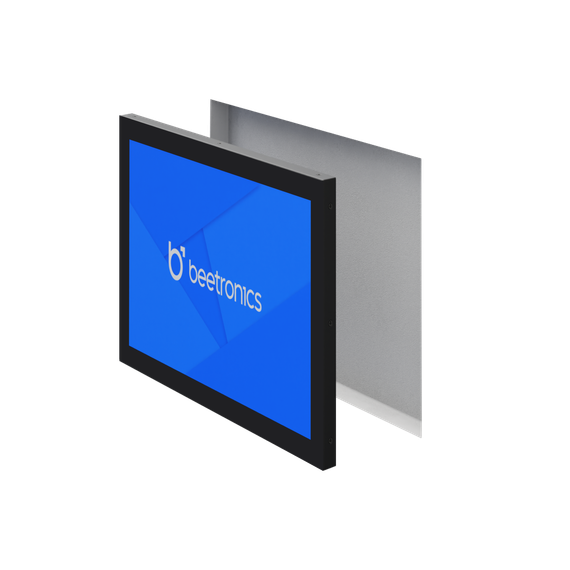

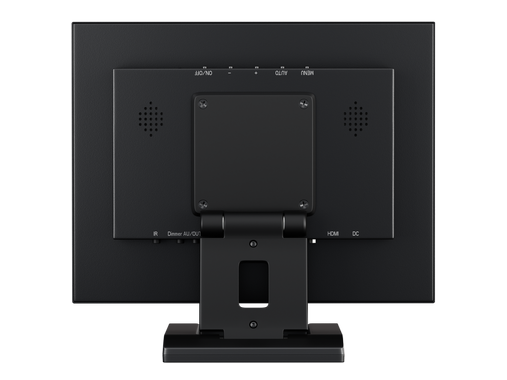

The Beetronics 12VG3 is has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

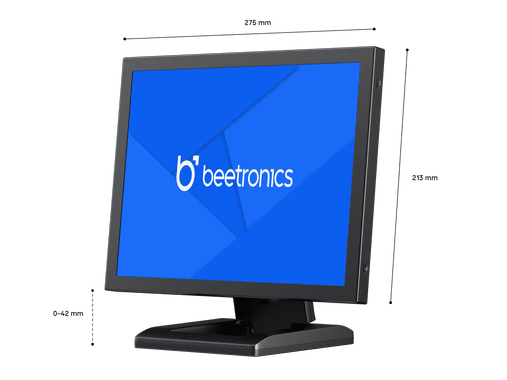

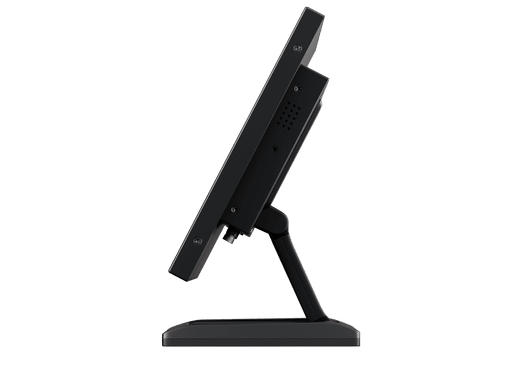

12 inch monitor 4:3 adjustable stand
General
Brand Beetronics
Product name 12 inch monitor metal (4:3)
Item number 12VG3
Warranty 2 years
Datasheet   Download PDF
Display
Diagonal size 12.1 inch (30,7 cm)
Native resolution 1024 x 768
Supported resolutions 1920 x 1200 (max), 640 x 480 (min)
Pixels per inch 106 PPI
Panel Matte, LED-IPS
Brightness 450 cd/m2
Contrast 500:1
Viewing angle 178° horizontal, 178° vertical
System PAL/NTSC/SECAM
Aspect ratio 4:3
Current 12 Volt (Mains adaptor included)
Consumption <15 Watt (0.5 Watt standby)
Operation temperature -20c° to +60c°
Connectivity
HDMI 1x
VGA 1x
BNC (CVBS) 1x
RCA video 1x
AUX output 1x
USB 1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
Size & weight
Colour Black
Weight 1350 gram (1770 gram with stand)
Width 275 mm
Height 213 mm (+0 to 39 mm met voetsteun)
Thickness 36 mm
Display dimensions 247 x 186 mm
Technical drawing   Download PDF
Other
Audio Integrated speakers
Key-lock The control buttons can be blocked
Auto-on Automatically powers on when it receives current or a signal
Mirroring Image can be mirrored, horizontally and vertically
Manual   Download PDF
Mounting
Wall mount VESA (75 mm)
Flush mount Mounting strips included
Stand Adjustable and detachable

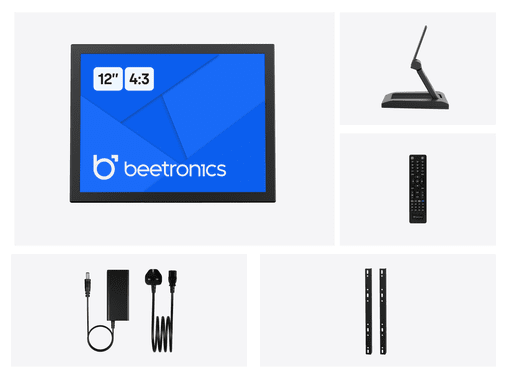

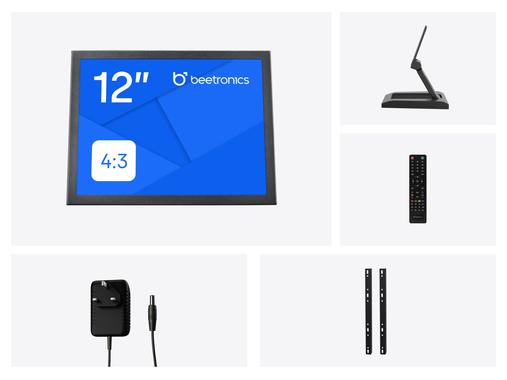

Package content
  1. 12 inch monitor metal (4:3)
  2. Mounting strips
  3. Remote control
  4. Mains adaptor
  5. Stand
  6. Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
AUX(output)
AUX_audio_35mm
USB(media)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
