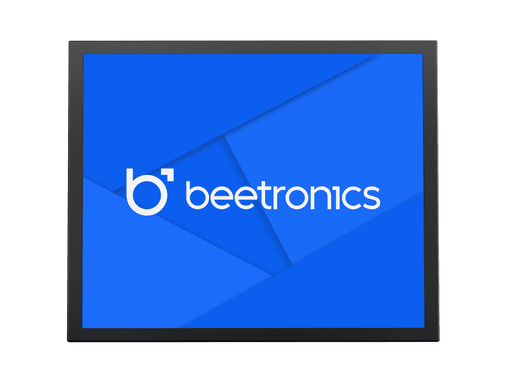

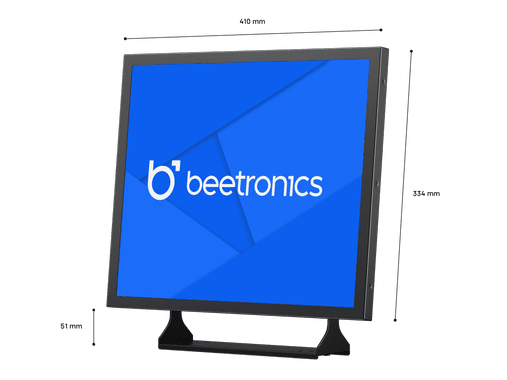

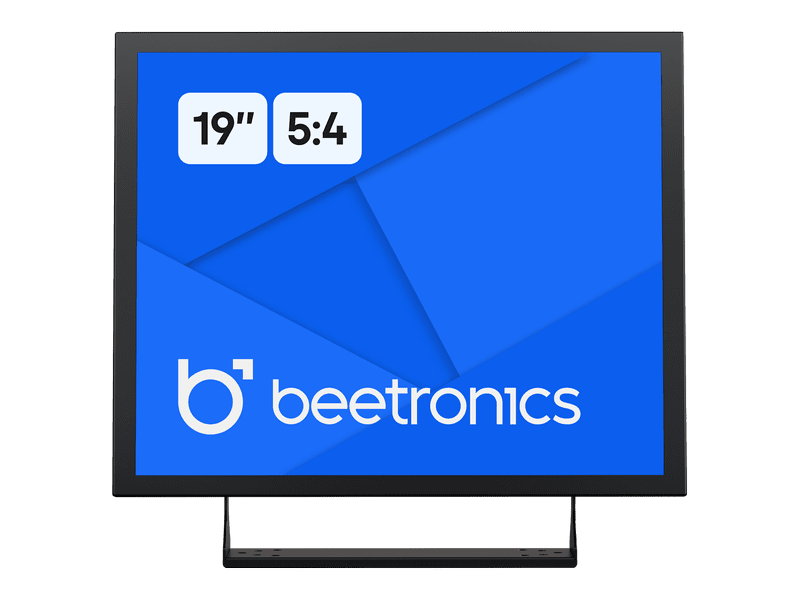

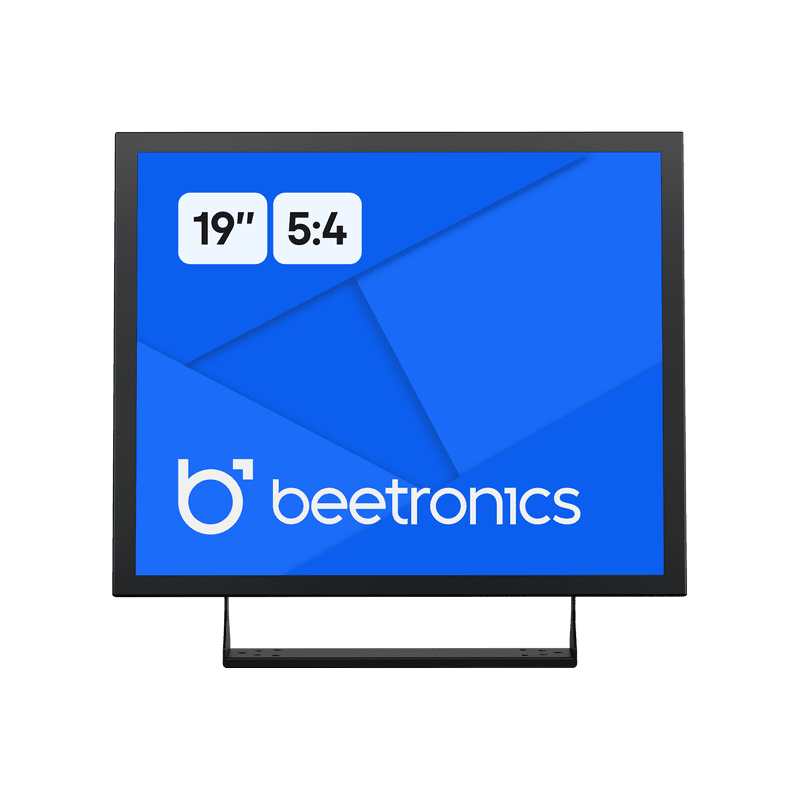

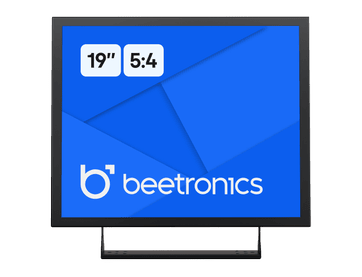

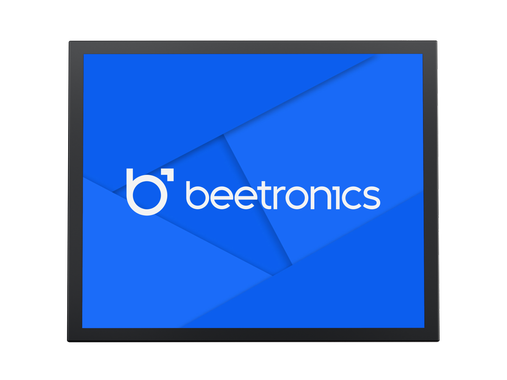

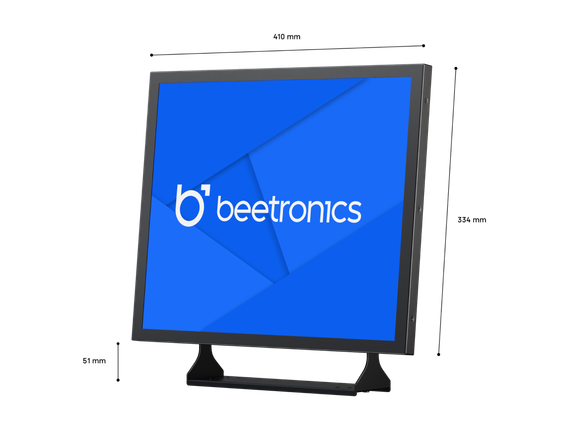

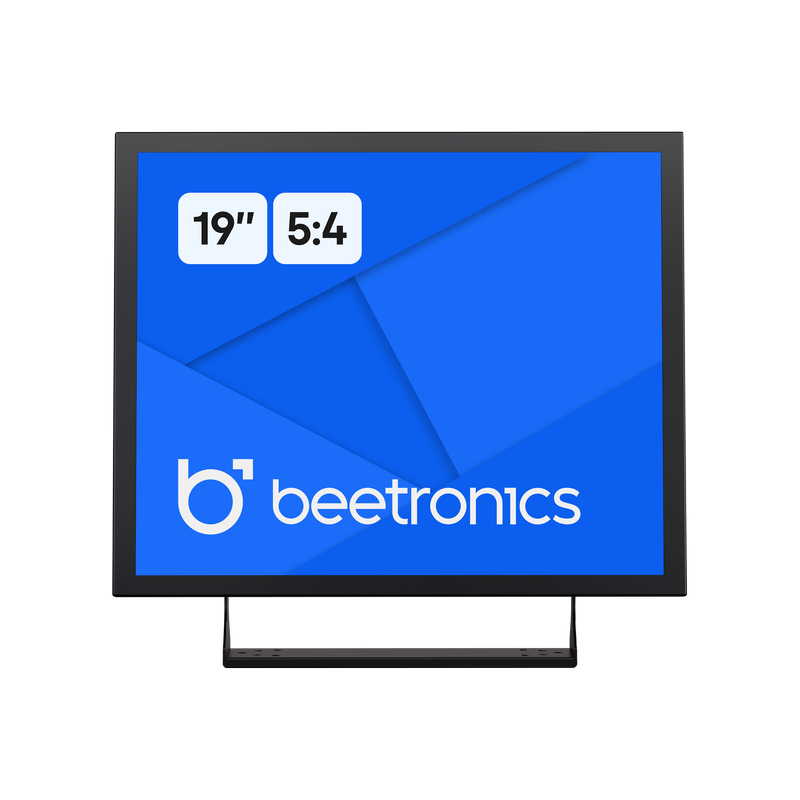

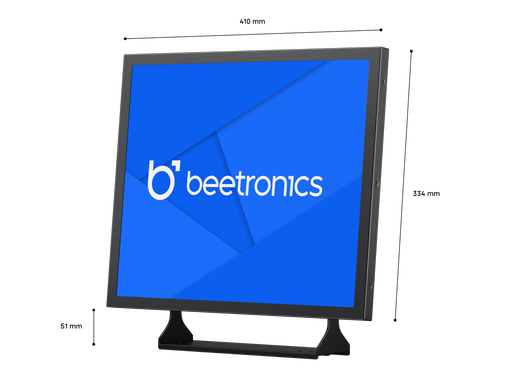

This 19 inch monitor has a matte IPS panel with a 5:4 aspect ratio. The monitor delivers a crisp image quality with excellent 178° viewing angles. The 19 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting.
This 19 inch monitor is equipped with a 5:4 aspect ratio IPS panel. The monitor delivers a crisp image with excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor is designed to display 5:4 ratio resolutions and is able to scale any resolution up to 1080p.

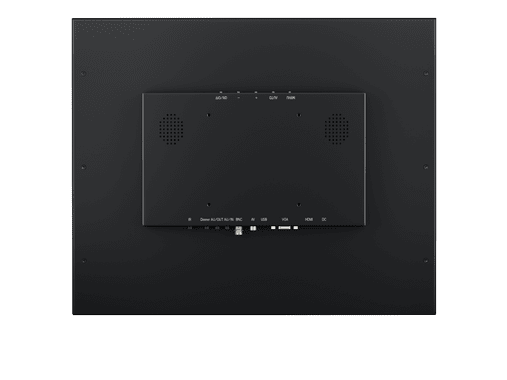

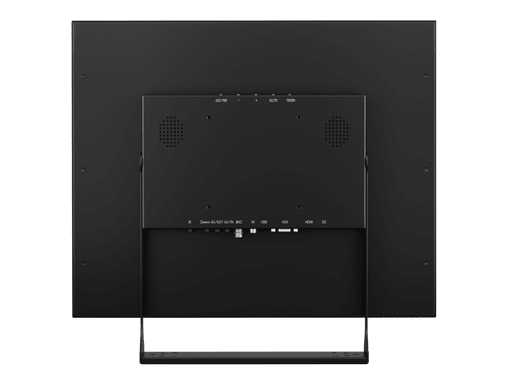

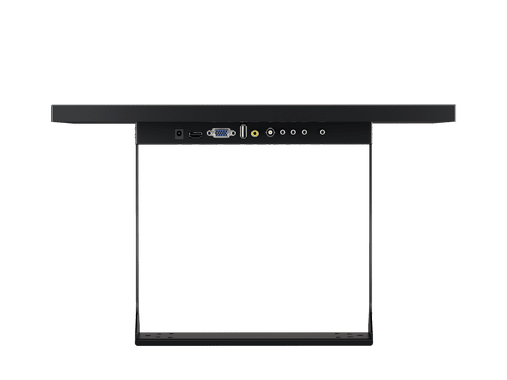

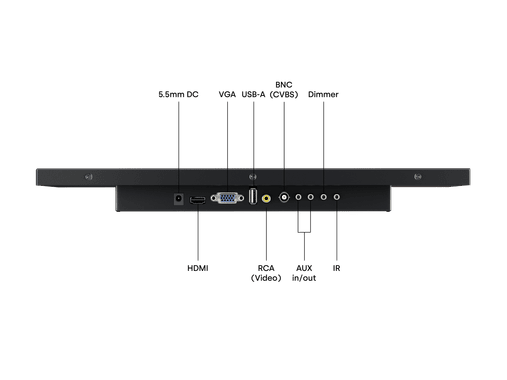

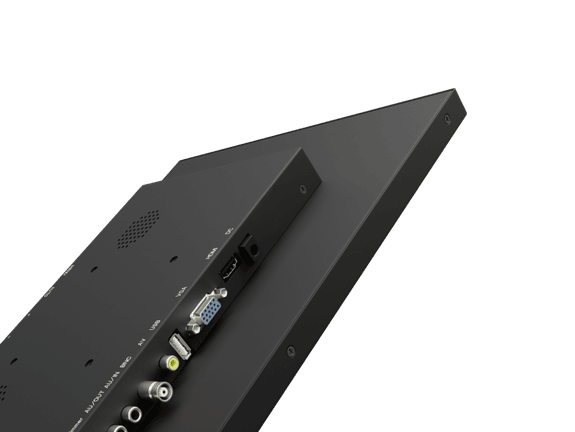

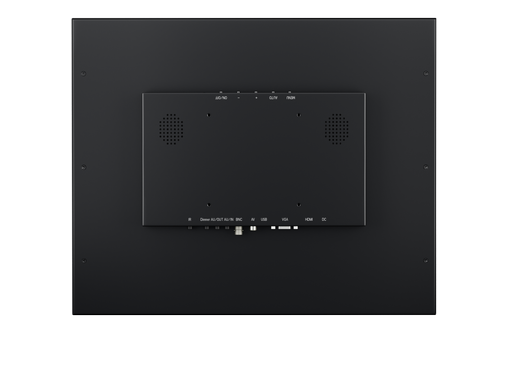

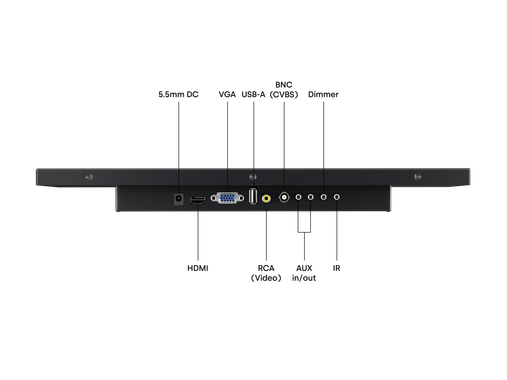

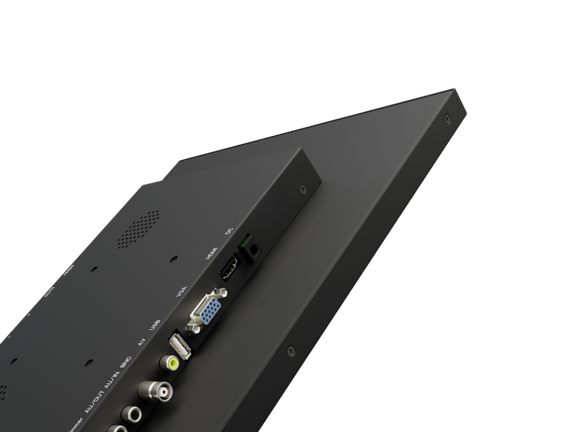

The 19VG7M monitor has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.
The 19VG7M is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 10 to 33 Volts and features a fully dimmable backlight.

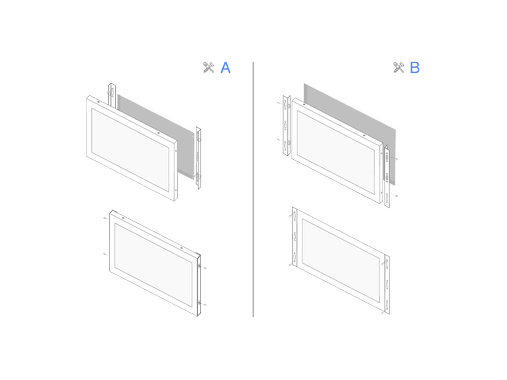

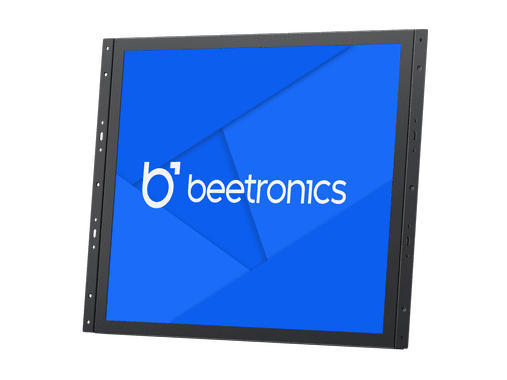

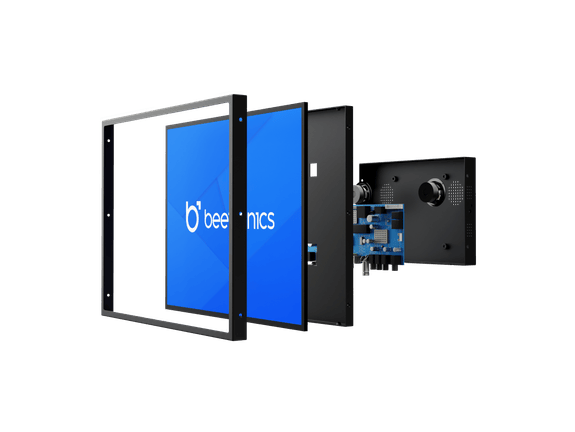

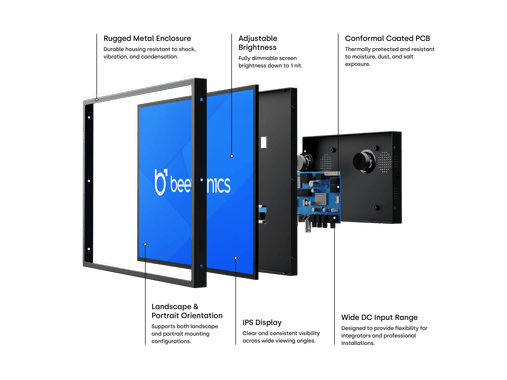

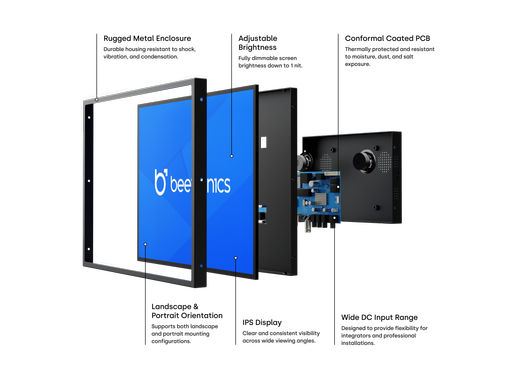

Thanks to numerous mounting options the 19 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

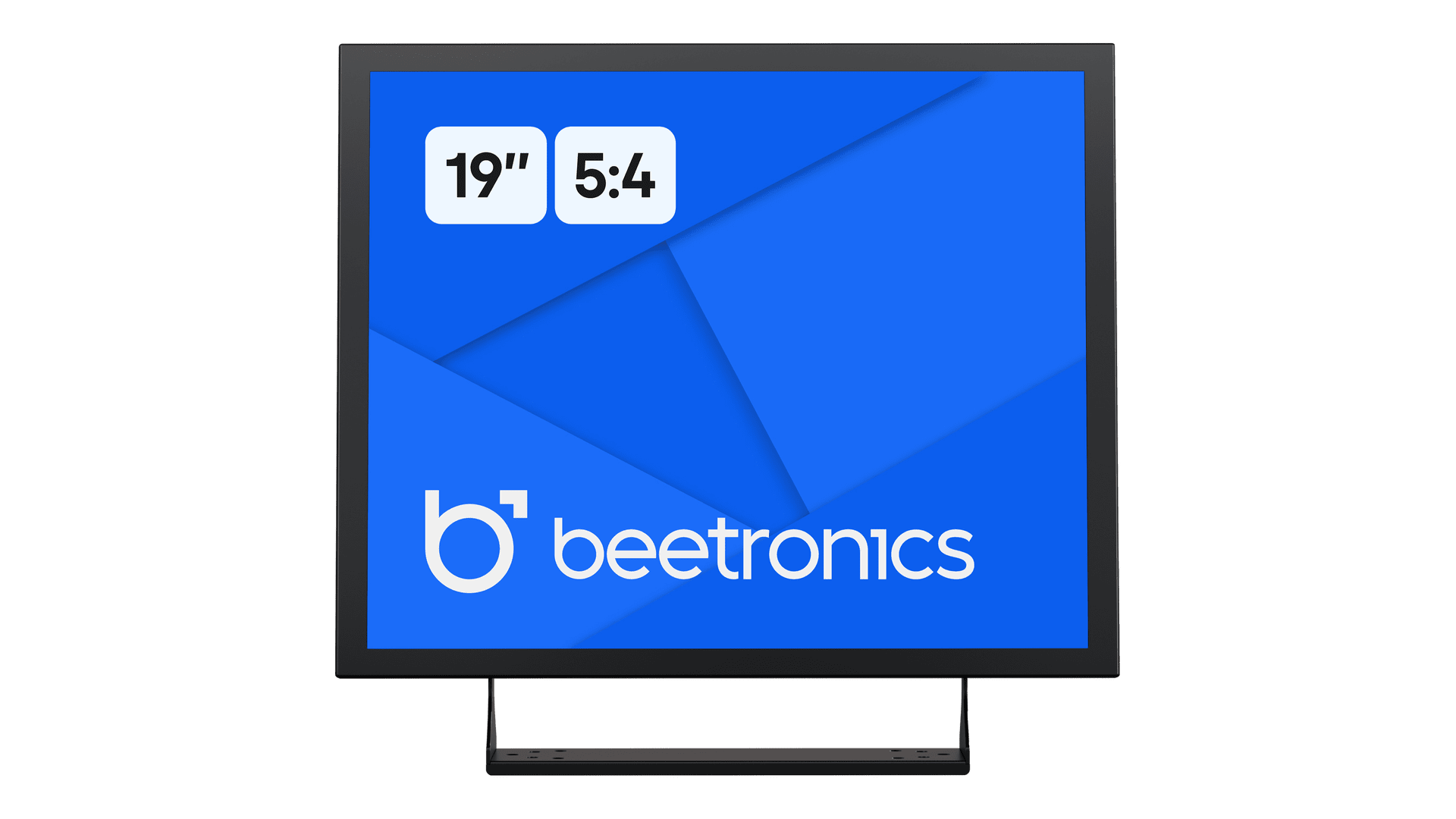

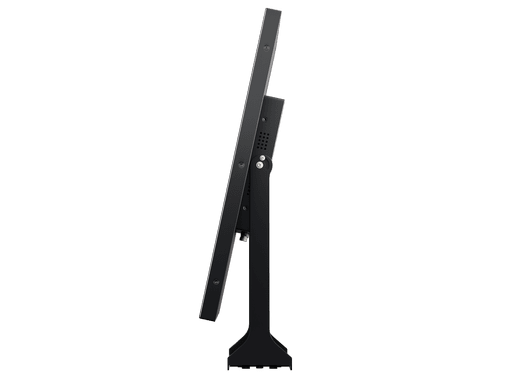

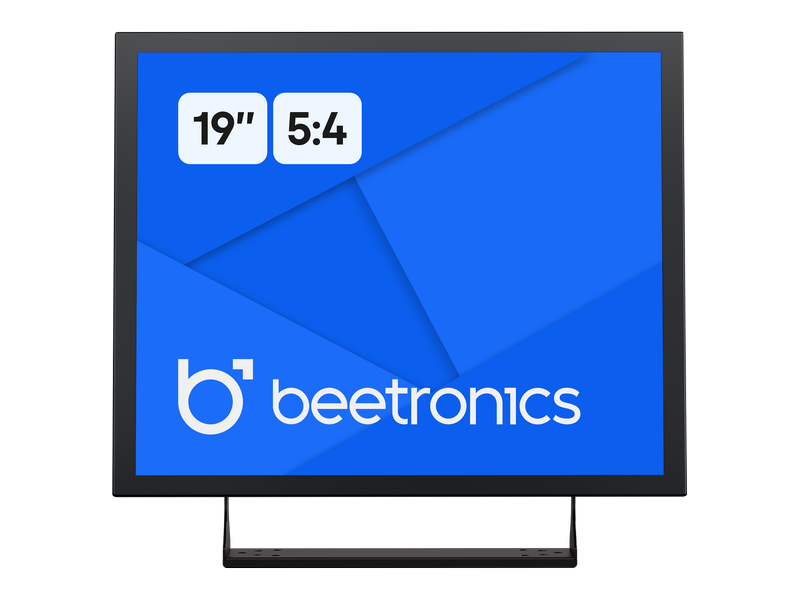

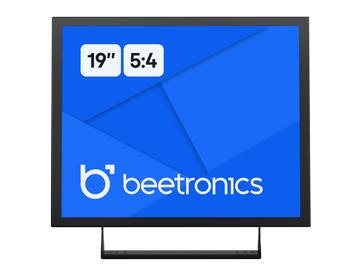

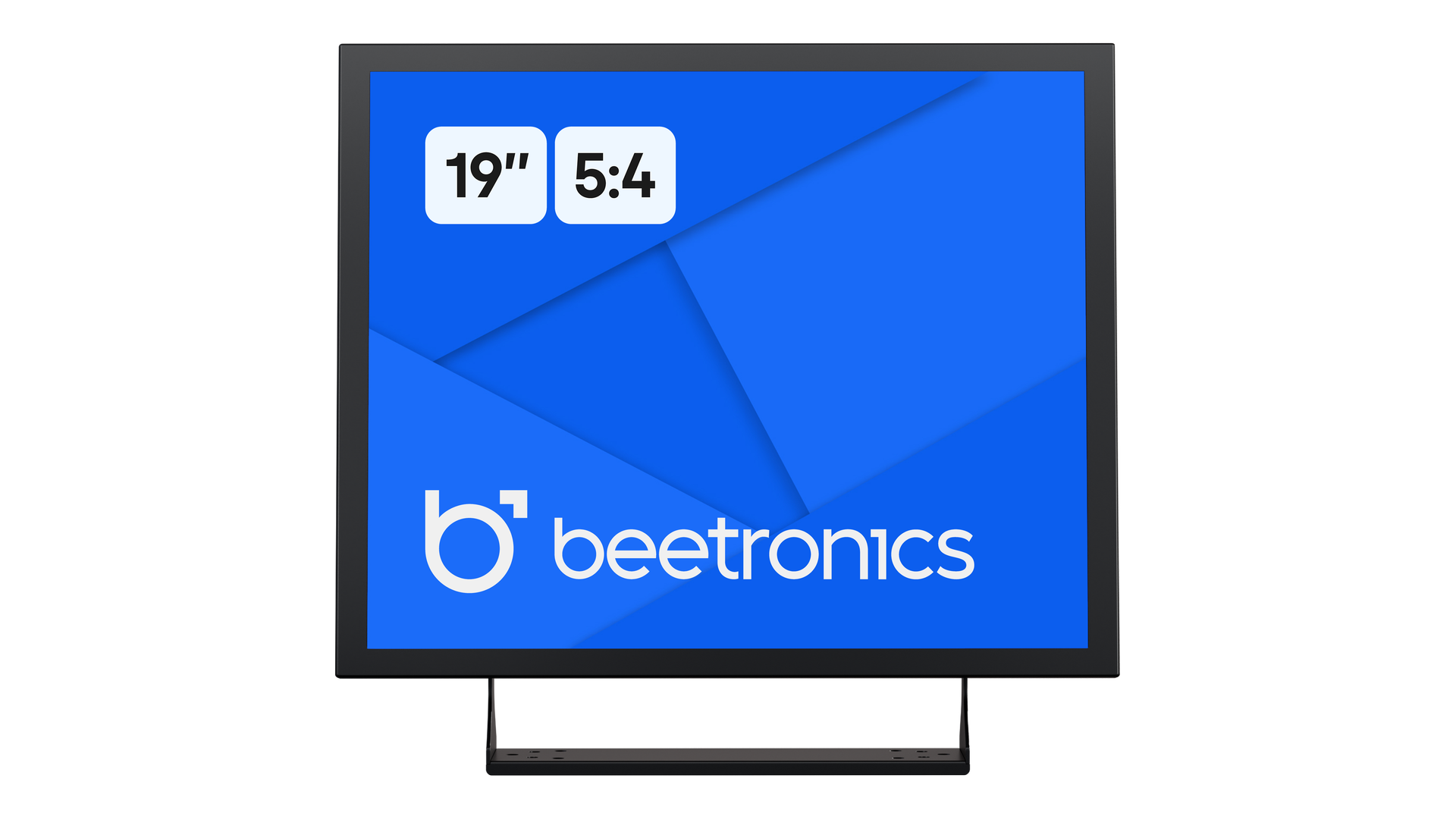

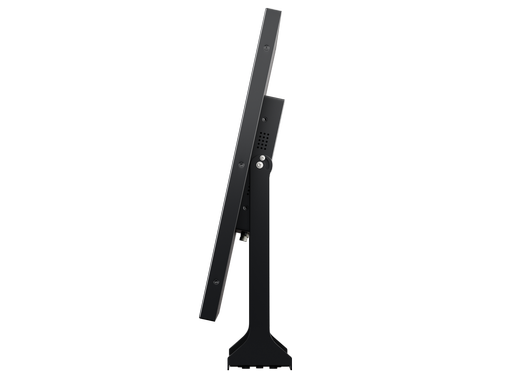

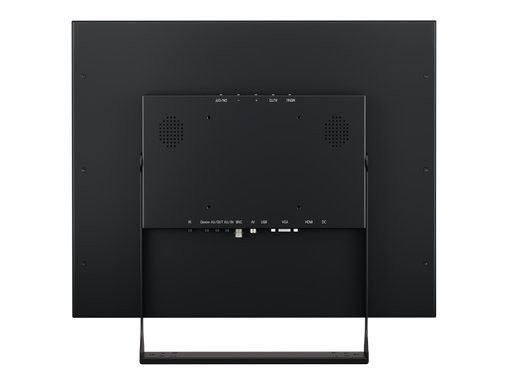

The Beetronics 19VG7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
19VG7M
|
Product name |
19 inch monitor metal (5:4)
|
Warranty |
2 years
|
Datasheet | |
Manual |
Panel | |
---|---|
Type |
Matte, LED-IPS
|
Screen diagonal |
19.1 inches (486 mm)
|
Aspect ratio |
5:4
|
Native resolution |
1280 x 1024
|
Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
Pixels per inch |
86 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Colour encoding system |
PAL/NTSC/SECAM
|
Brightness |
300 cd/m2
|
Contrast |
1000:1
|
Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX input |
1x
|
AUX output |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
4450 gram (4900 gram with stand)
|

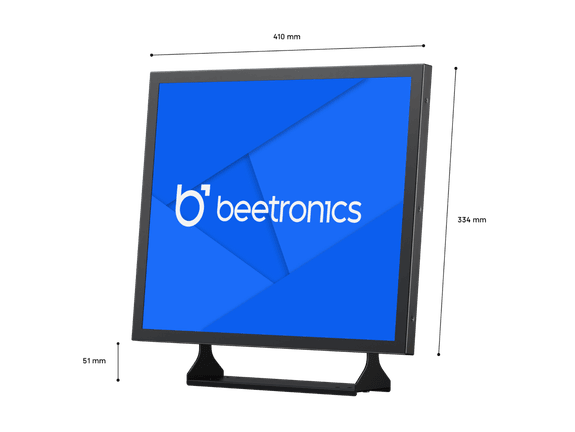

Width |
409 mm
|
Height |
334 mm (+40 mm with stand)
|
Thickness |
39 mm
|
Display dimensions |
376 x 301 mm
|
Technical drawing | |
3D drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 10-33V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
<15 Watt (0.5 Watt standby)
|
Environmental | |
---|---|
Operating temperature |
-20c° to +60c°
|
Storage temperature |
-20c° to +70c°
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (100 mm)
|
Flush mount |
Mounting strips included
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
Certifications |
CE, FCC, RoHS, REACH
|
Package content | |
---|---|

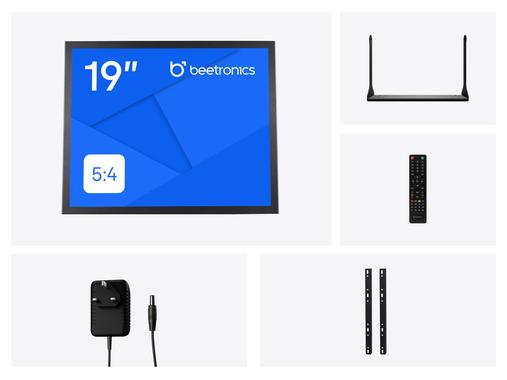

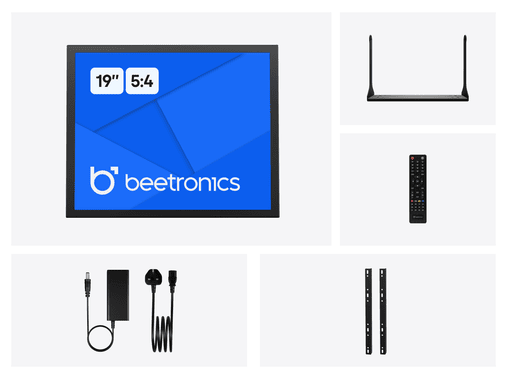

Includes |
Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
3D drawing | Download CAD/STP |
Datasheet | Download PDF |
Files |
---|
Product name | Item number | In stock | Quantity | Price |
---|---|---|---|---|
![]()
19 inch monitor metal (5:4)
|
19VG7M |
|
|
£285.00 |
![]() |
VWB1 |
|
|
£25.00 |
![]() |
KHD2 |
|
|
£19.00 |
![]() |
VGA1 |
|
|
£19.00 |
![]() |
RMK2 |
|
|
£45.00 |
![]() |
DMK7 |
|
|
£19.00 |
|
