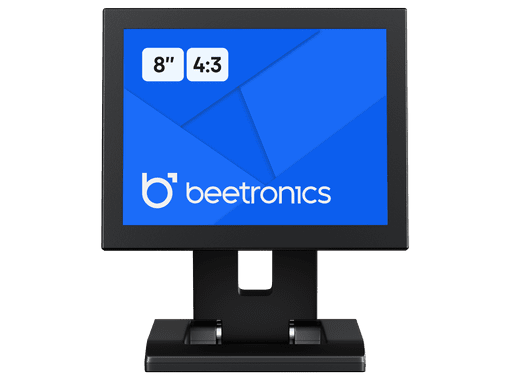

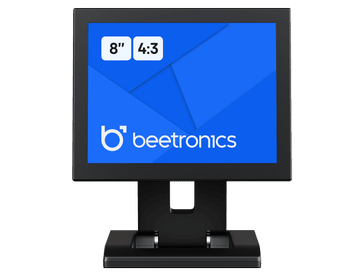

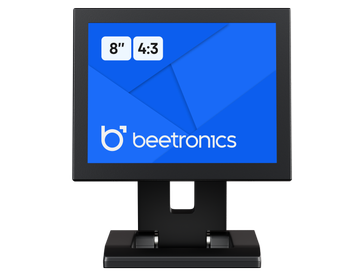

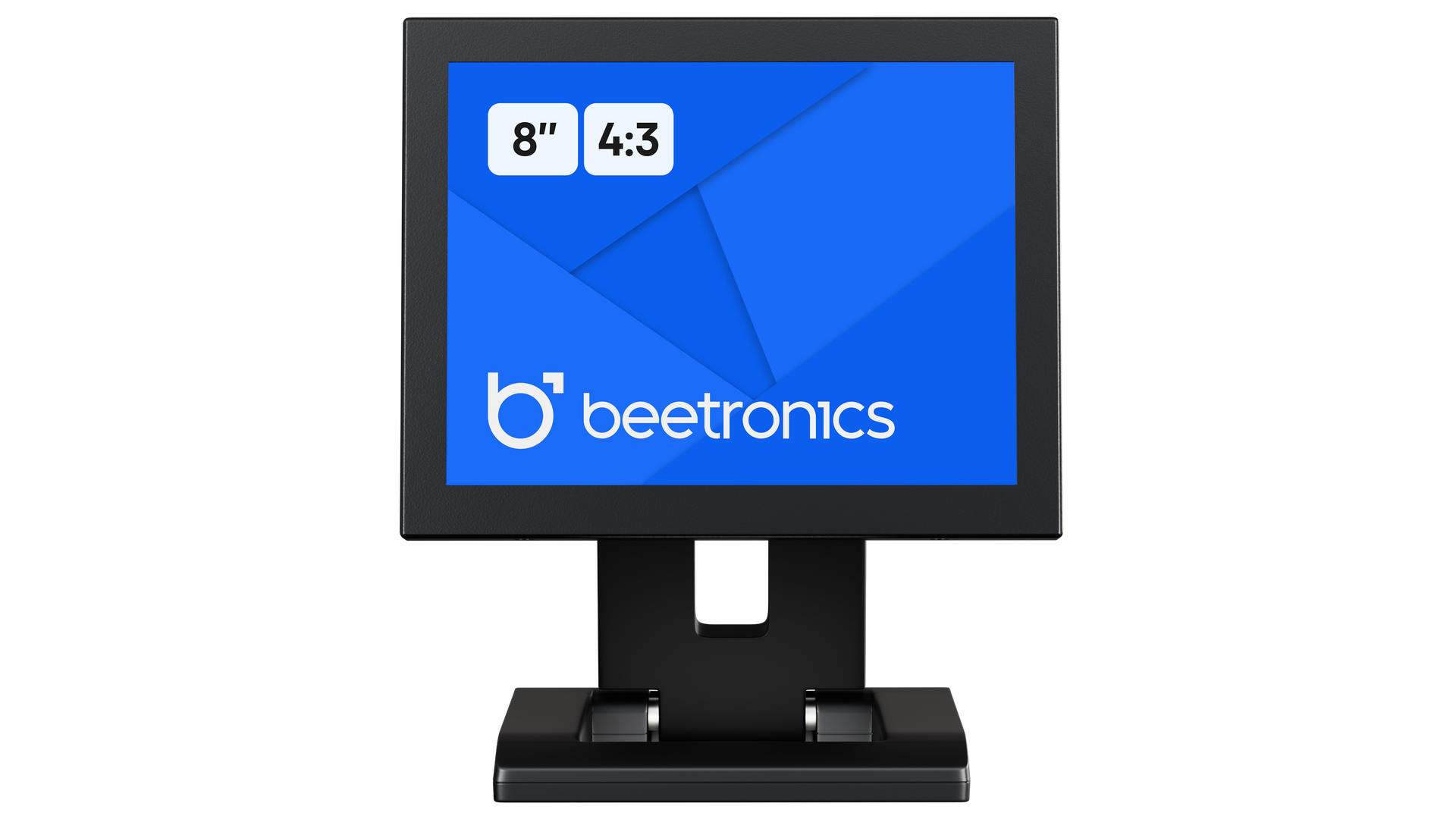

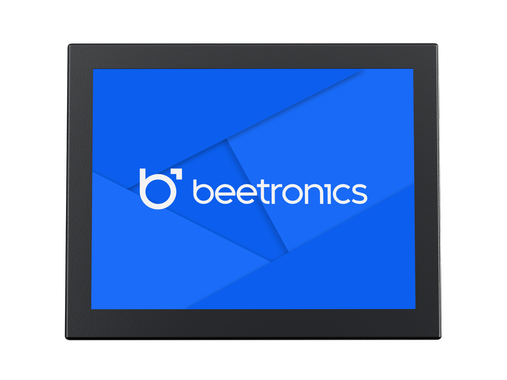

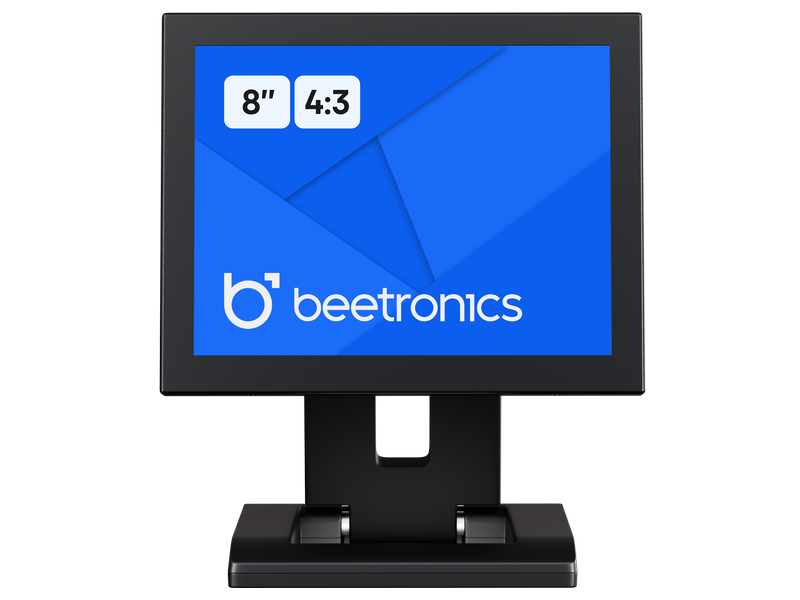

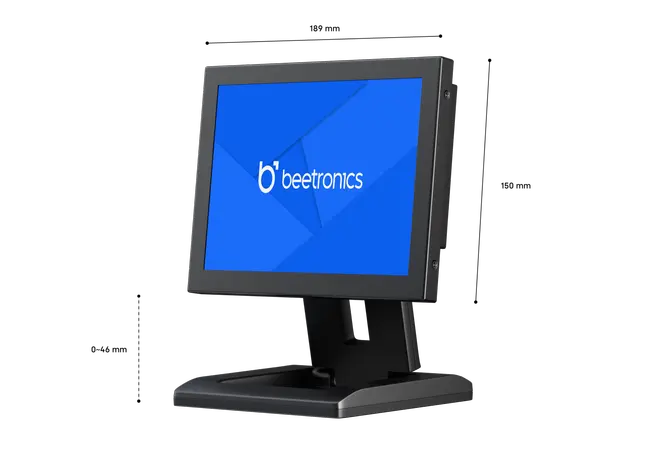

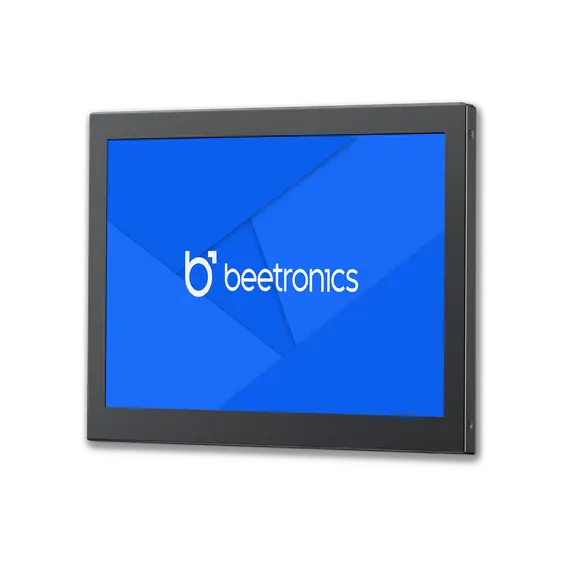

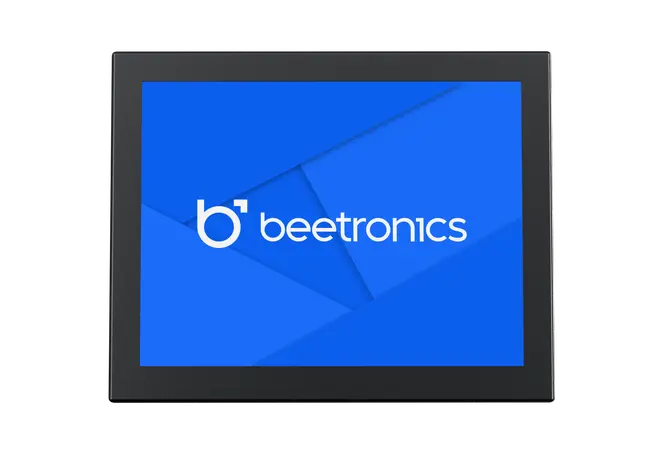

8 inch monitor metal (4:3)

  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable
  4. 189 x 150 x 34 mm
Item number: 8VG3
100+ units in stock

Order before 23:59 for free delivery on friday

£205.00 £170.83 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

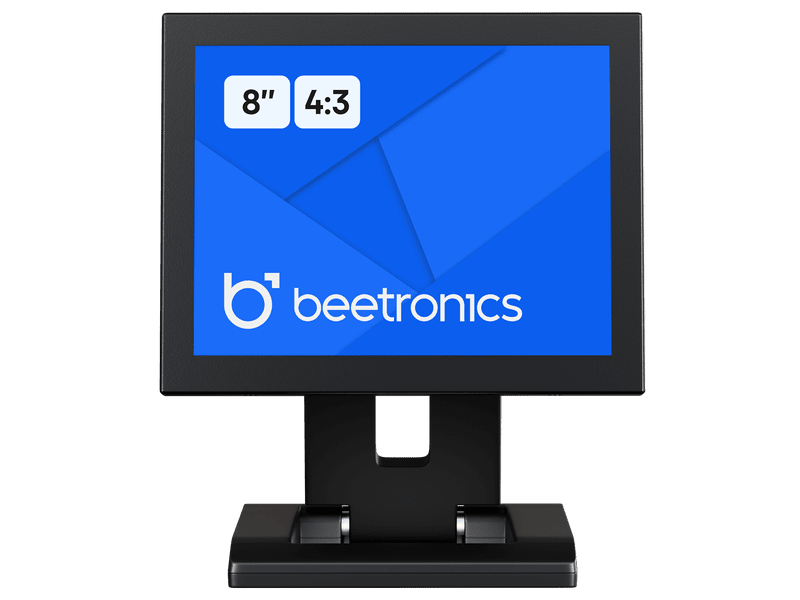

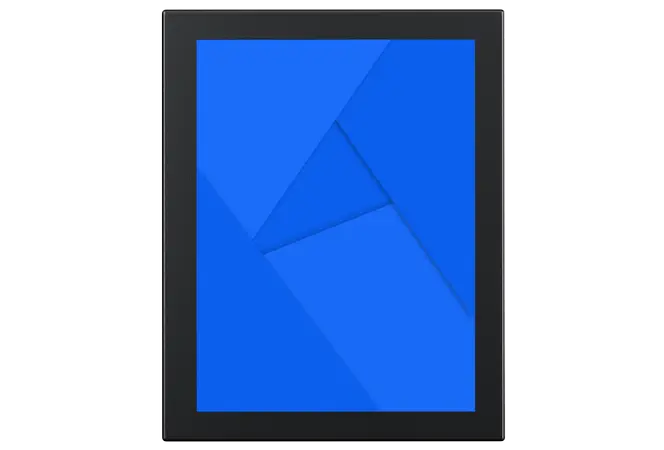

This 8 inch monitor has a sturdy metal housing and is suitable for desktop, flush and wall mounting. The monitor is equipped with an IPS panel with a 4:3 aspect ratio which provides crystal-clear image quality with excellent 178° viewing angles. The 8VG3 can be connected through a HDMI, VGA, BNC or RCA connection.

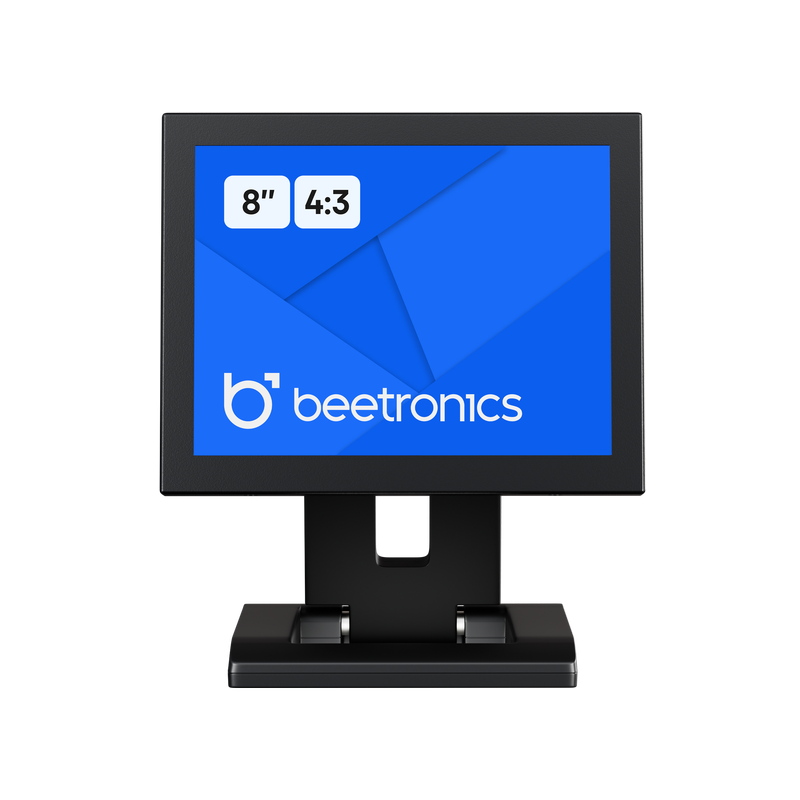

4:3 aspect ratio

The monitor is equipped with an IPS panel with a 4:3 aspect ratio. The monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, and colour are all very easy to adjust.

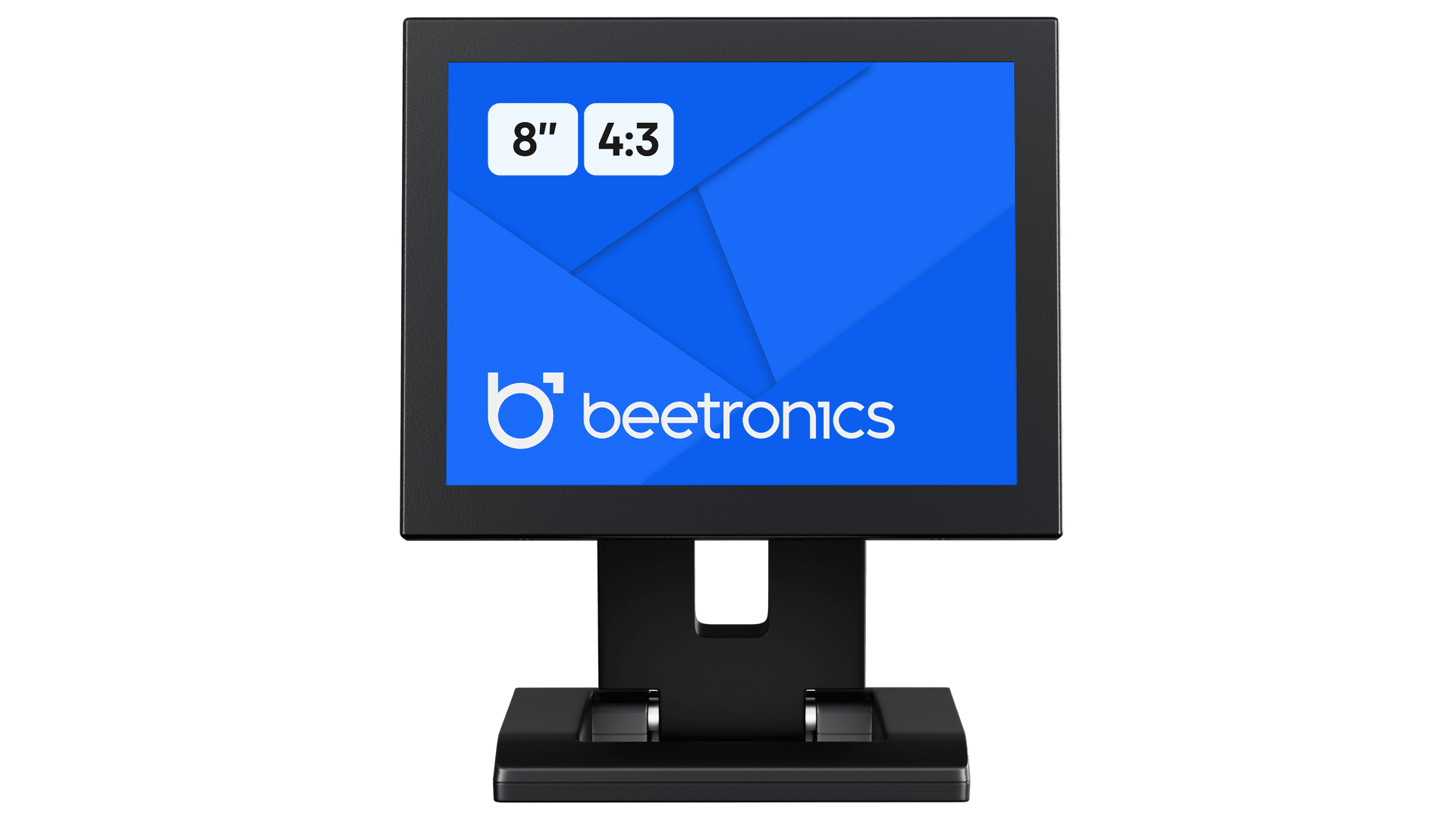

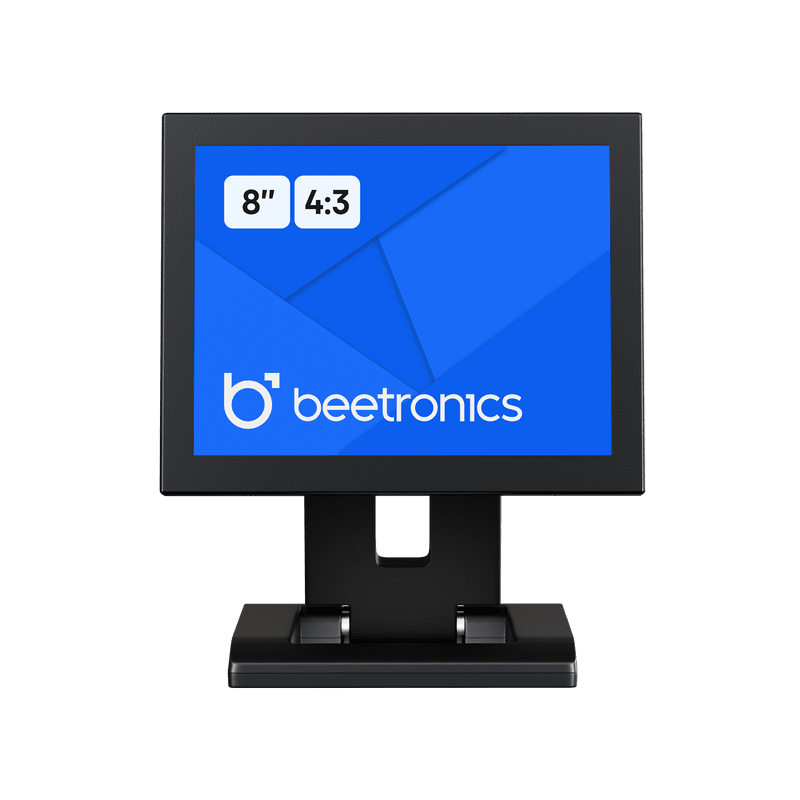

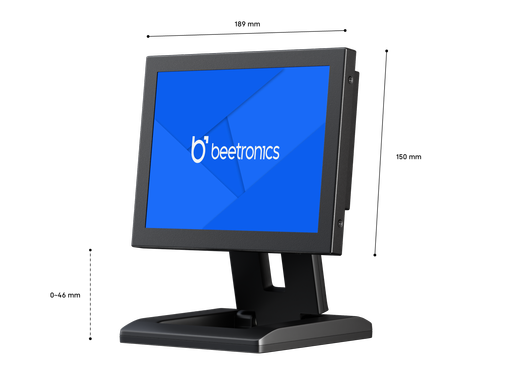

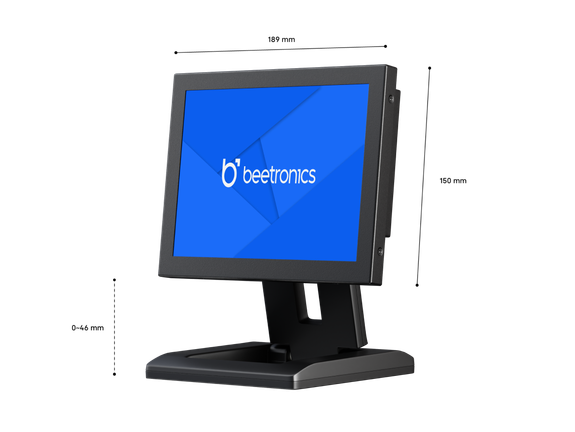

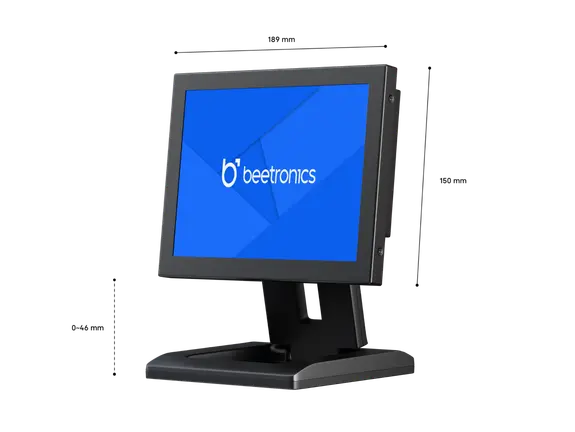

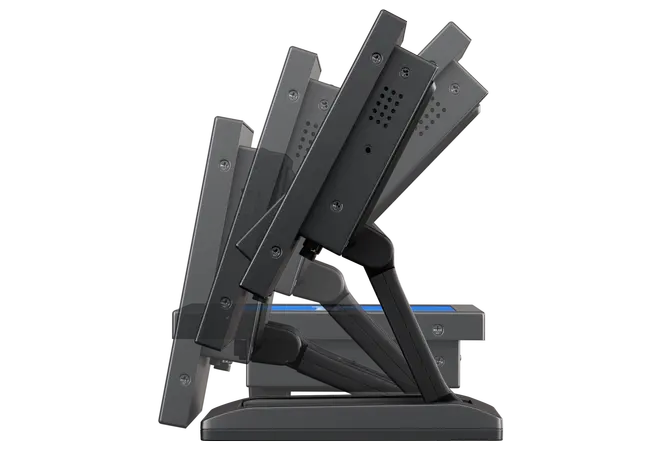

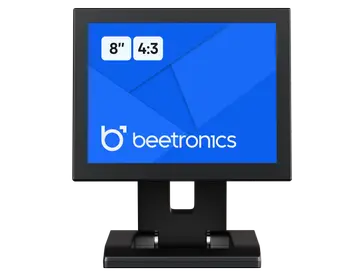

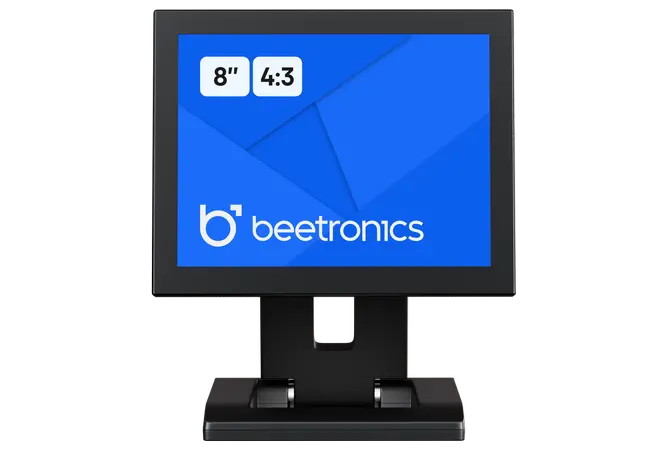

8 inch monitor with adjustable support

Input: HDMI, VGA, BNC and RCA

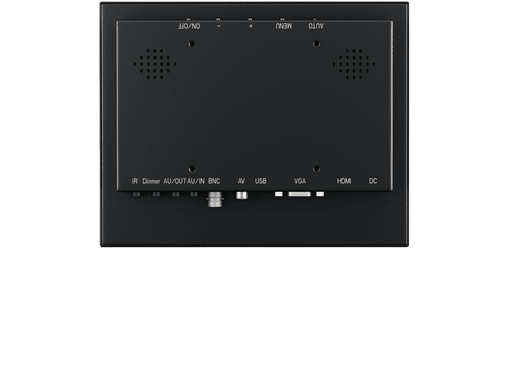

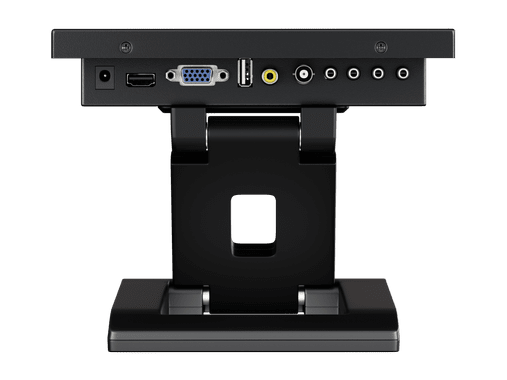

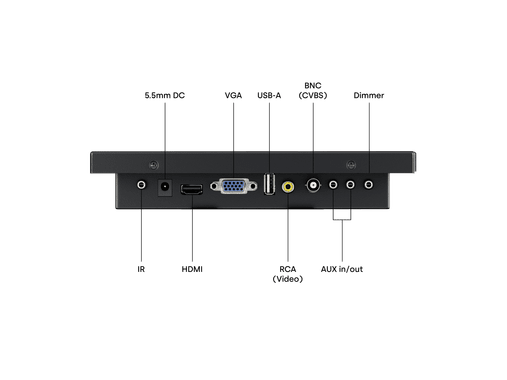

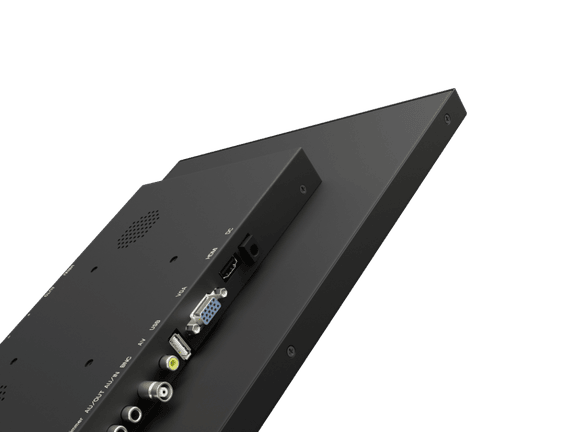

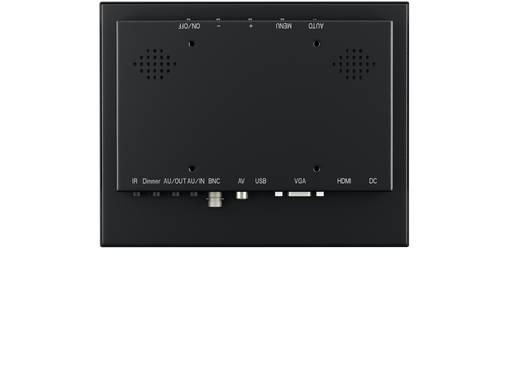

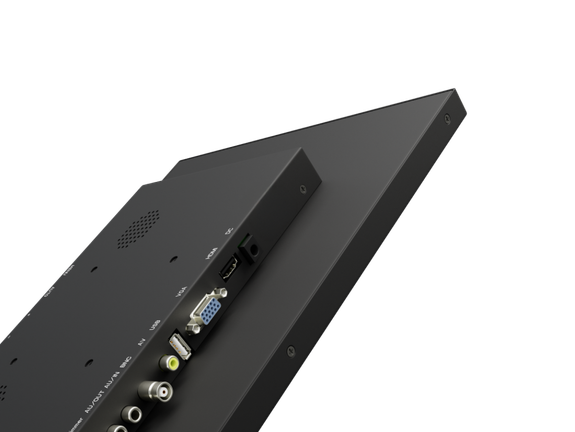

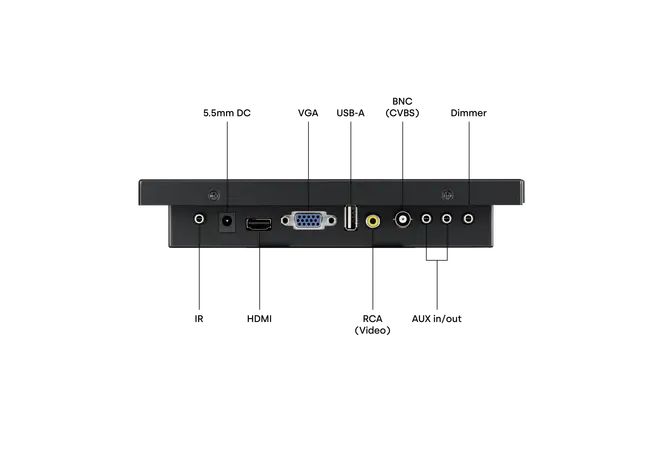

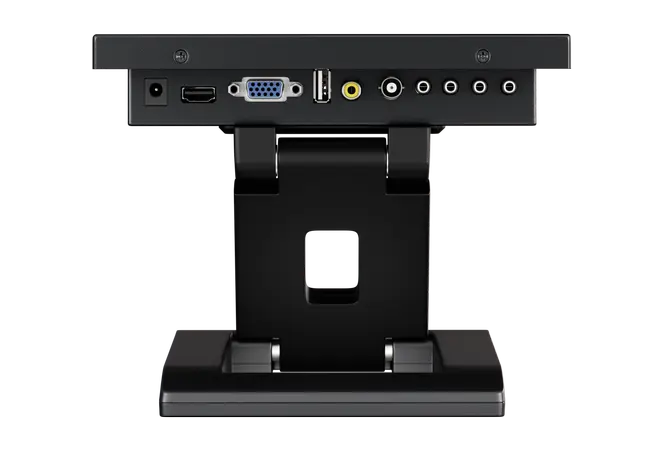

The 8 inch metal monitor has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.

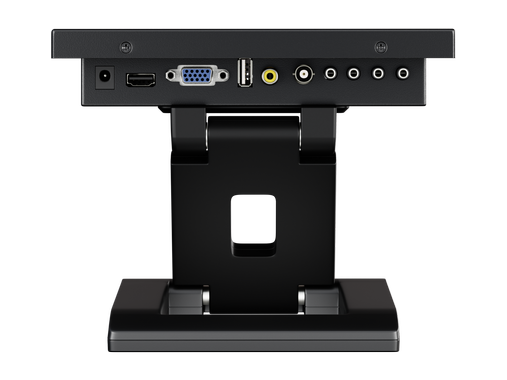

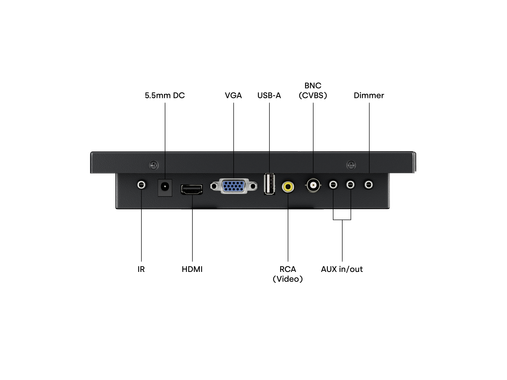

8 inch monitor hdmi, bnc, vga and rca

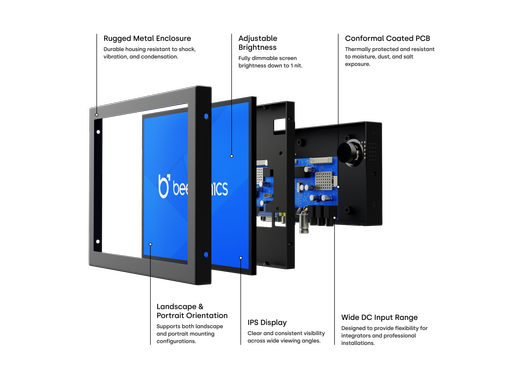

Designed for professional use

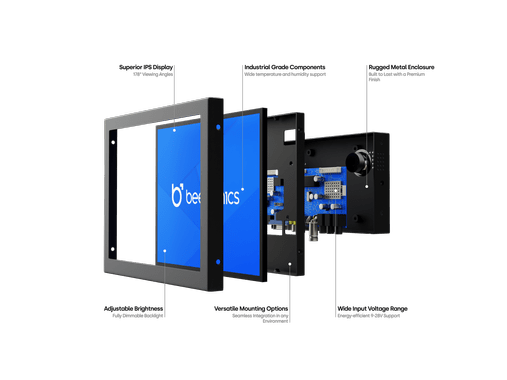

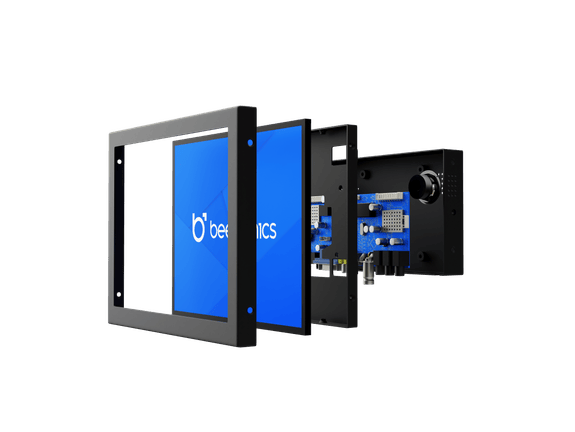

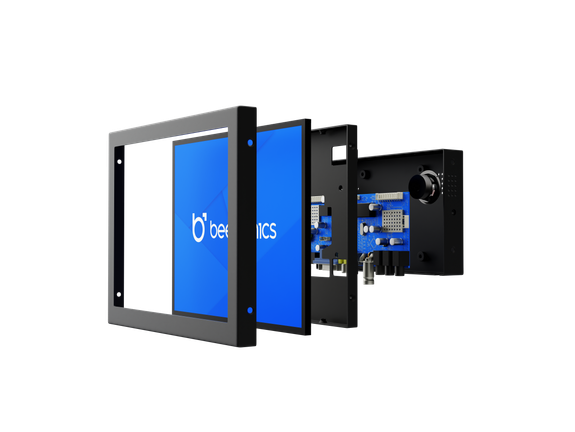

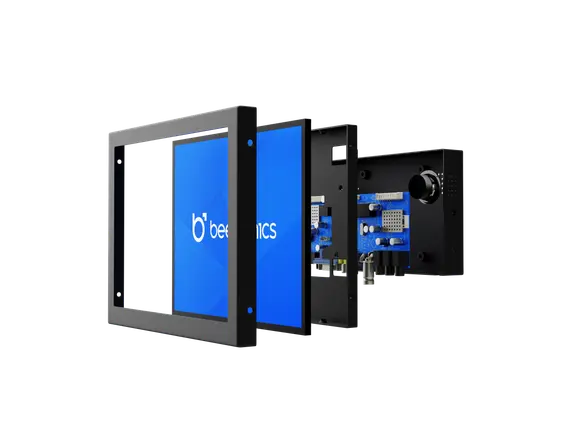

The 8VG3 comes with a sturdy metal housing. The monitor is manufactured with high-quality components that guarantee reliable operation. The 8VG3 is suitable for continuous operation and ideal for professional use.

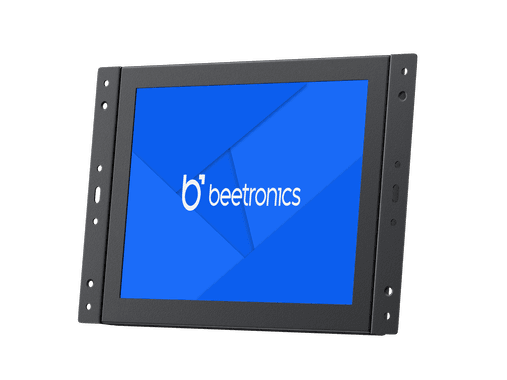

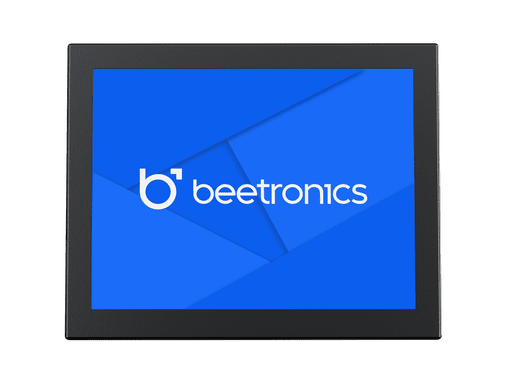

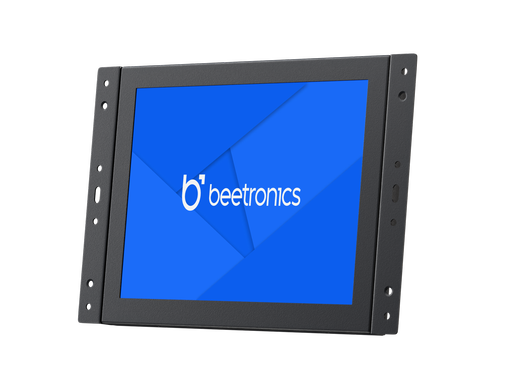

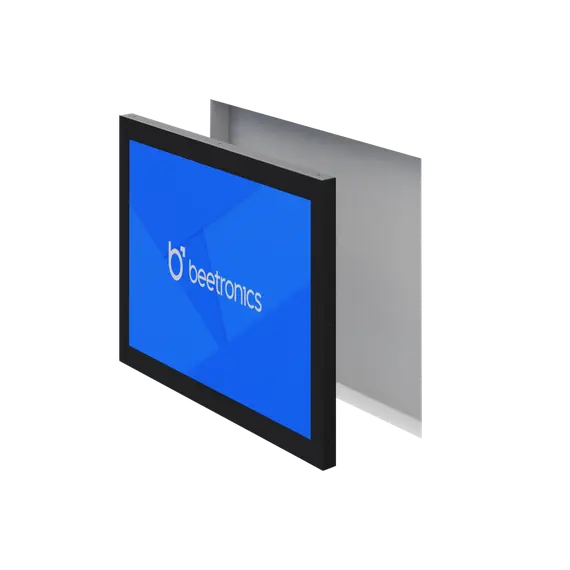

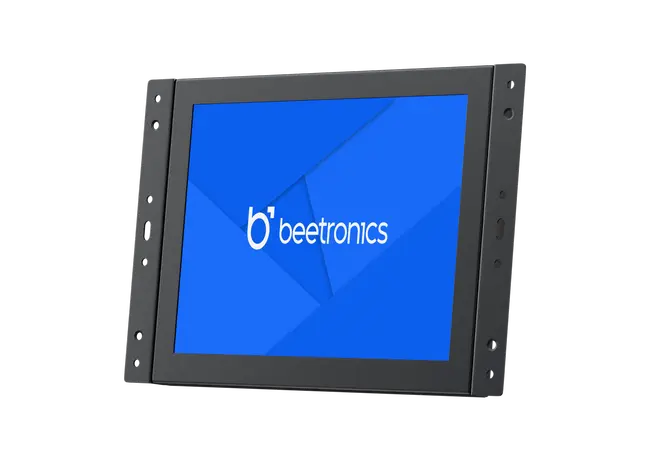

8" monitor flush mount

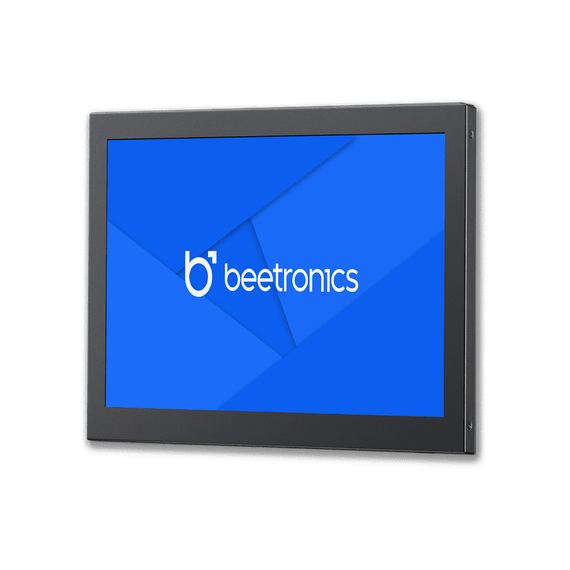

Desktop, flush and wall mountable

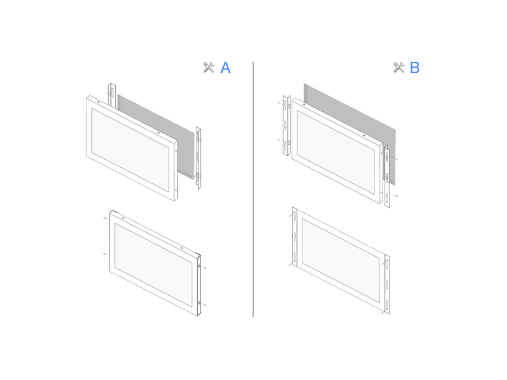

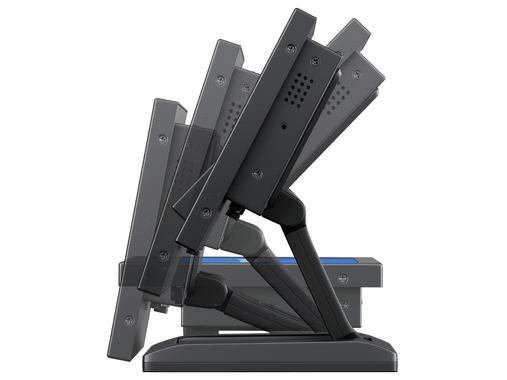

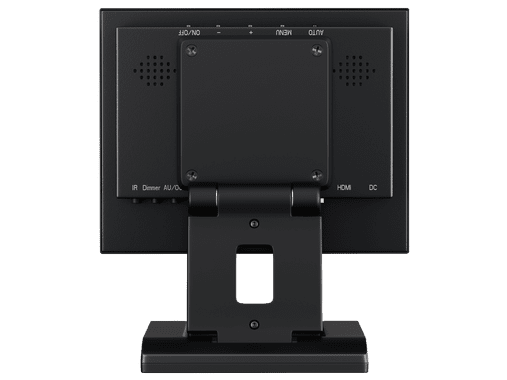

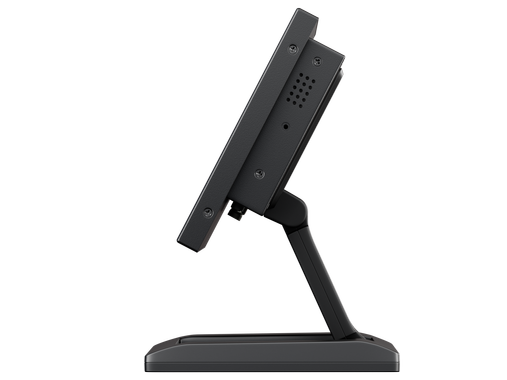

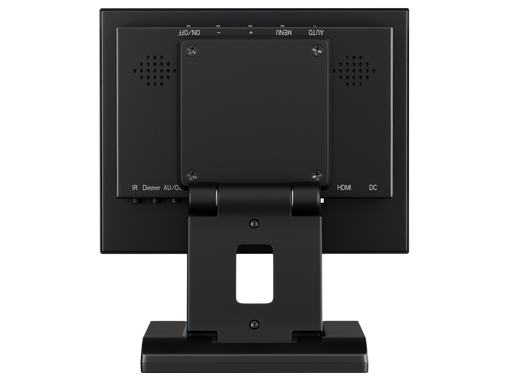

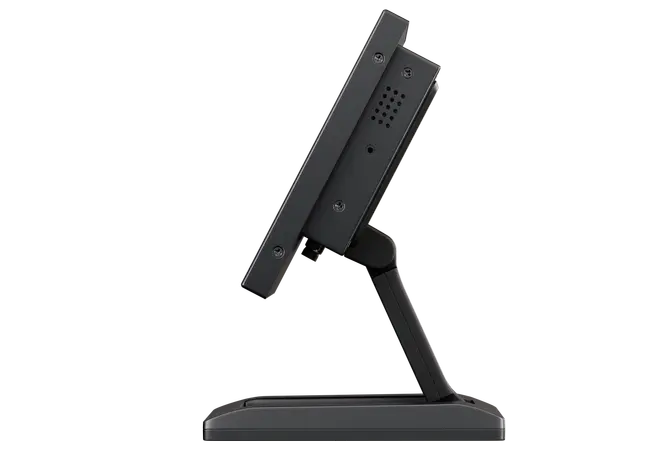

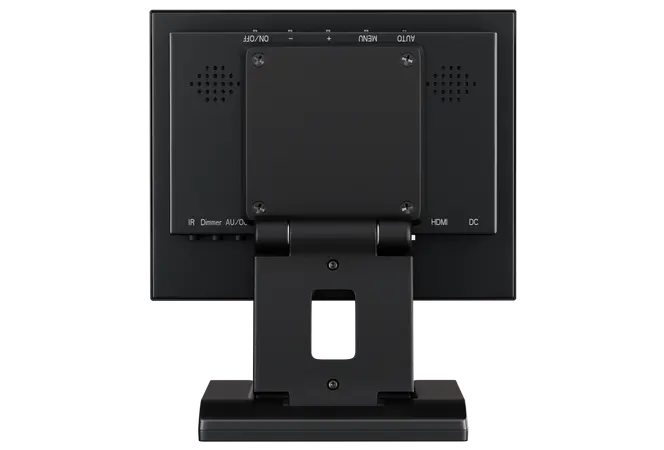

The Beetronics 8 inch monitor 8VG3 is has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

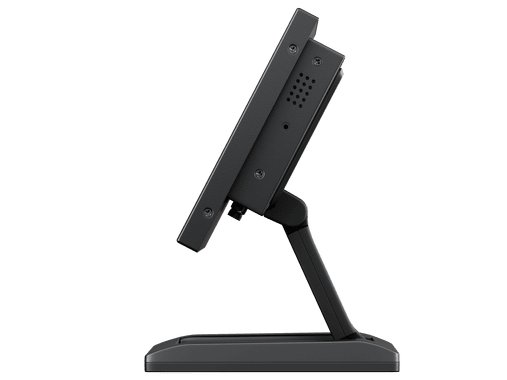

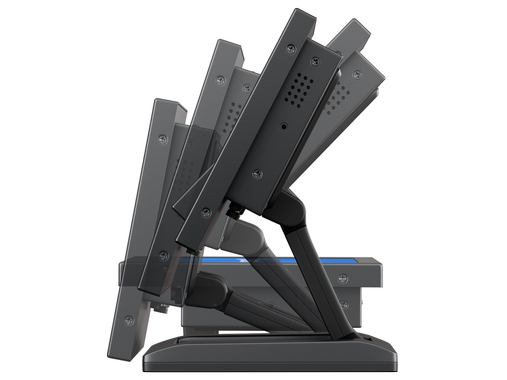

8 inch screen adjustable mount
General
Manufacturer Beetronics
Item number 8VG3
Product name 8 inch monitor metal (4:3)
Warranty 2 years
Datasheet   Download PDF
Manual   Download PDF
Panel
Type Matte, LED-IPS
Screen diagonal 8 inch (20,3 cm)
Aspect ratio 4:3
Native resolution 1024 x 768
Supported resolutions 1920 x 1200 (max), 640 x 480 (min)
Pixels per inch 160 PPI
Viewing angle 178° horizontal, 178° vertical
Colour encoding system PAL/NTSC/SECAM
Brightness 350 cd/m2
Contrast 800:1
Connectivity
HDMI 1x
VGA 1x
BNC (CVBS) 1x
RCA video 1x
Size & weight
Colour Black
Weight 650 gram (1070 gram with stand)
Width 189 mm
Height 150 mm (+0 to 39 mm with stand)
Thickness 34 mm
Display dimensions 164 x 123 mm
Technical drawing   Download PDF
Features and functions
Audio Integrated speakers
Auto-on Automatically powers on when it receives current or a signal
Power
Input voltage DC 12V
Power supply Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption <10 Watt (0.5 Watt standby)
Environmental
Operating temperature -20c° to +60c°
Storage temperature -20c° to +70c°
Operating humidity 20% - 90% non-condensing
Mounting
Wall mount VESA (75 mm)
Flush mount Mounting strips included
Stand Adjustable and detachable
Certifications & Standards
Certifications CE, FCC, RoHS, REACH

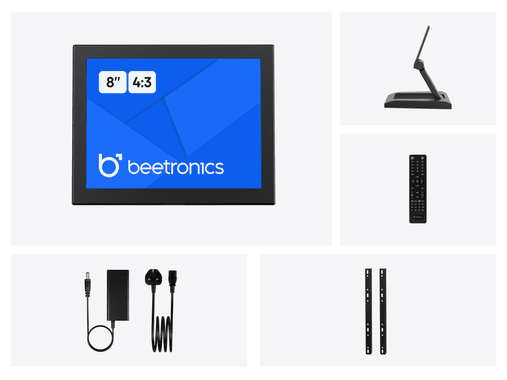

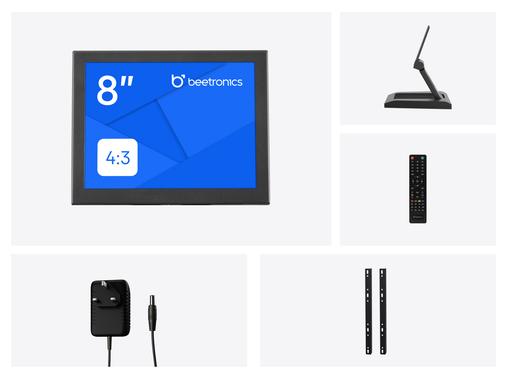

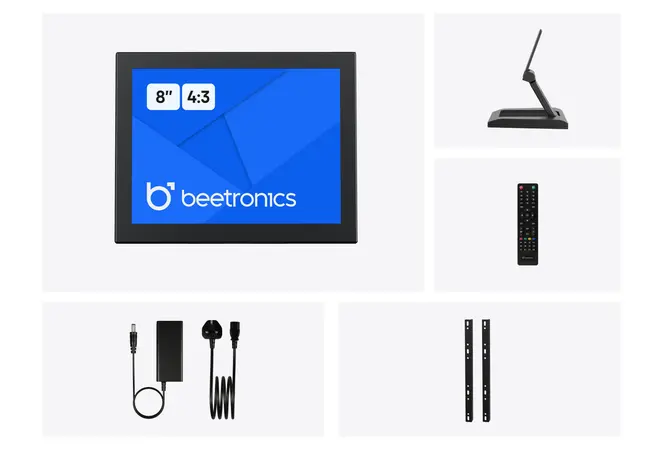

Package content
  1. 8 inch monitor (4:3)
  2. Mounting strips
  3. Remote control
  4. Mains adaptor
  5. Stand
  6. Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA(video)
RCA
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
