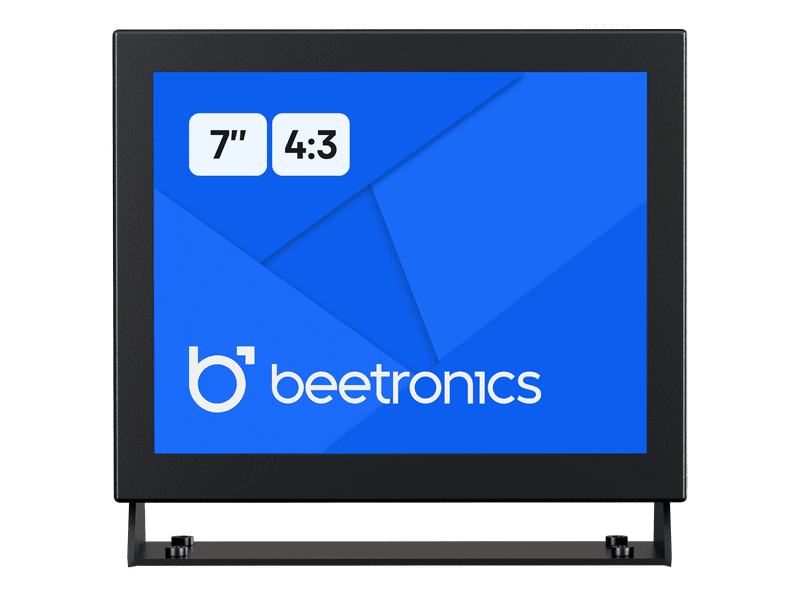

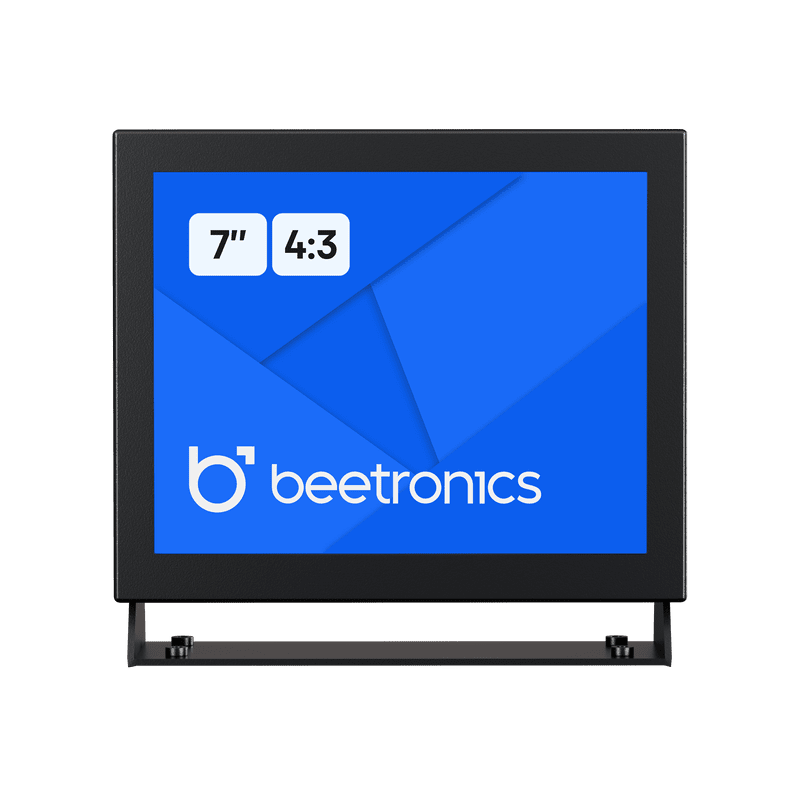

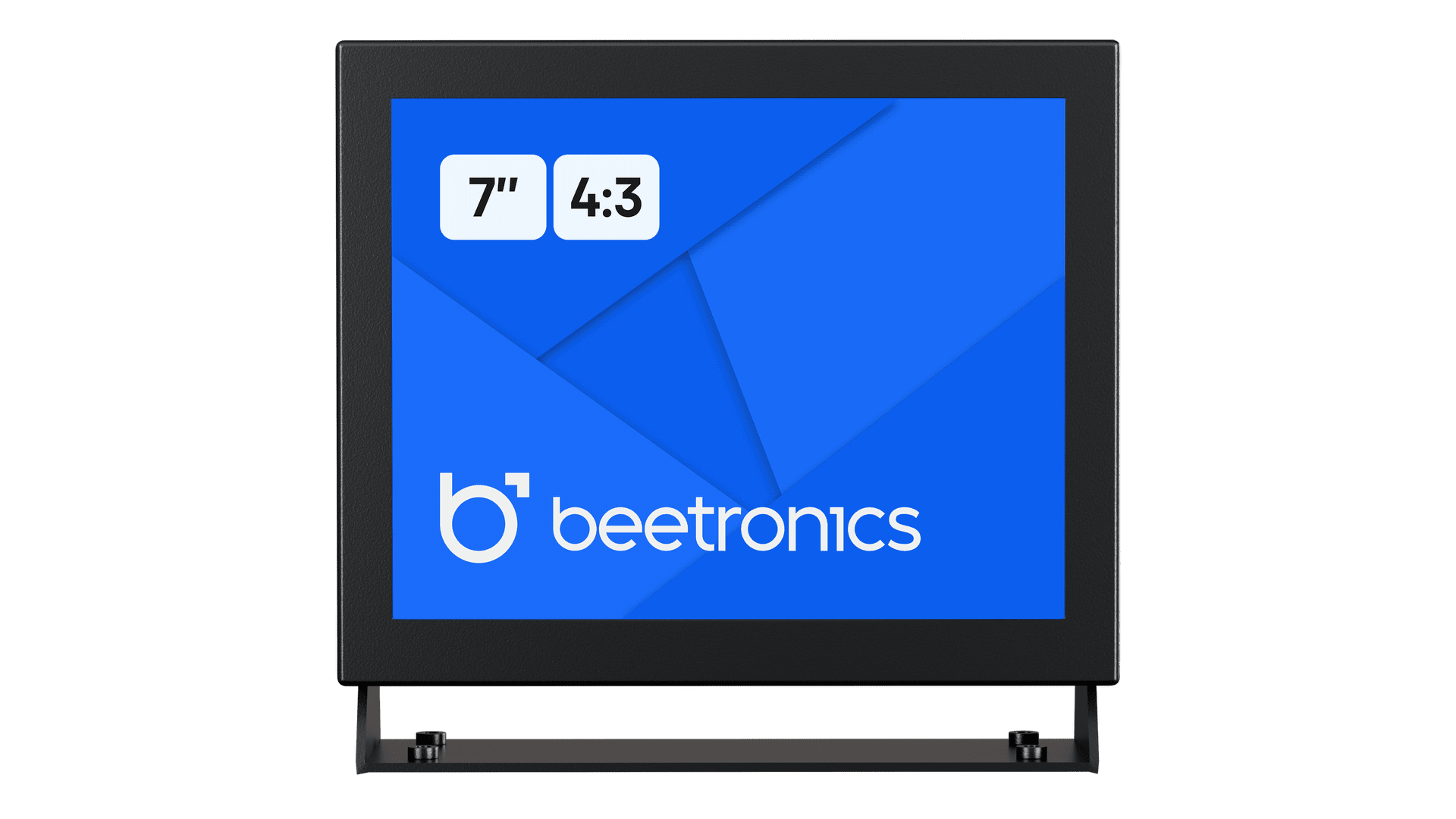

7 inch monitor metal (4:3)

  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable
  4. 169 x 139 x 38 mm
Item number: 7VG3
100+ units in stock

Order before 10:00 pm for free delivery on friday

£205.00 £170.83 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

This 7 inch monitor has a sturdy metal housing and is suitable for desktop, flush and wall mounting. The monitor is equipped with an IPS panel with a 4:3 aspect ratio which provides crystal-clear image quality with 90° viewing angles. The 7VG3 can be connected through a HDMI, VGA, BNC or RCA connection.

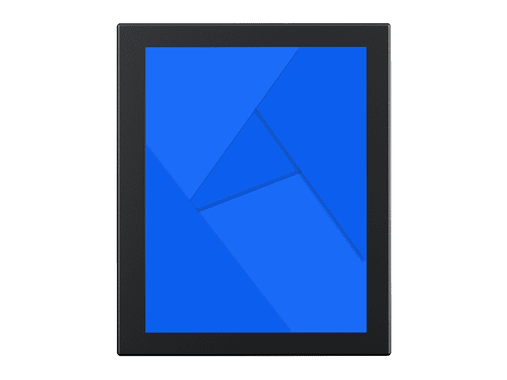

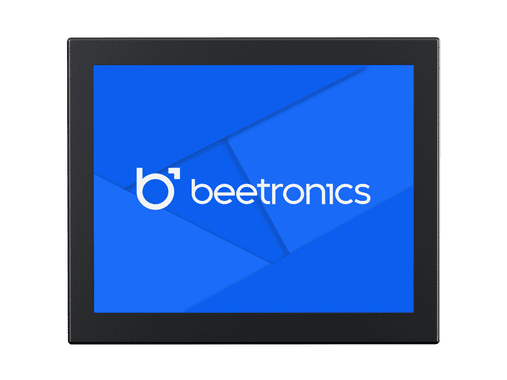

4:3 aspect ratio

The monitor is equipped with an LED panel with a 4:3 aspect ratio. The monitor delivers outstanding image quality, vibrant colours and 90° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, and colour are all very easy to adjust.

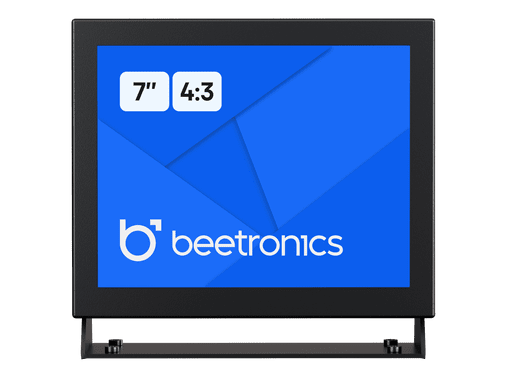

7 inch monitor with adjustable support

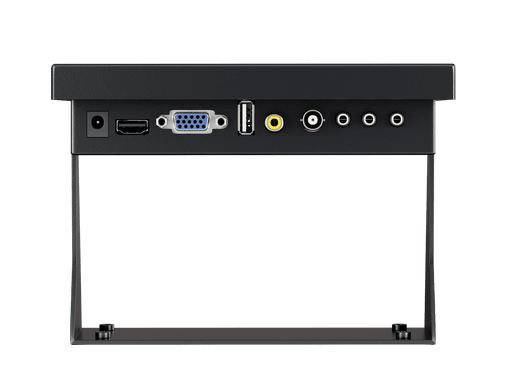

Input: HDMI, VGA, BNC and RCA

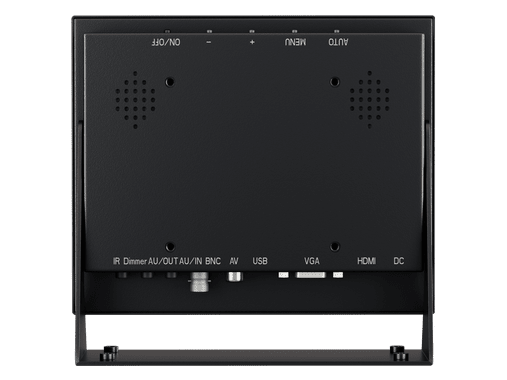

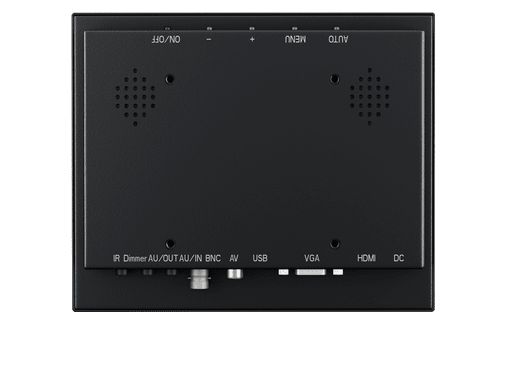

The 7 inch metal monitor has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.

7 inch monitor hdmi, bnc, vga and rca

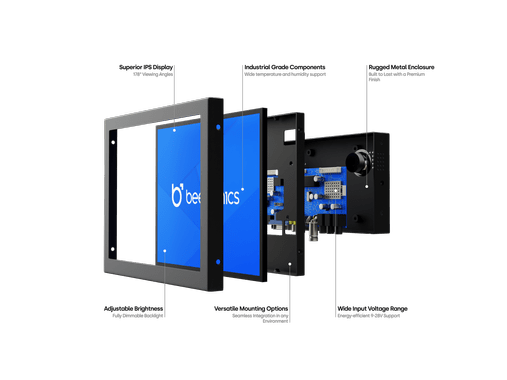

Designed for professional use

The 7VG3 comes with a sturdy metal housing. The monitor is manufactured with high-quality components that guarantee reliable operation. The 7VG3 is suitable for continuous operation and ideal for professional use.

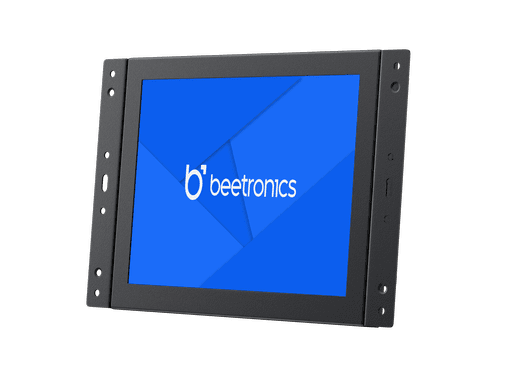

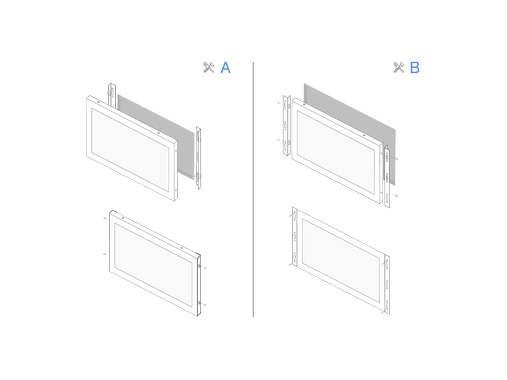

7" monitor flush mount

Desktop, flush and wall mountable

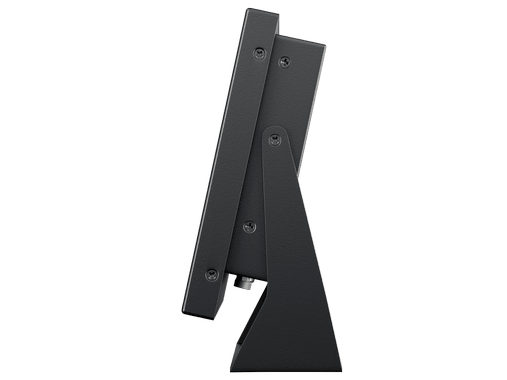

The Beetronics 7 inch monitor 7VG3 is has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

7 inch screen adjustable mount
Manufacturer Beetronics
Item number 7VG3
Product name 7 inch monitor metal (4:3)
Warranty 2 years
Datasheet   Download PDF
Manual   Download PDF
Type LED
Screen diagonal 7 inch (17,8 cm)
Aspect ratio 4:3
Native resolution 1024 x 768
Supported resolutions 1920 x 1200 (max), 640 x 480 (min)
Pixels per inch 182 PPI
Colour encoding system PAL/NTSC/SECAM
Brightness 350 cd/m2
Contrast 800:1
VGA 1x
RCA video 1x

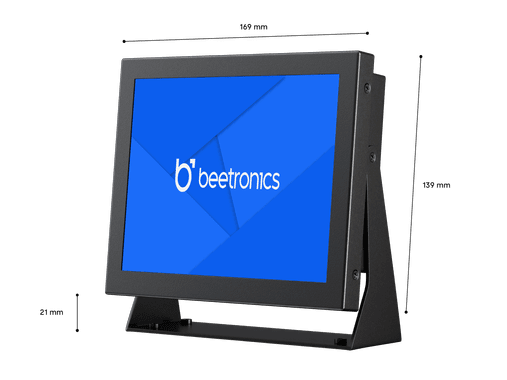

Size & weight
Colour Black
Weight 830 gram (1030 gram with stand)
Width 169 mm
Height 139 mm (+ 21 mm with stand)
Thickness 36 mm
Display dimensions 143 x 107 mm
Technical drawing   Download PDF
Features and functions
Audio Integrated speakers
Key-lock The control buttons can be blocked
Auto-on Automatically powers on when it receives current or a signal
Dimmable Adjustable backlight brightness
Input voltage DC 12V
Power supply Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption <10 Watt (0.5 Watt standby)
Operating temperature -20c° to +60c°
Storage temperature -20c° to +70c°
Operating humidity 20% - 90% non-condensing
Wall mount VESA (75 mm)
Flush mount Mounting strips included
Stand Adjustable and detachable
Certifications & Standards
Certifications CE, FCC, RoHS, REACH
Package content

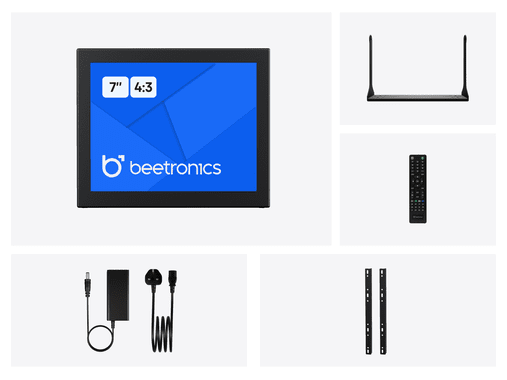

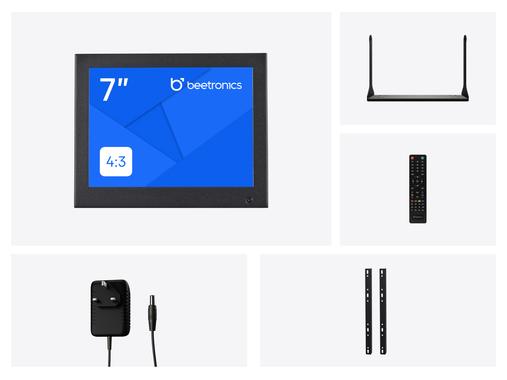

Includes Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual

Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
